![6 1/4" X-Cut® Compact Diagonal Cutters](/vendors/8243/large/7305160-00-3.jpg "6 1/4" X-Cut® Compact Diagonal Cutters")

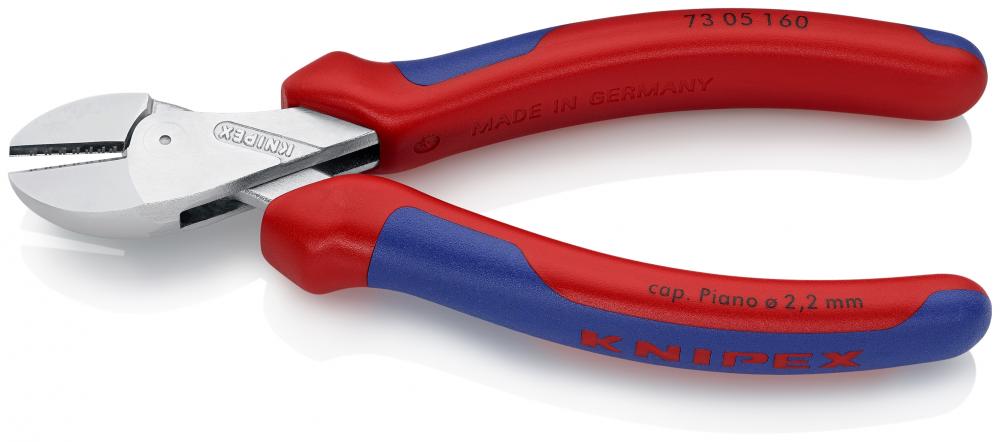

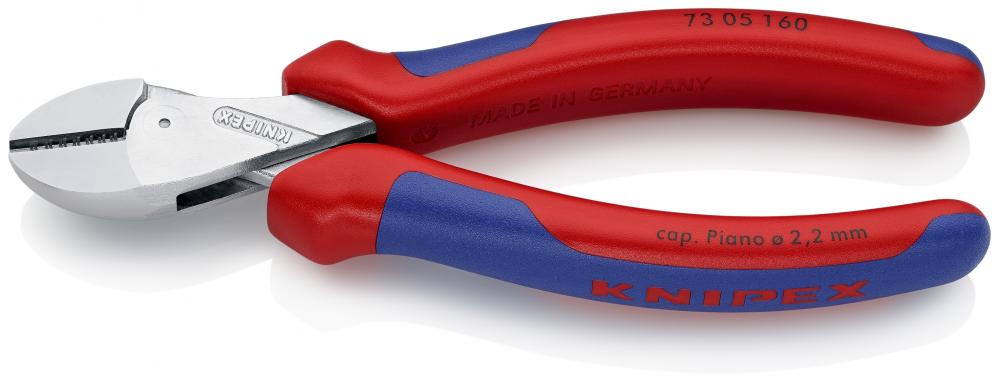

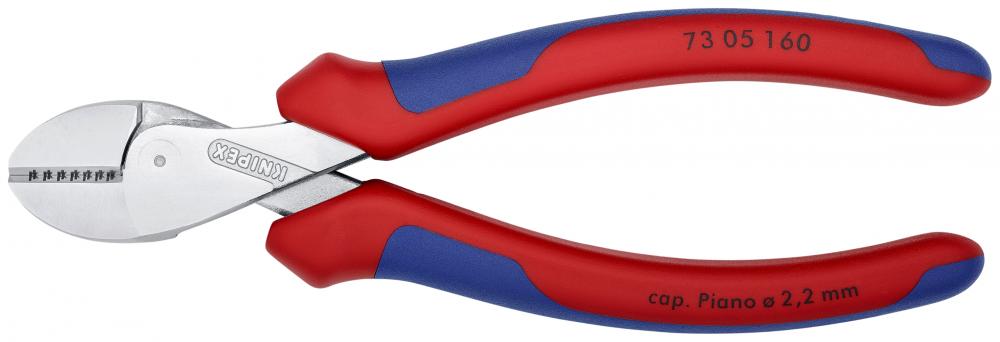

6 1/4" X-Cut® Compact Diagonal Cutters
Call For Price
- Part Number: 73 05 160
- UPC: 00843221020361
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Diagonal Cutting Pliers
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Color:
Red/Blue
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Cu and Al conductor:
15/32"
Cutting Capacity - Hard Wire (Steel Wire):
7/64"
Cutting Capacity - Medium Hard Wire (Nail):
5/32"
Cutting Capacity - Piano Wire:
3/32"
Cutting Capacity - Soft Wire:
3/16"
Cutting Edge HRC:
Approx. 64 HRC
Cutting Edge Shape:
Bevel
Data Sheet Filename:
7305160_en.pdf
DIN:
DIN ISO 5749
ECCN:
EAR99
Handle Type:
Multi-component
Harmonized Tariff Code:
8203.20.6060
Included Products/Items:
Surface Finish: Chrome Plated
Item Height (inches):
7/8"
Item Height inches:
7/8"
Item Length (inches):
6.25
Item Length inches:
6 1/4"
Item Quantity:
1
Item Weight (lbs):
0.395
Item Weight lbs:
0.395
Item Width (inches):
2 1/8"
Item Width inches:
2 1/8"
Joint Type:
Box-joint with rivet
Joint Type 2:
Fixed Joint
Material Type:
Chrome vanadium heavy-duty steel, forged, oil-hardened
Package Height (inches):
1.2"
Package Height inches:
1.2"
Package Length (inches):
6.9"
Package Length inches:
6.9"
Package Weight (lbs):
0.433
Package Weight lbs:
0.433
Package Width (inches):
2.4"
Package Width inches:
2.4"
Packaging Height mm:
51 mm
Packaging Length mm:
264 mm
Packaging Width mm:
94 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Sub Brand Name:
X-Cut®
Surface Finish:
Chrome Plated
Tool Attributes:
40% less effort required compared to diagonal cutters of the same length
Box-joint design for highest stability at low weight
Chrome plated for better chemical resistance
Cuts precisely - even through fine copper wires
Cutting capacity - up to 3/16" for soft wire, up to 5/32" for medium, up to 7/64" for hard , up to 3/32" for piano wire and up to 15/32" for Cu and Al multi conductor cable
Tool Height mm:
50 mm
Tool Length mm:
160 mm
Tool Weight grams:
175 g
Tool Width mm:
60 mm
Unit Of Measure:
Each
UNSPSC:
27112114
UNSPSC Number:
27112114
UOM Qty:
1
UPC Code:
843221020361
Other Details
40% less effort required compared to diagonal cutters of the same length
Box-joint design for highest stability and lightweight
Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
Compact, low weight construction
Cuts all wires precisely, even fine copper wires
Cuts fine strands as well as multi-stranded cables and piano wires
Cutting capacity - up to 3/16" for soft, up to 5/32" for medium, up to 7/64" for hard , up to 3/32" for piano wire and up to 15/32" for Cu and Al multi conductor cable
Double supported joint axis for heavy-duty work
High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
Large opening width for thicker cables
Powerful, light weight and a universal cutter
Universal usage in the assembly, maintenance and production
