![6 1/4" High Leverage Diagonal Cutters-1000V Insulated](/vendors/8243/large/7406160-01-3.jpg "6 1/4" High Leverage Diagonal Cutters-1000V Insulated")

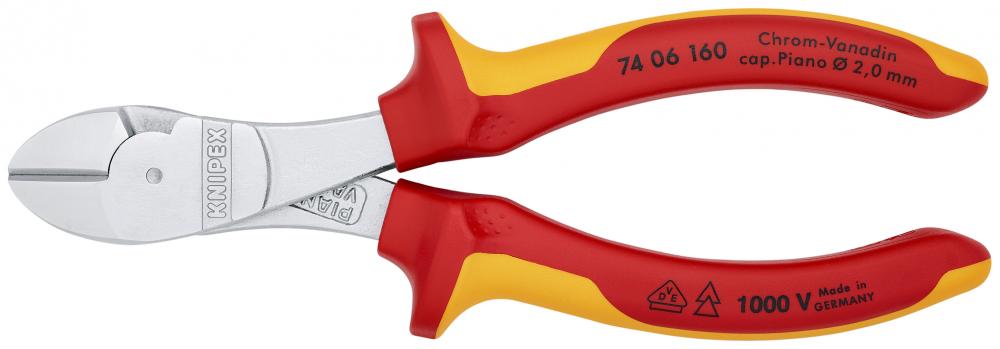

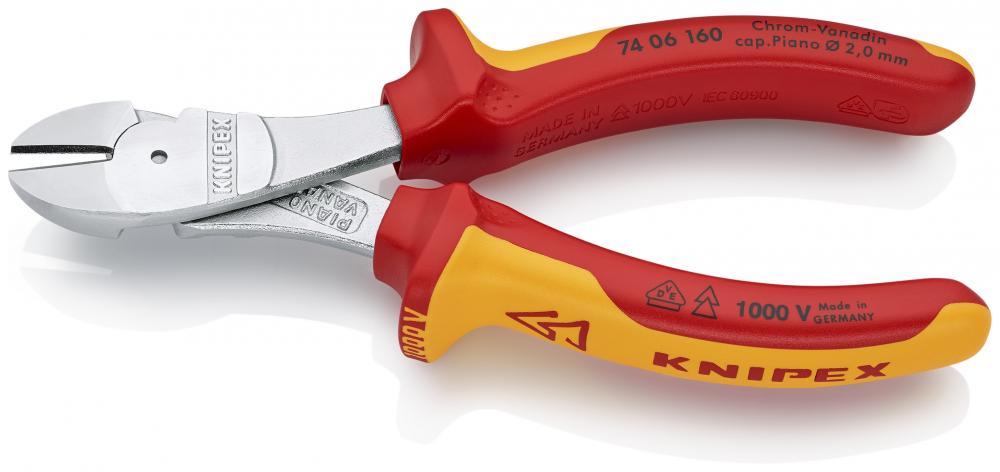

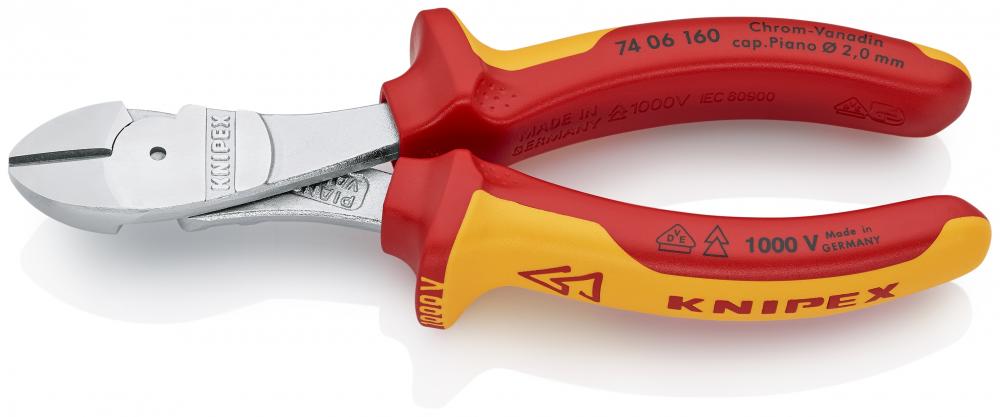

6 1/4" High Leverage Diagonal Cutters-1000V Insulated
Call For Price
- Part Number: 74 06 160
- UPC: 00843221005078
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (5)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Diagonal Cutting Pliers
1000 Volt Insulated:
Yes
Brand Name:
KNIPEX
Color:
Red/Yellow
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Hard Wire (Steel Wire):
3/32"

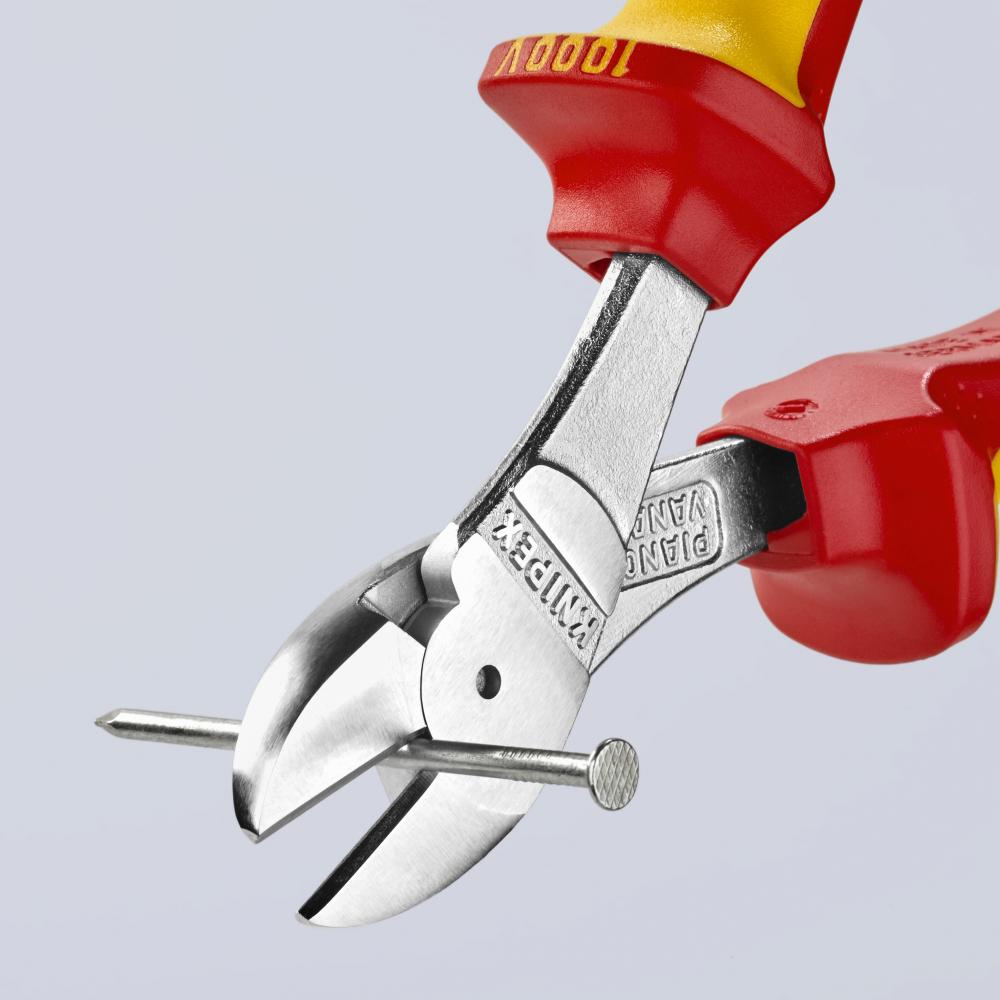

Cutting Capacity - Medium Hard Wire (Nail):
1/8"

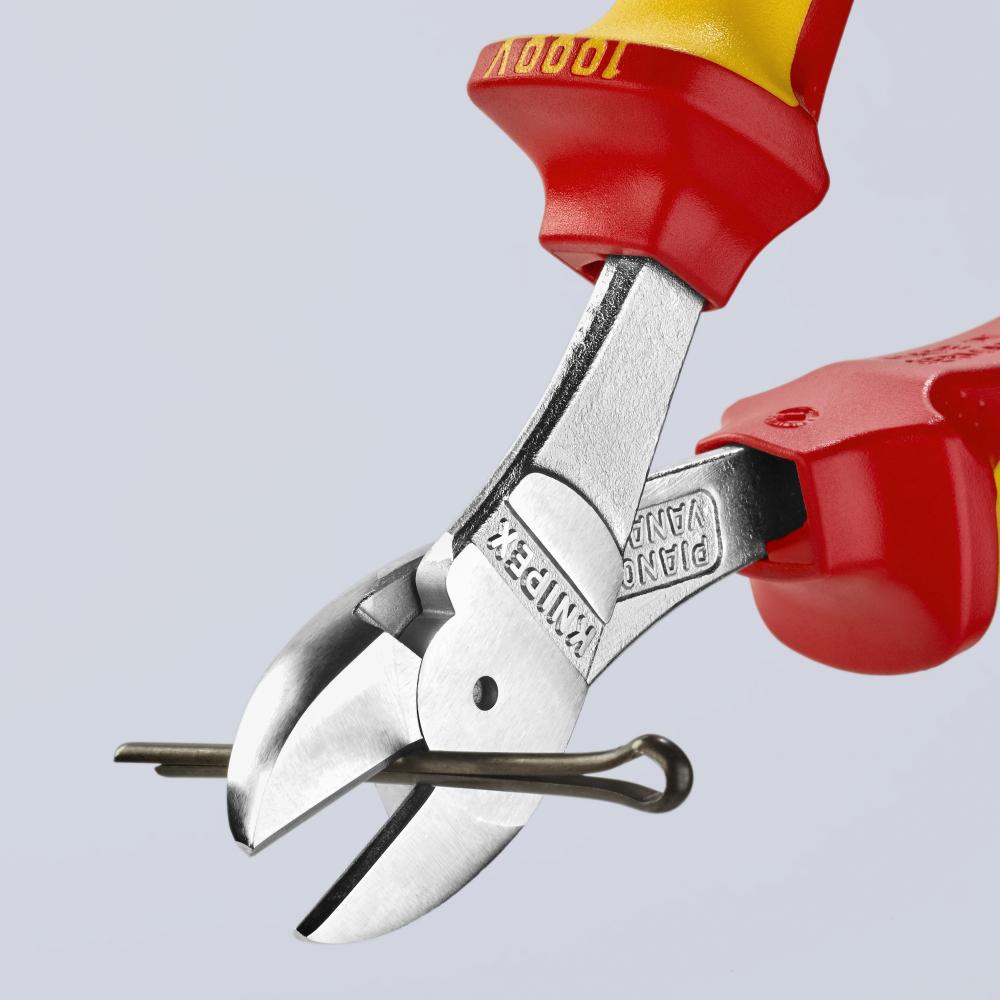

Cutting Capacity - Piano Wire:
5/64"
Cutting Capacity Hard Wire Steel Wire:
3/32"
Cutting Capacity Medium Hard Wire Nail:
1/8"
Cutting Capacity Piano Wire:
5/64"
Cutting Edge HRC:
Approx. 64 HRC
Cutting Edge Shape:
Bevel
Data Sheet Filename:
7406160_en.pdf
ECCN:
EAR99
Handle Type:
1000V Insulated, multi-component, VDE
Harmonized Tariff Code:
8203.20.6060
IEC:
IEC 60900
Included Products/Items:
Surface Finish: Chrome Plated
Item Height (inches):
1 3/16"
Item Height inches:
1 3/16"
Item Length (inches):
6.25
Item Length inches:
6 1/4"
Item Quantity:
1
Item Weight (lbs):
0.515
Item Weight lbs:
0.515
Item Width (inches):
2 1/4"
Item Width inches:
2 1/4"
Joint Type:
Forged-in axle
Joint Type 2:
Fixed Joint
Material Type:
Chrome vanadium heavy-duty steel, forged, oil-hardened
Package Height (inches):
1.3"
Package Height inches:
1.3"
Package Length (inches):
7"
Package Length inches:
7"
Package Weight (lbs):
0.55
Package Weight lbs:
0.55
Package Width (inches):
2.3"
Package Width inches:
2.3"
Packaging Height mm:
30 mm
Packaging Length mm:
177 mm
Packaging Width mm:
61 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Chrome Plated
Tool Attributes:
20% reduction in required force compared to conventional diagonal cutters of the same length
All insulated tools meet the requirements of ASTM F1505
Cutting Capacity - up to 1/8" for medium wire, up to 3/32" for hard and up to 5/64" for piano wire
High leverage means less force required because the rivet is closer to the cutting edge
Precision cutting edges
Tool Height mm:
19 mm
Tool Length mm:
160 mm
Tool Weight grams:
215 g
Tool Width mm:
60 mm
Unit Of Measure:
Each
UNSPSC:
27112114
UNSPSC Number:
27112114
UOM Qty:
1
UPC Code:
843221005078
Other Details
1000V multi-component grips, VDE-tested
20% less effort required compared to conventional diagonal cutters of the same length
Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
For very tough, continuous use
Forged-on axle for heavy-duty work
High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire
