![6 1/4" Combination Pliers-1000V Insulated](/vendors/8243/large/0308160-00-3.jpg "6 1/4" Combination Pliers-1000V Insulated")

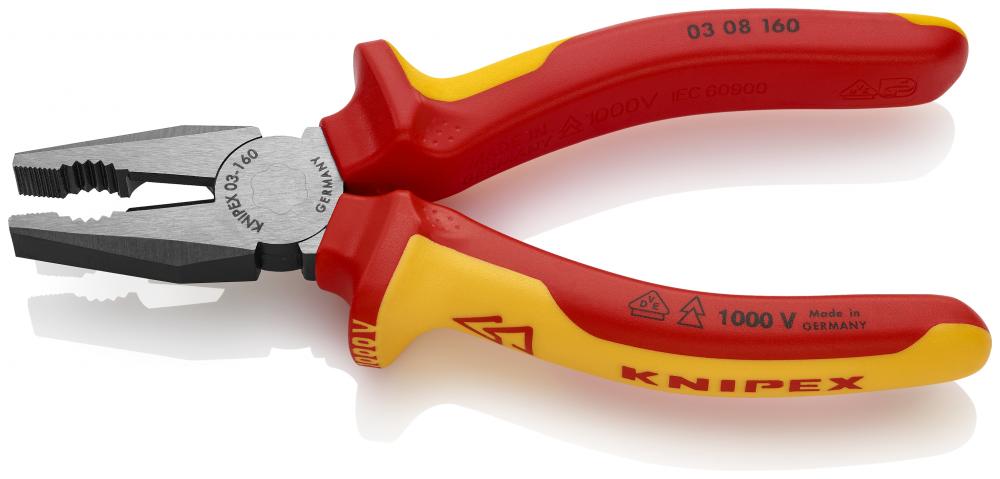

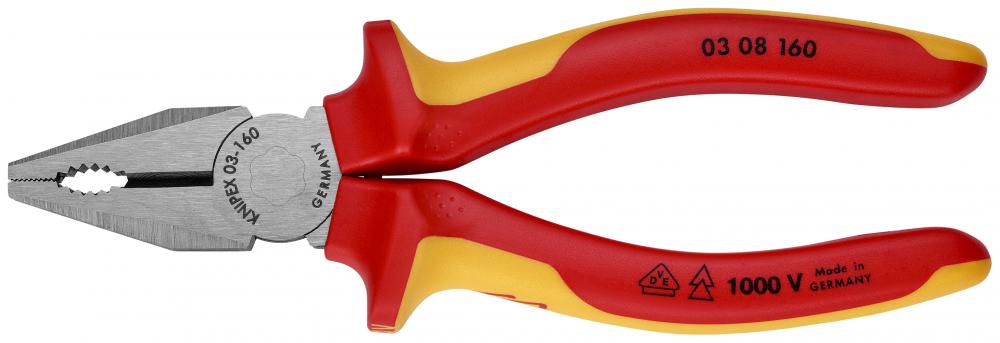

6 1/4" Combination Pliers-1000V Insulated
Call For Price
- Part Number: 03 08 160 SBA
- UPC: 00843221018610
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Linemans Pliers
1000 Volt Insulated:
Yes
Brand Name:
KNIPEX
Color:
Red/Yellow
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Cu and Al conductor:
25/64"
Cutting Capacity - Hard Wire (Steel Wire):
5/64"
Cutting Capacity - Medium Hard Wire (Nail):
1/8"
Cutting Capacity Cu And Al Conductor:
25/64"
Cutting Capacity Hard Wire Steel Wire:
5/64"
Cutting Capacity Medium Hard Wire Nail:
1/8"
Cutting Edge HRC:
Approx. 60 HRC
Cutting Edge Shape:
Bevel
ECCN:
EAR99
Gripping Surface:
Serrated
Handle Length:
4 1/4"
Handle Type:
1000V Insulated, multi-component, ASTM
Harmonized Tariff Code:
8203.20.6030
Included Products/Items:
Gripping Surface: Serrated
Item Height (inches):
1 1/8"
Item Height inches:
1 1/8"
Item Length (inches):
6.25
Item Length inches:
6 1/4"
Item Quantity:
1
Item Weight (lbs):
0.515
Item Weight lbs:
0.515
Item Width (inches):
2 1/8"
Item Width inches:
2 1/8"
Joint Type:
Rivet
Joint Type 2:
Fixed Joint
Material Type:
Special tool steel, forged, multi stage oil-hardened
Nomintal Length mm:
160
Other Surface Finish:
Black atramentized
Package Height (inches):
1.55"
Package Height inches:
1.55"
Package Length (inches):
9.55"
Package Length inches:
9.55"
Package Weight (lbs):
0.58
Package Weight lbs:
0.58
Package Width (inches):
3.8"
Package Width inches:
3.8"
Packaging Height mm:
92 mm
Packaging Length mm:
344 mm
Packaging Width mm:
115 mm
Prop 65 Conflict:
View
Reach:
No
RoHS:
No
Surface Finish:
Polished
Tool Attributes:
All insulated tools meet the requirements of ASTM F1505.
Cutting edge hardness approx. 60 HRC.
Cutting edges for soft and hard wire.
Cutting edges induction hardened for longer life and for more durable cutting.
Gripping zones for flat and round material for a variety of uses.
Long cutting edges for thicker cables.
Special tool steel; forged, multi stage oil-hardened.
Tool Height mm:
19 mm
Tool Length mm:
160 mm
Tool Weight grams:
262 g
Tool Width mm:
115 mm
Unit Of Measure:
Each
UNSPSC:
27112139
UNSPSC Number:
27112139
UOM Qty:
1
UPC Code:
843221018610
Other Details
1000V multi-component grips, ASTM F1505-tested
Cutting edge hardness (approx. 60 HRC)
Cutting edges for soft and hard wire
Gripping zones for flat and round material for a variety of uses
Long cutting edges for thicker cables
Special tool steel; forged, multi stage oil-hardened
