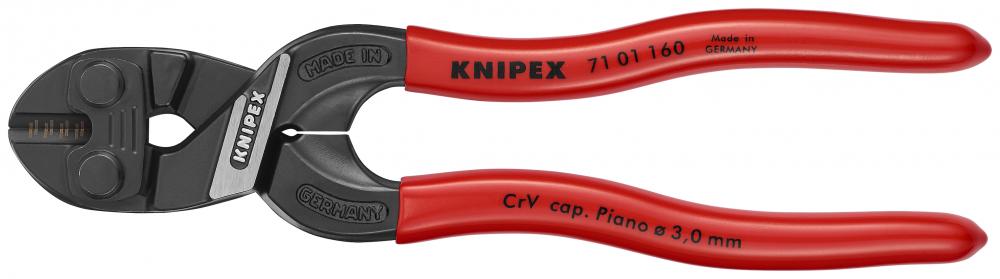

![6 1/4" CoBolt® S Compact Bolt Cutters](/vendors/8243/large/7101160-00-3.jpg "6 1/4" CoBolt® S Compact Bolt Cutters")

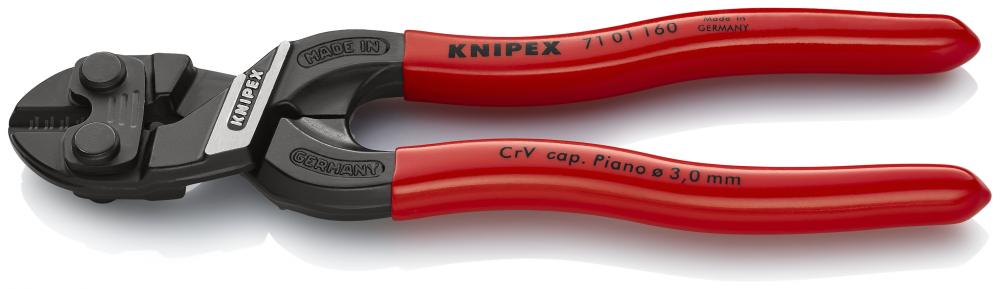

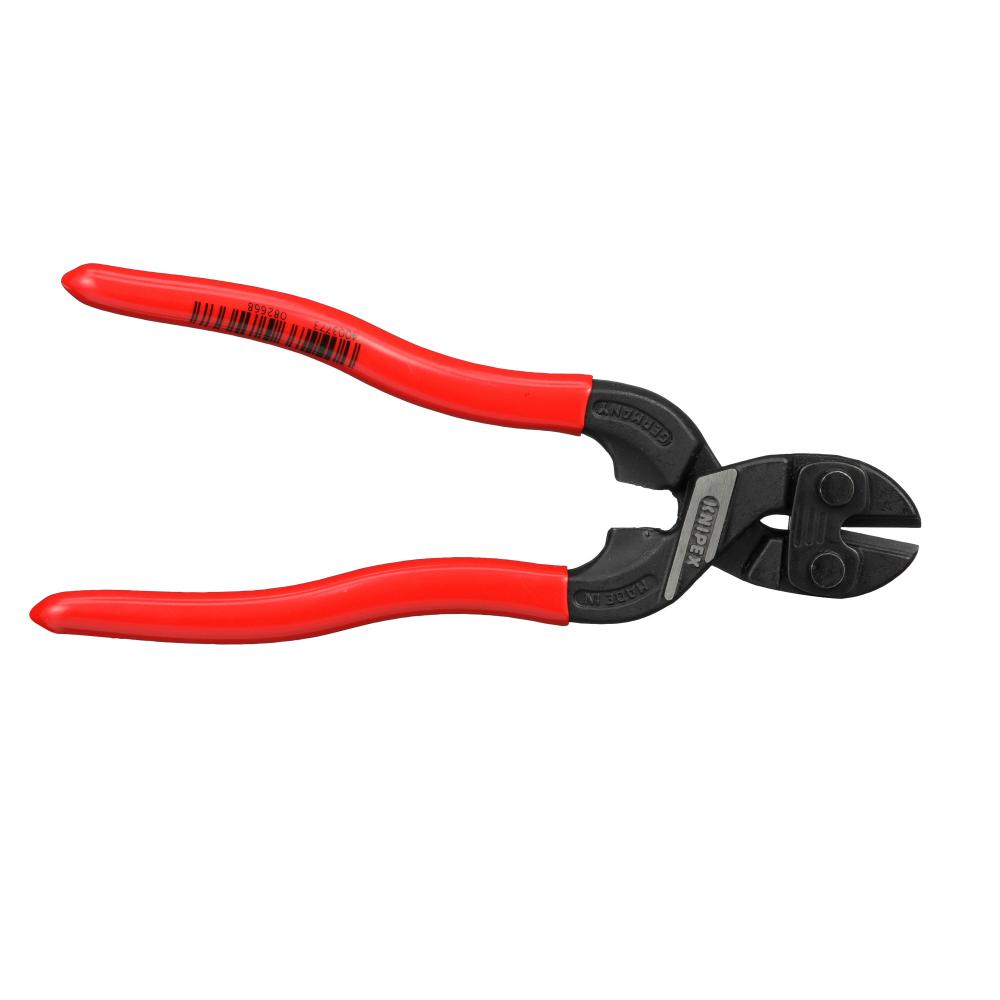

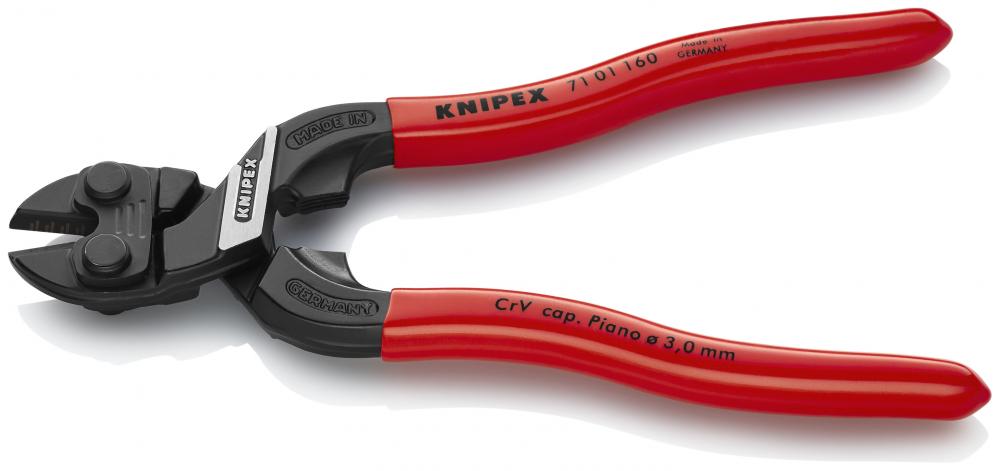

6 1/4" CoBolt® S Compact Bolt Cutters
Call For Price
- Part Number: 71 01 160
- UPC: 00843221023232
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Cutting Tools
Industrial Subtype:
Bolt Cutters
1000 Volt Insulated:
No
Blade Length:
1"
Brand Name:
KNIPEX
Color:
Red
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Hard Wire (Steel Wire):
1/8"
Cutting Capacity - Medium Hard Wire (Nail):
11/64"
Cutting Capacity - Piano Wire:
1/8"
Cutting Capacity - Soft Wire:
13/64"
Cutting Edge HRC:
Approx. 64 HRC
Cutting Edge Shape:
Center cut
Data Sheet Filename:
7101160_en.pdf
ECCN:
EAR99
ESD Indicator:
No
Handle Length:
4"
Handle Type:
Plastic coating
Harmonized Tariff Code:
8203.40.3000
Included Products/Items:
Surface Finish: Black atramentized
Item Height (inches):
9/16"
Item Height inches:
9/16"
Item Length (inches):
6.25
Item Length inches:
6 1/4"
Item Quantity:
1
Item Weight (lbs):
0.437
Item Weight lbs:
0.437
Item Width (inches):
1 25/32"
Item Width inches:
1 25/32"
Joint Type:
Rivet
Joint Type 2:
Fixed Joint
Material Type:
Chrome vanadium heavy-duty steel, forged, oil-hardened
Package Height (inches):
1.01"
Package Height inches:
1.01"
Package Length (inches):
6.62"
Package Length inches:
6.62"
Package Weight (lbs):
0.472
Package Weight lbs:
0.472
Package Width (inches):
2.02"
Package Width inches:
2.02"
Packaging Height mm:
25 mm
Packaging Length mm:
167 mm
Packaging Width mm:
51 mm
Prop 65 Conflict:
View
Reach:
contains SVHC
RoHS:
not applicable
Spring Loaded:
No
Sub Brand Name:
CoBolt®
Surface Finish:
Black atramentized
Tool Attributes:
Compact and powerful at 6 1/4 in. - cuts nails, small bolts, rivets up to 11/64 in. diameter

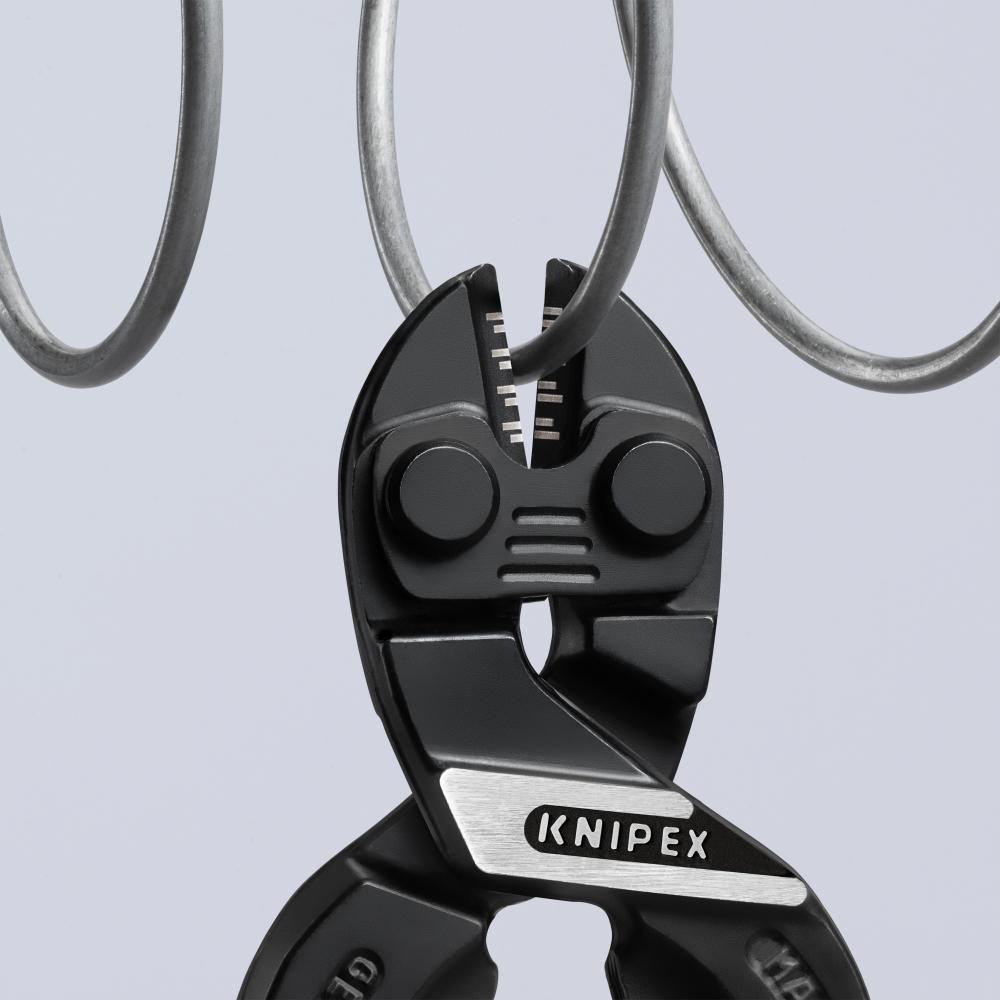

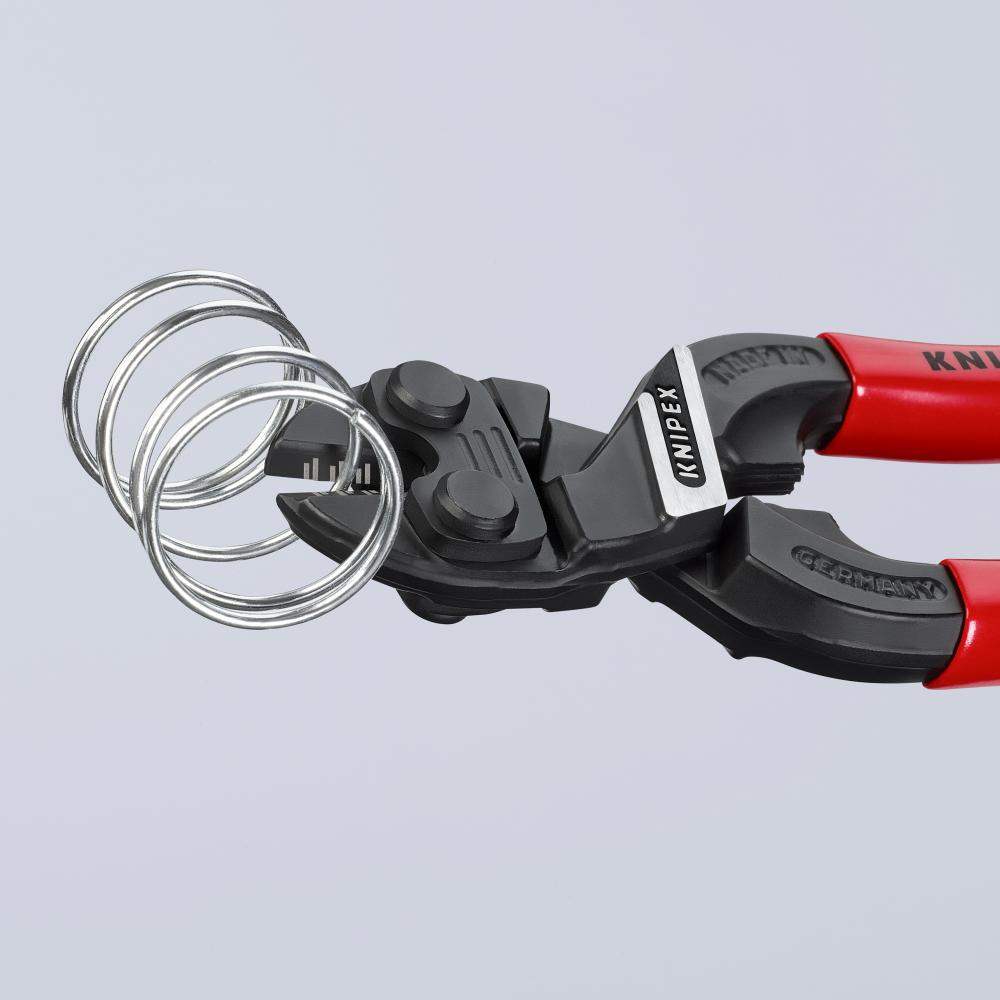

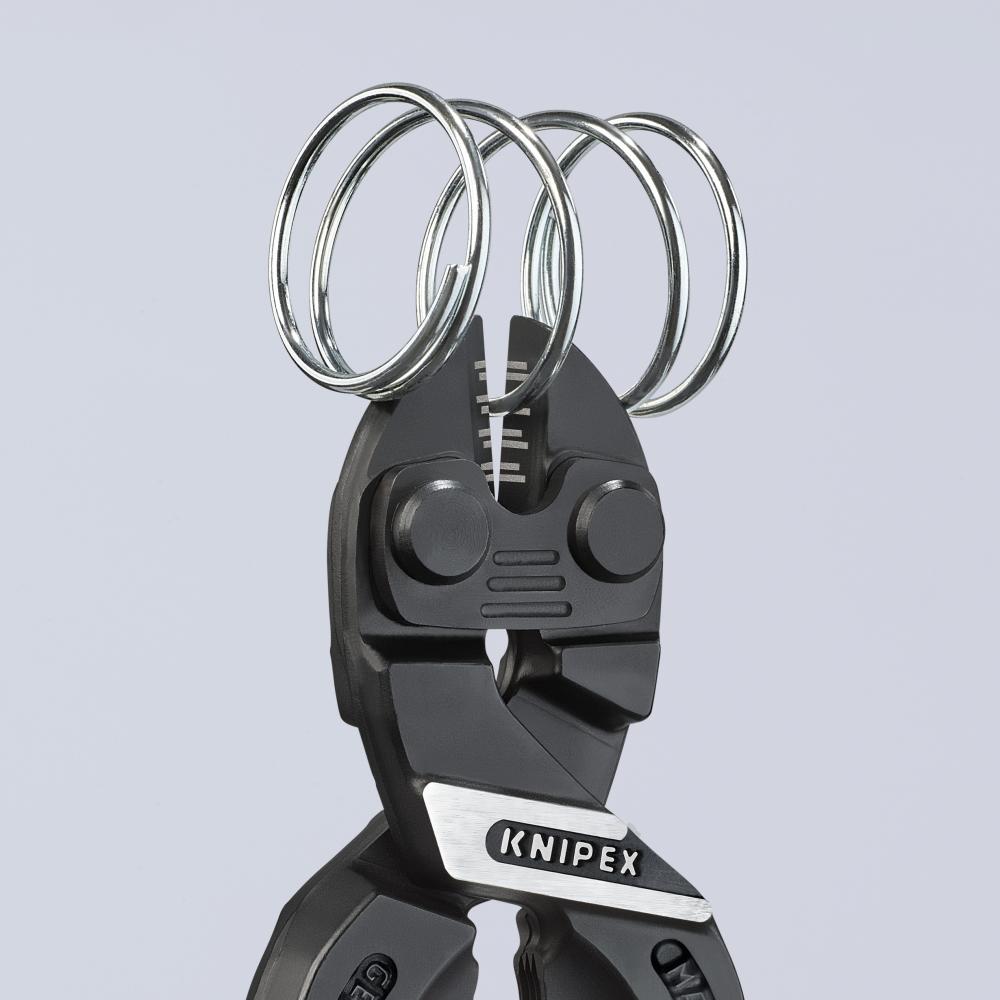

Cutting capacity - up to 13/64 in. for soft wire, up to 11/64 in. for medium, up to 1/8 in. for hard and up to 1/8 in. for piano wire
Cutting edges induction hardened for longer life and for more durable cutting

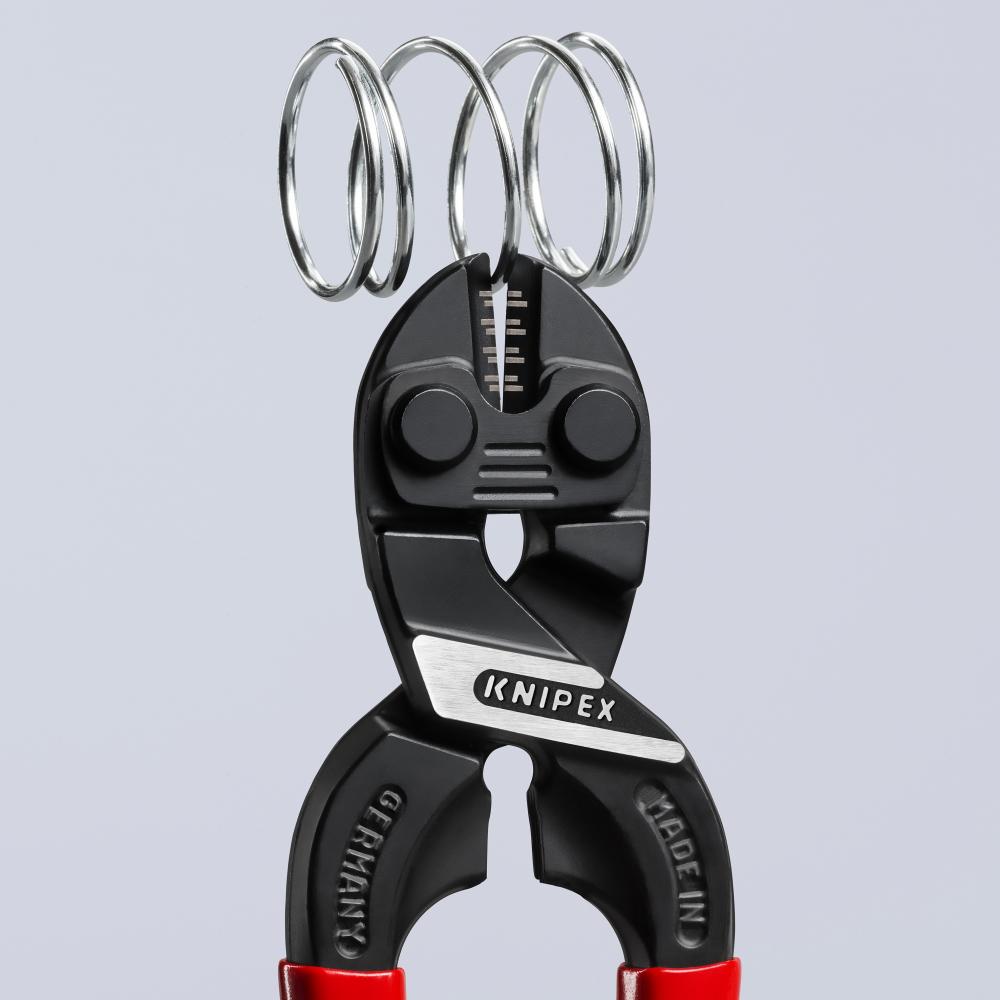

Gripping surface below the joint for gripping and pulling wires with a diameter from 3/64 in.
Lasered cutting edge prevents slipping of material being cut
Small, slim head for better access to confined areas
Strongest cutters of their length due to lever action design
Tool Height mm:
13 mm
Tool Length mm:
160 mm
Tool Weight grams:
200 g
Tool Width mm:
46 mm
Unit Of Measure:
Each
UNSPSC:
27111512
UNSPSC Number:
27111512
UOM Qty:
1
UPC Code:
843221023232
Other Details
Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
Cuts materials like bolts, nails, rivets, etc. up to 13/64" (5.3 mm) diameter
Exceptional cutting performance with minimum effort because of lever action design
Exceptional cutting performance: 60% less effort compared to conventional high leverage diagonal cutters
Gripping surface below the joint for gripping and pulling wires with a diameter from 3/64"
Induction hardened cutting edges (approx. 64 HRC) for cutting soft, hard and piano wire

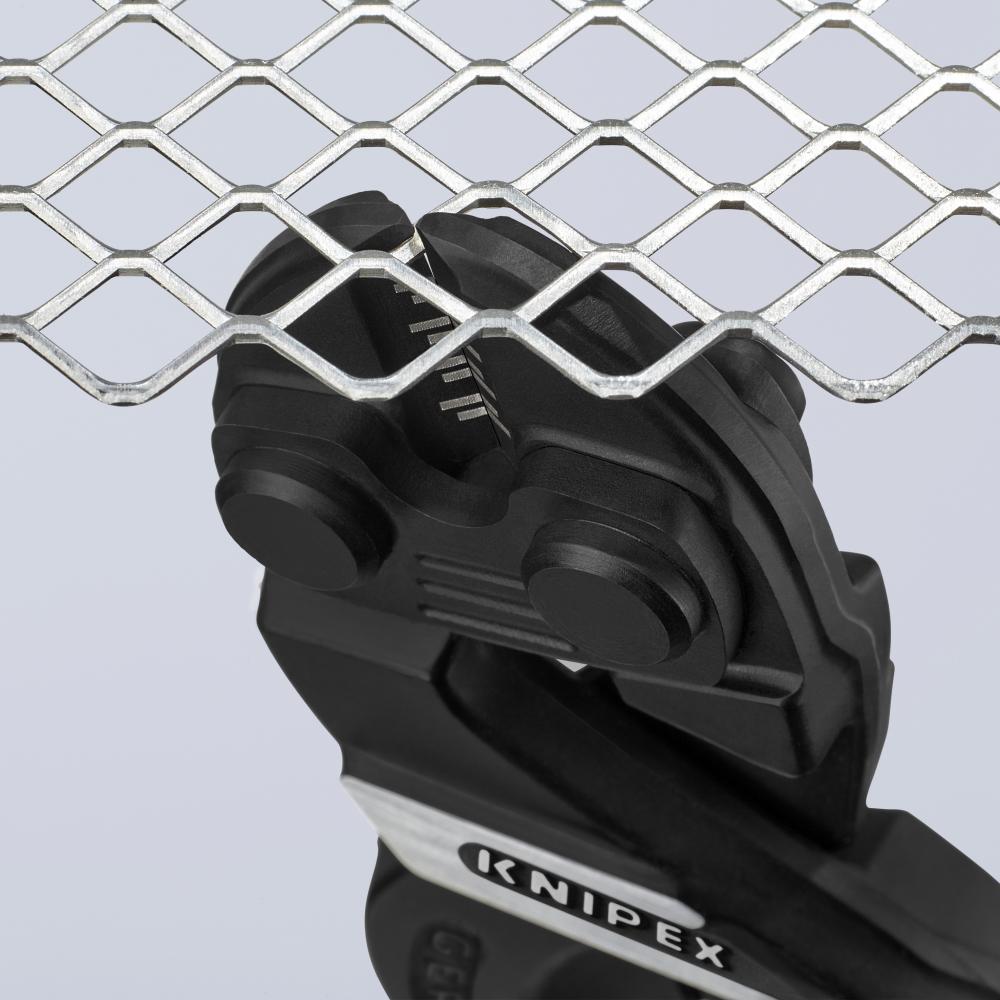

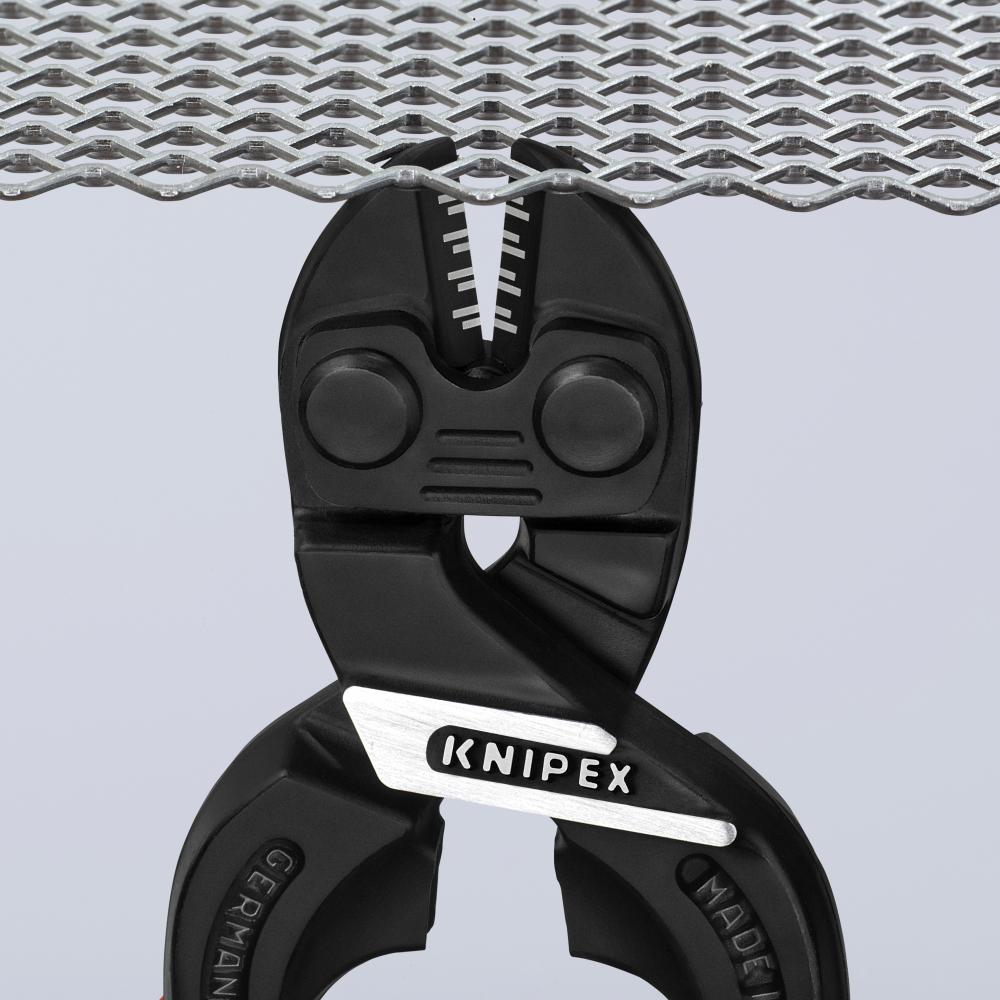

Micro-structured cutting edges allow easy cutting of large cross-sections
Straight blade
