![6 1/2" Cable Shears-1000V Insulated](/vendors/8243/large/9526165-01-3.jpg "6 1/2" Cable Shears-1000V Insulated")

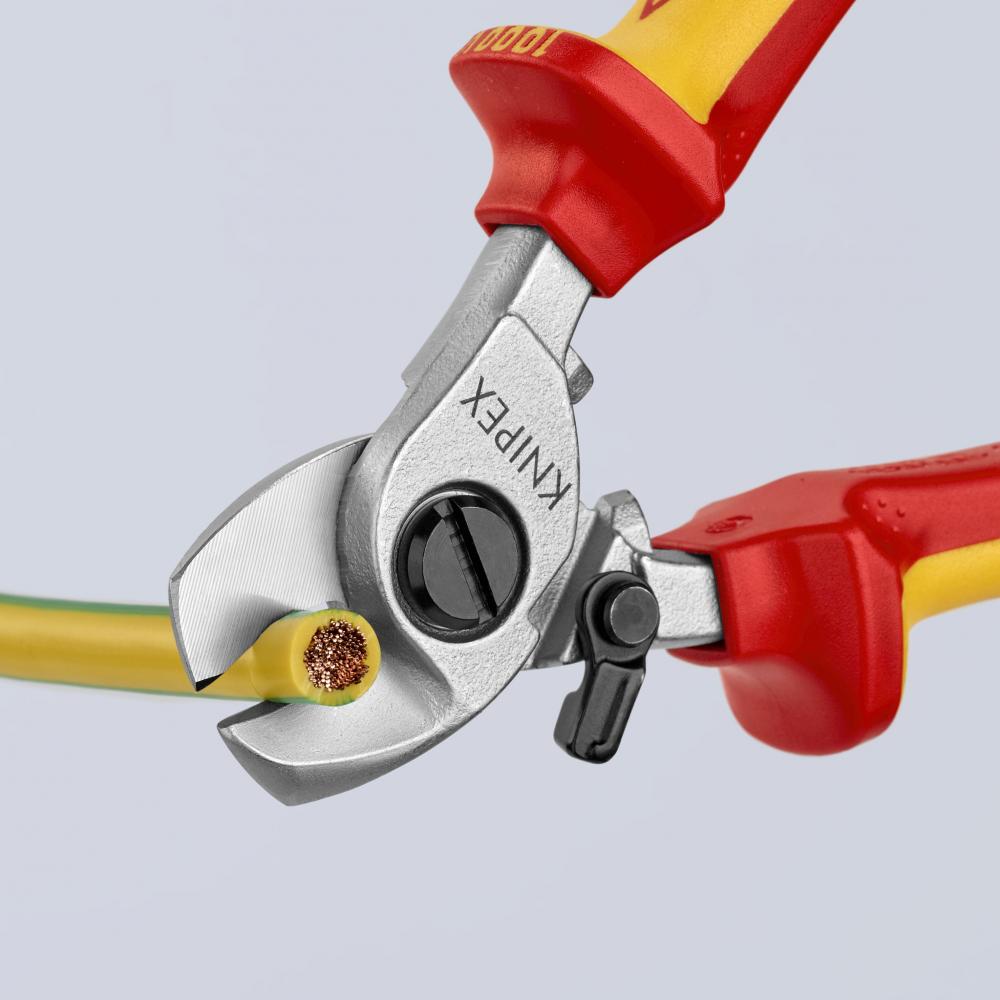

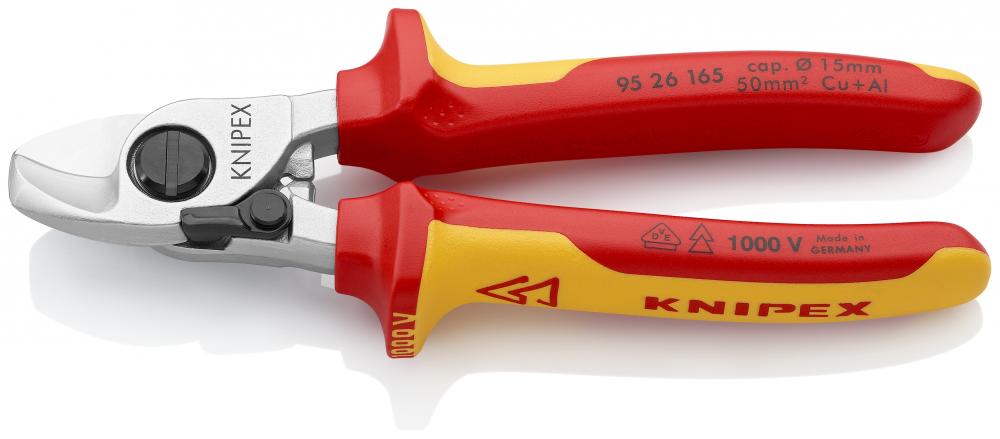

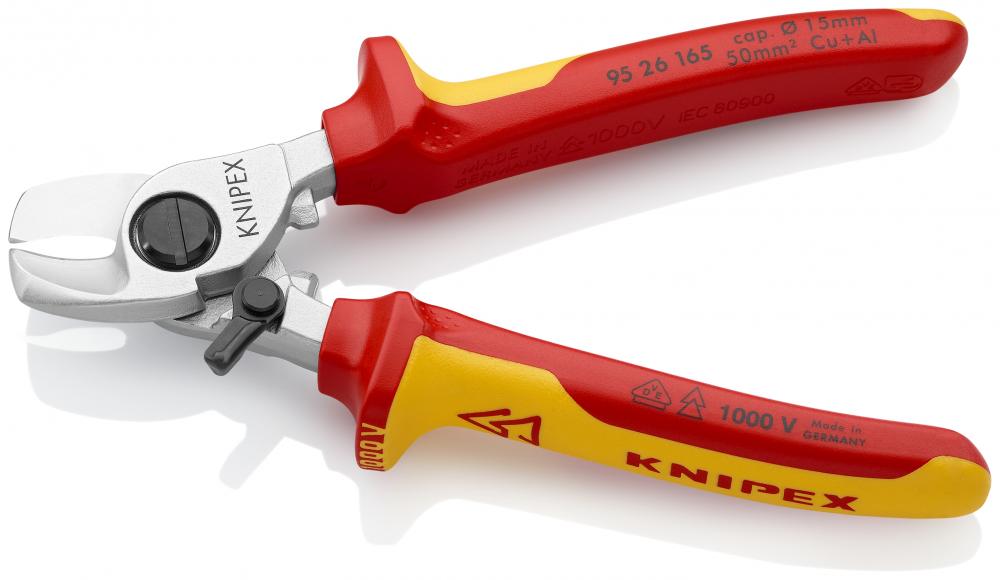

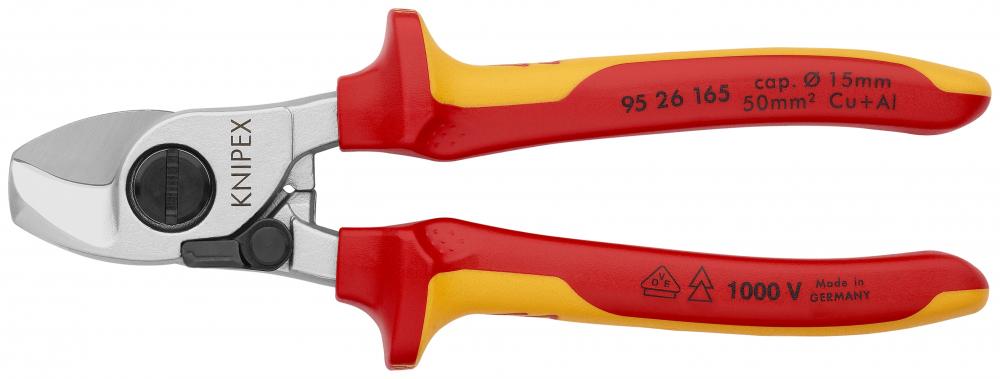

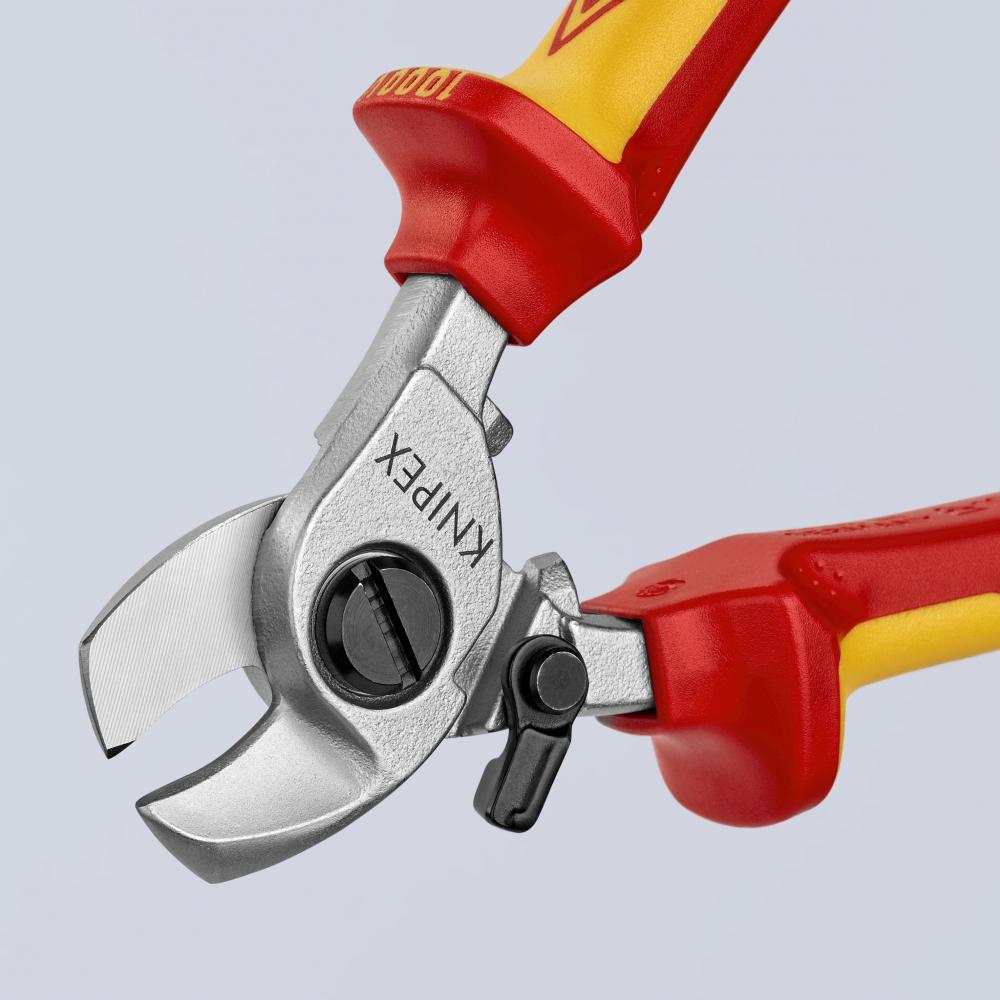

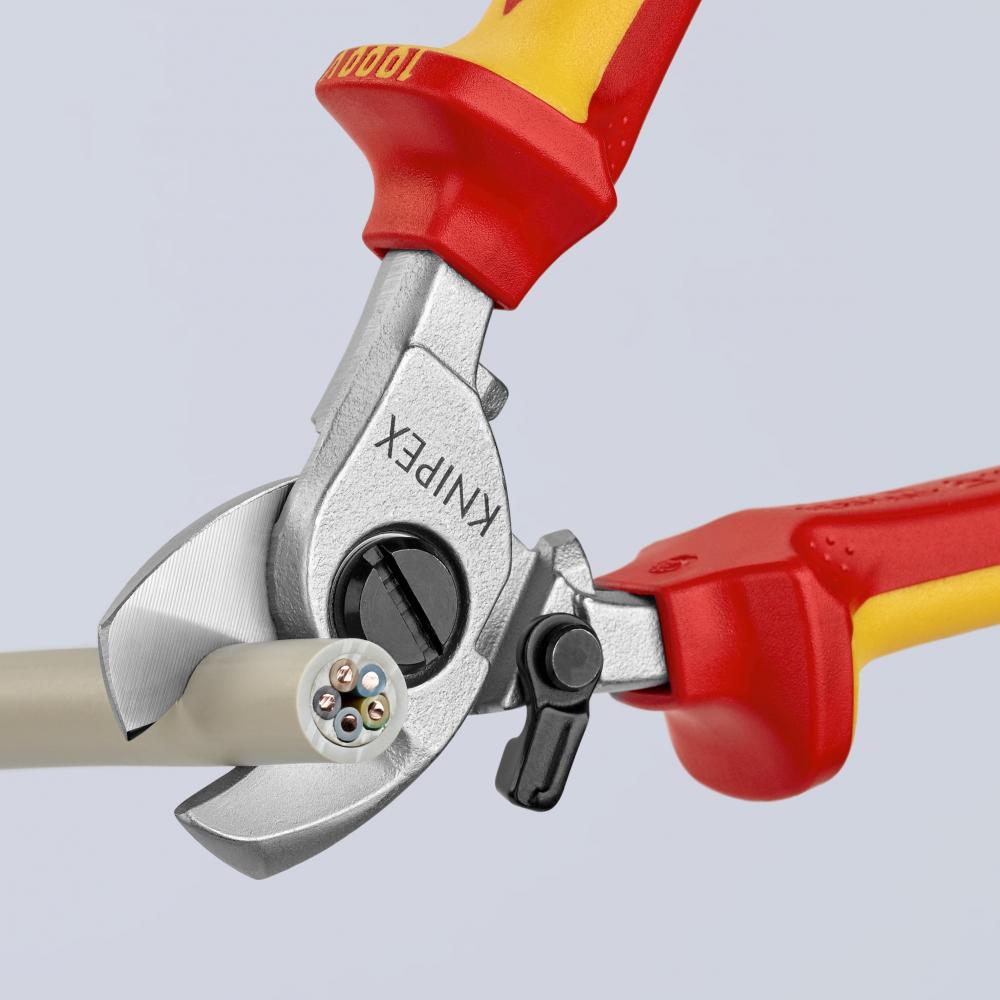

6 1/2" Cable Shears-1000V Insulated
Call For Price
- Part Number: 95 26 165
- UPC: 00843221015138
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (13)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Cutting Tools
Industrial Subtype:
Snips, Shears And Scissors
1000 Volt Insulated:
Yes
Brand Name:
KNIPEX
Color:
Red/Yellow
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Cu and Al conductor:
19/32"
Data Sheet Filename:
9526165_en.pdf
ECCN:
EAR99
Handle Type:
1000V Insulated, multi-component, VDE
Harmonized Tariff Code:
8203.30.0000
IEC:
IEC 60900
Included Products/Items:
Other Surface Finish: Chrome Plated
Item Height (inches):
1 1/8"
Item Height inches:
1 1/8"
Item Length (inches):
6.5
Item Length inches:
6 1/2"
Item Quantity:
1
Item Weight (lbs):
0.575
Item Weight lbs:
0.575
Item Width (inches):
2 3/8"
Item Width inches:
2 3/8"
Joint Type:
Bolted
Joint Type 2:
Fixed Joint
Material Type:
High-grade special tool steel, forged, oil-hardened
Nomintal Length mm:
165
Other Surface Finish:
Chrome Plated
Package Height (inches):
1.1"
Package Height inches:
1.1"
Package Length (inches):
7.6"
Package Length inches:
7.6"
Package Weight (lbs):
0.615
Package Weight lbs:
0.615
Package Width (inches):
2.5"
Package Width inches:
2.5"
Packaging Height mm:
30 mm
Packaging Length mm:
191 mm
Packaging Width mm:
65 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Tool Attributes:
All insulated tools meet the requirements of ASTM F1505
Clean and smooth cut without crushing or deformation
Cutting capacity - up to 9/16" cable or 1/0 AWG
For cutting copper and aluminum cables, single and multiple wire (Not for ACSR, steel wire and hard drawn copper conductors)
Pinch guard prevents fingers from being pinched
Tool Height mm:
26 mm
Tool Length mm:
165 mm
Tool Weight grams:
275 g
Tool Width mm:
65 mm
Unit Of Measure:
Each
UNSPSC:
23241616
UNSPSC Number:
23241616
UOM Qty:
1
UPC Code:
843221015138
Other Details
1000V multi-component grips, VDE-tested
Adjustable bolted joint, self-locking
Clean and smooth cut without crushing and deformation
Easy cutting with one-hand operation
For cutting copper and aluminum cables, single and multi-stranded wire
High-grade special tool steel; forged, oil-hardened
Not suitable for steel wire and hard drawn copper conductors
Pinch guard prevents operators' fingers being pinched
Precision ground, hardened blades
