5 Pc Automotive Starter Set
Call For Price
- Part Number: 9K 00 80 108 US
- UPC: 00843221021153
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Set Includes Part Numbers: 26 11 200 | 71 31 200 | 74 01 250 | 87 01 250 | 95 11 200
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Plier Sets
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Color:
Red
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Cu and Al conductor:
25/32" (95 11 200)
Cutting Capacity - Hard Wire (Steel Wire):
3/32" (26 11 200); 5/32" (71 31 200); 9/64" (74 01 250)
Cutting Capacity - Medium Hard Wire (Nail):
1/8" (26 11 200); 5/32" (71 31 200); 3/16" (74 01 250)
Cutting Capacity - Piano Wire:
9/64" (71 31 200); 1/8" (74 01 250)
Cutting Capacity - Soft Wire:
1/4" (71 31 200)
Cutting Edge HRC:
Approx. 61 HRC (26 11 200); Approx. 64 HRC (71 31 200 and 74 01 250)
DIN:
DIN ISO 5745 (26 11 200); DIN ISO 5749 (74 01 250); DIN ISO 8976 (87 01 250)
ECCN:
EAR99
ESD Indicator:
No
Gripping Surface:
Serrated
Handle Type:
Plastic coating, non-slip plastic
Harmonized Tariff Code:
8206.00.0000
Included Products/Items:
Color: Red
Item Quantity:
5
Item Weight (lbs):
3.538
Jaw Length:
2 7/8" (26 11 200); 1 3/8" (87 01 250)
Jaw Thickness:
3/8" (26 11 200)
Jaw Type:
Half-round
Jaw Width:
45/64" (26 11 200)
Joint Type:
Box-joint|Rivet|Bolted|Forged-in axle
Material Type:
Chrome vanadium heavy-duty steel, forged, oil-hardened|High-grade special tool steel, forged, oil-hardened|Vanadium steel, forged, multi stage oil-hardened
Max Jaw Opening - Hex:
1 3/4" (87 01 250)
Max Jaw Opening - Round pipe:
2" (87 01 250)
Max Jaw Opening - Working Capacity:
2" (87 01 250)
Number of Adjustment Positions:
25 (87 01 250)
Other Surface Finish:
Black atramentized|Burnished|Grey atramentized
Prop 65 Conflict:
View
RoHS:
not applicable
Spring Loaded:
No
Surface Finish:
Black atramentized|Black-oxide|Polished|Polished jaws
Teeth Hardness HRC:
Approx. 61 HRC (87 01 250)
Tip Thickness:
3/32" (87 01 250)
Tip Width:
1/8" (87 01 250)
Tool Attributes:

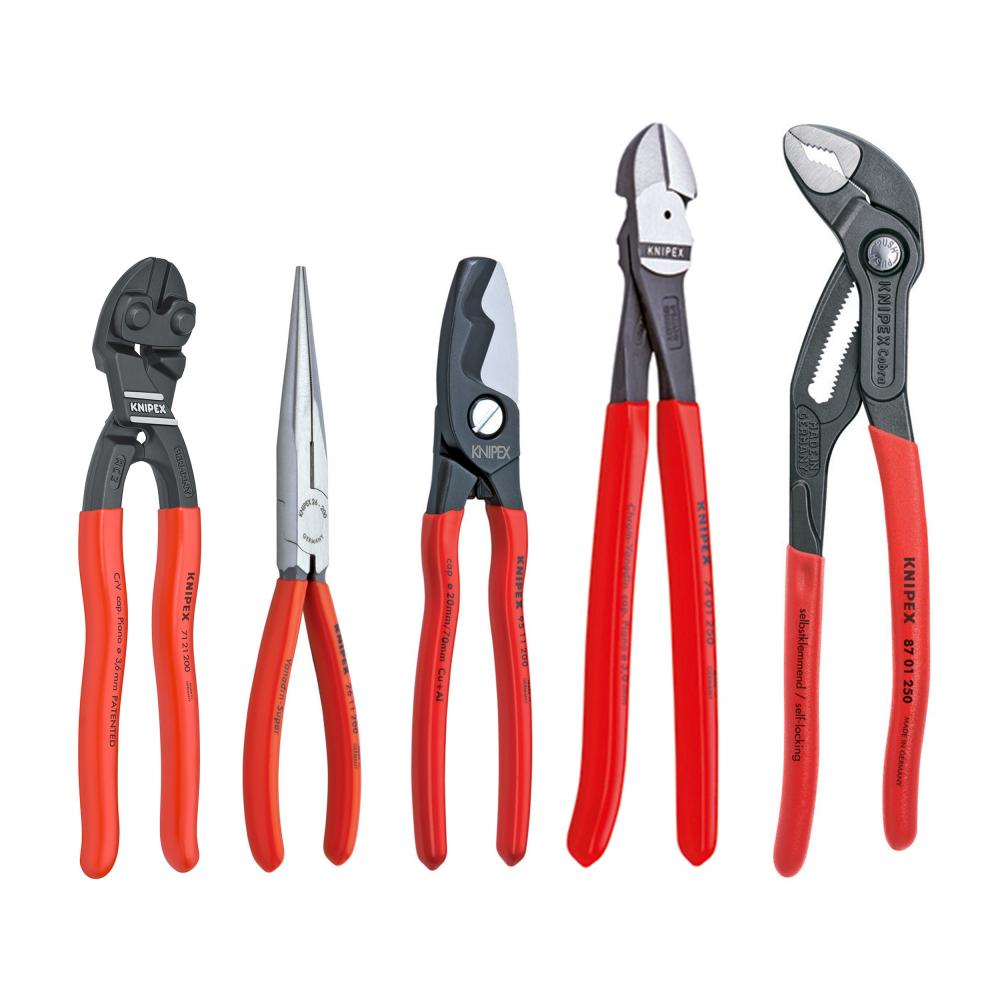

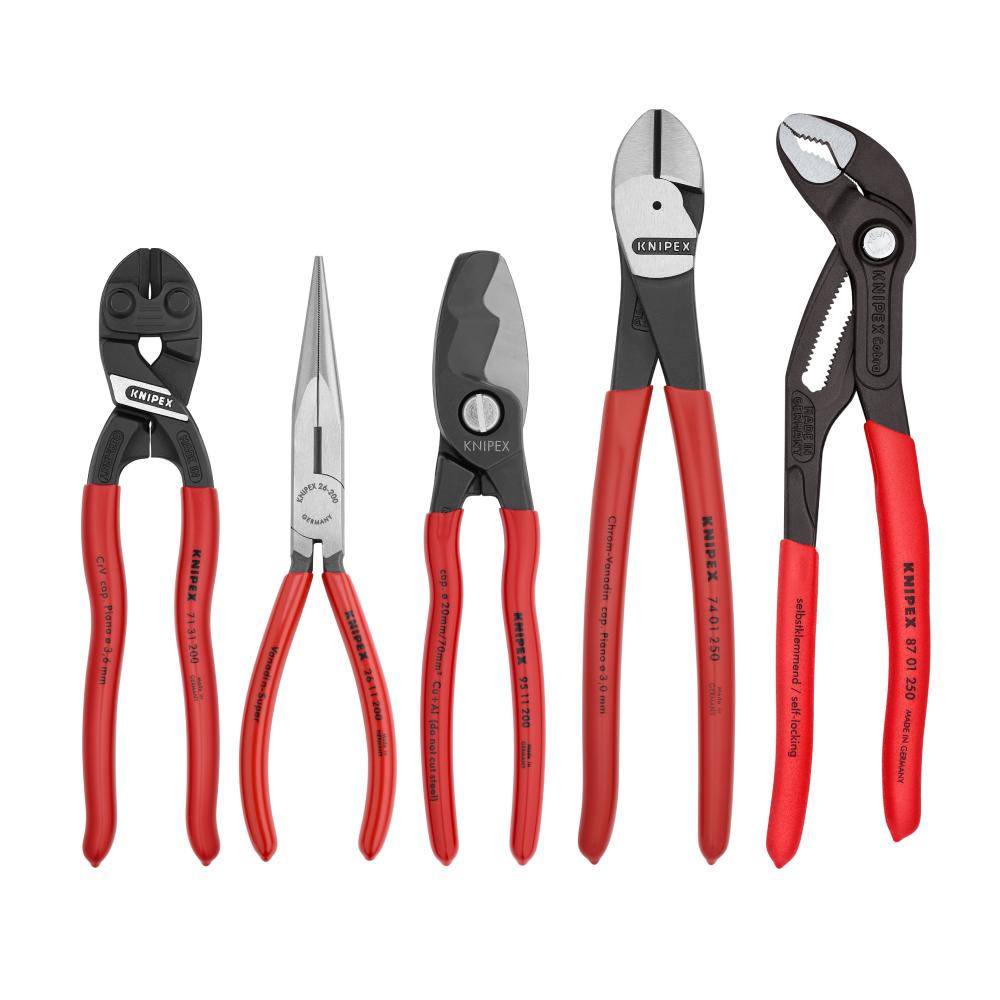

(1) 26 11 200 8" Long Nose Pliers w/ Side Cutter, (1) 71 31 200 8" High Leverage CoBolt® Cutters w/ Notched Blade, (1) 74 01 250 10" High Leverage Diagonal Cutters, (1) 87 01 250 10" Cobra® Pliers, (1) 95 11 200 8" Cable Shears
Unit Of Measure:
Set
UNSPSC:
27112137
UNSPSC Number:
27112137
UOM Qty:
5
UPC Code:
843221021153
Other Details
20% easier cutting due to high leverage design
26 11 200 - 8" Long Nose Pliers with Cutter

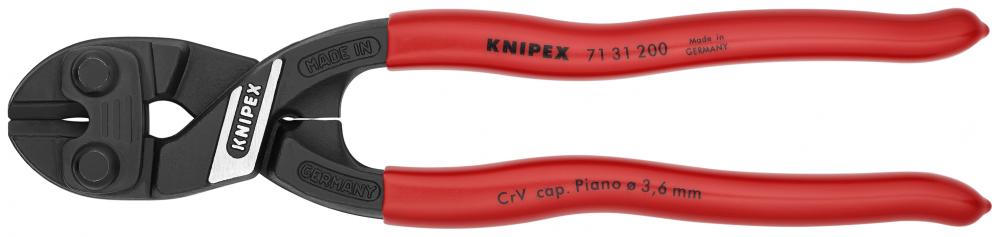

71 31 200 - 8" CoBolt® High Leverage Compact Bolt Cutter-Notched Blade
74 01 250 - 10" High Leverage Diagonal Cutter
87 01 250 - 10" Cobra® Water Pump Pliers

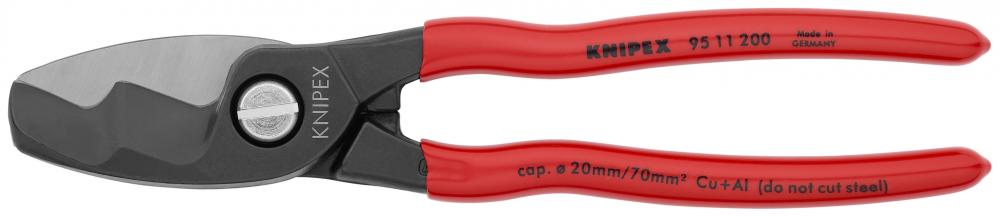

95 11 200 - 8" Cable Shears-Twin Cutting Edges
Distortion-tolerant, flexible precision tips and half-round, long, pointed jaws

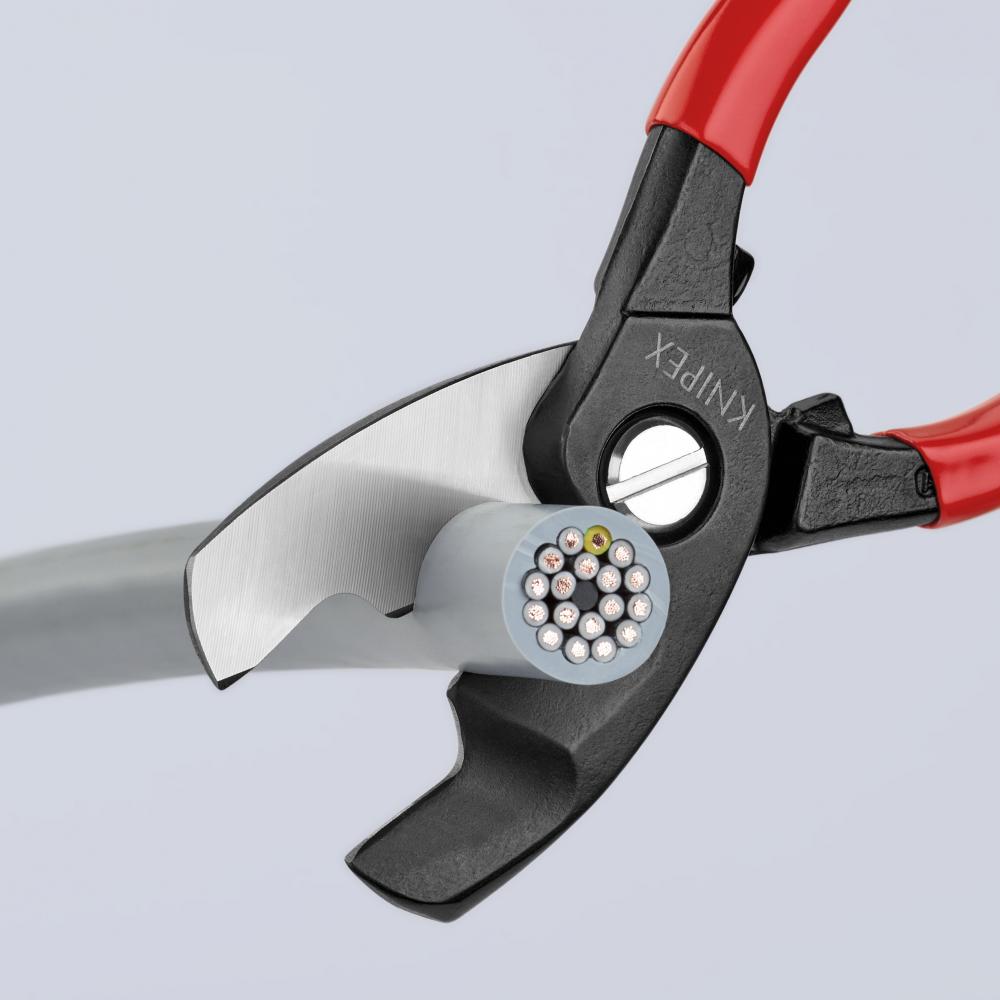

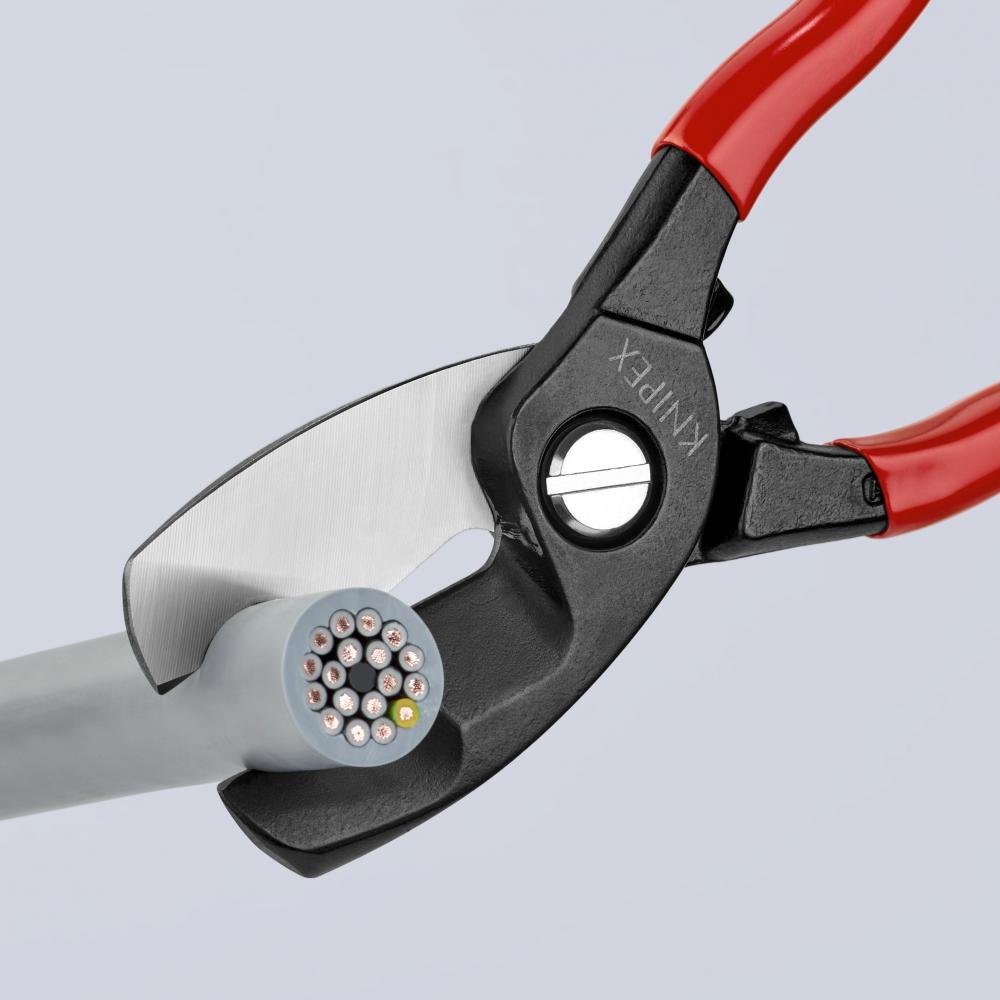

For cutting copper and aluminum cables, single and multi-stranded wire; Not suitable for steel wire and hard drawn copper conductors
Hardened cutting edges (approx. 61 HRC) for medium hard and hard wire
KNIPEX Automotive Tool Set is highly regarded for its exceptional quality, reliability, and versatility. Designed with precision and crafted using quality materials, KNIPEX tools deliver outstanding performance across a wide range of applications. Includes
Micro-structured cutting edges allow easy cutting of large cross-sections
Notch in blade allows easier cutting of thicker wires
Push-button adjustment directly on the workpiece – adjust once and it stays set
Self-locking means no slipping off the workpiece
Unique heavy-duty forged-on axle for superior strength
