![5" Electronics Diagonal Cutters](/vendors/8243/large/7552125-00-3.jpg "5" Electronics Diagonal Cutters")

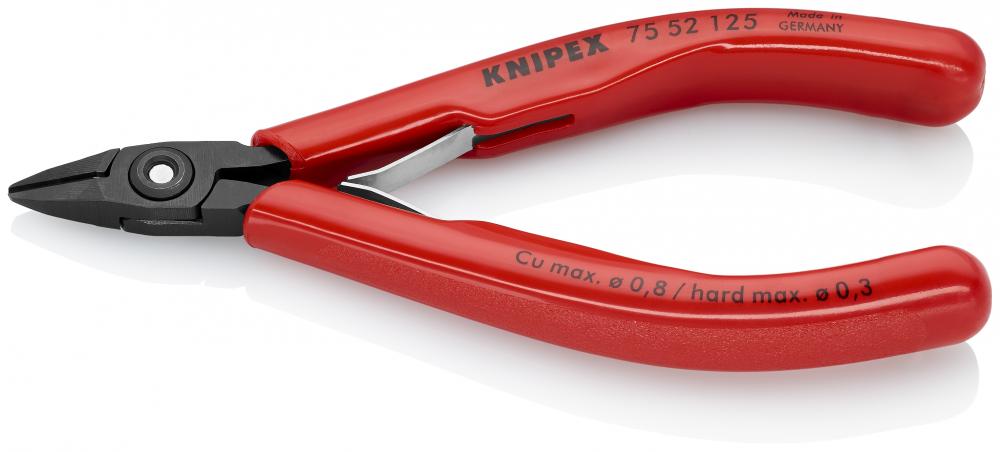

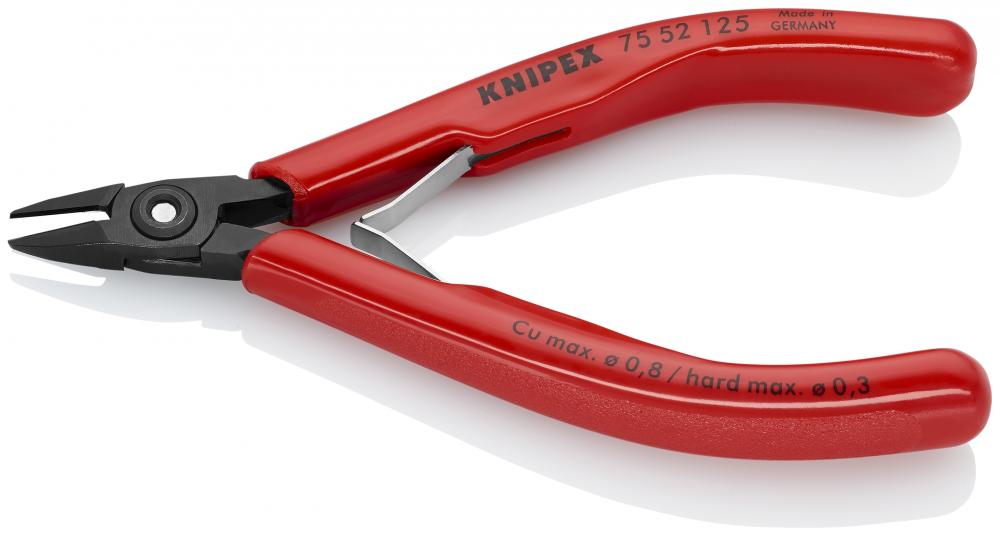

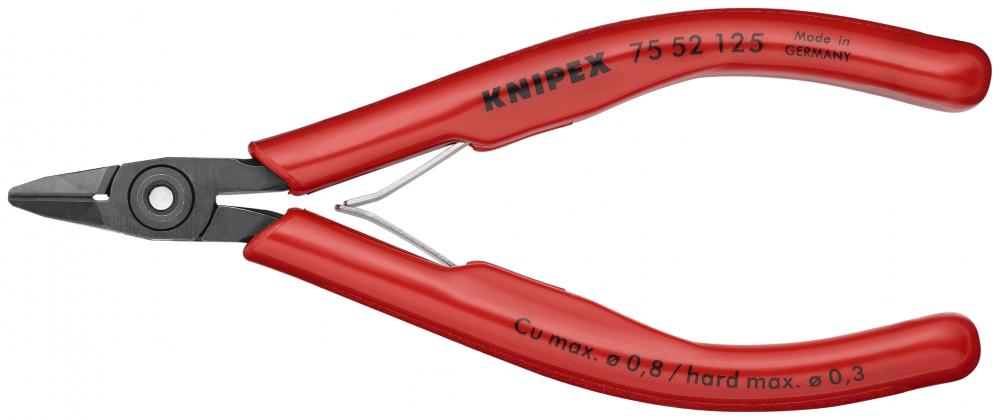

5" Electronics Diagonal Cutters
Call For Price
- Part Number: 75 52 125
- UPC: 00843221013424
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (4)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Diagonal Cutting Pliers
1000 Volt Insulated:
No
Blade Length:
35/64"
Brand Name:
KNIPEX
Chemical:
Diisononyl Phthalate
Color:
Red
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Hard Wire (Steel Wire):
1/64"
Cutting Capacity - Medium Hard Wire (Nail):
1/64"
Cutting Capacity - Soft Wire:
1/64" to 1/32"
Cutting Capacity Hard Wire Steel Wire:
1/64"
Cutting Capacity Medium Hard Wire Nail:
1/64"
Cutting Capacity Soft Wire:
1/64" to 3/64"
Cutting Edge HRC:
Approx. 64 HRC
Cutting Edge Shape:
Bevel
Cutting Result:
Semi-flush
Data Sheet Filename:
7552125_en.pdf
DIN:
DIN ISO 9654
ECCN:
EAR99
Handle Length:
3 3/4"
Handle Type:
Plastic
Harmonized Tariff Code:
8203.20.6060
Included Products/Items:
Surface Finish: Black-oxide
Item Height (inches):
7/8"
Item Height inches:
7/8"
Item Length (inches):
5
Item Length inches:
5"
Item Quantity:
1
Item Weight (lbs):
0.18
Item Weight lbs:
0.18
Item Width (inches):
2 1/16"
Item Width inches:
2 1/16"
Jaw Length:
35/64"
Jaw Thickness:
17/64"
Jaw Width:
13/32"
Joint Type:
Bolted
Joint Type 2:
Fixed Joint
Material Type:
High-grade special tool steel, forged, multi stage oil-hardened
Other Surface Finish:
Burnished
Package Height (inches):
0.8"
Package Height inches:
0.8"
Package Length (inches):
6.5"
Package Length inches:
6.5"
Package Weight (lbs):
0.211
Package Weight lbs:
0.211
Package Width (inches):
2.4"
Package Width inches:
2.4"
Packaging Height mm:
47 mm
Packaging Length mm:
207 mm
Packaging Width mm:
91 mm
Prop 65 Conflict:
View
Prop 65 Language Indicator:
View
Prop 65 Warning English:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Black-oxide
Tip Thickness:
1/4"
Tool Attributes:
Bolted joint for high precision and stress tolerance
Cutting capacity - up to 3/64" for soft wire, up to 1/64" for medium and up to 1/64" for hard wire
Cutting edge hardness approx. 64 HRC
For very precise assembly work in electronics and fine mechanics
Handles with plastic grips
High-grade special tool steel, forged, multi stage oil-hardened
Low friction double spring for gentle and even opening
Pliers burnished
Semi-flush cut
With bevel
With particularly narrow head
With sharp, ground cutting for soft and hard wire and piano wire
Tool Height mm:
38 mm
Tool Length mm:
125 mm
Tool Weight grams:
75 g
Tool Width mm:
59 mm
Unit Of Measure:
Each
UNSPSC:
27112114
UNSPSC Number:
27112114
UOM Qty:
1
UPC Code:
843221013424
Other Details
Bolted joint for high precision and stress tolerance
Cutting capacity - up to1/32" for soft wire, up to 1/64" for medium and up to 1/64" for hard wire
Cutting edge hardness (approx. 64 HRC)
For very precise assembly work in electronics and fine mechanics
High-grade special tool steel, forged, multi stage oil-hardened
Low friction double spring for gentle and even opening
Particularly narrow head, with bevel
Semi-flush cut
Sharp, ground cutting edges for soft, hard wire and piano wire
With bevel
With particularly narrow head
With sharp, ground cutting for soft and hard wire and piano wire
