![5" Electronics Diagonal Cutters-ESD Handles](/vendors/8243/large/7962125ESD-00-3.jpg "5" Electronics Diagonal Cutters-ESD Handles")

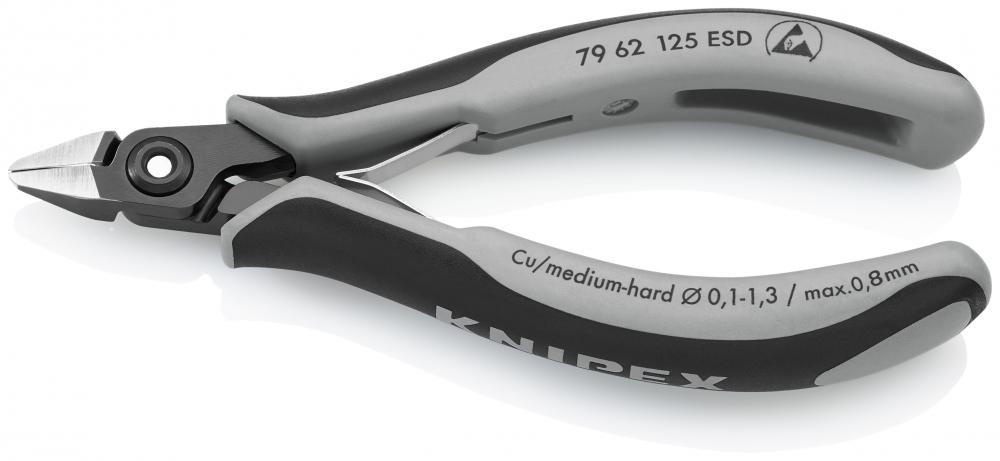

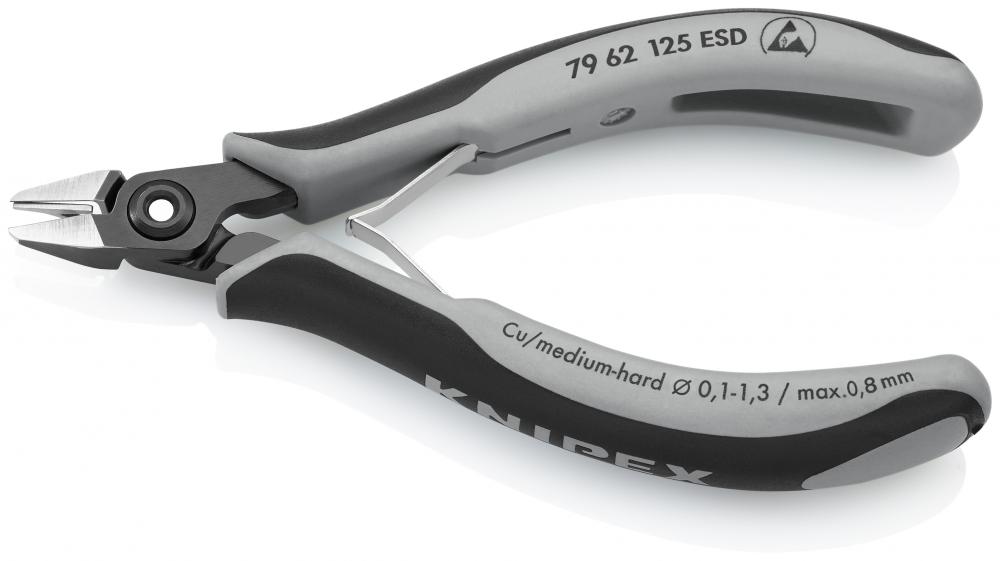

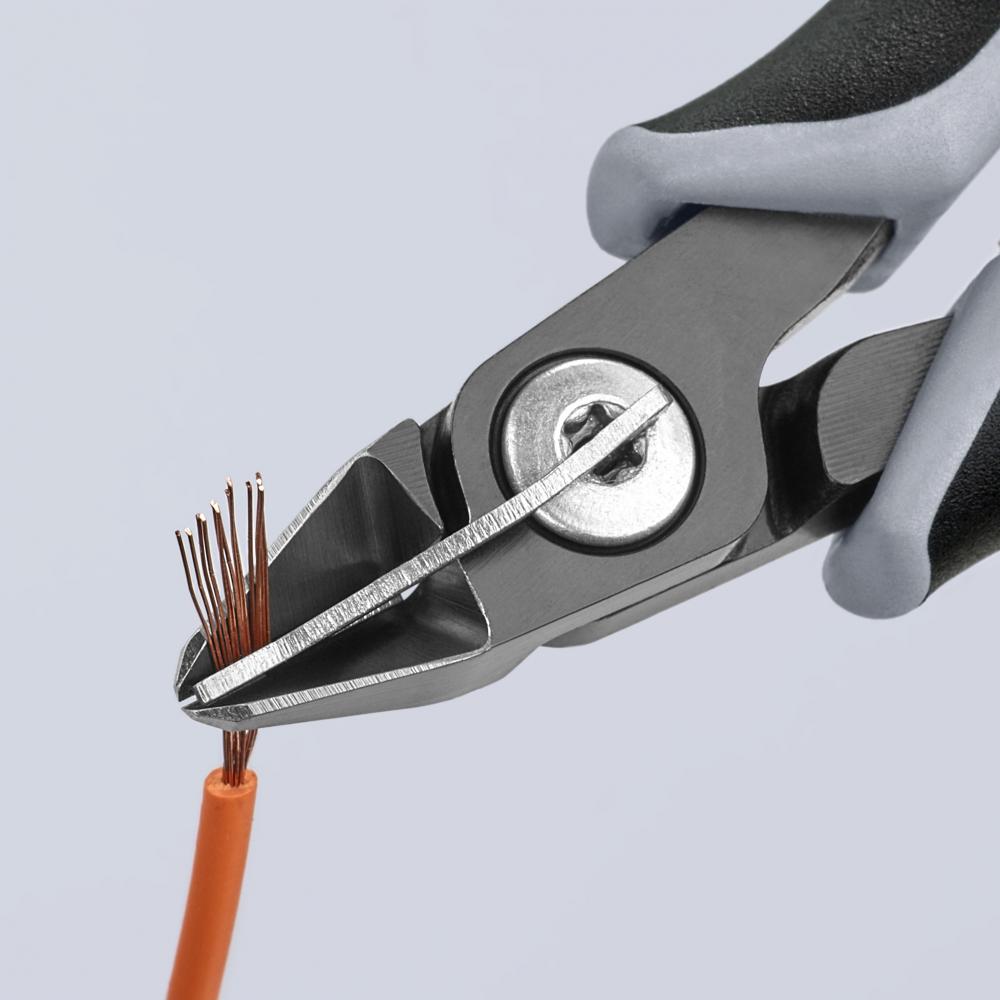

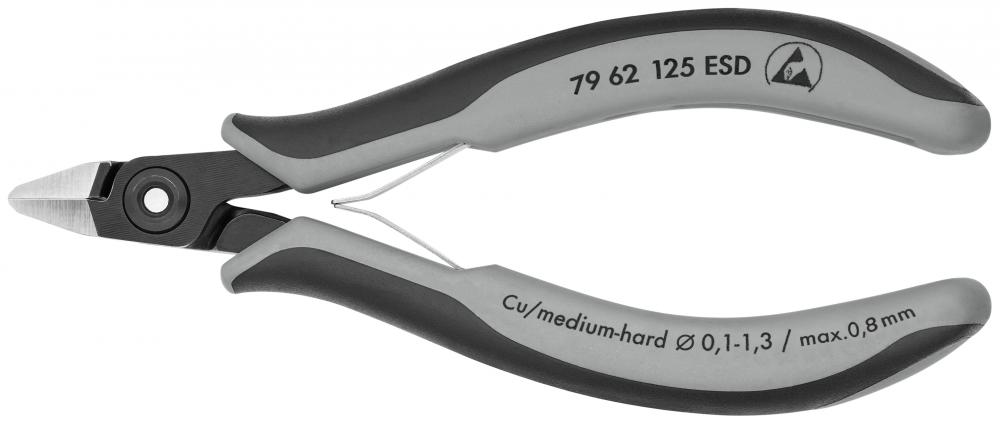

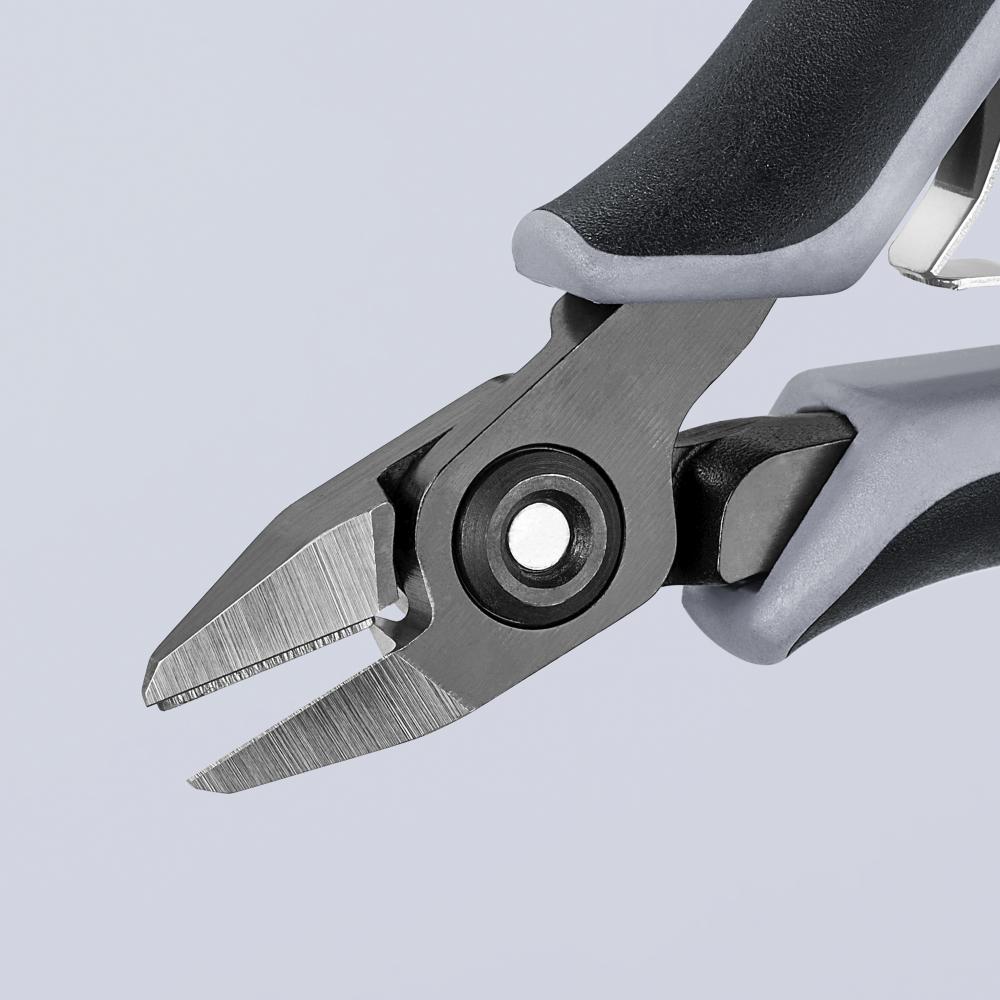

5" Electronics Diagonal Cutters-ESD Handles
Call For Price
- Part Number: 79 62 125 ESD
- UPC: 00843221013813
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (19)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Diagonal Cutting Pliers
1000 Volt Insulated:
No
Blade Length:
7/16"
Brand Name:
KNIPEX
Color:
Blue/Gray
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Medium Hard Wire (Nail):
1/32"
Cutting Capacity - Soft Wire:
1/64" to 1/16"
Cutting Capacity Medium Hard Wire Nail:
1/32"
Cutting Capacity Soft Wire:
1/64" to 1/16"
Cutting Edge HRC:
Approx. 64 HRC
Cutting Edge Shape:
Without bevel
Cutting Result:
Flush
Data Sheet Filename:
7962125esd_en.pdf
DIN:
DIN ISO 9654
ECCN:
EAR99
ESD Indicator:
Yes
Handle Length:
3 3/4"
Handle Type:
ESD multi-component
Harmonized Tariff Code:
8203.20.6060
Included Products/Items:
Surface Finish: Polished
Item Height (inches):
7/8"
Item Height inches:
7/8"
Item Length (inches):
5
Item Length inches:
5"
Item Quantity:
1
Item Weight (lbs):
0.13
Item Weight lbs:
0.13
Item Width (inches):
1 15/16"
Item Width inches:
1 15/16"
Jaw Thickness:
1/4"
Jaw Width:
7/16"
Joint Type:
Bolted
Joint Type 2:
Fixed Joint
Material Type:
Ball bearing chrome steel, forged, oil-hardened
Other Surface Finish:
Black atramentized
Package Height (inches):
1.0"
Package Height inches:
1.0"
Package Length (inches):
6.5"
Package Length inches:
6.5"
Package Weight (lbs):
0.161
Package Weight lbs:
0.161
Package Width (inches):
2.0"
Package Width inches:
2.0"
Packaging Height mm:
48 mm
Packaging Length mm:
189 mm
Packaging Width mm:
72 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Polished
Tip Thickness:
1/4"
Tool Attributes:
Approximately 20% lighter than conventional electronics pliers
Bolted joint with particularly carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
Cutting capacity - up to 1/16" for soft wire and up to 1/16" for medium wire
Cutting edge hardness approx. 64 HRC
Cutting edges induction hardened for longer life and for more durable cutting
Ergonomically optimized handle covers
ESD (electrostatic discharge) handles protects components endangered by electrostatic discharge by discharging electrostatic energy through the handles
Flush cut
Made with high quality ball bearing steel
Pliers burnished
Pointed head
Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
Very precisely ground and sharp cutting edges with very small bevels for precise cutting work on small electronic components
With lead catcher - no uncontrolled loss of cut wire ends
Without bevel
Tool Height mm:
48 mm
Tool Length mm:
125 mm
Tool Weight grams:
58 g
Tool Width mm:
71 mm
Unit Of Measure:
Each
UNSPSC:
27112149
UNSPSC Number:
27112149
UOM Qty:
1
UPC Code:
843221013813
Other Details
Approx. 20% lighter than conventional electronics pliers
Ball bearing chrome steel; forged, multi stage oil-hardened
Bolted joint with carefully manufactured joint surfaces for even,
Cutting edge hardness (approx. 64 HRC)
Double spring for a gentle and even opening
ESD (electrostatic discharge) handles discharge electrostatic energy through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge
Lead catcher, no uncontrolled loss of cut wire ends
Low-friction movement throughout the entire opening range
Optimized handle grips for comfort
Pliers burnished
Pointed head
Precision pliers for ultra fine cutting work in electronics and fine mechanics
Very precisely ground and sharp cutting edges with very small bevels for precise cutting work on small electronic components
With lead catcher - no uncontrolled loss of cut wire ends
