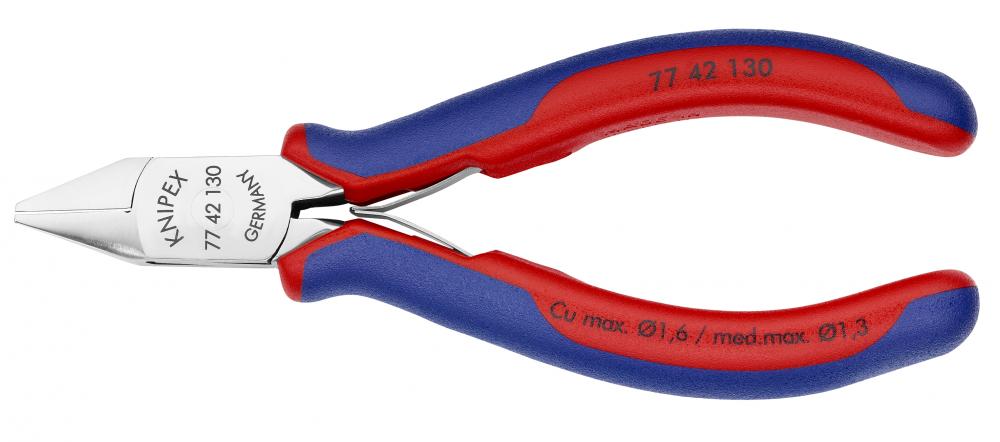

![5 1/4" Electronics Diagonal Cutters](/vendors/8243/large/7742130-00-3.jpg "5 1/4" Electronics Diagonal Cutters")

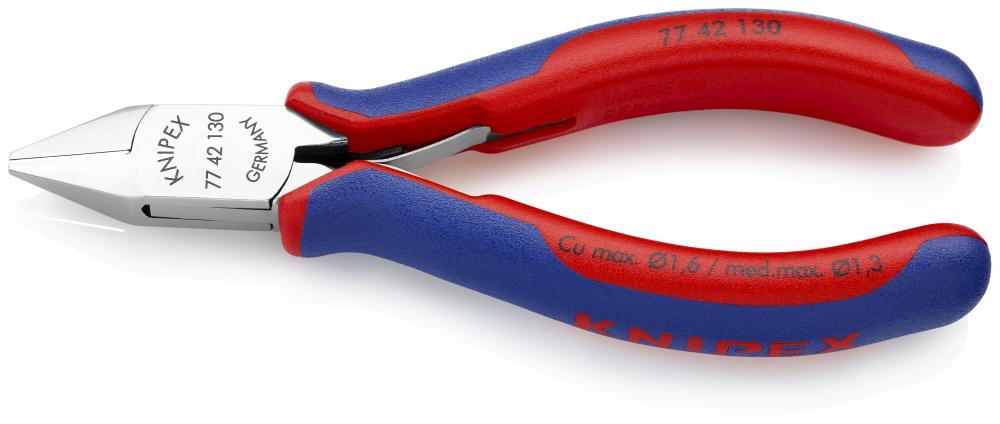

5 1/4" Electronics Diagonal Cutters
Call For Price
- Part Number: 77 42 130
- UPC: 00843221005306
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Diagonal Cutting Pliers
1000 Volt Insulated:
No
Blade Length:
23/32"
Brand Name:
KNIPEX
Color:
Red/Blue
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Medium Hard Wire (Nail):
3/64"
Cutting Capacity - Soft Wire:
1/64" to 1/16"
Cutting Capacity Medium Hard Wire Nail:
3/64"
Cutting Capacity Soft Wire:
1/64" to 1/16"
Cutting Edge HRC:
Approx. 57 HRC
Cutting Edge Shape:
Without bevel
Cutting Result:
Flush
Data Sheet Filename:
7742130_en.pdf
DIN:
DIN ISO 9654
ECCN:
EAR99
Handle Length:
3 3/4"
Handle Type:
Multi-component
Harmonized Tariff Code:
8203.20.6060
Included Products/Items:
Surface Finish: Polished
Item Height (inches):
15/16"
Item Height inches:
15/16"
Item Length (inches):
5.25
Item Length inches:
5 1/4"
Item Quantity:
1
Item Weight (lbs):
0.28
Item Weight lbs:
0.28
Item Width (inches):
2 1/16"
Item Width inches:
2 1/16"
Jaw Length:
23/32"
Jaw Thickness:
3/8"
Jaw Width:
19/32"
Joint Type:
Box-joint with rivet
Joint Type 2:
Fixed Joint
Material Type:
Ball Bearing Steel
Package Height (inches):
1.2"
Package Height inches:
1.2"
Package Length (inches):
5.0"
Package Length inches:
5.0"
Package Weight (lbs):
0.311
Package Weight lbs:
0.311
Package Width (inches):
2.4"
Package Width inches:
2.4"
Packaging Height mm:
49 mm
Packaging Length mm:
213 mm
Packaging Width mm:
75 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Polished
Tip Thickness:
3/8"
Tool Attributes:
Cutters additionally laser hardened, cutter hardness 57 HRC
Cutting capacity - up to 1/16" for soft wire and up to 3/64" for medium wire
Cutting edges induction hardened for longer life and for more durable cutting
Flush cut

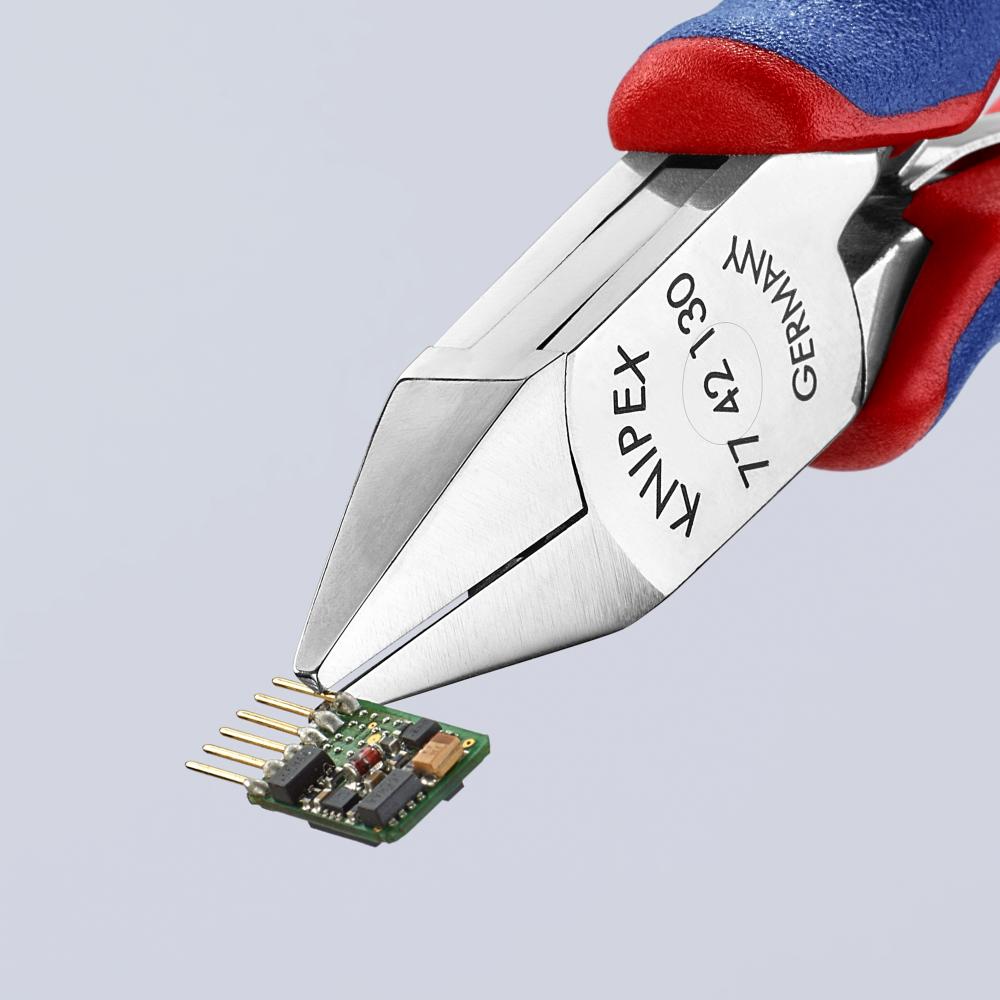

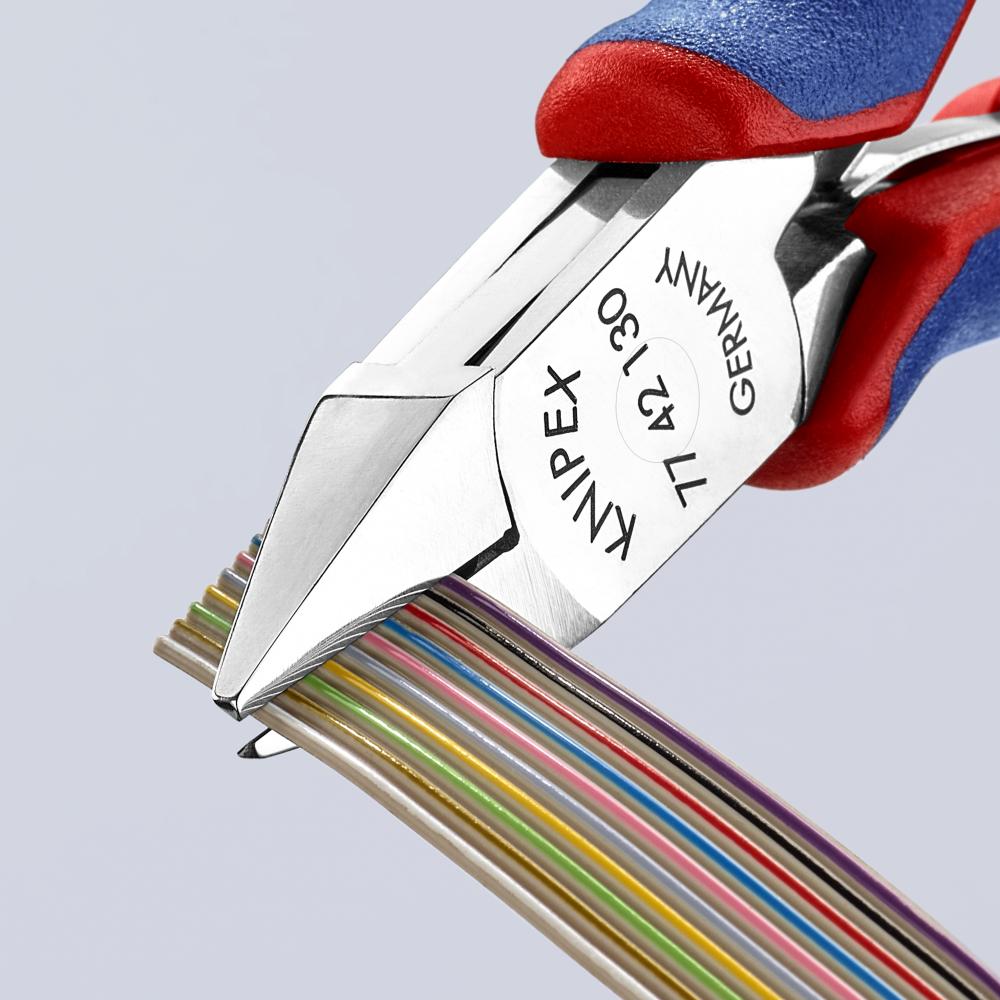

For fine cutting work in electronics and fine mechanics
Handles with multi-component grips
High-grade special tool steel, forged, multi stage oil-hardened
Low friction double spring for gentle and even opening
Pointed head
Sturdy, zero-backlash box joint
The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
Without bevel
Tool Height mm:
18 mm
Tool Length mm:
130 mm
Tool Weight grams:
122 g
Tool Width mm:
61 mm
Unit Of Measure:
Each
UNSPSC:
27112114
UNSPSC Number:
27112114
UOM Qty:
1
UPC Code:
843221005306
Other Details
Ball bearing steel; laser-hardened cutting edges
Cutting capacity - up to 1/16" for soft wire and up to 3/64" for medium wire
Cutting edges induction hardened (approx. 57 HRC)
Flush cut
For fine cutting work in electronics and fine mechanics
Handles with multi-component grips
Low friction double spring for gentle and even opening
Pointed head
Sturdy, zero-backlash box joint
The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
Without bevel
