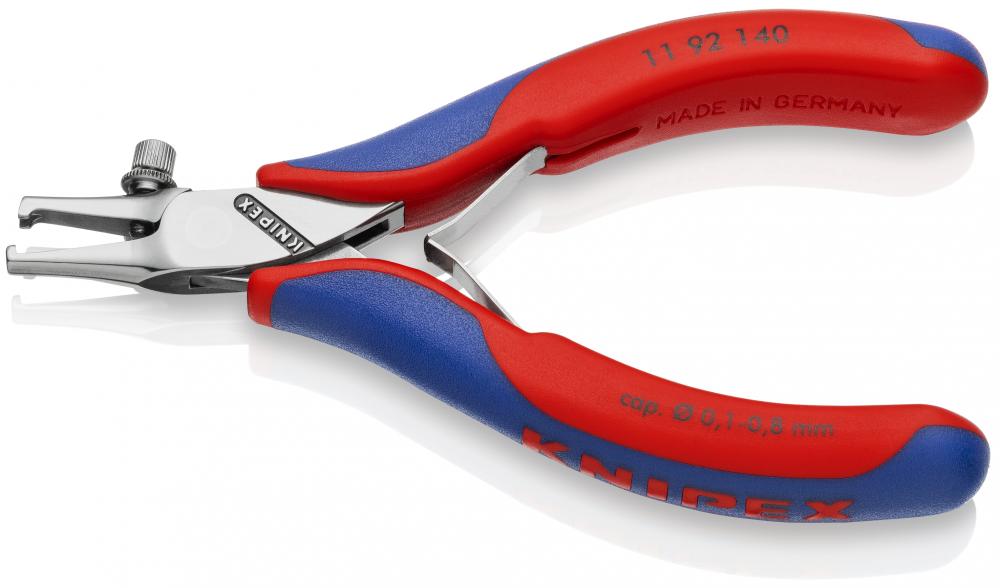

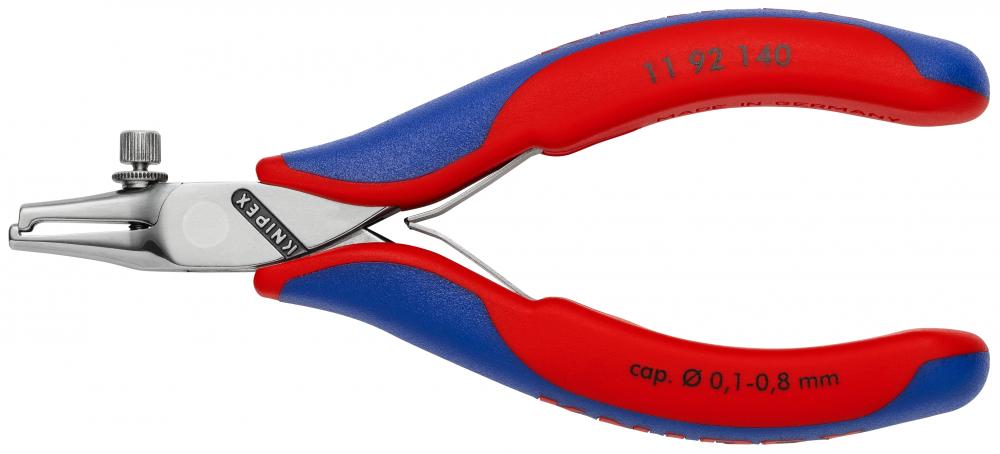

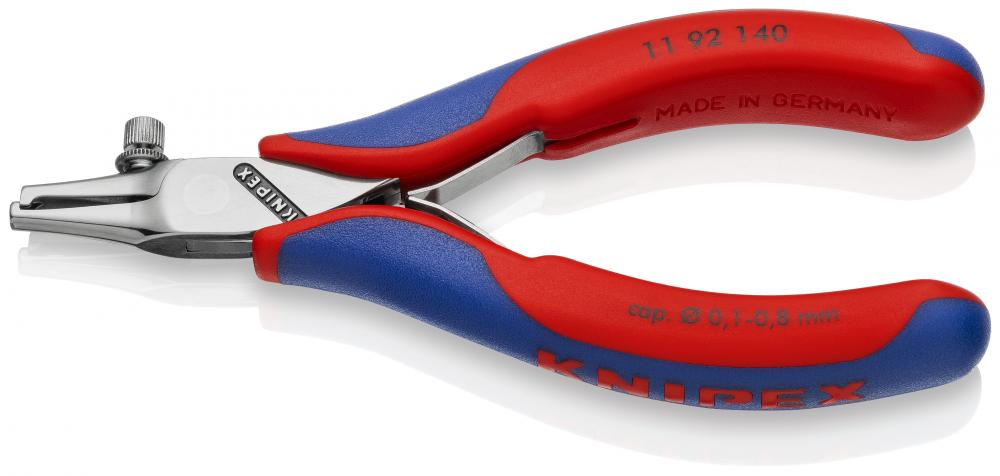

5 1/2" Electronics Wire Stripper
Call For Price
- Part Number: 11 92 140
- UPC: 00843221003906
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Cutting Tools
Industrial Subtype:
Wire Strippers and Cable Slitters
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Chemical:
Lead
Color:
Red/Blue
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Data Sheet Filename:
1192140_en.pdf
ECCN:
EAR99
Handle Type:
Multi-component
Harmonized Tariff Code:
8203.20.6060
Included Products/Items:
Surface Finish: Polished
Item Height (inches):
7/8"
Item Height inches:
7/8"
Item Length (inches):
5.5
Item Length inches:
5 1/2"
Item Quantity:
1
Item Weight (lbs):
0.225
Item Weight lbs:
0.225
Item Width (inches):
2 1/2"
Item Width inches:
2 1/2"
Jaw Length:
45/64"
Joint Type:
Rivet
Joint Type 2:
Fixed Joint
Material Type:
Special tool steel, forged, oil-hardened
Package Height (inches):
0.8"
Package Height inches:
0.8"
Package Length (inches):
6.5"
Package Length inches:
6.5"
Package Weight (lbs):
0.256
Package Weight lbs:
0.256
Package Width (inches):
2.4"
Package Width inches:
2.4"
Packaging Height mm:
49 mm
Packaging Length mm:
213 mm
Packaging Width mm:
75 mm
Prop 65 Conflict:
View
Prop 65 Language Indicator:
View
Prop 65 Warning English:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Stripping Capacity:
0.1 to 0.8 mm
Stripping Capacity - AWG:
38 to 20
Stripping Capacity - mm2:
0.1 to 0.8
Surface Finish:
Polished
Tool Attributes:
Easy adjustment to the diameter of solid or stranded wire with knurled screw and lock nut
For single, multiple and fine-stranded conductors up to 1/32" dia. with plastic or rubber insulation
Suitable for 18 to 28 AWG
Tool Height mm:
50 mm
Tool Length mm:
140 mm
Tool Weight grams:
99 g
Tool Width mm:
49 mm
Unit Of Measure:
Each
UNSPSC:
27111511
UNSPSC Number:
27111511
UOM Qty:
1
UPC Code:
843221003906
Other Details
Easy adjustment to the required diameter of solid or stranded wire with knurled screw and lock nut
For single, multiple and fine-stranded cables up to 1/32" dia. with plastic or rubber insulation
Opening spring for easy repetitive work
Special tool steel, forged, oil-hardened
Suitable for 20-38 AWG
The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
