![5 1/2" Electronics Super Knips® XL-ESD Handles](/vendors/8243/large/7861140ESD-01-3.jpg "5 1/2" Electronics Super Knips® XL-ESD Handles")

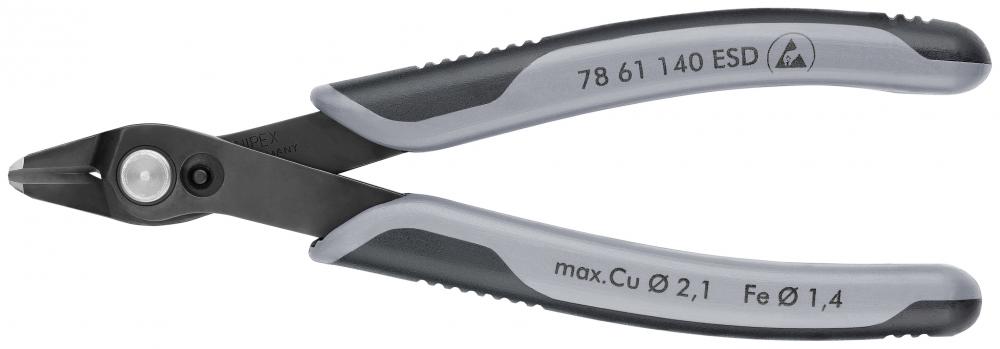

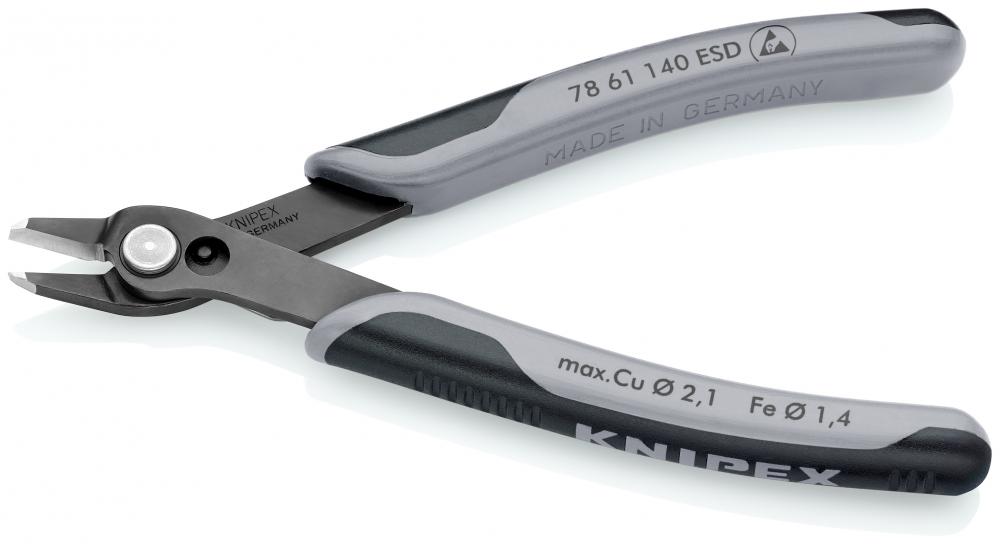

5 1/2" Electronics Super Knips® XL-ESD Handles
Call For Price
- Part Number: 78 61 140 ESD
- UPC: 00843221023294
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (4)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Cable and Wire Cutters
Electronics Pliers
1000 Volt Insulated:
No
Blade Length:
31/64"
Brand Name:
KNIPEX
Color:
Blue/Gray
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Medium Hard Wire (Nail):
1/16"
Cutting Capacity - Soft Wire:
1/64" to 1/8"
Cutting Capacity Medium Hard Wire Nail:
1/16"
Cutting Capacity Soft Wire:
1/64" to 1/8"
Cutting Edge HRC:
Approx. 64 HRC
Cutting Edge Shape:
Without bevel
Cutting Result:
Flush
Data Sheet Filename:
7861140esd_en.pdf
ECCN:
EAR99
ESD Indicator:
Yes
Handle Length:
4"
Handle Type:
ESD multi-component
Harmonized Tariff Code:
8203.20.6060
Included Products/Items:
Surface Finish: Black-oxide
Item Height (inches):
9/16"
Item Height inches:
9/16"
Item Length (inches):
5.5
Item Length inches:
5 1/2"
Item Quantity:
1
Item Weight (lbs):
0.187
Item Weight lbs:
0.187
Item Width (inches):
3 1/4"
Item Width inches:
3 1/4"
Jaw Length:
31/64"
Jaw Thickness:
23/64"
Jaw Width:
39/64"
Joint Type 2:
Fixed Joint
Material Type:
Special tool steel
Other Surface Finish:
Burnished
Packaging Height mm:
49 mm
Packaging Length mm:
213 mm
Packaging Width mm:
75 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Sub Brand Name:
Super Knips®
Surface Finish:
Black-oxide
Tip Thickness:
23/64"
Tool Attributes:
Cutting edges additionally induction hardened
Cutting-edge hardness approx. 64 HRC
Extremely smooth movement for minimum operator fatigue
For ultra fine cutting work, e.g. in electronics and fine mechanics
Ground, very sharp cutting edges without bevel
Handles with multi-component grips
Joint with stainless steel rivet
Made in Germany
Pliers burnished
Precision shaped tips cut wires resting on a board from 1/64" diameter.
Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life
Special tool steel, oil hardened in multiple stages
With opening spring and opening limiter
Tool Height mm:
48 mm
Tool Length mm:
140 mm
Tool Weight grams:
85 g
Tool Width mm:
50 mm
Unit Of Measure:
Each
UNSPSC:
27112149
UNSPSC Number:
27112149
UOM Qty:
1
UPC Code:
843221023294
Other Details
Cutting edge hardness (approx. 64 HRC)
Cutting edges additionally induction hardened
ESD (electrostatic discharge) handles discharge electrostatic energy through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge
Extremely smooth movement for minimum operator fatigue
Handles with multi-component grips
Made in Germany
Opening spring and opening limiter user-friendly handle width
Pliers burnished

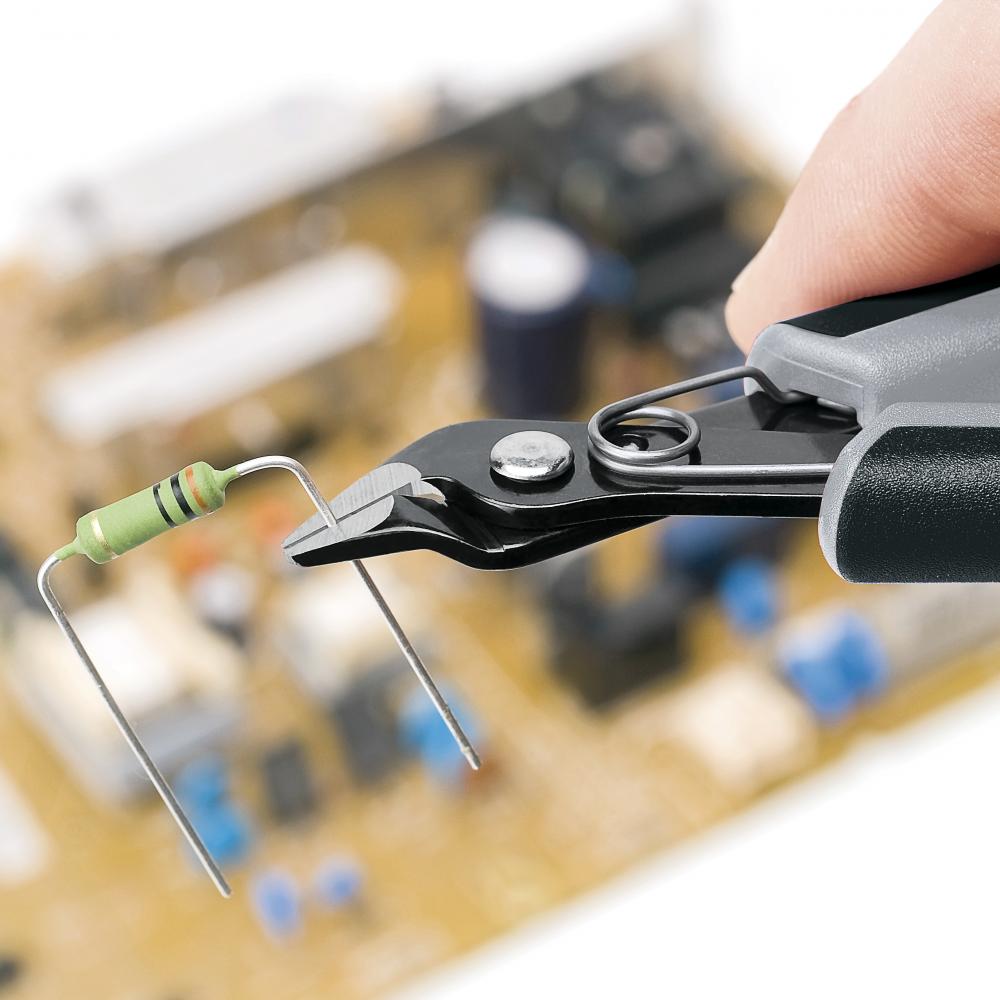

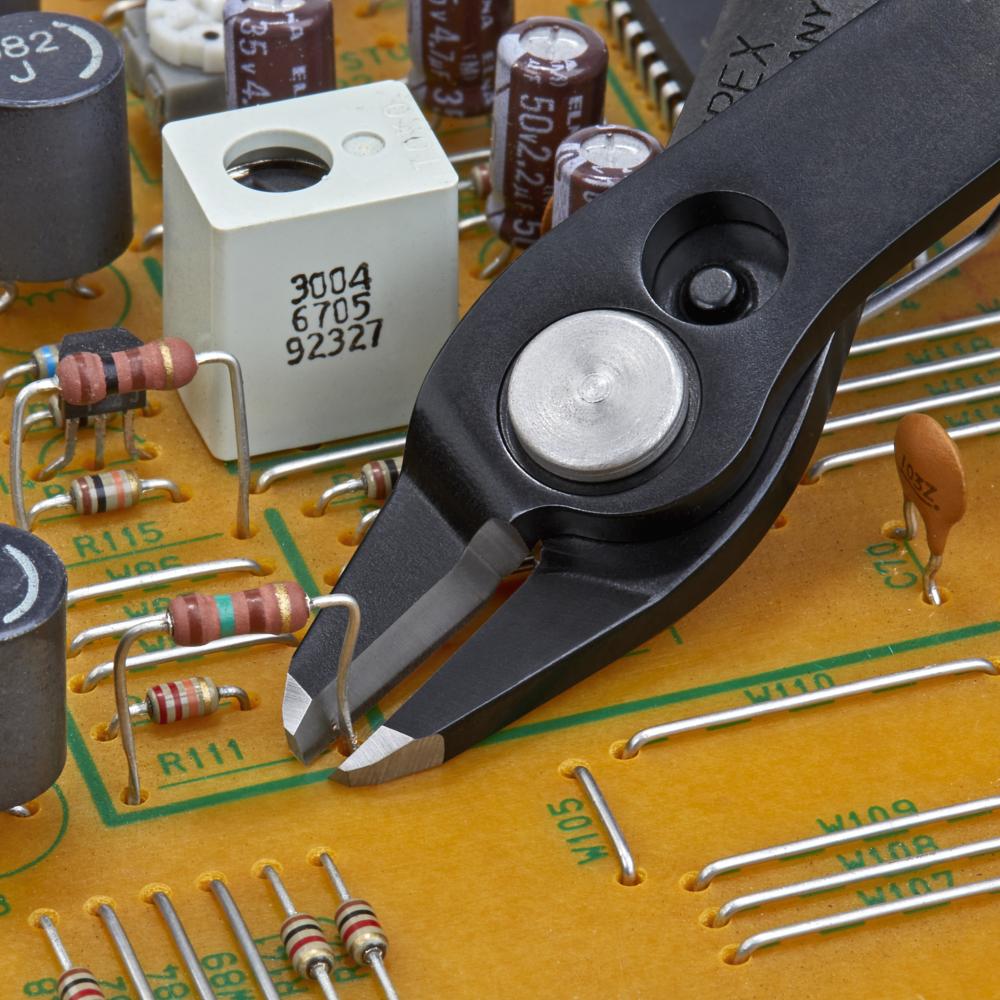

Precisely shaped tips also cut adjacent wires from 1/64" (0.20 mm) diameter
Precision ground cutting edges without bevel for flush cutting the finest of wires e.g. in electronics and precision engineering
Special tool steel, burnished
Special tool steel, oil hardened in multiple stages
The 5 1/2" version is for greater stability and cutting performance
