![4 3/4" Electronics Oblique Cutters](/vendors/8243/large/6212120-01-3.jpg "4 3/4" Electronics Oblique Cutters")

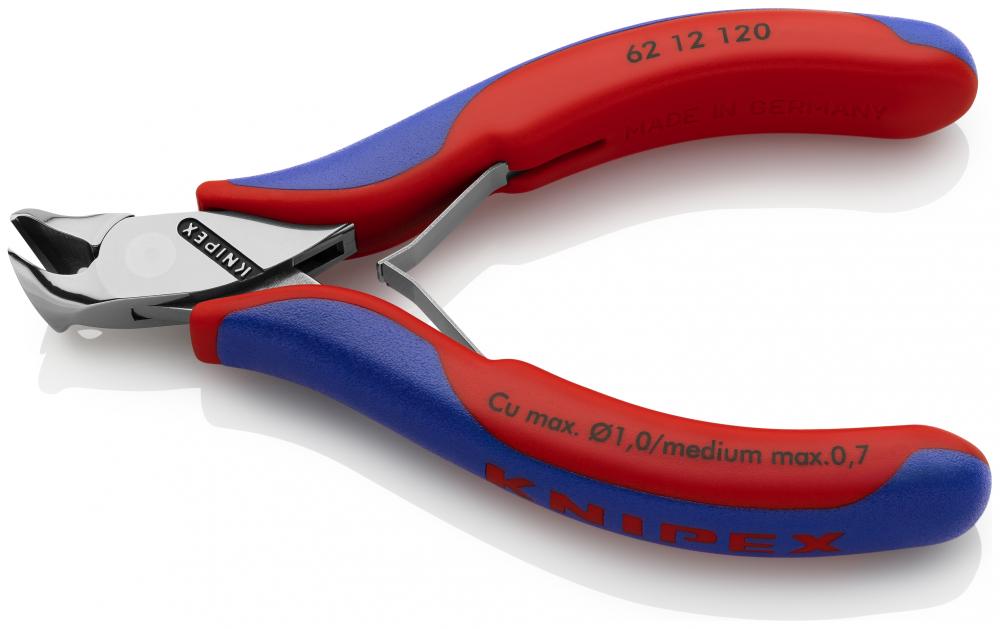

4 3/4" Electronics Oblique Cutters
Call For Price
- Part Number: 62 12 120
- UPC: 00843221003449
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Nippers and Nibblers
Electronics Pliers
1000 Volt Insulated:
No
Blade Length:
25/64"
Brand Name:
KNIPEX
Color:
Red/Blue
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Medium Hard Wire (Nail):
1/32"
Cutting Capacity - Soft Wire:
1/64" to 3/64"
Cutting Capacity Medium Hard Wire Nail:
1/32"
Cutting Capacity Soft Wire:
1/64" to 3/64"
Cutting Edge HRC:
Approx. 60 HRC
Cutting Edge Shape:
Without bevel
Cutting Result:
Flush
Data Sheet Filename:
6212120_en.pdf
DIN:
DIN ISO 9654
ECCN:
EAR99
Handle Length:
3 1/2"
Handle Type:
Multi-component
Harmonized Tariff Code:
8203.20.6060
Included Products/Items:
Surface Finish: Polished
Item Height (inches):
7/8"
Item Height inches:
7/8"
Item Length (inches):
4.75
Item Length inches:
4 3/4"
Item Quantity:
1
Item Weight (lbs):
0.215
Item Weight lbs:
0.215
Item Width (inches):
2"
Item Width inches:
2"
Jaw Length:
25/64"
Jaw Thickness:
19/64"
Jaw Width:
7/16"
Joint Type:
Box-joint with rivet
Joint Type 2:
Fixed Joint
Material Type:
Ball Bearing Steel
Package Height (inches):
0.8"
Package Height inches:
0.8"
Package Length (inches):
6.5"
Package Length inches:
6.5"
Package Weight (lbs):
0.246
Package Weight lbs:
0.246
Package Width (inches):
2.4"
Package Width inches:
2.4"
Packaging Height mm:
48 mm
Packaging Length mm:
187 mm
Packaging Width mm:
71 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Polished
Tool Attributes:
Cutting capacity - up to 3/64" for soft wire and up to 1/32" for medium wire
Cutting edge hardness approx. 58 HRC
Cutting edges induction hardened for longer life and for more durable cutting
For electronics - without bevel for flush cutting
Handles with multi-component covers
High-grade special tool steel, forged, multi stage oil-hardened
Low friction double spring for gentle and even opening
Low-friction double spring for gentle and even opening
Polished head
Polished together with a fine film of oil to offer the best possible rust protection - no circuit faults caused by peeling chrome from plated tools
Precision box joint
With cutting edges for soft and medium hard wire
Tool Height mm:
19 mm
Tool Length mm:
120 mm
Tool Weight grams:
93 g
Tool Width mm:
49 mm
Unit Of Measure:
Each
UNSPSC:
27112117
UNSPSC Number:
27112117
UOM Qty:
1
UPC Code:
843221003449
Other Details
Ball bearing steel
Cutting capacity - up to 3/64" for soft wire and up to 1/32" for medium wire
Cutting edge hardness (approx. 58 HRC)
Cutting edges for soft and medium hard wire
Handles with multi-component covers
High-grade special tool steel, forged, multi stage oil-hardened
Low-friction double spring for gentle and even opening
No bevel, for flush cutting
Polished head
Polished together with a fine film of oil to offer the best possible rust protection - no circuit faults caused by peeling chrome from plated tools
Precision box-joint
The polish and a fine film of oil offers effective rust protection – no circuit faults caused by peeling chrome from plated tools
