![4 3/4" Electronics Diagonal Cutters-Carbide Metal Cutting Edges-ESD Handles](/vendors/8243/large/7732120HESD-00-3.jpg "4 3/4" Electronics Diagonal Cutters-Carbide Metal Cutting Edges-ESD Handles")

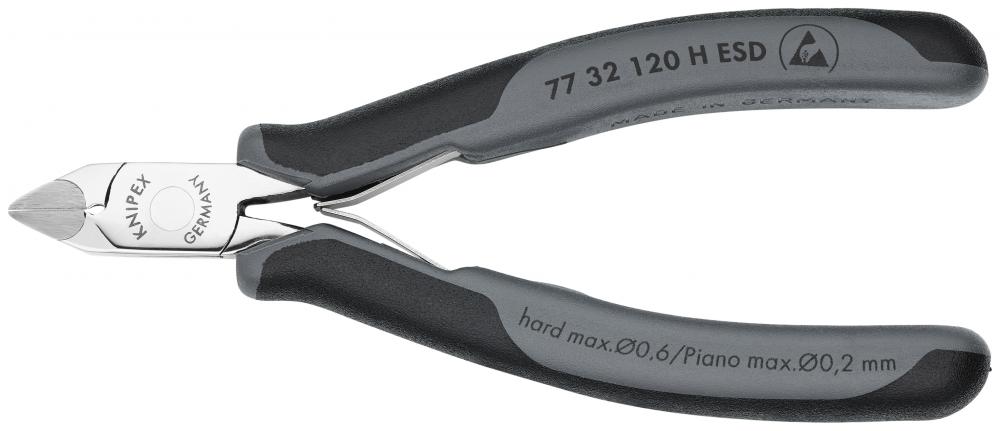

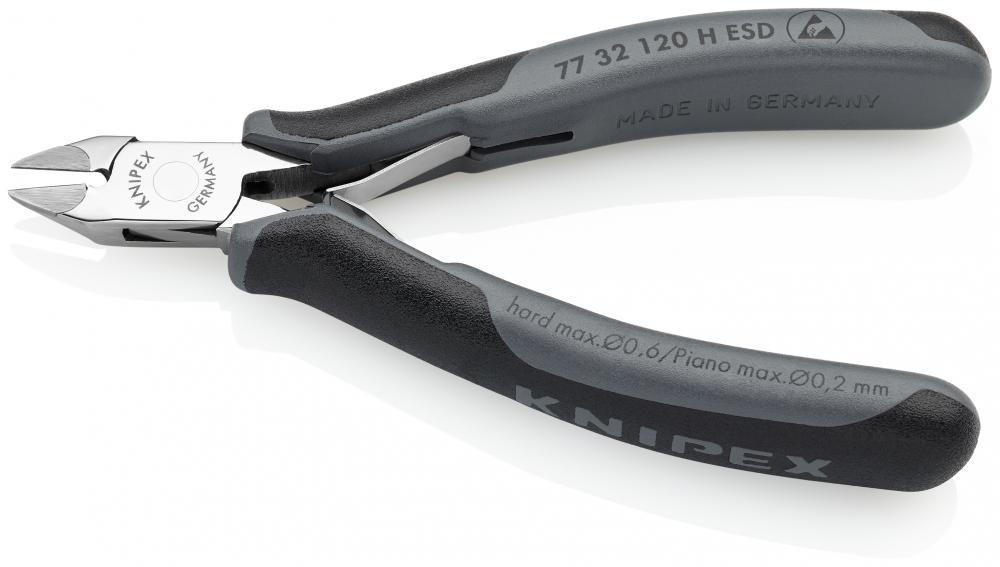

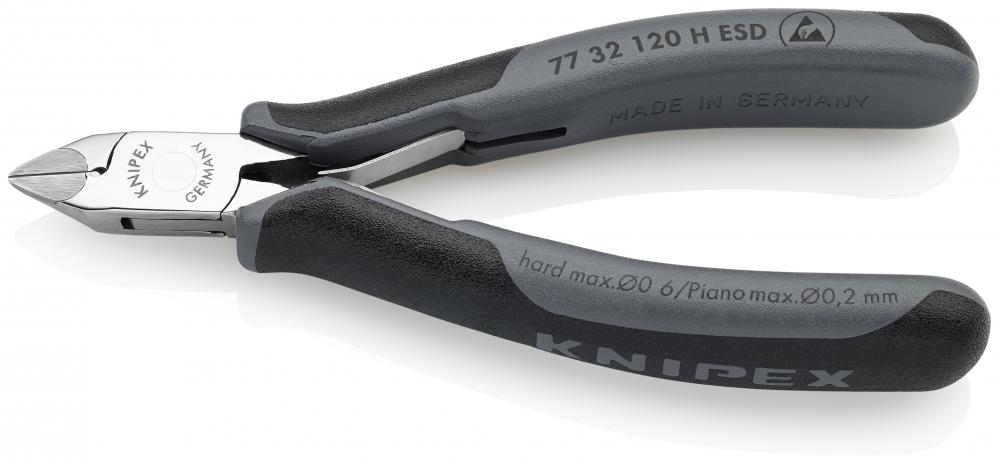

4 3/4" Electronics Diagonal Cutters-Carbide Metal Cutting Edges-ESD Handles
Call For Price
- Part Number: 77 32 120 H ESD
- UPC: 00843221020620
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (23)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Diagonal Cutting Pliers
1000 Volt Insulated:
No
Blade Length:
9/16"
Brand Name:
KNIPEX
Color:
Blue/Gray
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Hard Wire (Steel Wire):
1/64"
Cutting Capacity - Medium Hard Wire (Nail):
1/32"
Cutting Capacity - Piano Wire:
1/64"
Cutting Capacity - Soft Wire:
1/16"
Cutting Capacity Hard Wire Steel Wire:
1/64"
Cutting Capacity Medium Hard Wire Nail:
1/32"
Cutting Capacity Soft Wire:
1/16"
Cutting Edge HRC:
Approx. 62 HRC
Cutting Edge Shape:
Small bevel
Cutting Result:
Semi-flush
Data Sheet Filename:
7732120hesd_en.pdf
DIN:
DIN ISO 9654
ECCN:
EAR99
ESD Indicator:
Yes
Handle Length:
3 1/2"
Handle Type:
ESD multi-component
Harmonized Tariff Code:
8203.20.6060
Included Products/Items:
Surface Finish: Polished
Item Height (inches):
3/4"
Item Height inches:
3/4"
Item Length (inches):
4.75
Item Length inches:
4 3/4"
Item Quantity:
1
Item Weight (lbs):
0.165
Item Weight lbs:
0.165
Item Width (inches):
1 7/8"
Item Width inches:
1 7/8"
Jaw Length:
9/16"
Jaw Thickness:
19/64"
Jaw Width:
7/16"
Joint Type:
Box-joint with rivet
Joint Type 2:
Fixed Joint
Material Type:
Ball Bearing Steel
Other Material Type:
Carbide metal cutting edges
Package Height (inches):
0.8"
Package Height inches:
0.8"
Package Length (inches):
6.5"
Package Length inches:
6.5"
Package Weight (lbs):
0.19
Package Weight lbs:
0.19
Package Width (inches):
2.4"
Package Width inches:
2.4"
Packaging Height mm:
30 mm
Packaging Length mm:
152 mm
Packaging Width mm:
61 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Polished
Tip Thickness:
19/64"
Tool Attributes:
Always the right cutting tool, even with the hardest material
Constantly reliable cutting results due to the avoidance of cutter deformations
Cutting capacity - up to 1/16" for soft wire, up to 1/16" for medium, up to 1/32" for hard and up to 1/64" for piano wire
Cutting edges induction hardened for longer life and for more durable cutting
ESD (electrostatic discharge) handles protects components endangered by electrostatic discharge by discharging electrostatic energy through the handles

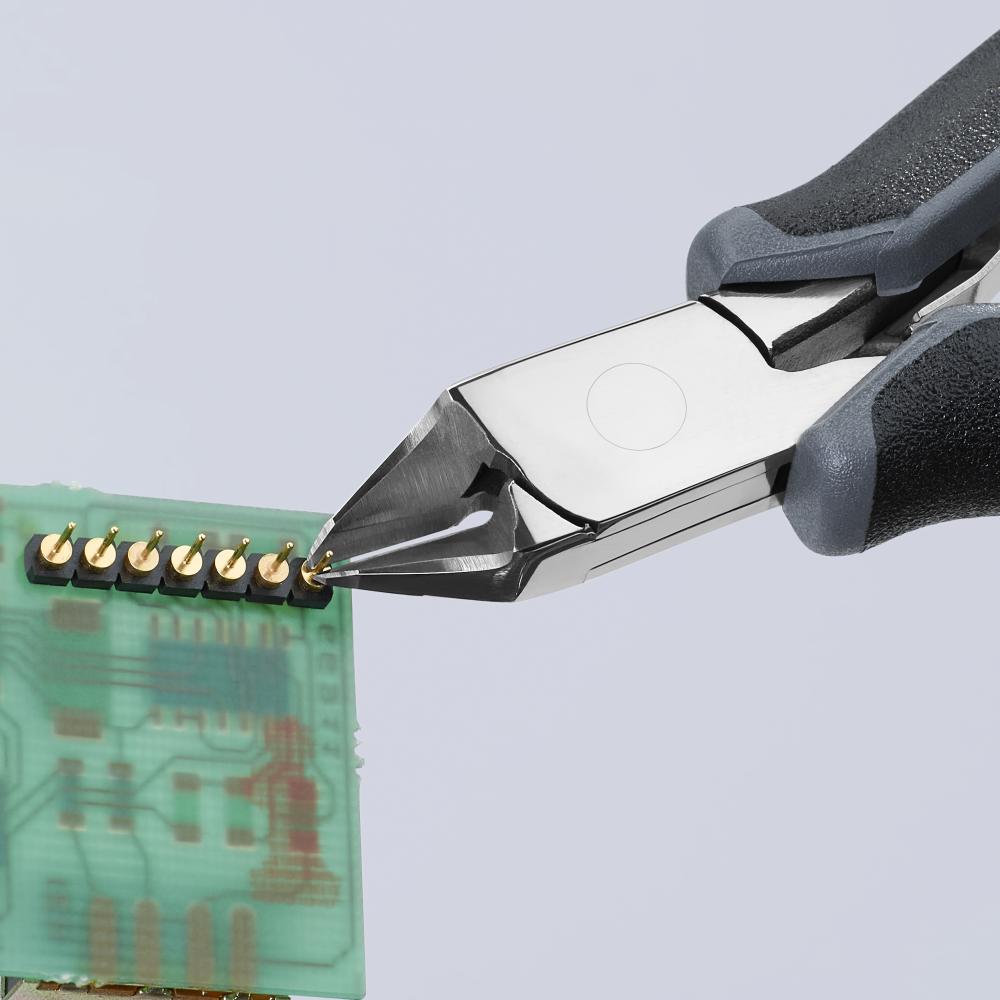

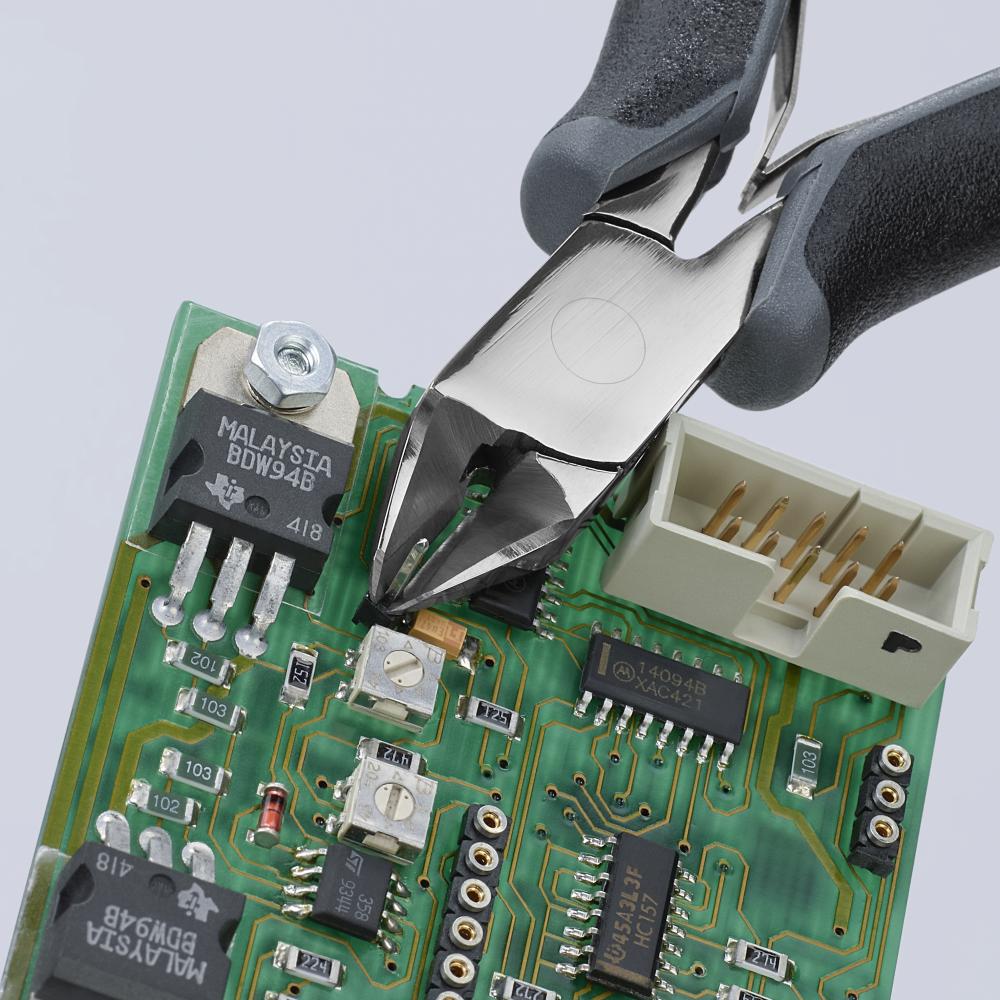

For fine cutting work in electronics and fine mechanics
Hardness of the carbide cutting edges 80 – 83 HRC
High cost saving due to longer service life of the pliers
Low friction double spring for gentle and even opening
Pliers with carbide metal cutting edges have a substantially longer service life than such with conventional cutting edges
Pointed head with chamfer
Precision carbide metal cutting edges soldered into forged blanks
Semi-flush cut
Small bevel
Sturdy, zero-backlash box joint
Tool Height mm:
19 mm
Tool Length mm:
120 mm
Tool Weight grams:
80 g
Tool Width mm:
50 mm
Unit Of Measure:
Each
UNSPSC:
27112149
UNSPSC Number:
27112149
UOM Qty:
1
UPC Code:
843221020620
Other Details
Ball bearing steel; laser-hardened cutting edges
Constantly reliable cutting results due to the avoidance of cutter deformations
ESD (electrostatic discharge) handles discharge electrostatic energy through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge
For extreme demands on cutting pliers caused by hard or tough materials, e.g. piano, nickel, tungsten and diode wire, which are used more frequently in the electronics and aerospace industries
Hardness of the carbide cutting edges (approx. 80 – 83 HRC)
High cost saving due to longer service life of the pliers
High cost savings due to longer service life of the pliers
Pliers with carbide metal cutting edges have a substantially longer service life than with conventional cutting edges
Pointed head with chamfer
Pointed head with chamfer; with small bevel

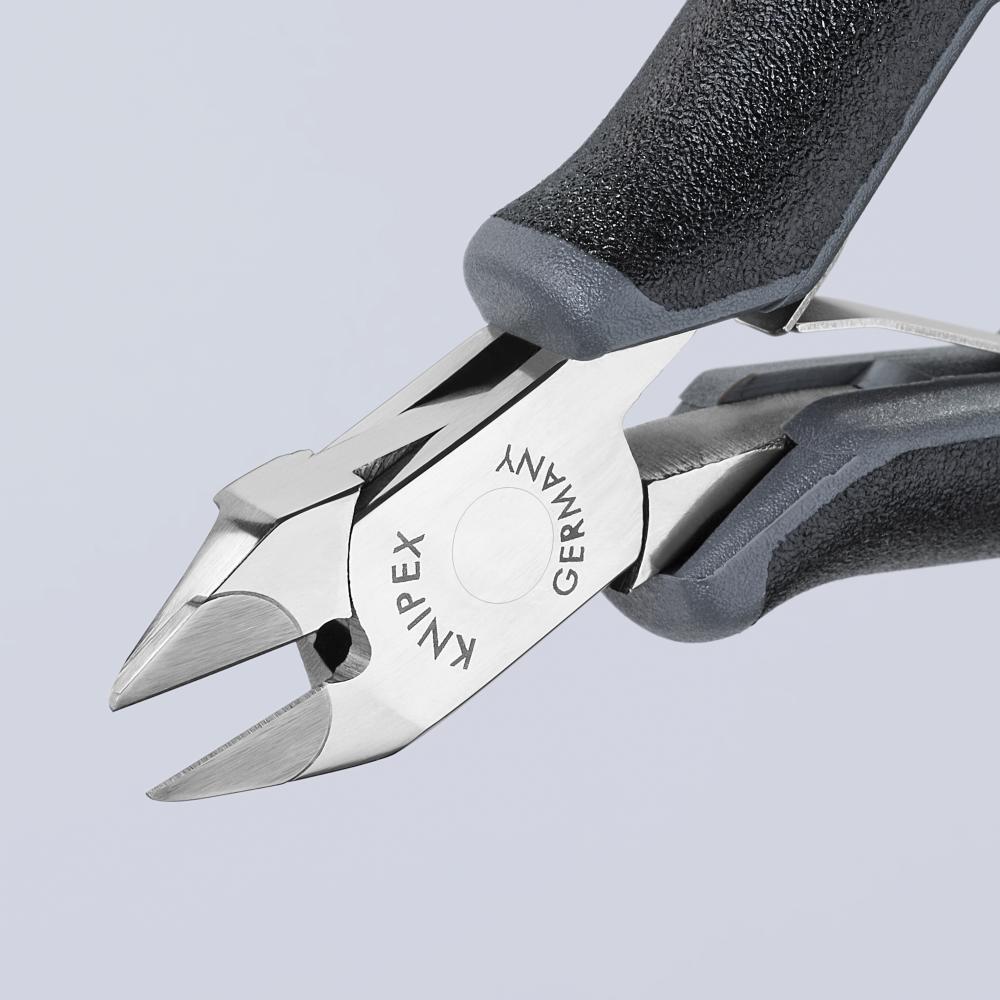

Precision carbide metal cutting edges soldered into forged blanks
Semi-flush cut
Small bevel
Sturdy, zero backlash box-joint
