![4 1/2" Electronics End Cutting Nippers-ESD Handles](/vendors/8243/large/6412115ESD-02-3.jpg "4 1/2" Electronics End Cutting Nippers-ESD Handles")

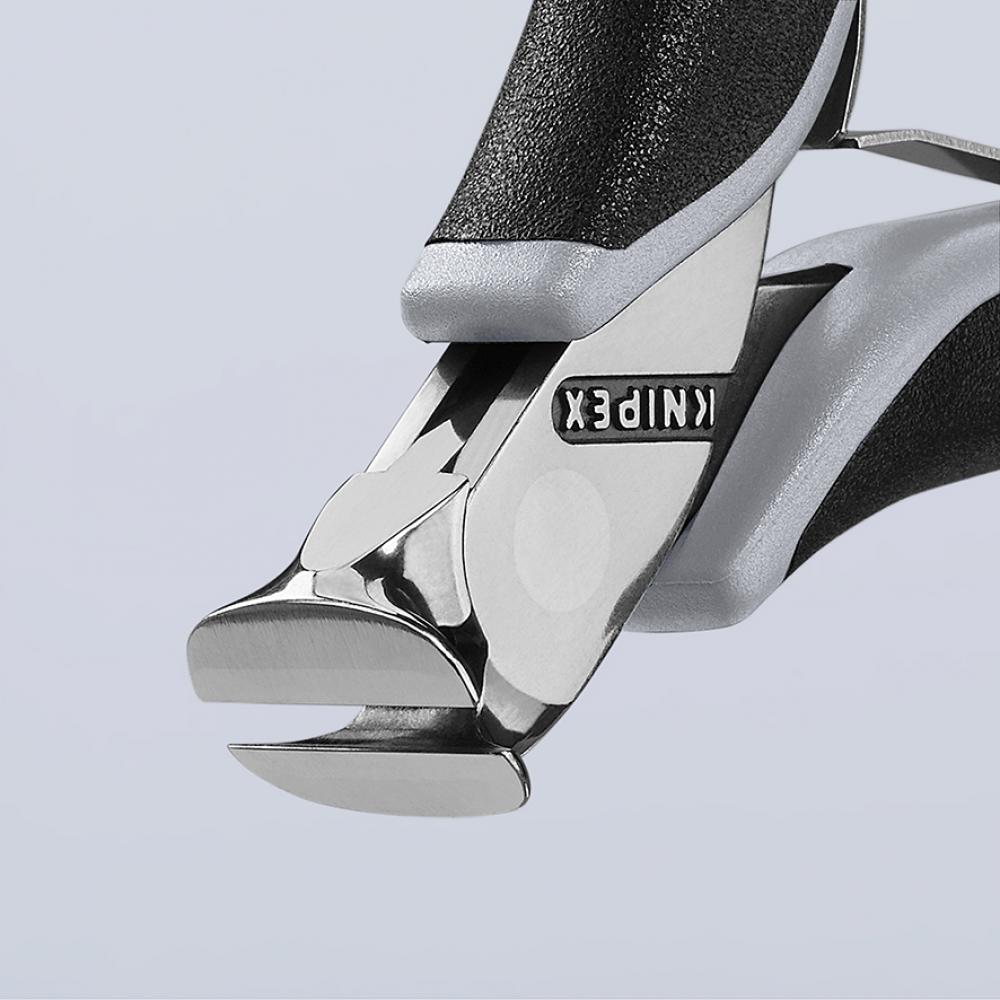

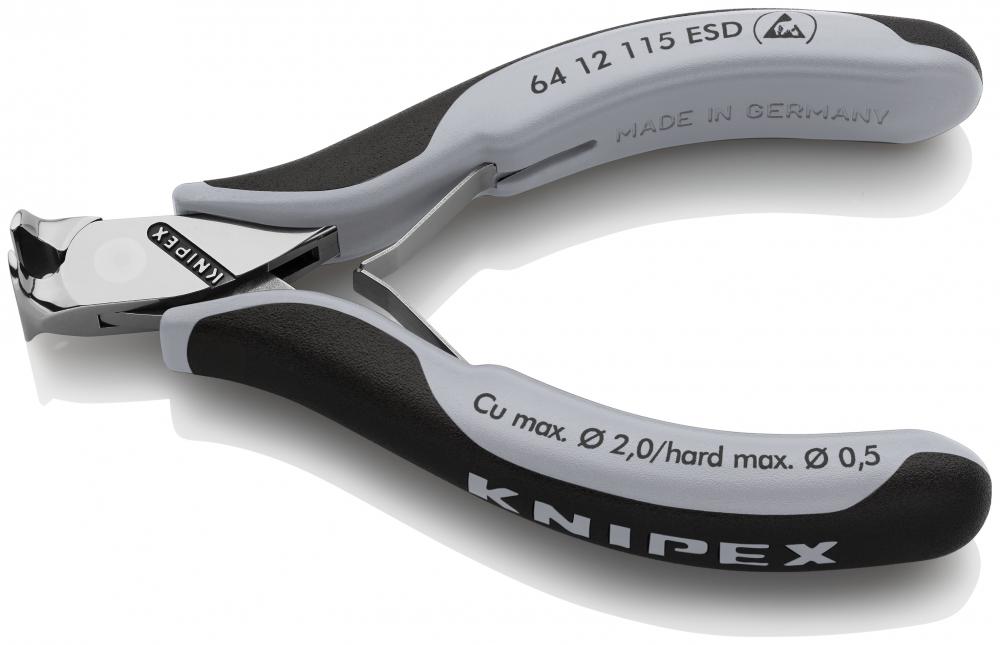

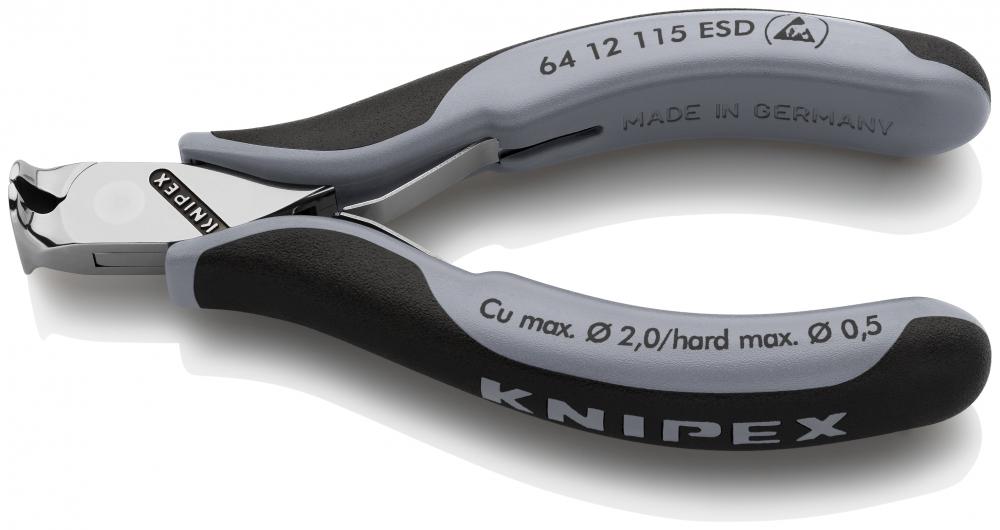

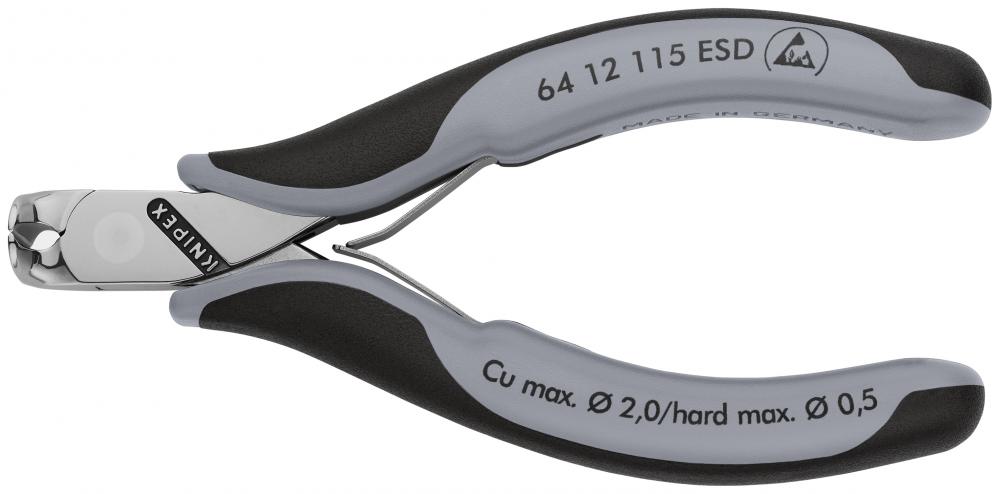

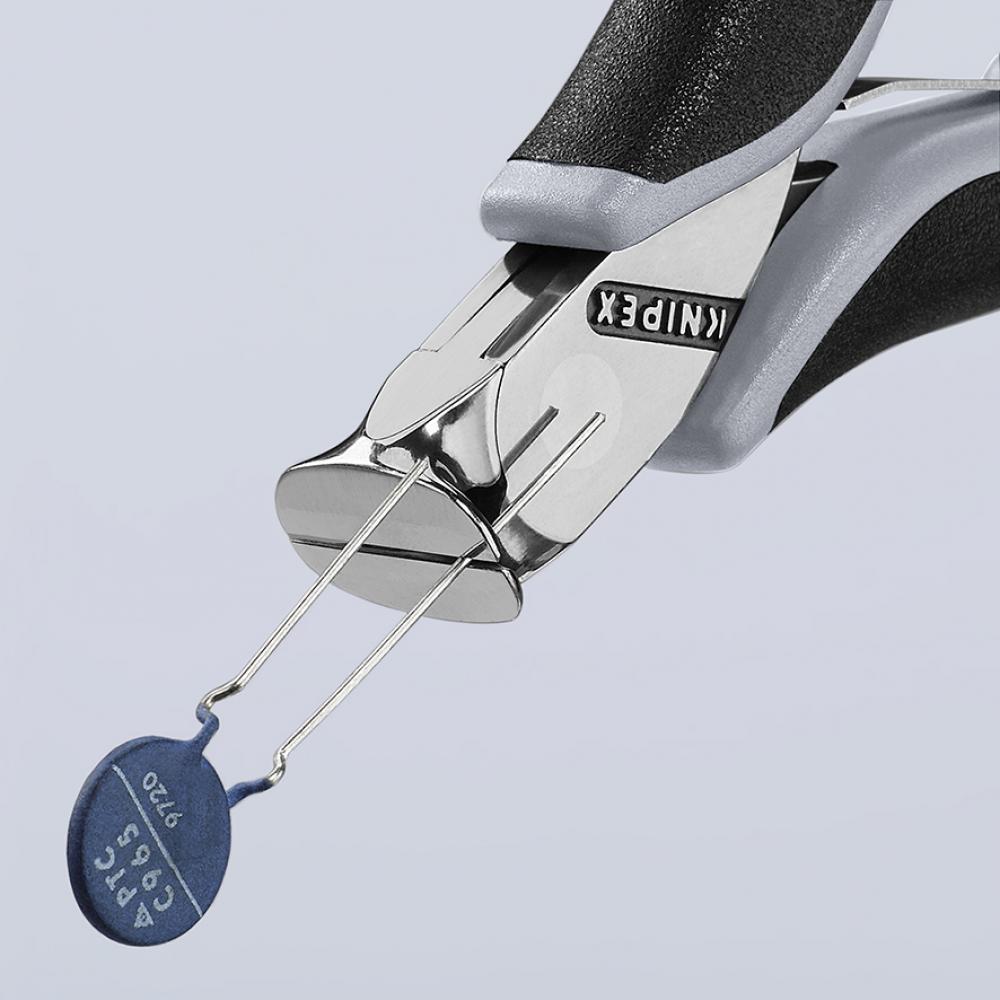

4 1/2" Electronics End Cutting Nippers-ESD Handles
Call For Price
- Part Number: 64 12 115 ESD
- UPC: 00843221012908
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (9)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Cutting Tools
Industrial Subtype:
Nippers and Nibblers
1000 Volt Insulated:
No
Angled Head:
90 degree
Blade Length:
15/64"
Brand Name:
KNIPEX
Color:
Blue/Gray
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Medium Hard Wire (Nail):
1/32"
Cutting Capacity - Soft Wire:
1/16"
Cutting Capacity Medium Hard Wire Nail:
1/32"
Cutting Capacity Soft Wire:
1/16"
Cutting Edge HRC:
Approx. 60 HRC
Cutting Edge Shape:
Without bevel
Cutting Result:
Flush
Data Sheet Filename:
6412115esd_en.pdf
ECCN:
EAR99
ESD Indicator:
Yes
Handle Length:
4"
Handle Type:
ESD multi-component
Harmonized Tariff Code:
8203.20.6060
Included Products/Items:
Joint Type: Box-joint with rivet
Item Height (inches):
15/16"
Item Height inches:
15/16"
Item Length (inches):
4.5
Item Length inches:
4 1/2"
Item Quantity:
1
Item Weight (lbs):
0.22
Item Weight lbs:
0.22
Item Width (inches):
2 1/16"
Item Width inches:
2 1/16"
Jaw Length:
15/64"
Jaw Thickness:
9/32"
Jaw Width:
7/16"
Joint Type:
Box-joint with rivet
Joint Type 2:
Fixed Joint
Material Type:
Ball bearing steel, laser-hardened cutting edges
Package Height (inches):
0.8"
Package Height inches:
0.8"
Package Length (inches):
6.5"
Package Length inches:
6.5"
Package Weight (lbs):
0.251
Package Weight lbs:
0.251
Package Width (inches):
2.4"
Package Width inches:
2.4"
Packaging Height mm:
48 mm
Packaging Length mm:
187 mm
Packaging Width mm:
71 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Polished
Tip Thickness:
5/8"
Tip Width:
7/16"
Tool Attributes:
Cutting capacity - up to 5/64" for soft wire, up to 1/32" for medium wire and up to 1/64" for hard wire
Cutting edges induction hardened for longer life and for more durable cutting
ESD (electrostatic discharge) handles protects components endangered by electrostatic discharge by discharging electrostatic energy through the handles
Low friction double spring for gentle and even opening
Precision pliers for ultra fine cutting work in electronics and fine mechanics
Tool Height mm:
18 mm
Tool Length mm:
115 mm
Tool Weight grams:
94 g
Tool Width mm:
71 mm
Unit Of Measure:
Each
UNSPSC:
27112149
UNSPSC Number:
27112149
UOM Qty:
1
UPC Code:
843221012908
Other Details
Ball bearing steel; laser-hardened cutting edges
Cutting capacity - up to 1/16" for soft wire and up to 1/32" for medium wire
Cutting edge hardness (approx. 56 HRC) for longer life and for more durable cutting
ESD (electrostatic discharge) handles discharge electrostatic energy through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge
Flush cut
Low friction double spring for gentle and even opening
Precision box joint allows for greater stability
Precision pliers for ultra fine cutting work in electronics and fine mechanics
The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
