![4 1/2" Electronics Diagonal Cutters](/vendors/8243/large/7711115-02-3.jpg "4 1/2" Electronics Diagonal Cutters")

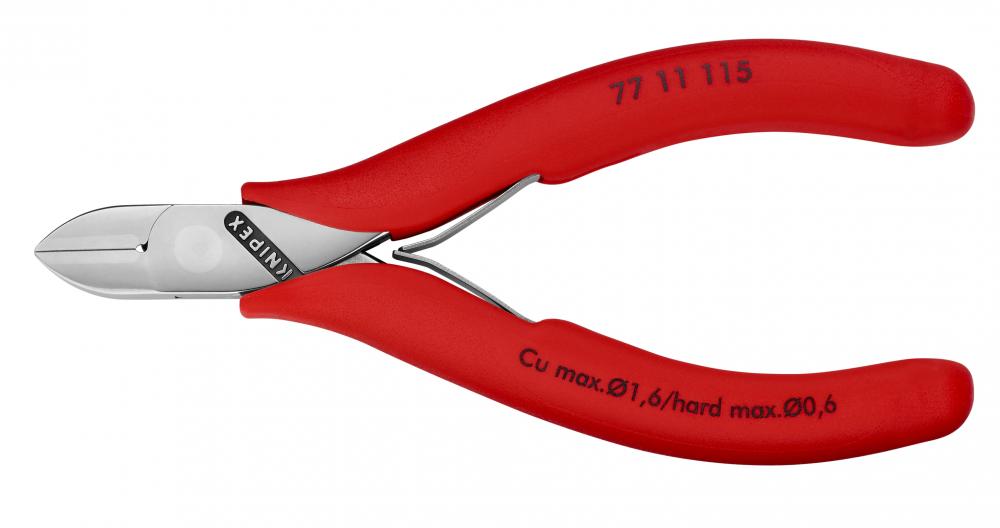

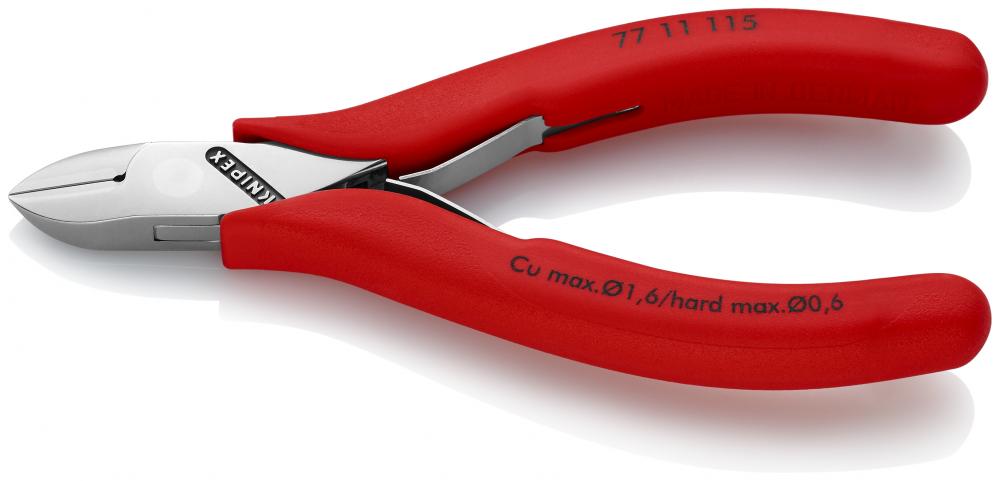

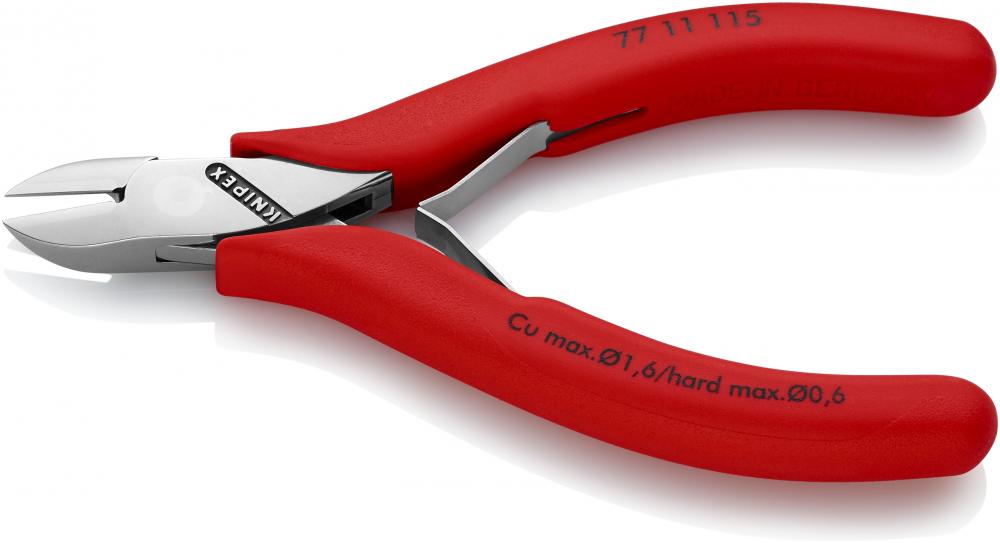

4 1/2" Electronics Diagonal Cutters
Call For Price
- Part Number: 77 11 115
- UPC: 00843221013493
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Diagonal Cutting Pliers
1000 Volt Insulated:
No
Blade Length:
35/64"
Brand Name:
KNIPEX
Color:
Red
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Hard Wire (Steel Wire):
1/64"
Cutting Capacity - Medium Hard Wire (Nail):
3/64"
Cutting Capacity - Soft Wire:
1/64" to 1/16"
Cutting Edge HRC:
Approx. 62 HRC
Cutting Edge Shape:
Small bevel
Cutting Result:
Semi-flush
ECCN:
EAR99
Handle Type:
Single component
Harmonized Tariff Code:
8203.20.6060
Item Height inches:
7/8"
Item Length (inches):
4.5
Item Length inches:
4 1/2"
Item Weight (lbs):
0.15
Item Weight lbs:
0.15
Item Width inches:
2 1/8"
Jaw Length:
35/64"
Jaw Thickness:
19/64"
Jaw Width:
7/16"
Joint Type:
Box-joint with rivet
Material Type:
Ball Bearing Steel
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Polished
Tip Thickness:
19/64"
Unit Of Measure:
Each
UNSPSC:
27112114
UNSPSC Number:
27112114
UOM Qty:
1
UPC Code:
843221013493
Other Details
Ball bearing steel; laser-hardened cutting edges
Cutting capacity - up to 1/16" for soft wire, 3/64" for medium and up to 1/64" for hard wire
Cutting edge hardness approx. 62 HRC
Cutting edges induction hardened (approx. 62 HRC)
For fine cutting work in electronics and fine mechanics

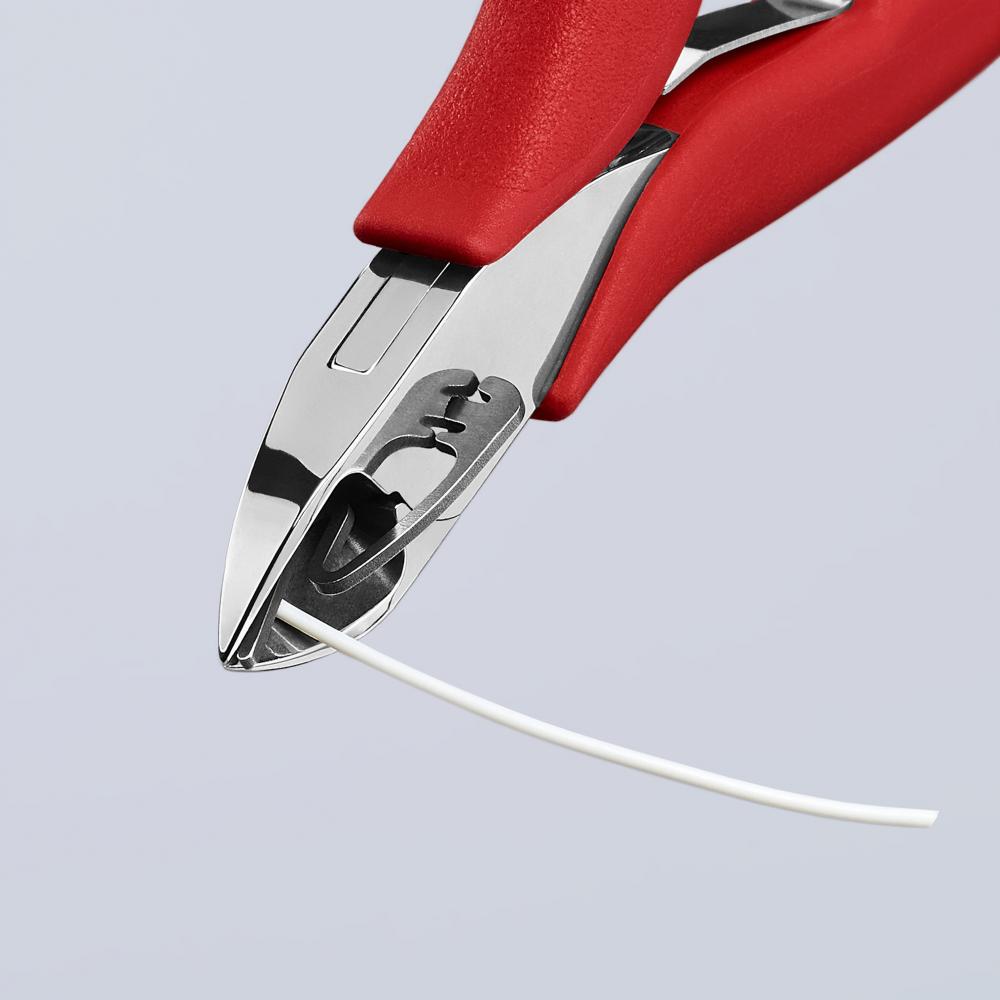

Lead catcher, no uncontrolled loss of cut wire ends
Low friction double spring for gentle and even opening
Plastic-coated handles
Semi-flush cut
Semi-flush with small bevel
Small bevel
Sturdy, zero-backlash box joint
The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
With lead catcher - no uncontrolled loss of cut wire ends
