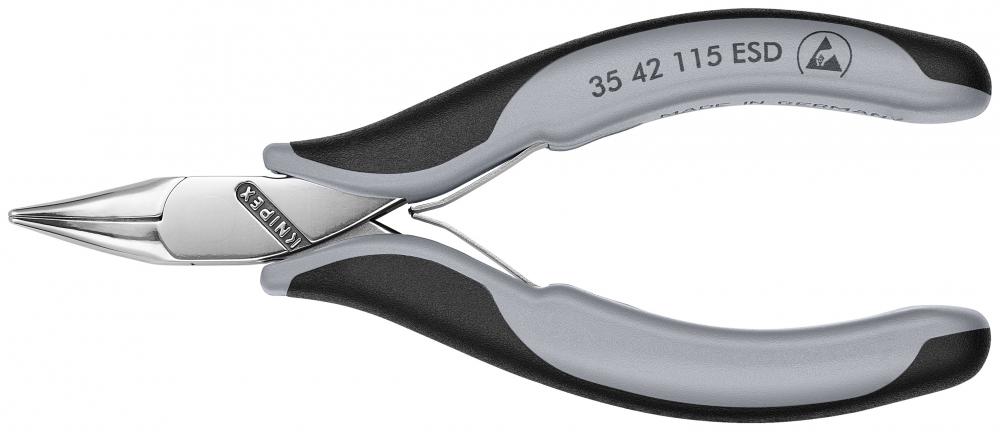

![4 1/2" Electronics 45° Angled Pliers-Half Round Tips, ESD Handles](/vendors/8243/large/3542115ESD-03-3.jpg "4 1/2" Electronics 45° Angled Pliers-Half Round Tips, ESD Handles")

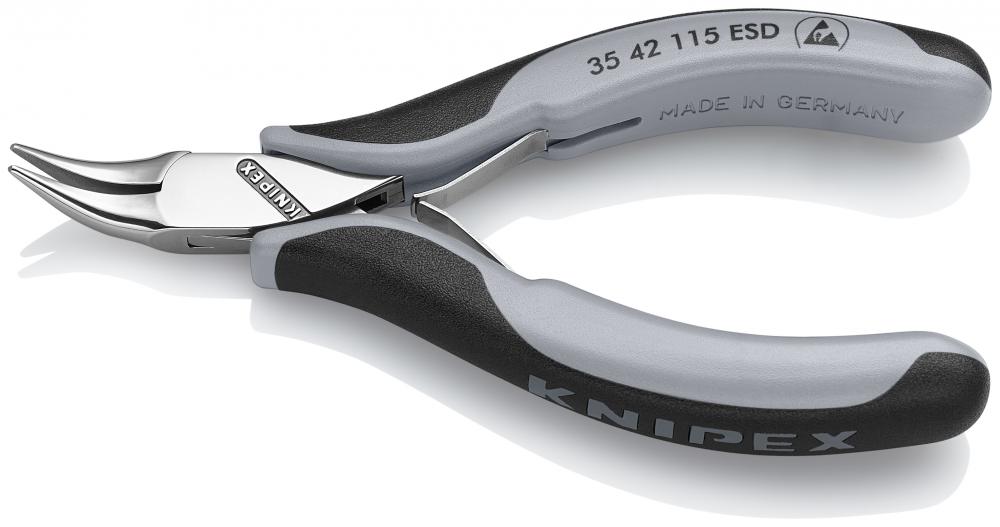

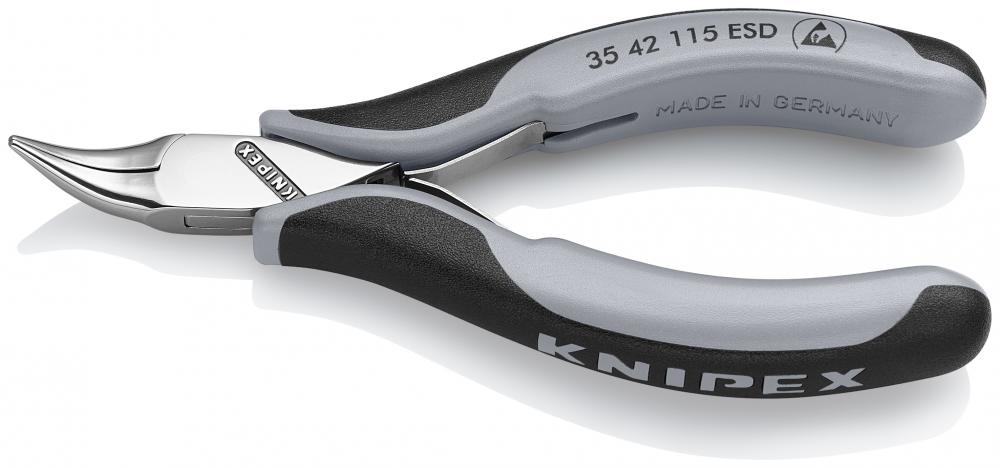

4 1/2" Electronics 45° Angled Pliers-Half Round Tips, ESD Handles
Call For Price
- Part Number: 35 42 115 ESD
- UPC: 00843221020071
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (12)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Long Nose and Needle Nose Pliers
Electronics Pliers
1000 Volt Insulated:
No
Angled Head:
45 degree
Brand Name:
KNIPEX
Color:
Blue/Gray
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Data Sheet Filename:
3542115esd_en.pdf
DIN:
DIN ISO 9655
ECCN:
EAR99
ESD Indicator:
Yes
Gripping Surface:
Smooth
Handle Length:
3 1/2"
Handle Type:
ESD multi-component
Harmonized Tariff Code:
8203.20.6030
Included Products/Items:
Gripping Surface: Smooth
Item Height (inches):
7/8"
Item Height inches:
7/8"
Item Length (inches):
4.5
Item Length inches:
4 1/2"
Item Quantity:
1
Item Weight (lbs):
0.17
Item Weight lbs:
0.17
Item Width (inches):
2 1/8"
Item Width inches:
2 1/8"
Jaw Length:
57/64"
Jaw Thickness:
17/64"
Jaw Type:
Half-round
Jaw Width:
57/64"
Joint Type:
Box-joint with rivet
Joint Type 2:
Fixed Joint
Material Type:
Ball bearing chrome steel
Package Height (inches):
0.8"
Package Height inches:
0.8"
Package Length (inches):
6.5"
Package Length inches:
6.5"
Package Weight (lbs):
0.201
Package Weight lbs:
0.201
Package Width (inches):
2.4"
Package Width inches:
2.4"
Packaging Height mm:
48 mm
Packaging Length mm:
189 mm
Packaging Width mm:
72 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Spring Loaded:
Yes
Surface Finish:
Polished
Tip Thickness:
1/16"
Tip Width:
5/64"
Tool Attributes:
ESD (electrostatic discharge) handles protects components endangered by electrostatic discharge by discharging electrostatic energy through the handles
Low-friction double spring provides for gentle and even opening
Precision box joint for greater stability when using the tool
Precision pliers for ultra fine assembly work in electronics and fine mechanics
Smooth gripping surfaces and smooth edges
Used for gripping, holding and bending
Tool Length mm:
115 mm
Tool Weight grams:
74 g
Unit Of Measure:
Each
UNSPSC:
27112149
UNSPSC Number:
27112149
UOM Qty:
1
UPC Code:
843221020071
Other Details

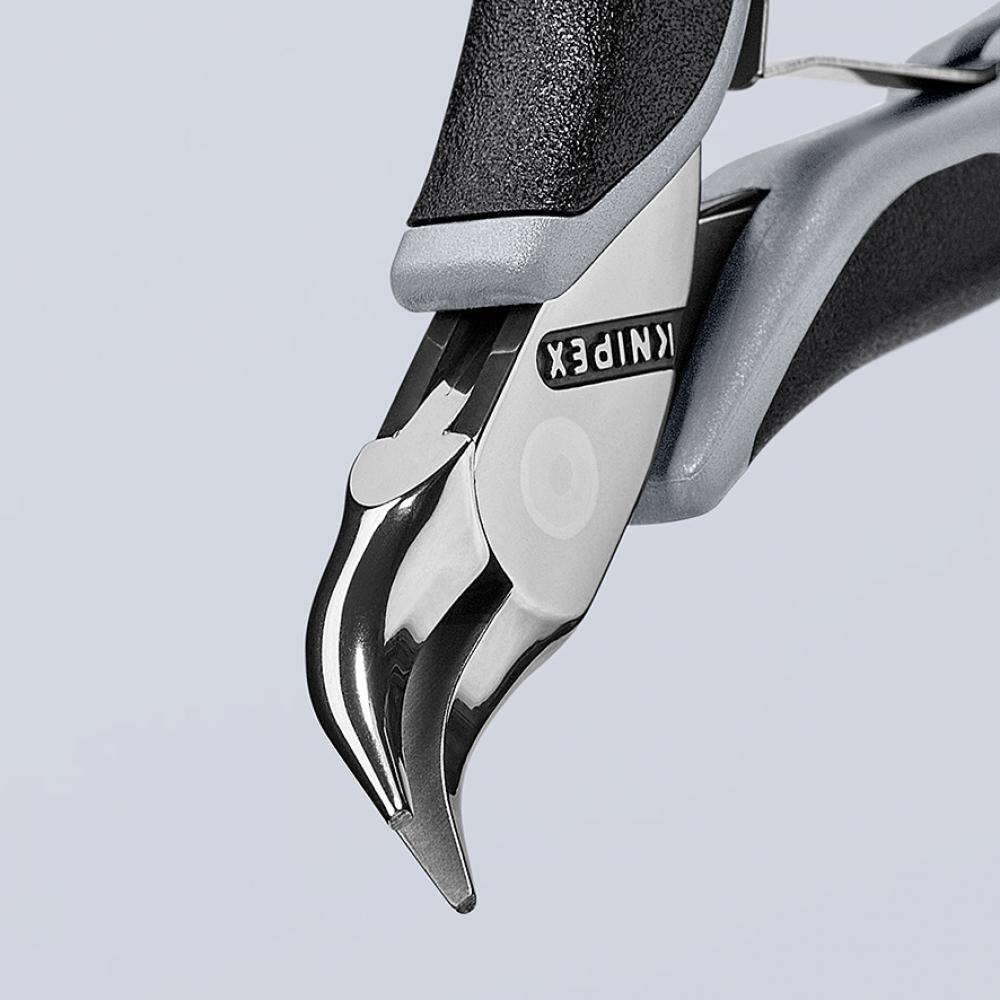

45˚ angled, half-round, smooth jaws
Ball bearing steel
Designed for gripping, holding and bending small components
ESD (electrostatic discharge) handles discharge electrostatic energy through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge
Low-friction double spring for gently and even opening
Precision pliers for ultra fine assembly work in electronics and fine mechanics
Smooth gripping surfaces and rounded edges prevent damage to components
Sturdy, zero-backlash box joint
The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
Used for gripping, holding and bending
