![23" External 90° Angled Snap Ring Pliers-Large](/vendors/8243/large/4620A61-00-3.jpg "23" External 90° Angled Snap Ring Pliers-Large")

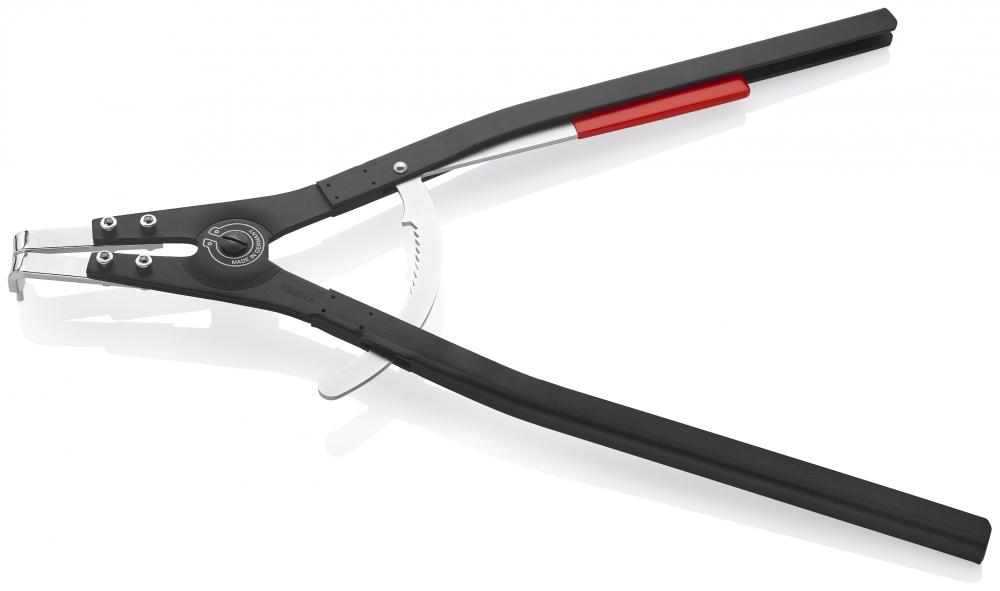

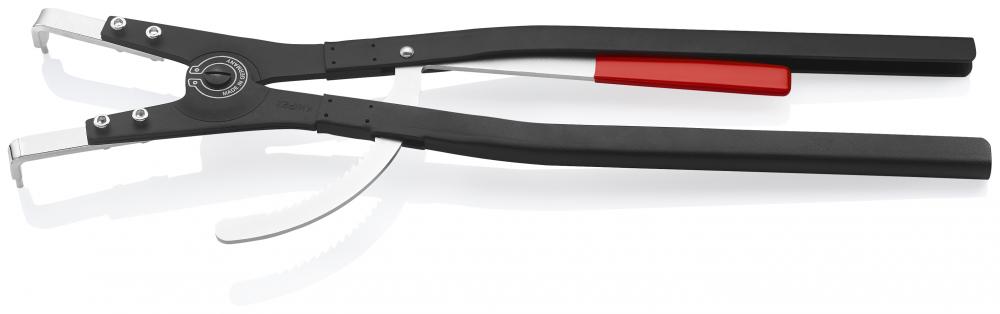

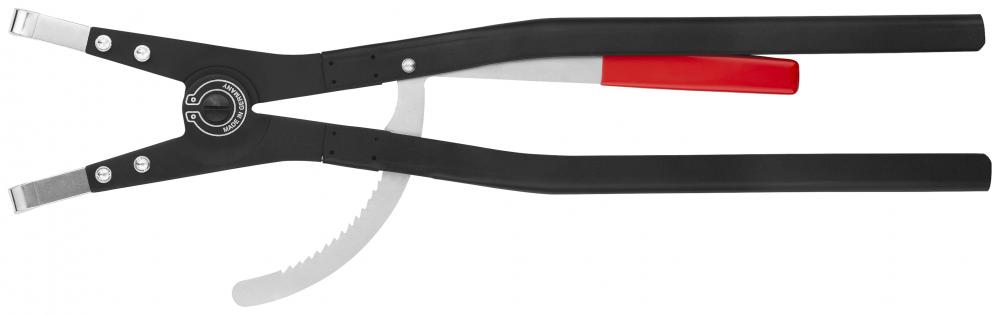

23" External 90° Angled Snap Ring Pliers-Large
Call For Price
- Part Number: 46 20 A61
- UPC: 00843221012564
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Retaining and Lock Ring Pliers
1000 Volt Insulated:
No
Angled Head:
90 degree
Brand Name:
KNIPEX
Circlip - External Shaft Size - inches:
9 59/64" to 16"
Circlip External Shaft Size Inches:
9 59/64" to 16"
Color:
Black
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Data Sheet Filename:
4620a61_en.pdf
DIN:
DIN 5254 B
ECCN:
EAR99
Handle Length:
15 3/4"
Handle Type:
Bare handles
Harmonized Tariff Code:
8203.20.6030
Included Products/Items:
Handle Type: Bare handles
Item Height (inches):
2"
Item Height inches:
2"
Item Length (inches):
23
Item Length inches:
22 3/4"
Item Quantity:
1
Item Weight (lbs):
4.11
Item Weight lbs:
4.11
Item Width (inches):
6 13/16"
Item Width inches:
6 13/16"
Joint Type:
Bolted
Joint Type 2:
Fixed Joint
Material Type:
Tips: special tool steel; oil-hardened
Nomintal Length mm:
580
Other Material Type:
Pliers body: rolled steel, high-strength
Package Height (inches):
2.2"
Package Height inches:
2.2"
Package Length (inches):
25.1"
Package Length inches:
25.1"
Package Weight (lbs):
4.51
Package Weight lbs:
4.51
Package Width (inches):
7.9"
Package Width inches:
7.9"
Packaging Height mm:
50 mm
Packaging Length mm:
645 mm
Packaging Width mm:
200 mm
Prop 65 Conflict:
View
Reach:
contains SVHC
RoHS:
not applicable
Spare Part:
46 29 A61
Surface Finish:
Black powder-coated
Tip Width:
11/64"
Tool Attributes:
For assembling snap rings on shafts, ranging from 9 59/64" - 16".
Pliers body: rolled steel; high-strength.
Tips: special tool steel; oil-hardened.
With locking device, can be released without completing cycle.
With replaceable tips made of tempered steel.
Tool Height mm:
17 mm
Tool Length mm:
580 mm
Tool Weight grams:
1826 g
Tool Width mm:
151 mm
Unit Of Measure:
Each
UNSPSC:
27112140
UNSPSC Number:
27112140
UOM Qty:
1
UPC Code:
843221012564
Other Details
For assembling snap rings on shafts, ranging from 9 59/64" - 16" (252-400 mm)
Includes locking device, can be released without completing cycle
Pliers body are made of rolled steel, high-strength
Replaceable 90˚ tips made of tempered steel
Replaceable tip part number 46 29 A61
Tips are made of special tool steel; oil-hardened
Tips can be easily replaced by unthreading screws from pliers body
