![23 1/4" Internal 90° Angled Snap Ring Pliers-Large](/vendors/8243/large/4420J51-00-3.jpg "23 1/4" Internal 90° Angled Snap Ring Pliers-Large")

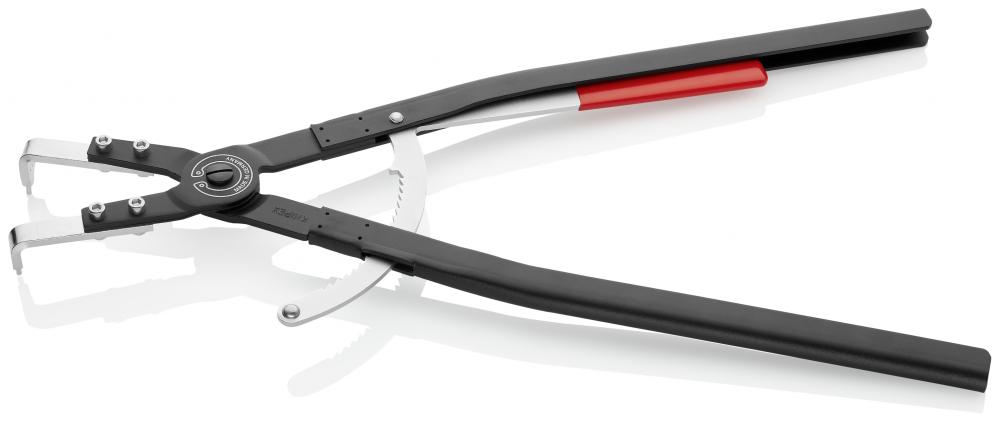

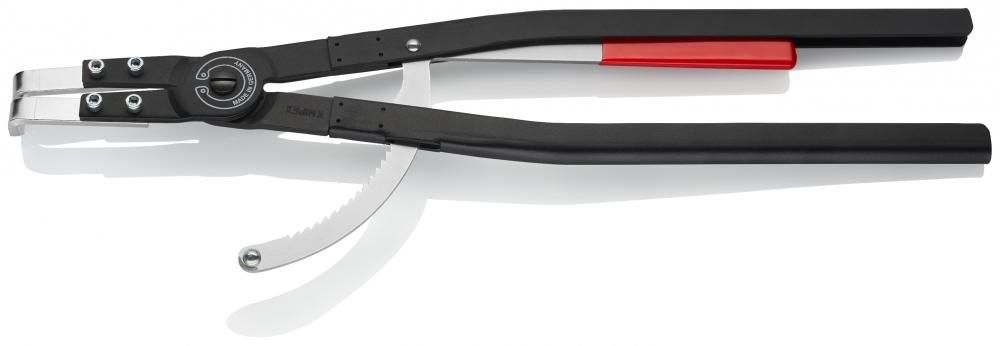

23 1/4" Internal 90° Angled Snap Ring Pliers-Large
Call For Price
- Part Number: 44 20 J51
- UPC: 00843221012366
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Retaining and Lock Ring Pliers
1000 Volt Insulated:
No
Angled Head:
90 degree
Brand Name:
KNIPEX
Circlip - Internal Bore Size - inches:
4 51/64" to 12"
Circlip Internal Bore Size Inches:
4 51/64" to 12"
Color:
Black
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Data Sheet Filename:
4420j51_en.pdf
ECCN:
EAR99
Handle Type:
Bare handles
Harmonized Tariff Code:
8203.20.6030
Included Products/Items:
Handle Type: Bare handles
Item Height (inches):
1 15/16"
Item Height inches:
1 15/16"
Item Length (inches):
23.25
Item Length inches:
23 1/4"
Item Quantity:
1
Item Weight (lbs):
4.005
Item Weight lbs:
4.005
Item Width (inches):
5 3/4"
Item Width inches:
5 3/4"
Joint Type:
Bolted
Joint Type 2:
Fixed Joint
Material Type:
Tips: special tool steel; oil-hardened
Nomintal Length mm:
590
Other Material Type:
Pliers body: rolled steel, high-strength
Package Height (inches):
2.3"
Package Height inches:
2.3"
Package Length (inches):
25.35"
Package Length inches:
25.35"
Package Weight (lbs):
4.43
Package Weight lbs:
4.43
Package Width (inches):
8.1"
Package Width inches:
8.1"
Packaging Height mm:
50 mm
Packaging Length mm:
641 mm
Packaging Width mm:
199 mm
Prop 65 Conflict:
View
Reach:
contains SVHC
RoHS:
not applicable
Spare Part:
44 29 J51
Surface Finish:
Black powder-coated
Tip Width:
9/64"
Tool Attributes:
For bore holes from 4 51/64" to 12".
Large - internal circlip pliers for installing or removing circlips into bore holes
Pliers body: rolled steel; high-strength.
Replaceable tip part number - 44 19 J5
Tips are made of special tool steel; oil-hardened for durability
Tips can be easily replaced by unthreading screws from pliers body
With locking device - can be released without completing cycle
Tool Height mm:
50 mm
Tool Length mm:
590 mm
Tool Weight grams:
1803 g
Tool Width mm:
141 mm
Unit Of Measure:
Each
UNSPSC:
27112140
UNSPSC Number:
27112140
UOM Qty:
1
UPC Code:
843221012366
Other Details
For assembling snap rings into bores within the range of 4 51/64" – 12" (122-300 mm) diameter
Includes locking device, can be released without completing cycle
Pliers body are made of rolled steel, high-strength
Replaceable 90˚ tips made of tempered steel
Replaceable tip part number 44 29 J51
Tips are made of special tool steel; oil-hardened
Tips can be easily replaced by unthreading screws from pliers body
