2 Pc Diagonal Pliers Set
Call For Price
- Part Number: 9K 00 80 129 US
- UPC: 00843221021948
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Set Includes Part Numbers: 74 01 250 and 74 21 250
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Diagonal Cutting Pliers
Plier Sets
1000 Volt Insulated:
No
Angled Head:
12 degree (74 21 250)
Brand Name:
KNIPEX
Color:
Red
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Hard Wire (Steel Wire):
9/64"
Cutting Capacity - Medium Hard Wire (Nail):
3/16"
Cutting Capacity - Piano Wire:
1/8"
Cutting Edge HRC:
Approx. 64 HRC
Cutting Edge Shape:
Bevel
DIN:
DIN ISO 5749
ECCN:
EAR99
ESD Indicator:
No
Handle Length:
7 3/4" (74 21 250); 9 3/4" (74 01 250)
Handle Type:
Plastic coating
Harmonized Tariff Code:
8206.00.0000
Included Products/Items:
Color: Red
Item Quantity:
2
Item Weight (lbs):
1.98
Joint Type:
Forged-in axle
Material Type:
Chrome vanadium heavy-duty steel, forged, oil-hardened
Other Surface Finish:
Black atramentized
Package Height (inches):
2.88"
Package Height inches:
2.88"
Package Length (inches):
14.44"
Package Length inches:
14.44"
Package Weight (lbs):
1.958
Package Weight lbs:
1.958
Package Width (inches):
6.74"
Package Width inches:
6.74"
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Spring Loaded:
No
Surface Finish:
Polished
Tool Attributes:
(1) 74 01 250 10" High Leverage Diagonal Cutters, (1) 74 21 250 10" High Leverage Angled Diagonal Cutters
20% reduction in required force compared to conventional diagonal cutters of the same length
Black atramentized pliers
Chrome vanadium heavy-duty steel, forged, manifold oil-hardened
Cutting Capacity - up to 3/16" for medium wire, up to 9/64" for hard and up to 1/8" for piano wire
For very tough, continuous use
High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio
High leverage means less force required because the rivet is closer to the cutting edge
Plastic-coated handles
Polished head
Precision cutting edges (cutting edge hardness approx. 64 HRC) cuts several types of wire including piano wire
Suitable for copper conductors up to 16 mm² and aluminium conductors up to 35 mm²
Unit Of Measure:
Set
UNSPSC:
27112114
UNSPSC Number:
27112114
UOM Qty:
2
UPC Code:
843221021948
Other Details
10" length suitable for copper conductors up to 16 mm² and aluminum conductors up to 35 mm²
20% reduction in required force compared to conventional diagonal cutters of the same length

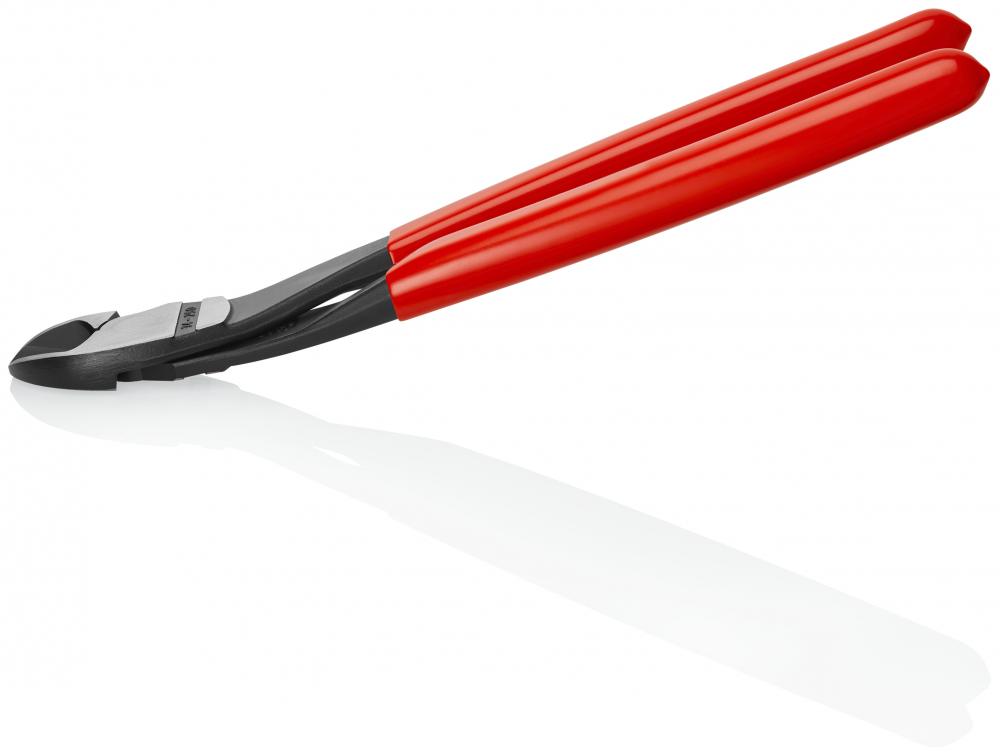

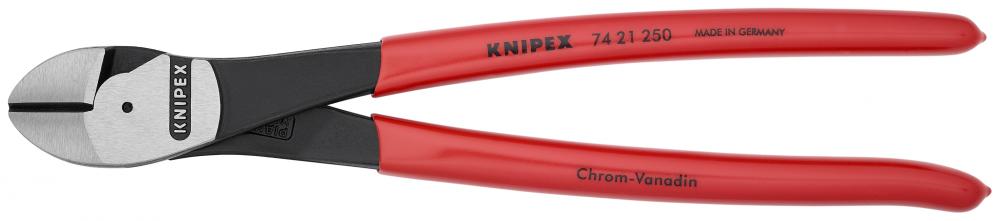

74 21 250 offers an angled head for additional hand clearance when cutting
Cutting Capacity - up to 3/16" for medium wire, up to 9/64" for hard and up to 1/8" for piano wire
For very tough, continuous use
High leverage means less force required because the rivet is closer to the cutting edge
Precision cutting edges (cutting edge hardness approx. 64 HRC) cuts several types of wire including piano wire

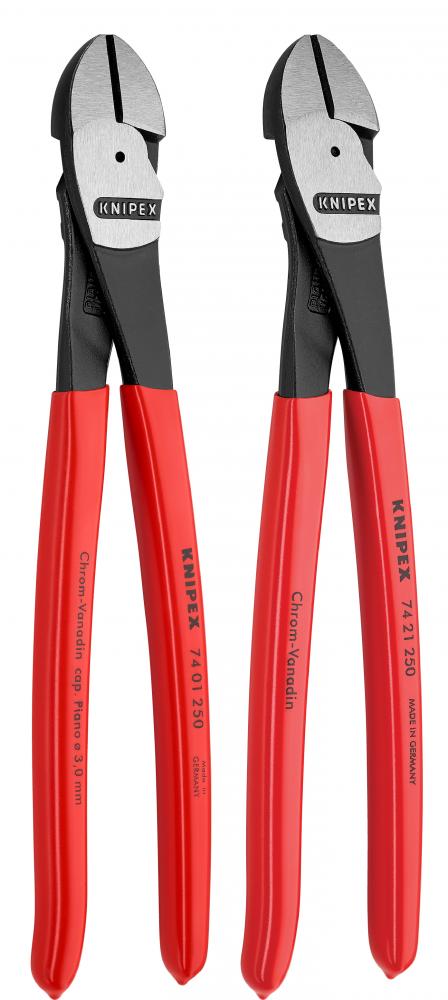

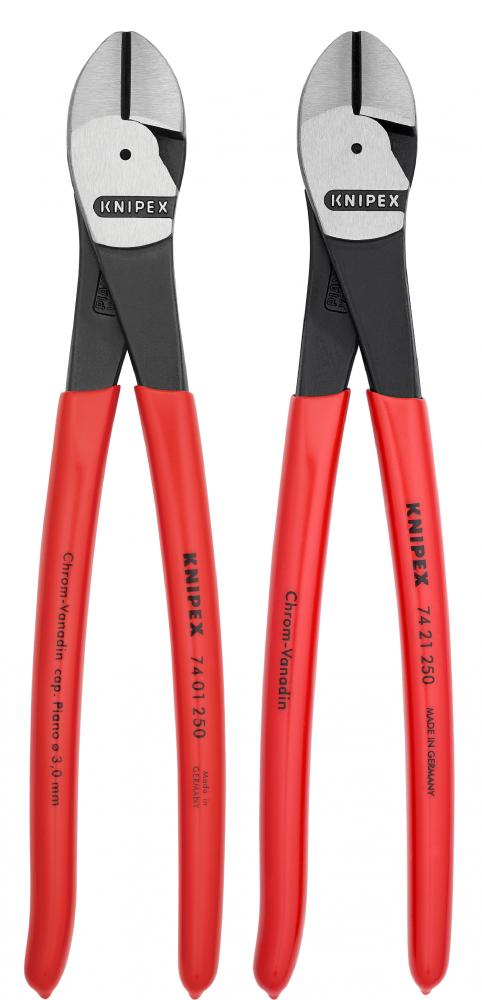

Set includes two (2) High Leverage Diagonal Cutters: 74 01 250 (10") and 74 21 250 (10" Angled)
This KNIPEX diagonal cutters set offers two of the most popular 10" diagonal pliers, one straight and one with a 12° angled head. The combination of the cutting edges, high leverage joints and the long handles have been designed for maximum cutting p
