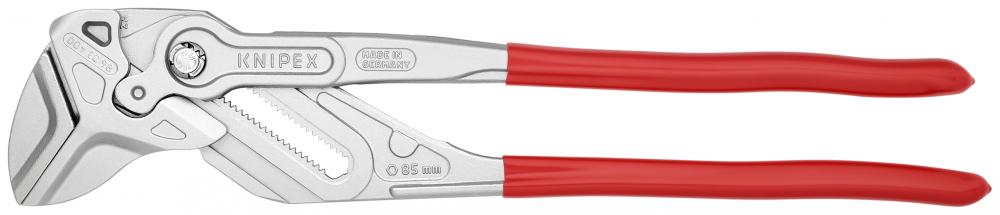

![16" XL Pliers Wrench](/vendors/8243/large/8603400-00-3.jpg "16" XL Pliers Wrench")

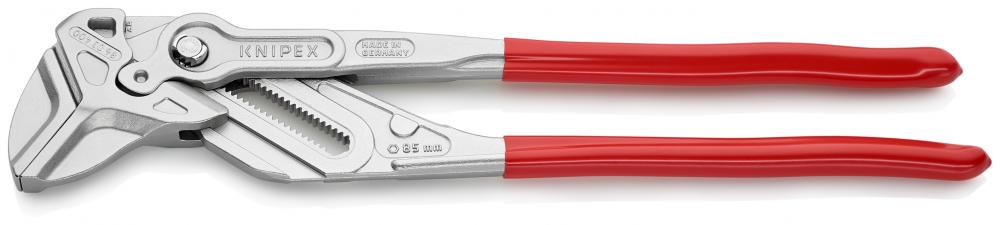

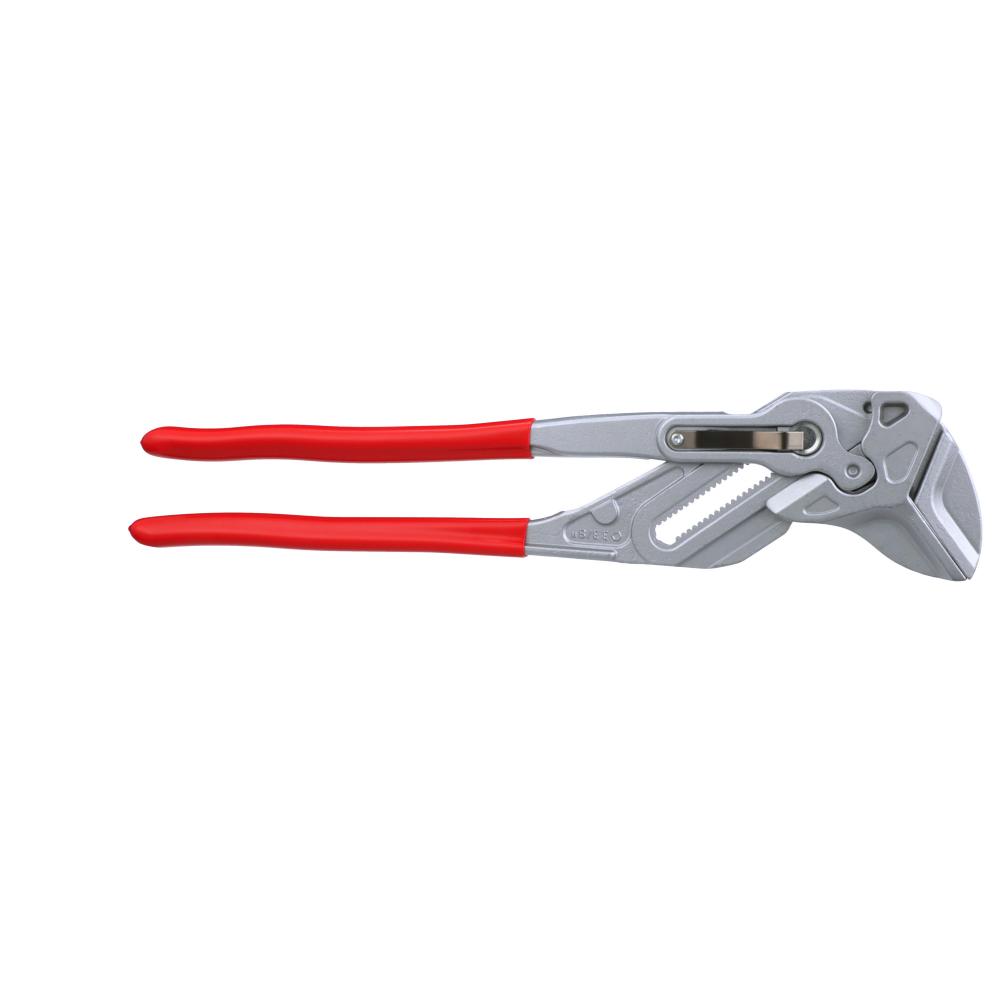

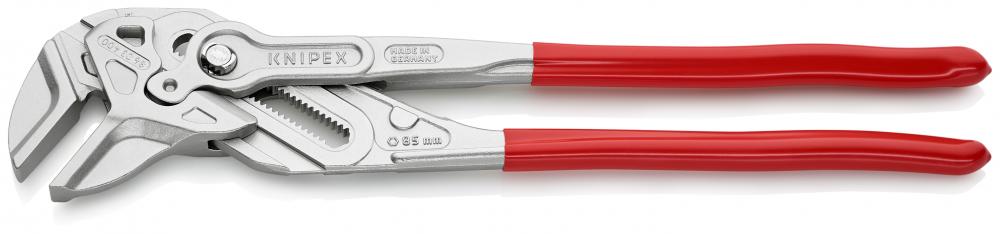

16" XL Pliers Wrench
Call For Price
- Part Number: 86 03 400 US
- UPC: 00843221020859
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Tongue and Groove Pliers
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Color:
Red
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
ECCN:
EAR99
Gripping Surface:
Smooth
Handle Length:
1/2"
Handle Type:
Plastic coating
Harmonized Tariff Code:
8204.12.0000
Included Products/Items:
Gripping Surface: Smooth
Item Height (inches):
7/8"
Item Height inches:
7/8"
Item Length (inches):
16
Item Length inches:
16"
Item Quantity:
1
Item Weight (lbs):
3.235
Item Weight lbs:
3.235
Item Width (inches):
3 3/16"
Item Width inches:
3 3/16"
Jaw Thickness:
25/32"
Joint Type:
Box-joint
Joint Type 2:
Adjustable
Material Type:
Chrome vanadium electric steel, forged, oil-hardened
Max Jaw Opening - Hex:
3 3/8"
Max Jaw Opening - Working Capacity:
3 3/8"
Max Jaw Opening Working Capacity:
3 3/8"
Nomintal Length mm:
400
Number of Adjustment Positions:
25
Package Height (inches):
1.05"
Package Height inches:
1.05"
Package Length (inches):
17.65"
Package Length inches:
17.65"
Package Weight (lbs):
3.265
Package Weight lbs:
3.265
Package Width (inches):
3.7"
Package Width inches:
3.7"
Packaging Height mm:
23 mm
Packaging Length mm:
410 mm
Packaging Width mm:
81 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Spare Part:
87 09 400
Surface Finish:
Chrome Plated
Tip Thickness:
31/64"
Tool Attributes:
Adjustable tightening tool.

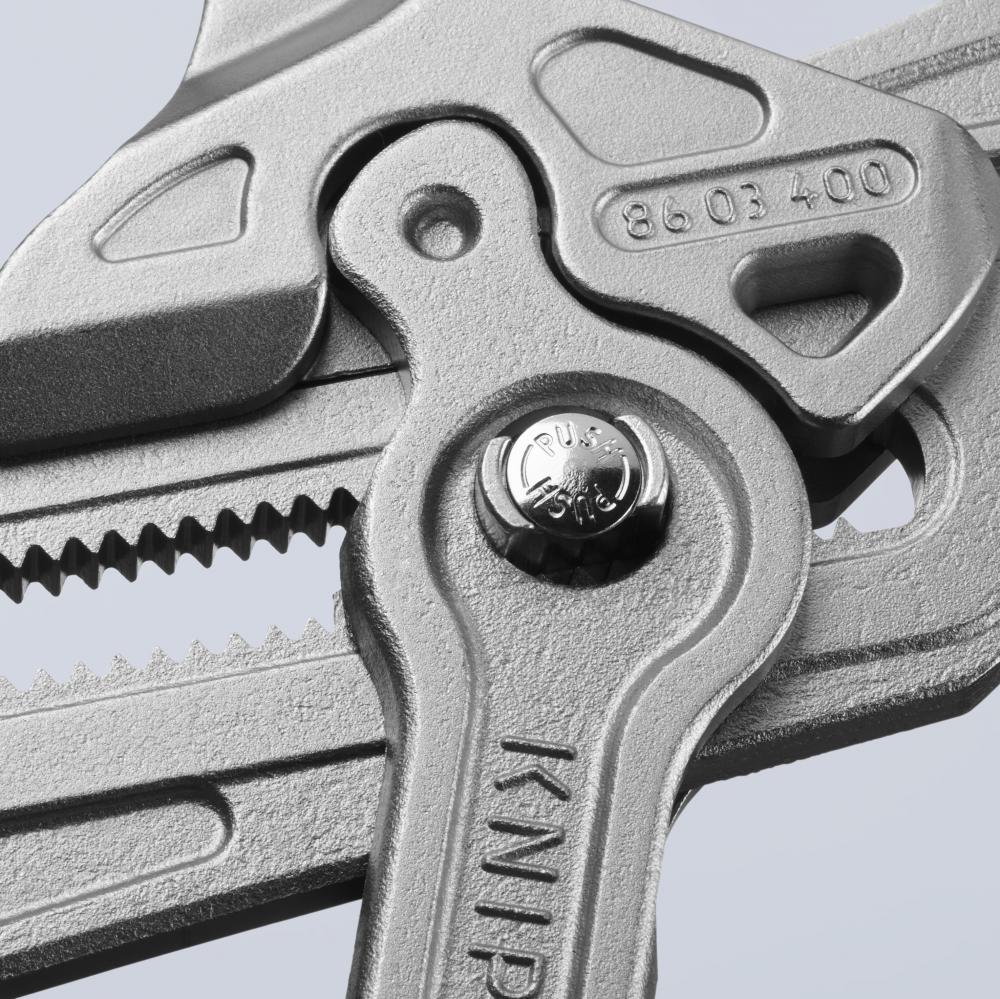

Adjustment at the touch of a button directly on the workpiece.
Chrome vanadium electric steel; forged, oil-hardened.
Excellent for gripping, holding, pressing and bending applications.
Lever transmission greater than 10-1 for strong gripping power.
Optimized adjustment to the workpiece with hand-friendly position of grips.

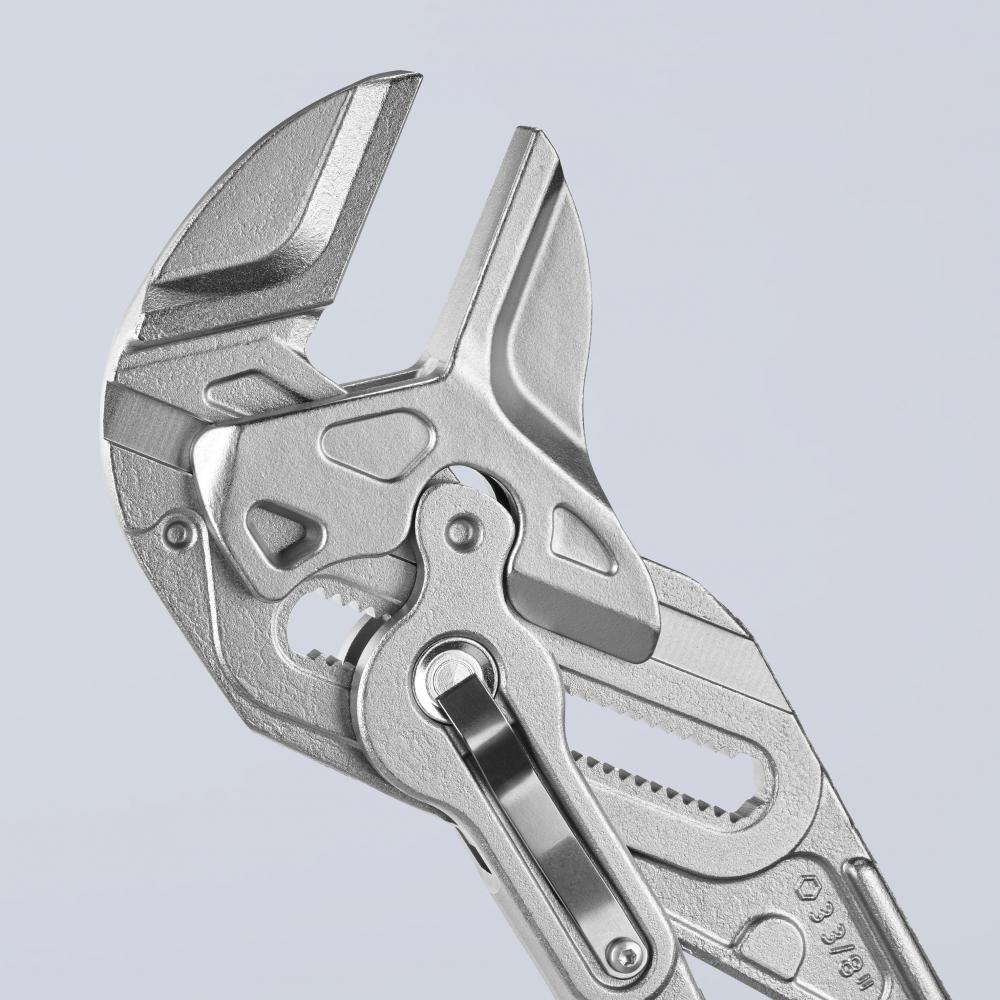

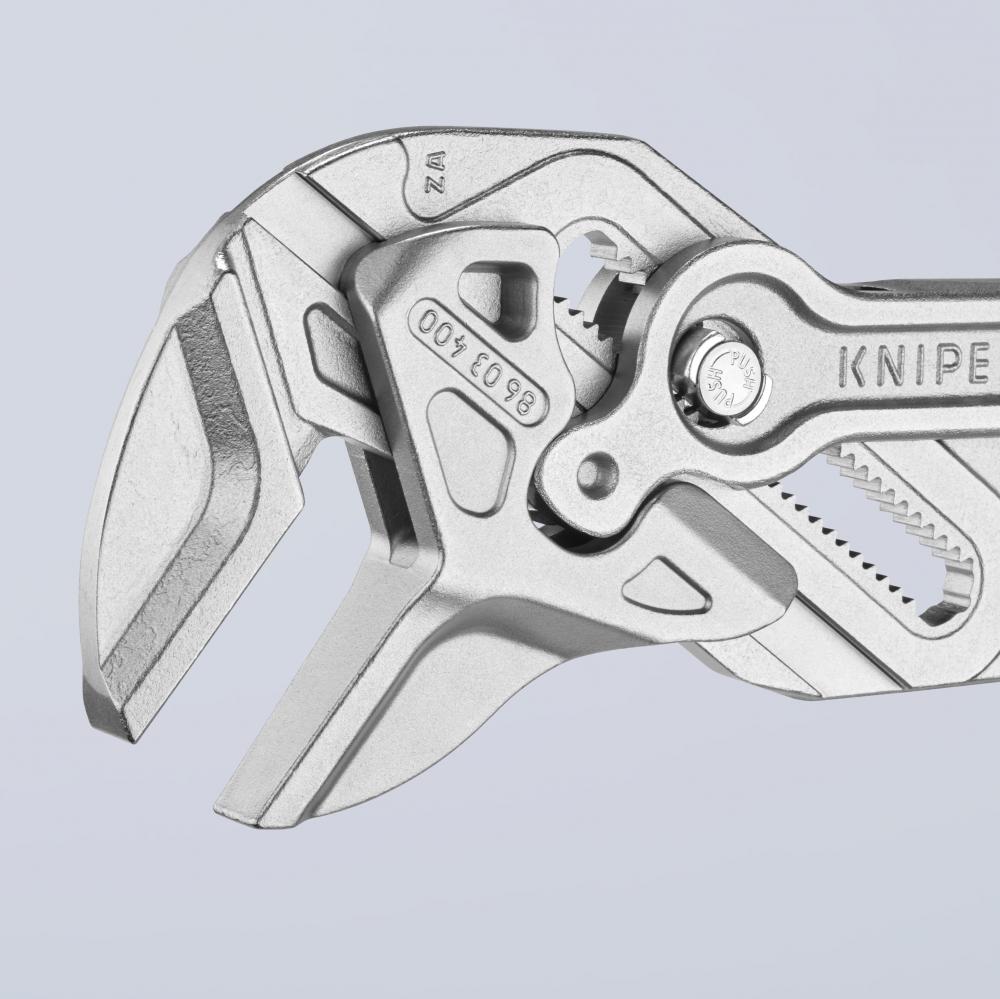

Parallel jaws allow infinitely variable gripping of all widths to the specified maximum size.
Reliable catching of the hinge bolt: no unintentional shifting.

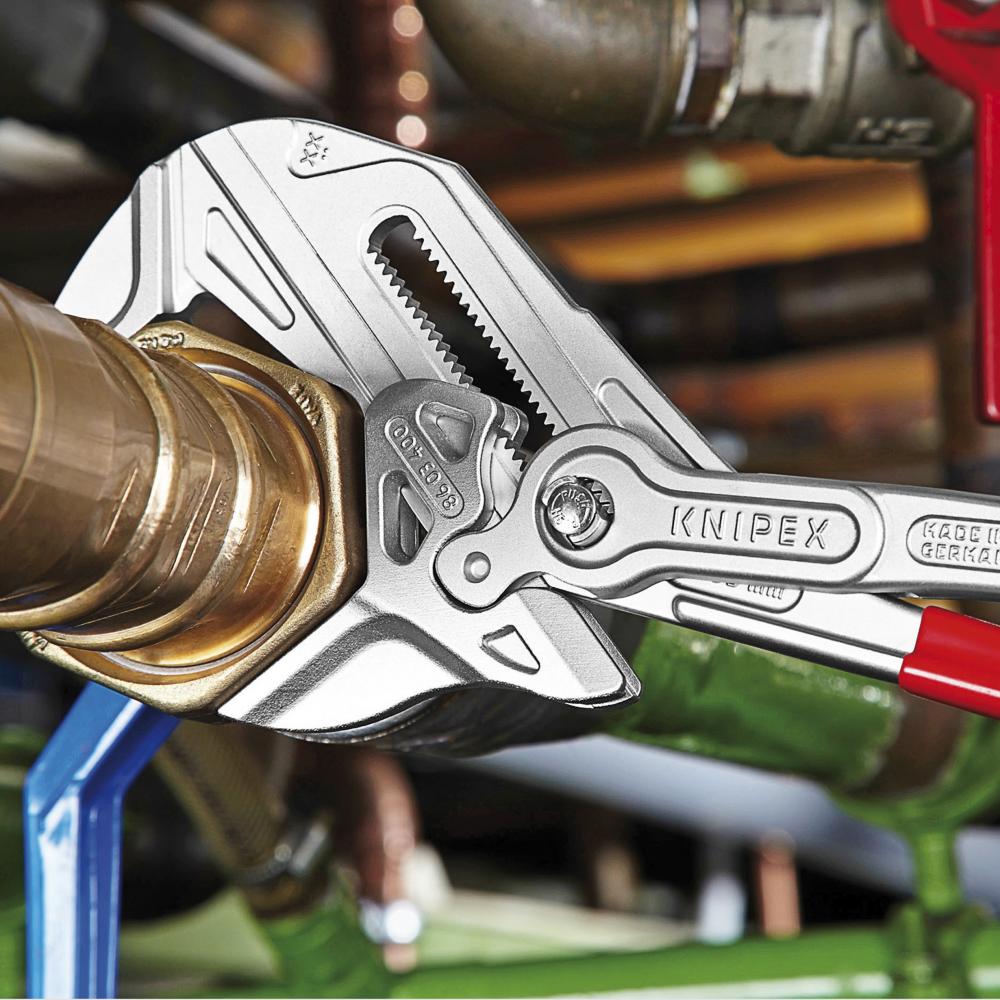

Smooth jaws for gentle installation of quality union joints made from brass, red brass or stainless steel.
The action of the jaws allows bolted connections to be tightened and released quickly using the ratchet principle.
Zero backlash jaw surface pressure prevents damage to edges of sensitive components.
Tool Height mm:
23 mm
Tool Length mm:
400 mm
Tool Weight grams:
1460 g
Tool Width mm:
81 mm
Unit Of Measure:
Each
UNSPSC:
27112112
UNSPSC Number:
27112112
UOM Qty:
1
UPC Code:
843221020859
Other Details
25 adjustment positions at the touch of a button directly on the workpiece
Adjustable tightening tool
Chrome vanadium electric steel; forged, oil-hardened
Excellent for gripping, holding, pressing and bending applications
Lever transmission greater than 10-1 for strong gripping power
Optimized adjustment to the workpiece with hand-friendly position of grips
Parallel jaws allow infinitely variable gripping of all widths to the specified maximum size
Reliable catching of the hinge bolt: no unintentional shifting

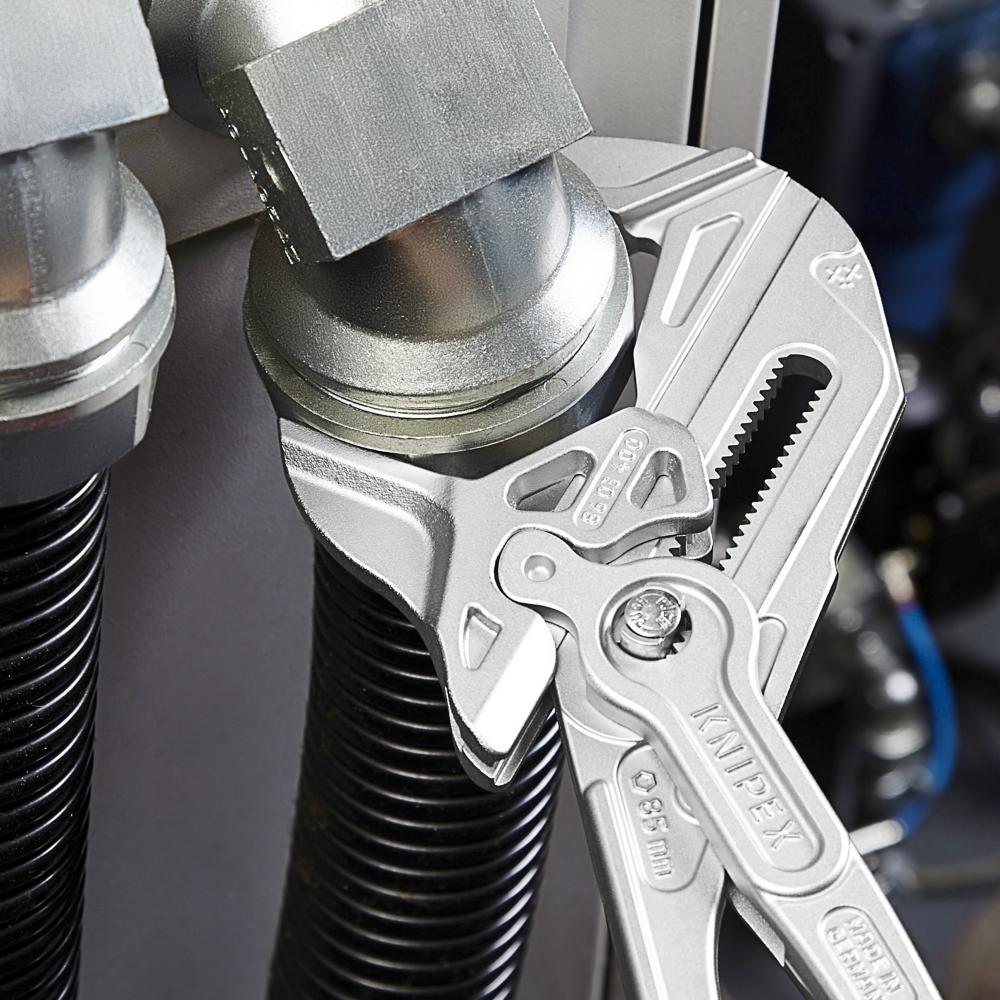

Replaces a full set of inch and metric open end wrenches up to 3 3/8" (85 mm)
Replaces diverse, expensive, large open end wrenches up to 3 3/8"

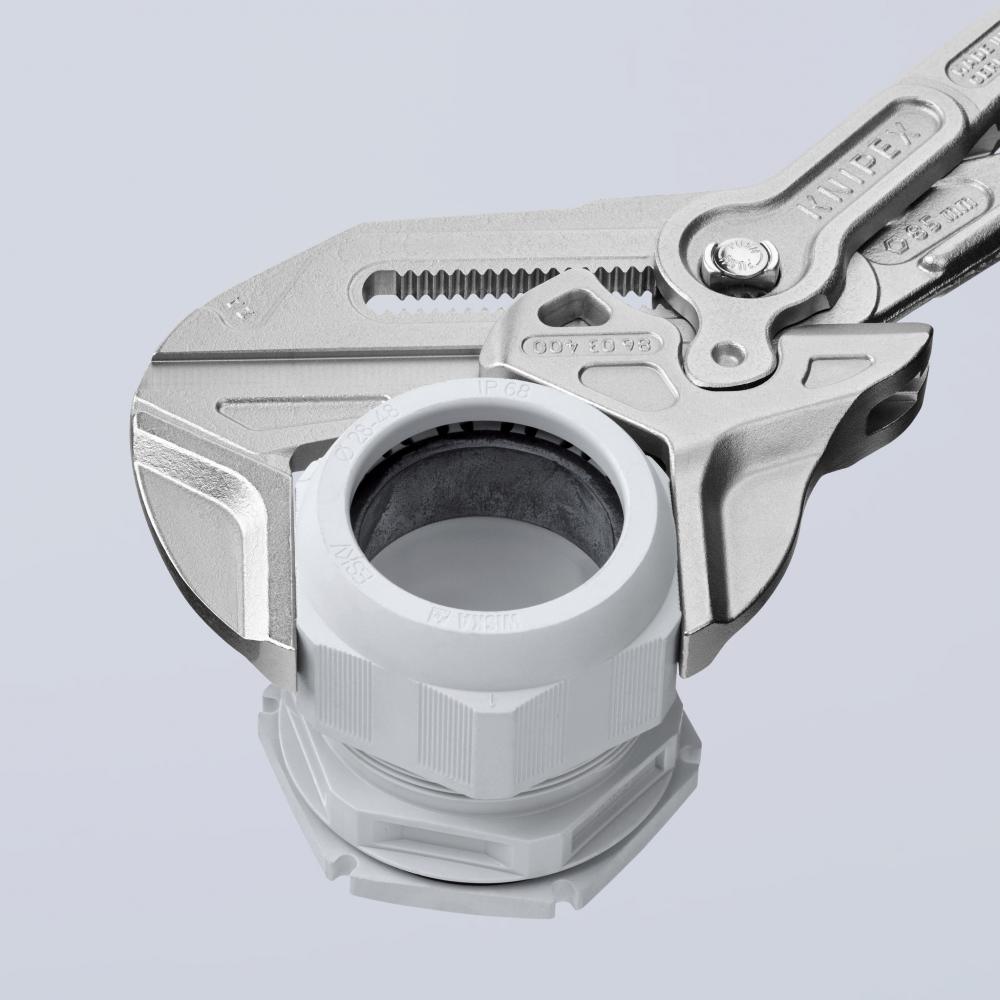

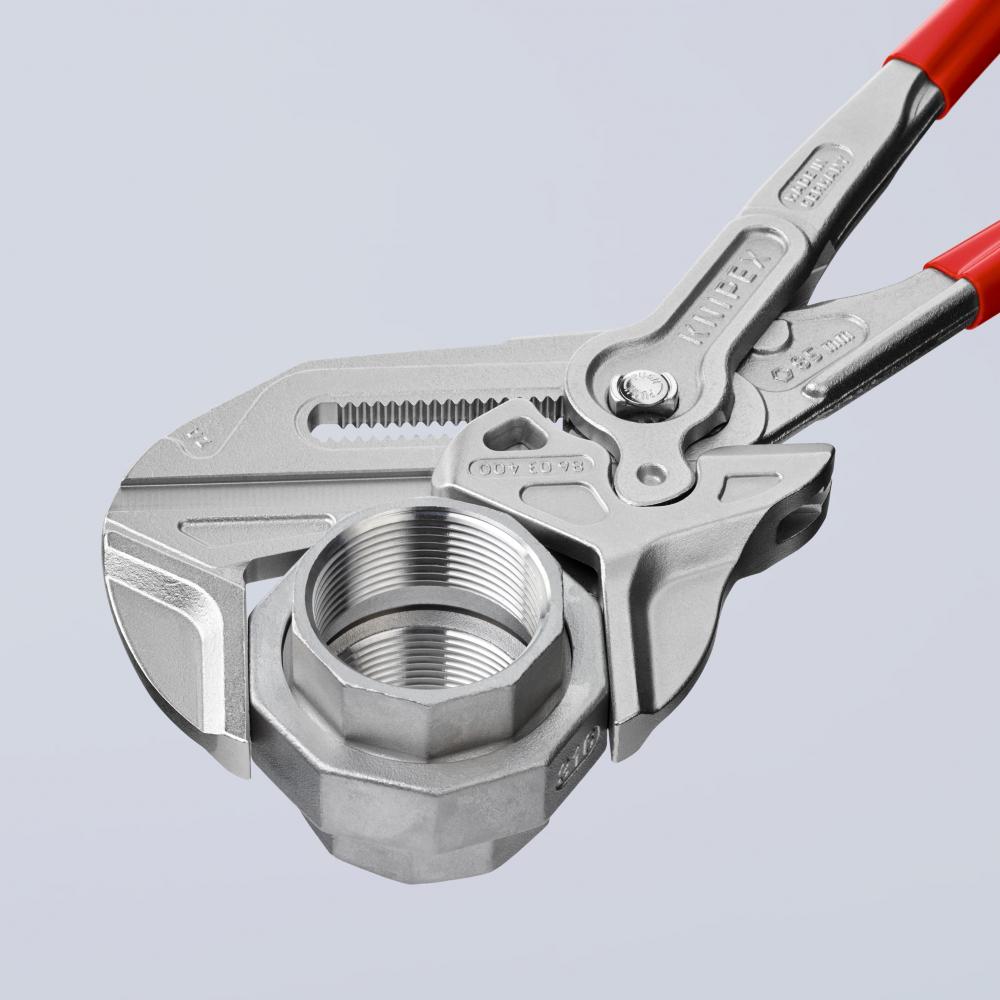

Smooth jaws for gentle installation of quality union joints made from brass or stainless steel
The action of the jaws allows bolted connections to be tightened and released quickly using the ratchet principle
Zero backlash jaw surface pressure prevents damage to edges of sensitive components
