![12" Pliers Wrench](/vendors/8243/large/8603300-03-3.jpg "12" Pliers Wrench")

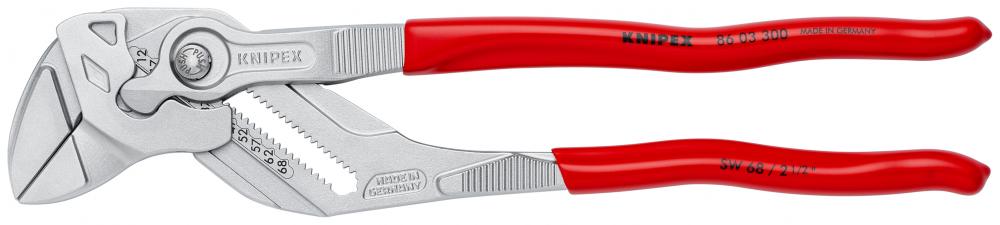

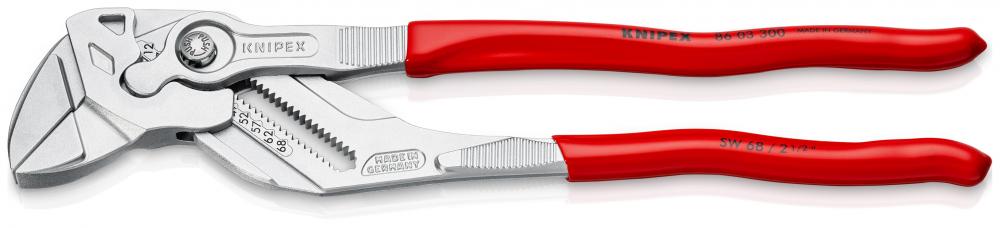

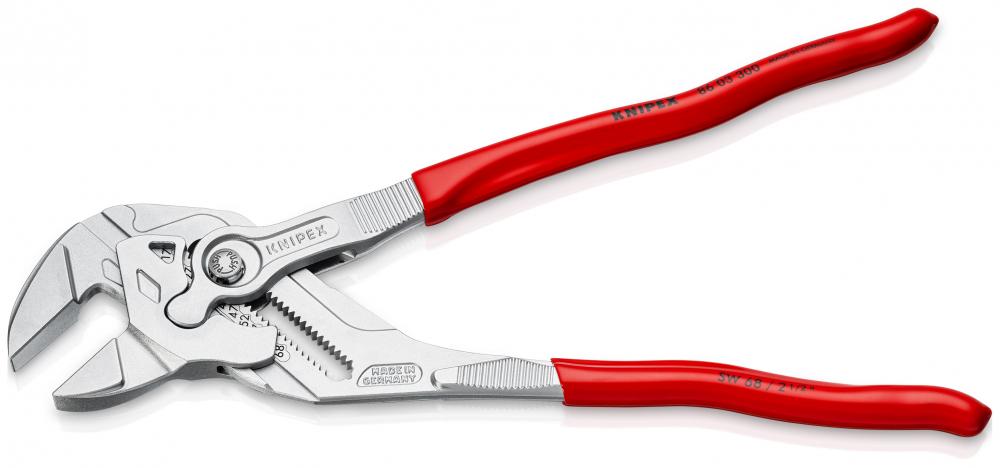

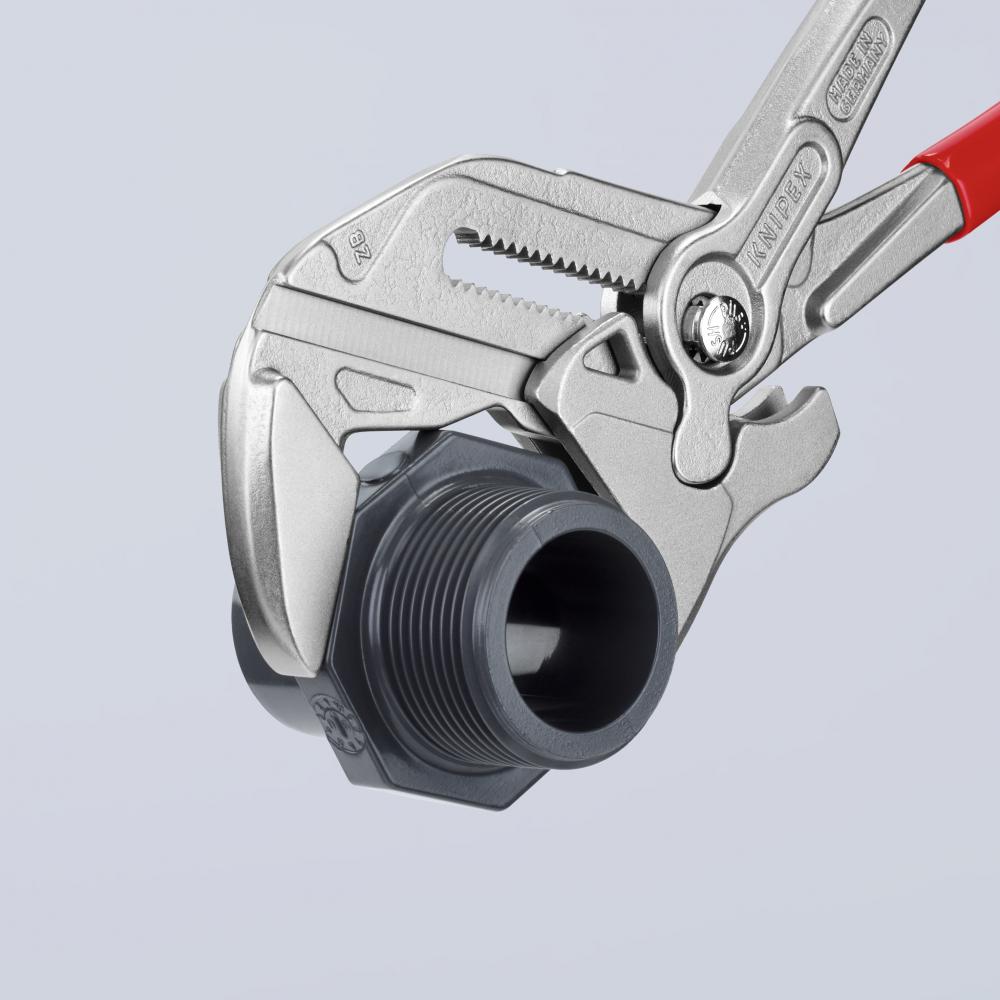

12" Pliers Wrench
Call For Price
- Part Number: 86 03 300
- UPC: 00843221003043
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Tongue and Groove Pliers
1000 Volt Insulated:
No
Accessory Part Number:
86 09 300 V01
Brand Name:
KNIPEX
Color:
Red
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Data Sheet Filename:
8603300_en.pdf
ECCN:
EAR99
ESD Indicator:
No
Gripping Surface:
Smooth
Handle Type:
Plastic coating
Harmonized Tariff Code:
8204.12.0000
Included Products/Items:
Gripping Surface: Smooth
Item Height (inches):
2/3"
Item Height inches:
2/3"
Item Length (inches):
12
Item Length inches:
12"
Item Quantity:
1
Item Weight (lbs):
1.6
Item Weight lbs:
1.6
Item Width (inches):
2 5/16"
Item Width inches:
2 5/16"
Jaw Thickness:
3/8"
Joint Type:
Box-joint
Joint Type 2:
Adjustable
Material Type:
Chrome vanadium electric steel, forged, oil-hardened
Max Jaw Opening - Hex:
2 1/2"
Max Jaw Opening - Working Capacity:
2 1/2"
Max Jaw Opening Working Capacity:
2 3/8"
Nomintal Length mm:
300
Number of Adjustment Positions:
24
Package Height (inches):
0.9"
Package Height inches:
0.9"
Package Length (inches):
12.35"
Package Length inches:
12.35"
Package Weight (lbs):
1.645
Package Weight lbs:
1.645
Package Width (inches):
3.05"
Package Width inches:
3.05"
Packaging Height mm:
21 mm
Packaging Length mm:
311 mm
Packaging Width mm:
76 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Spare Part:
87 09 01
Spring Loaded:
No
Surface Finish:
Chrome Plated
Tip Thickness:
3/8"
Tool Attributes:
22 adjustment positions at the touch of a button directly on the workpiece.
Adjustable tightening tool.
Chrome vanadium electric steel; forged, oil-hardened.
Excellent for gripping, holding, pressing and bending applications.
Lever transmission greater than 10-1 for strong gripping power.
Parallel jaws allow infinitely variable gripping of all widths to the specified maximum size.
Reliable catching of the hinge bolt: no unintentional shifting.
Replaces a full set of inch and metric open end wrenches.
Smooth jaws for damage free installation of plated fittings - working directly on chrome.
The action of the jaws allows bolted connections to be tightened and released quickly using the ratchet principle.
Zero backlash jaw surface pressure prevents damage to edges of sensitive components.
Tool Height mm:
14 mm
Tool Length mm:
300 mm
Tool Weight grams:
725 g
Tool Width mm:
75 mm
Unit Of Measure:
Each
UNSPSC:
27112112
UNSPSC Number:
27112112
UOM Qty:
1
UPC Code:
843221003043
Other Details
24 adjustment positions at the touch of a button directly on the workpiece
Adjustable tightening tool
Chrome vanadium electric steel; forged, oil-hardened

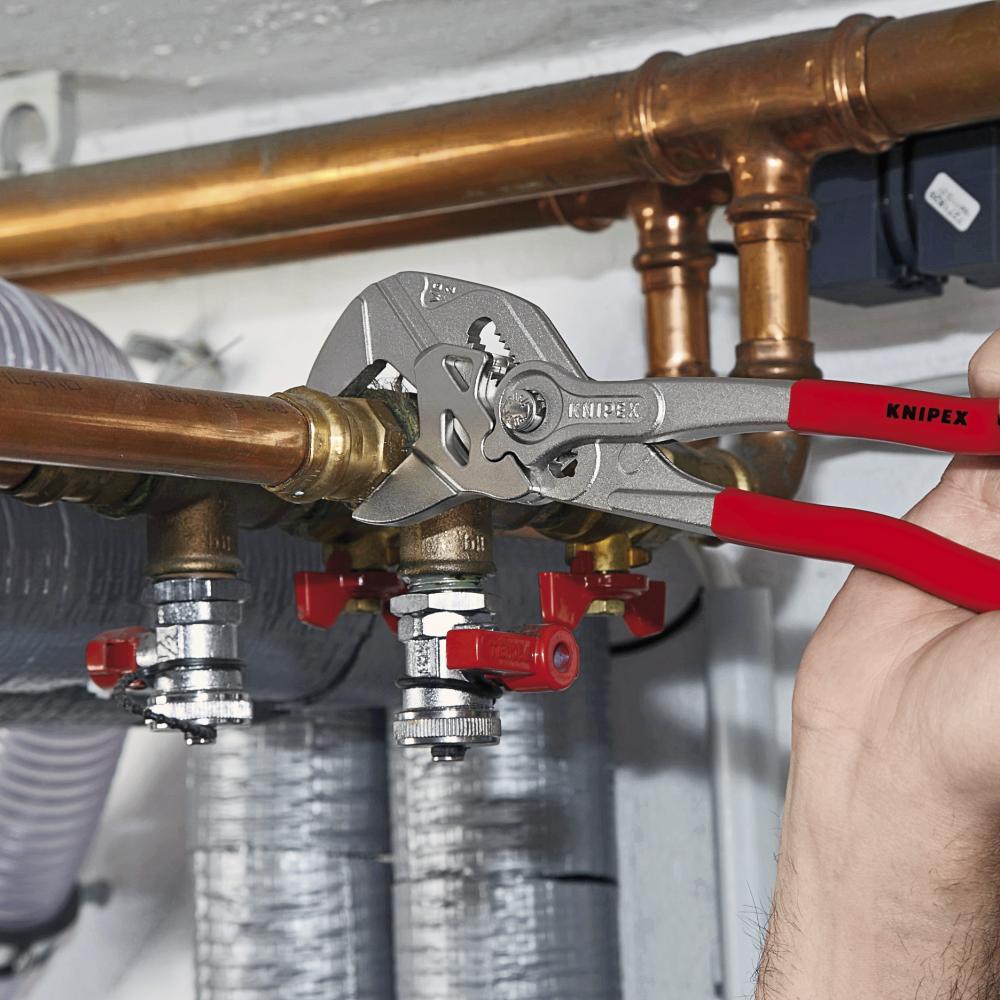

Excellent for gripping, holding, pressing and bending applications
Laser-etched scale allows the wrench opening to be set before gripping onto workpiece - metric and inch markings
Lever transmission greater than 10-1 for strong gripping power

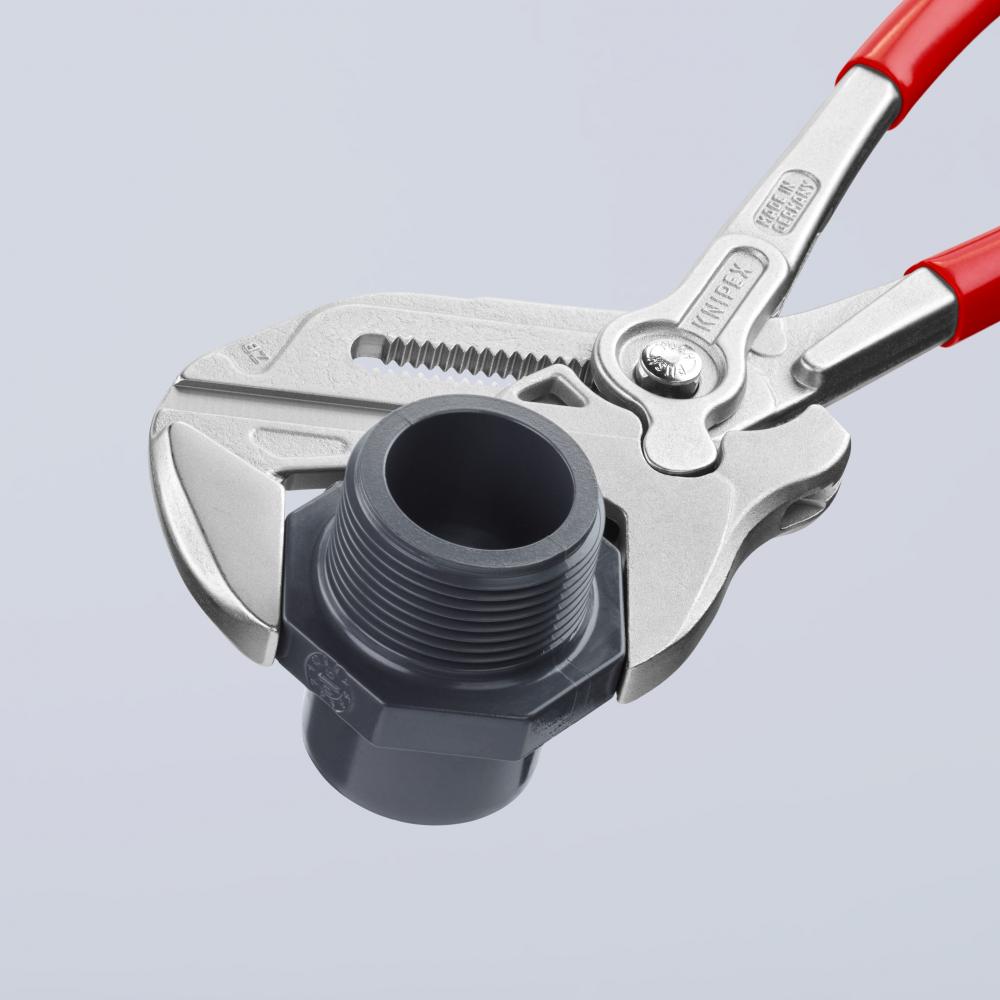

Parallel jaws allow infinitely variable gripping of all widths to the specified maximum size
Reliable catching of the hinge bolt: no unintentional shifting

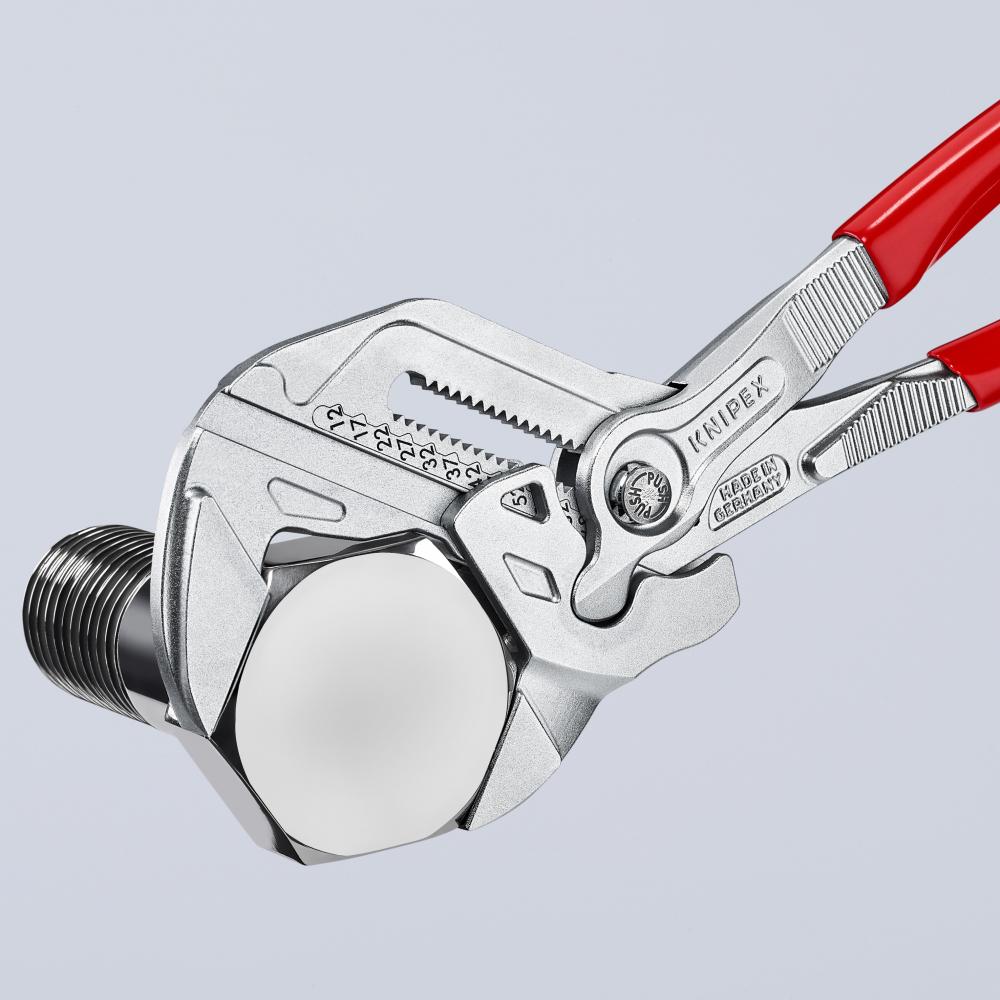

Replaces a full set of inch and metric open end wrenches up to 2 1/2" (68 mm)

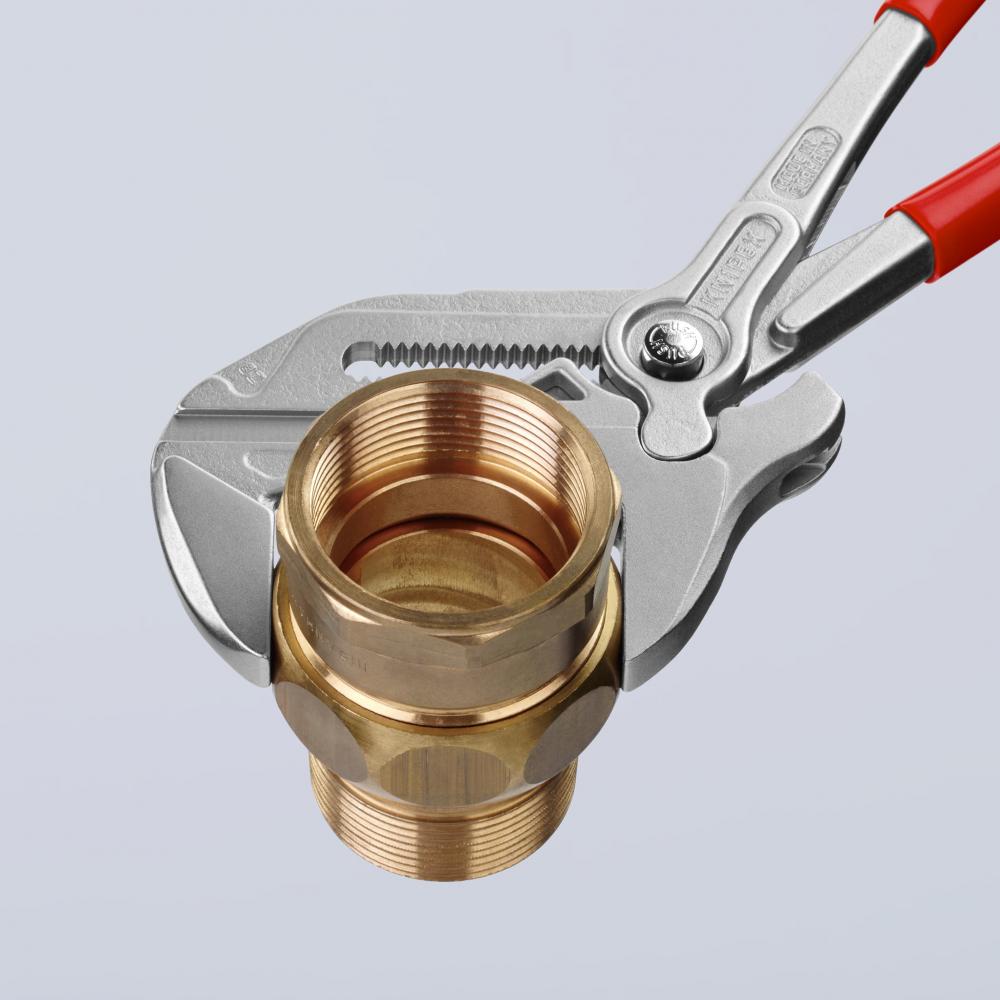

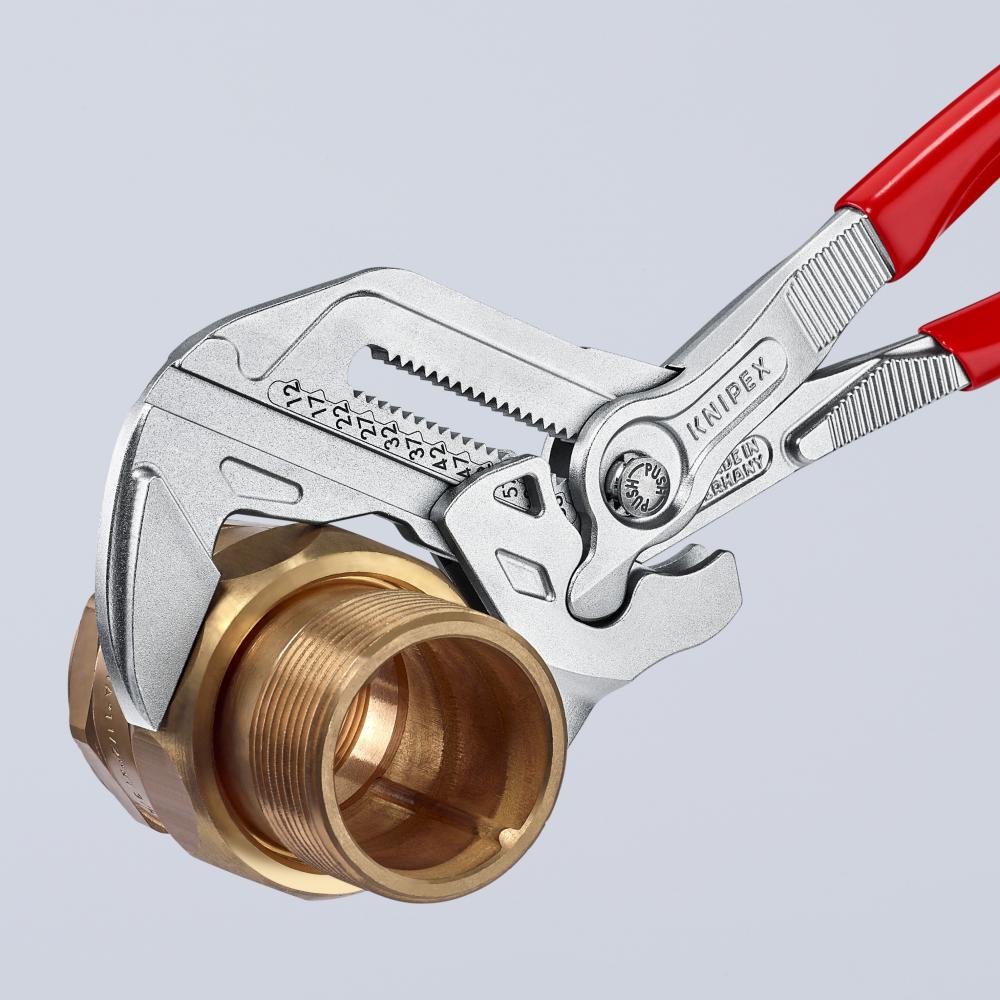

Smooth jaws for damage free installation of plated fittings - working directly on chrome
The action of the jaws allows bolted connections to be tightened and released quickly using the ratchet principle
Zero backlash jaw surface pressure prevents damage to edges of sensitive components
