![11" Ratcheting Cable Cutters-1000V Insulated](/vendors/8243/large/9536280-02-3.jpg "11" Ratcheting Cable Cutters-1000V Insulated")

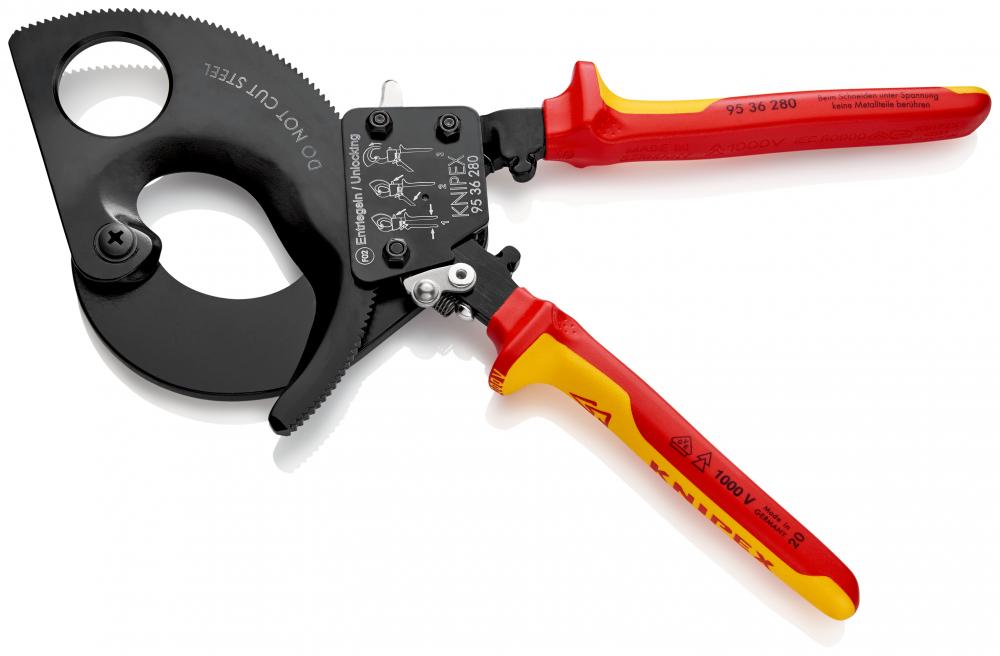

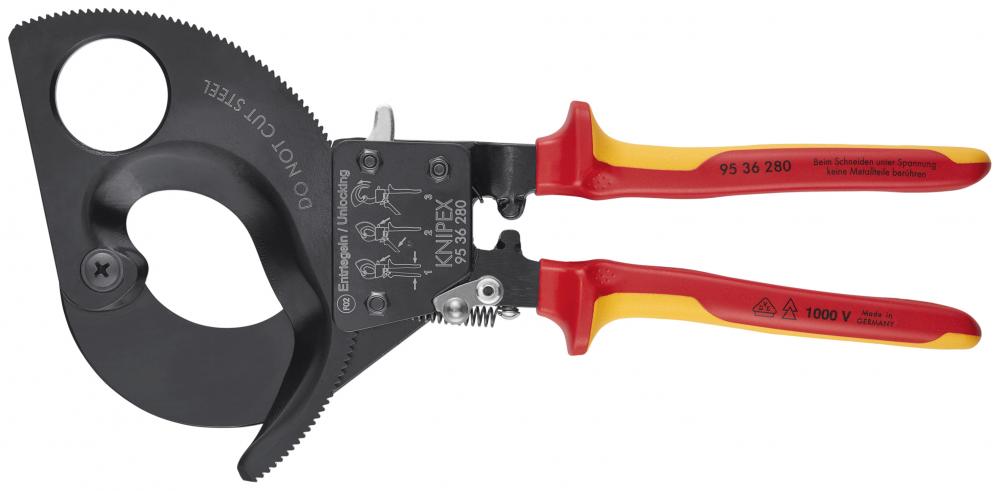

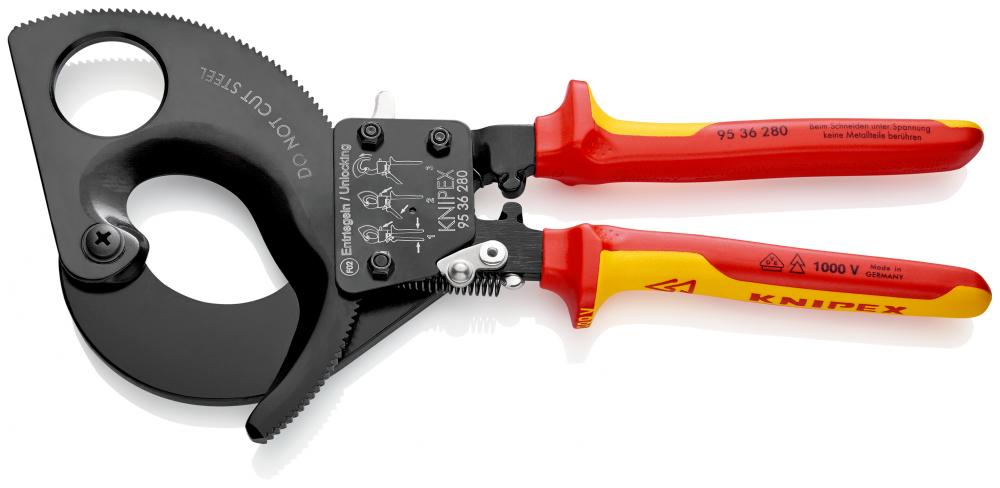

11" Ratcheting Cable Cutters-1000V Insulated
Call For Price
- Part Number: 95 36 280 SBA
- UPC: 00843221002237
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Cutting Tools
Industrial Subtype:
Cable and Wire Cutters and Accessories
Cable and Wire Cutters
1000 Volt Insulated:
Yes
Brand Name:
KNIPEX
Color:
Red/Yellow
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Cu and Al conductor:
2 3/64"
Cutting Capacity - kcmil:
750
Cutting Capacity Cu And Al Conductor:
2 3/64"
Cutting Capacity Kcmil:
750
Cutting Edge Shape:
Shear
ECCN:
EAR99
Handle Type:
1000V Insulated, multi-component, VDE
Harmonized Tariff Code:
8203.30.0000
IEC:
IEC 60900
Included Products/Items:
Other Surface Finish: Black lacquered
Item Height (inches):
1 1/8"
Item Height inches:
1 1/8"
Item Length (inches):
11
Item Length inches:
11"
Item Quantity:
1
Item Weight (lbs):
1.64
Item Weight lbs:
1.64
Item Width (inches):
4 11/16"
Item Width inches:
4 11/16"
Joint Type:
Bolted
Joint Type 2:
Fixed Joint
Material Type:
High-grade special tool steel, forged, oil-hardened
Nomintal Length mm:
280
Other Surface Finish:
Black lacquered
Package Height (inches):
1.45"
Package Height inches:
1.45"
Package Length (inches):
12.85"
Package Length inches:
12.85"
Package Weight (lbs):
1.86
Package Weight lbs:
1.86
Package Width (inches):
6.5"
Package Width inches:
6.5"
Packaging Height mm:
176 mm
Packaging Length mm:
340 mm
Packaging Width mm:
108 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Spare Part:
95 39 280
Tool Attributes:
Clean and smooth cut without crushing or deformation.
Fixed handle with support area as an aid to position the pliers when cutting.

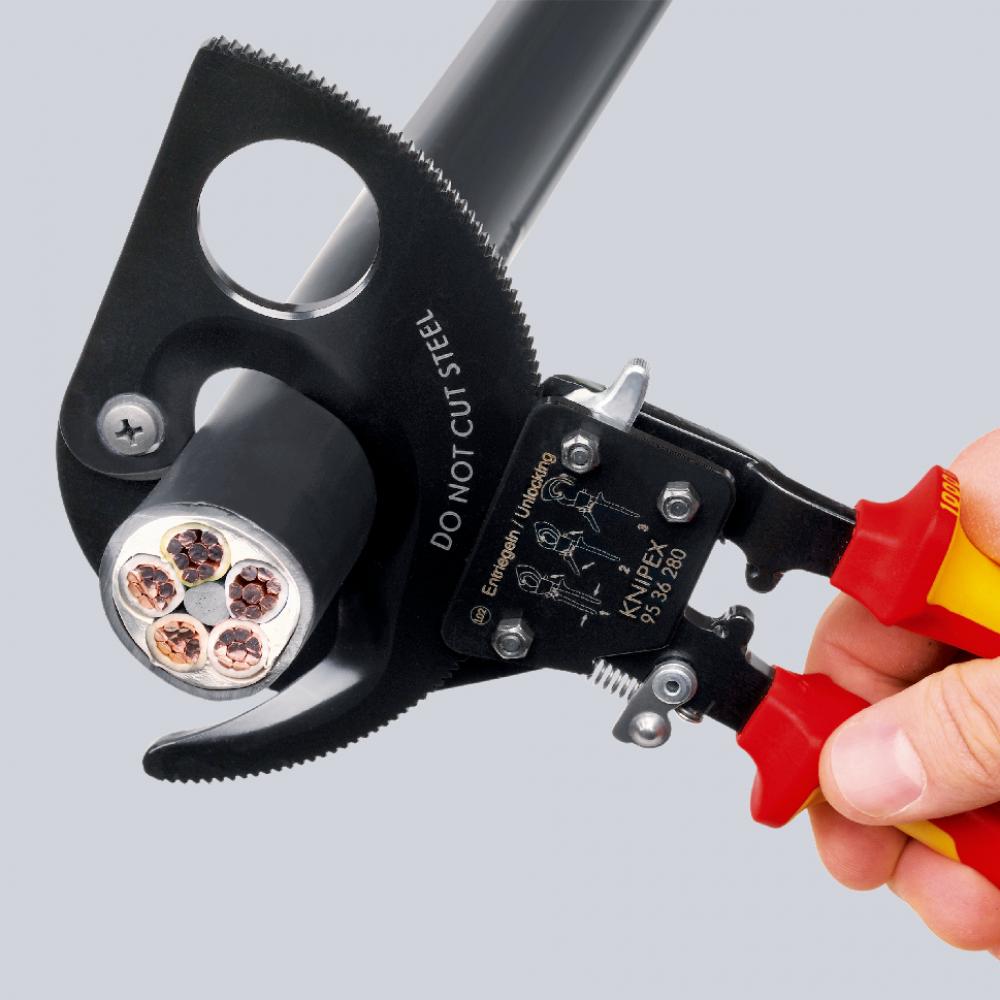

For cutting copper and aluminum cables, single and multiple wire.
High-grade special tool steel; forged, oil-hardened.
Minimal hand force required due to very high transmission ratio.
Not suitable for steel wire and wire ropes.
One-hand operation using ratchet principle.
Pinch guard prevents operators' fingers being pinched.
Precision ground, hardened blades.
Simple handling as a result of lightweight and compact design - can be used in confined areas.
Two-stage ratchet drive for easy cutting.
Tool Height mm:
176 mm
Tool Length mm:
280 mm
Tool Weight grams:
835 g
Tool Width mm:
108 mm
Unit Of Measure:
Each
UNSPSC:
23241616
UNSPSC Number:
23241616
UOM Qty:
1
UPC Code:
843221002237
Other Details
1000V multi-component grips, VDE-tested
Clean and smooth cut without crushing or deformation
Fixed handle with support area as an aid to position the pliers when cutting
For cutting copper and aluminum cables, single and multiple-stranded wire
High-grade special tool steel; forged, oil-hardened
Large cutting capacity is able to cut up to 2 3/64"
Minimal hand force required due to very high transmission ratio
Not suitable for steel wire and wire ropes
One-hand operation using ratchet principle
Pinch guard prevents operators' fingers being pinched
Precision ground, hardened blades
Simple handling as a result of lightweight and compact design - can be used in confined areas
Two-stage ratchet drive for easy cutting
