![10" High Leverage Diagonal Cutters-1000V Insulated-Tethered Attachment](/vendors/8243/large/7406250T-00-3.jpg "10" High Leverage Diagonal Cutters-1000V Insulated-Tethered Attachment")

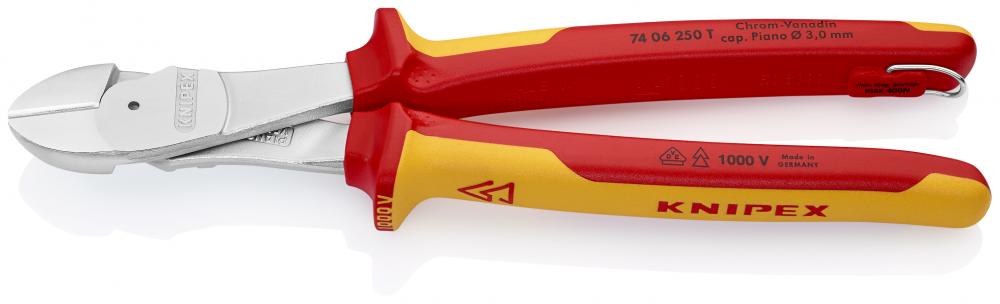

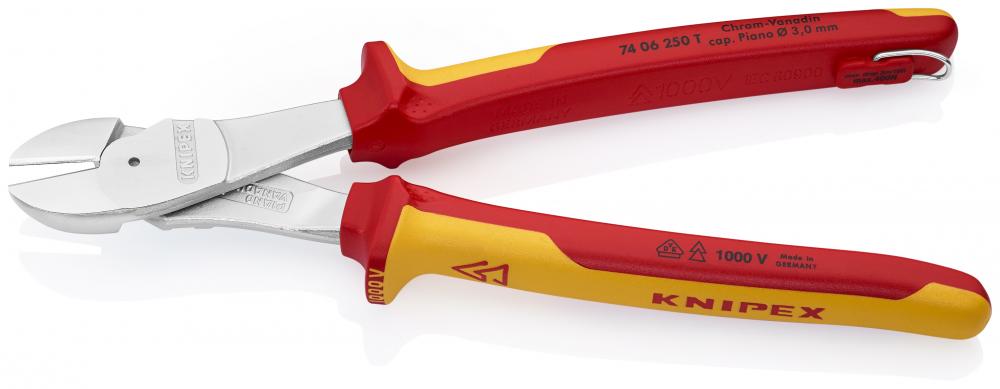

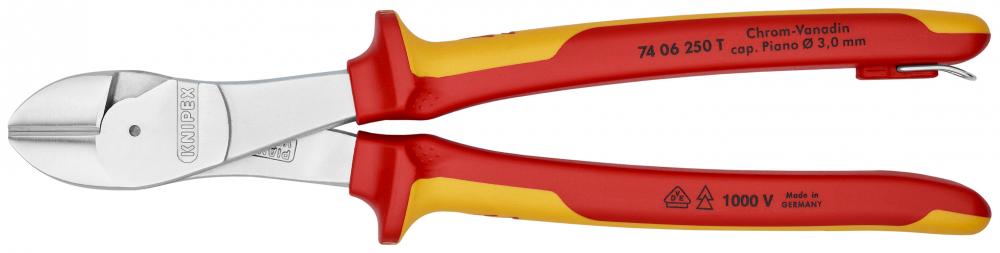

10" High Leverage Diagonal Cutters-1000V Insulated-Tethered Attachment
Call For Price
- Part Number: 74 06 250 T
- UPC: 00843221028183
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Diagonal Cutting Pliers
1000 Volt Insulated:
Yes
Brand Name:
KNIPEX
Color:
Red/Yellow
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Hard Wire (Steel Wire):
9/64"
Cutting Capacity - Medium Hard Wire (Nail):
3/16"
Cutting Capacity - Piano Wire:
1/8"
Cutting Edge Shape:
Bevel
ECCN:
EAR99
Handle Length:
6 1/2"
Handle Type:
1000V Insulated
Harmonized Tariff Code:
8203.20.6060
IEC:
IEC 60900
Item Height inches:
1 1/8"
Item Length (inches):
10
Item Length inches:
10"
Item Weight (lbs):
1.03
Item Weight lbs:
1.03
Item Width inches:
2 3/8"
Material Type:
Vanadium electric steel, forged, oil-hardened
Package Height inches:
1 3/16"
Package Length inches:
10 3/16"
Package Weight lbs:
1.09
Package Width inches:
2 13/16"
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Chrome Plated
Unit Of Measure:
Each
UNSPSC:
27112114
UNSPSC Number:
27112114
UOM Qty:
1
UPC Code:
843221028183
Other Details
10" length suitable for copper conductors up to 16 mm² and aluminum conductors up to 35 mm²
1000V multi-component grips, VDE-tested
20% less effort required compared to conventional diagonal cutters of the same length
Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
For very tough, continuous use
Forged-on axle for heavy-duty work
High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
Includes tether attachment point. For use with KNIPEX Tethered Tools System
Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire
