![10 3/4" Circlip Tool for Internal and External Circlips](/vendors/8243/large/4610100-00-3.jpg "10 3/4" Circlip Tool for Internal and External Circlips")

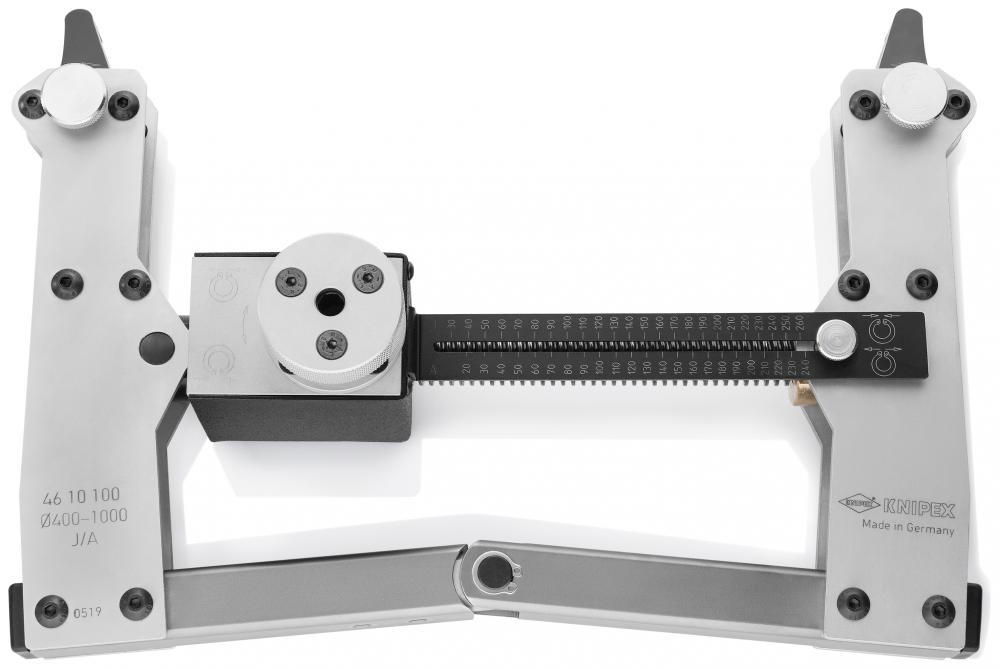

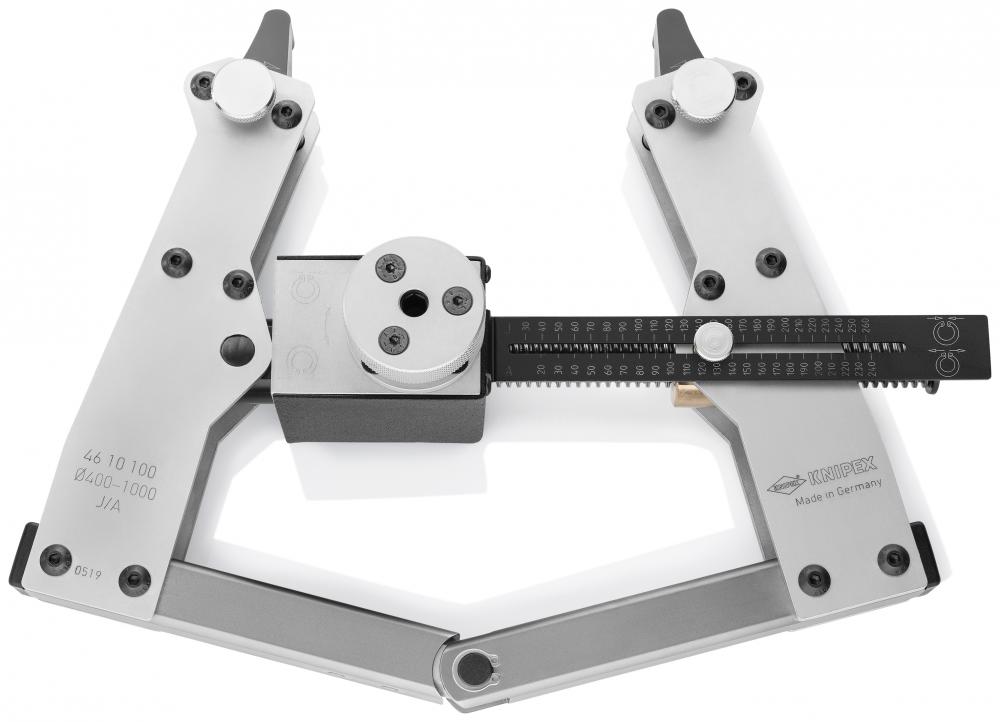

10 3/4" Circlip Tool for Internal and External Circlips
Call For Price
- Part Number: 46 10 100
- UPC: 00843221019532
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Retaining and Lock Ring Pliers
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Circlip - External Shaft Size - inches:
16" to 39 3/8"
Circlip - Internal Bore Size - inches:
15 3/4" to 39 3/8"
Circlip External Shaft Size Inches:
16" to 39 3/8"
Circlip Internal Bore Size Inches:
15 3/4" to 39 3/8"
Color:
Silver
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Data Sheet Filename:
4610100_en.pdf
ECCN:
EAR99
Harmonized Tariff Code:
8203.20.6030
Included Products/Items:
Circlip - Internal Bore Size - inches: 15 3/4" to 39 3/8"
Item Height (inches):
3 1/4"
Item Height inches:
3 1/4"
Item Length (inches):
10.75
Item Length inches:
11"
Item Quantity:
1
Item Weight (lbs):
4.745
Item Weight lbs:
4.745
Item Width (inches):
6 13/16"
Item Width inches:
6 13/16"
Joint Type 2:
Fixed Joint
Material Type:
Chrome vanadium steel, forged, oil-hardened
Package Height (inches):
4.95"
Package Height inches:
4.95"
Package Length (inches):
13.5"
Package Length inches:
13.5"
Package Weight (lbs):
7.52
Package Weight lbs:
7.52
Package Width (inches):
10.8"
Package Width inches:
10.8"
Packaging Height mm:
70 mm
Packaging Length mm:
280 mm
Packaging Width mm:
175 mm
Prop 65 Conflict:
View
Reach:
contains SVHC
RoHS:
not applicable
Tool Attributes:
Areas of application e.g. wind turbines, tidal power stations, generator construction, hydropower stations, large machine construction (rolling mills, presses), shipbuilding, aerospace - wherever very high forces and torques are transmitted with large shaf
Circlips are securely held due to short, direct attachment.
For fitting and removing circlips in one operation.

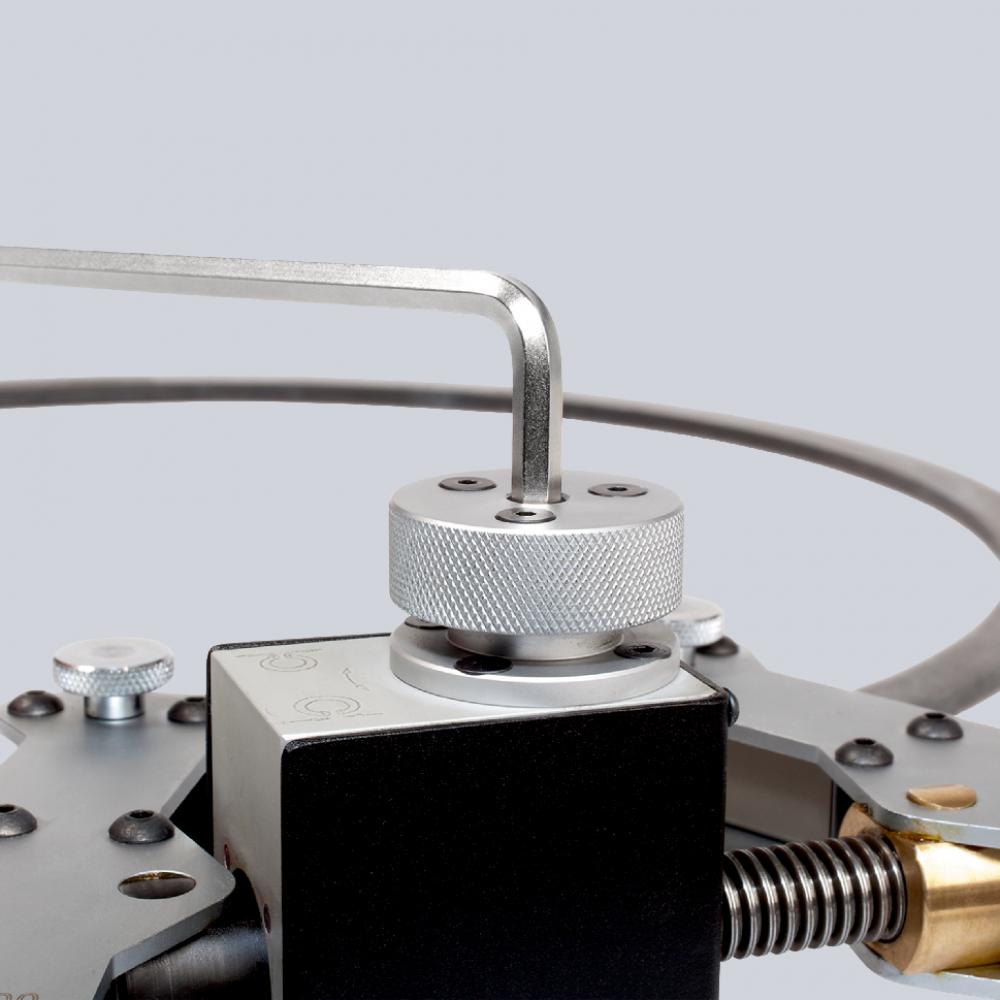

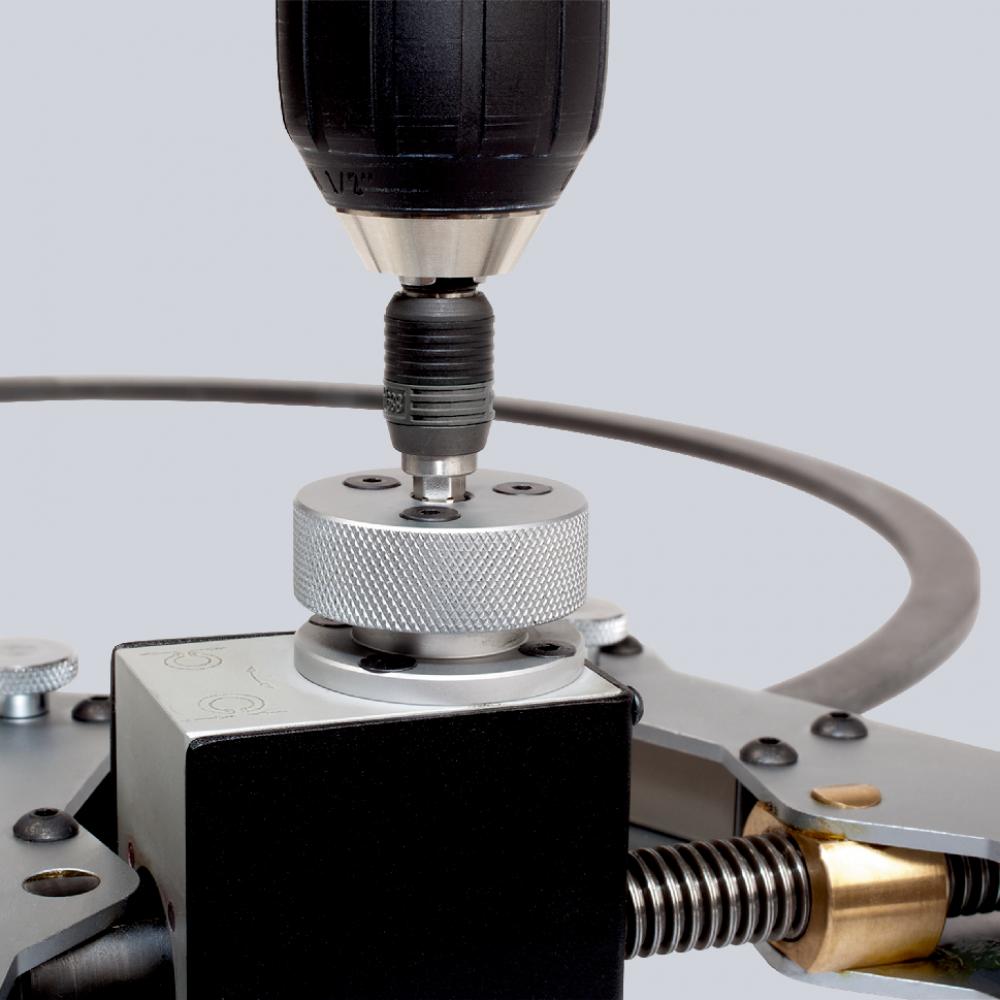

Optional operation with hexagonal key, ratchet wrench or cordless screwdriver.
Reliable opening and closing of the circlips and holding by self-locking precision spindle drive.

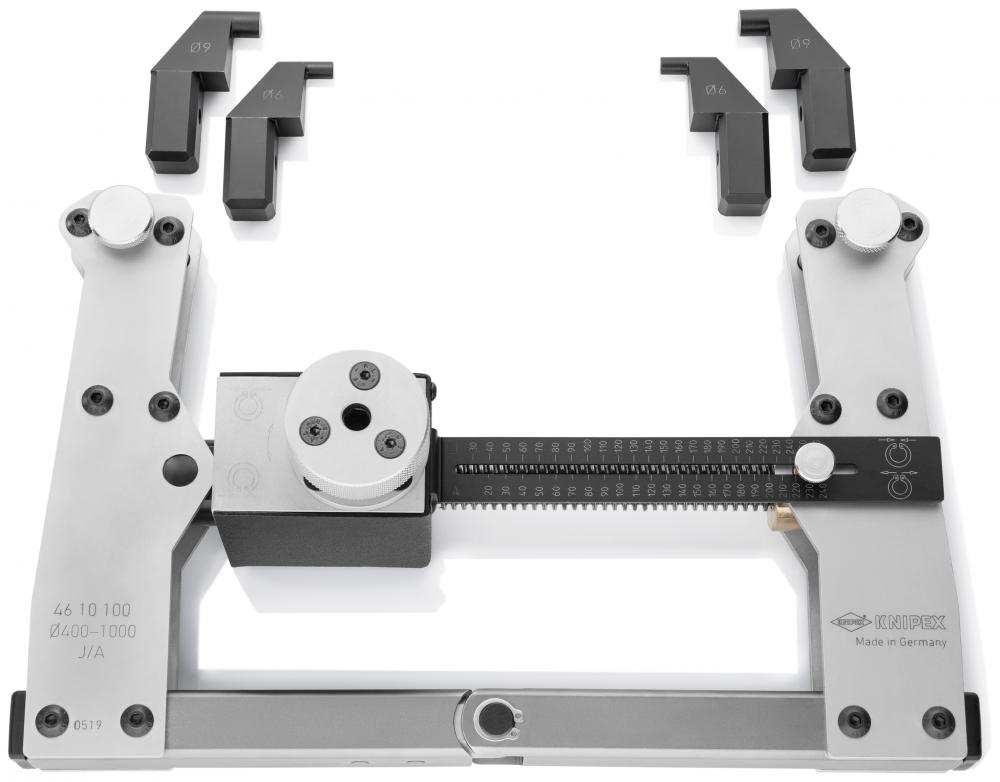

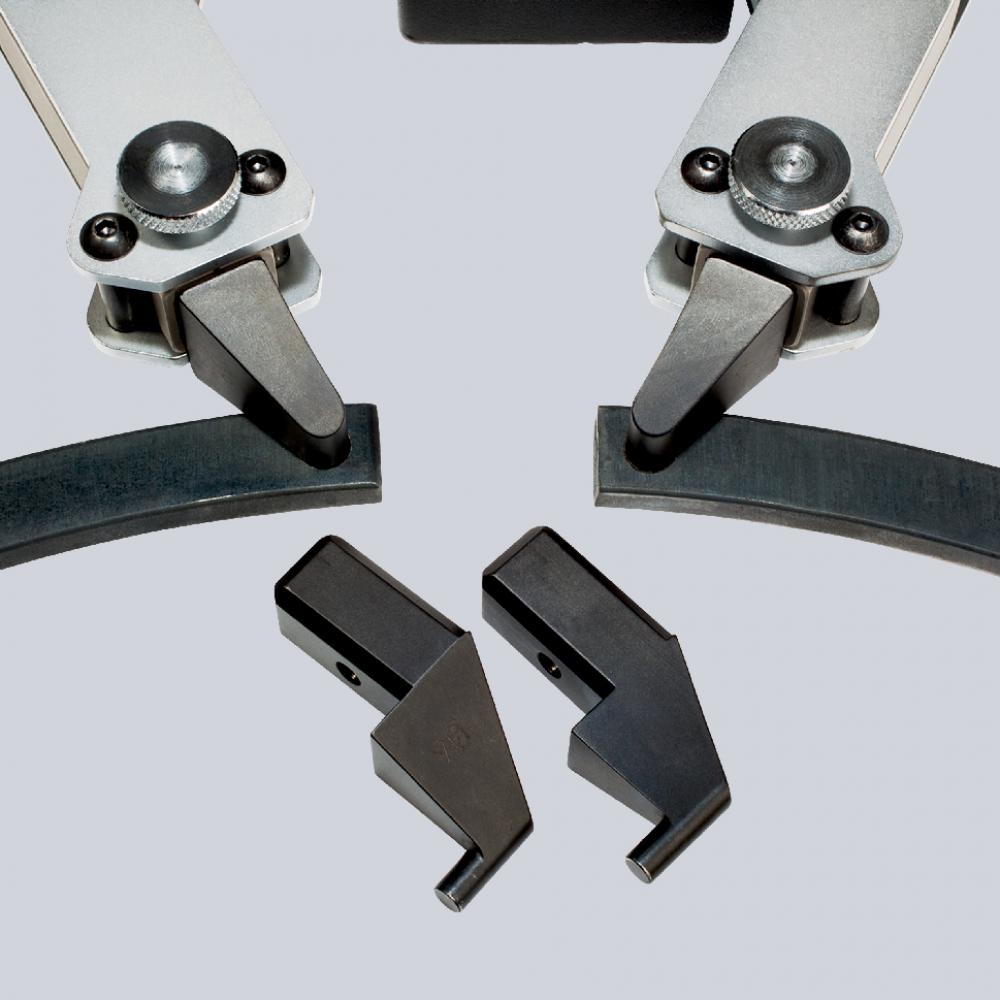

Replaceable tips with 15/64" and 23/64" diameters, for perfect adaptation to the actuation bores in the circlips.
Tip material: chrome vanadium electric steel.
Universal usage for large circlips with nominal diameters of 16" to 39 3/8".
Tool Height mm:
70 mm
Tool Length mm:
280 mm
Tool Weight grams:
2200 g
Tool Width mm:
175 mm
Unit Of Measure:
Each
UNSPSC:
27112140
UNSPSC Number:
27112140
UOM Qty:
1
UPC Code:
843221019532
Other Details
Areas of application e.g. wind turbines, tidal power stations, generator construction, hydropower stations, large machine construction (rolling mills, presses), shipbuilding, aerospace - wherever very high forces and torques are transmitted with large shaf
Circlips are securely held due to short, direct attachment
For fitting and removing circlips in one operation
Optional operation with hexagonal key, ratchet wrench or cordless screwdriver
Reliable opening and closing of the circlips and holding by self-locking precision spindle drive
Replaceable tips with 15/64" (6 mm) and 23/64" (9 mm) diameters, for perfect adaptation to the actuation bores in the circlips
Tip material: chrome vanadium electric steel
Universal usage for large circlips with nominal diameters of 16" to 39 3/8" (400 - 1000 mm)
