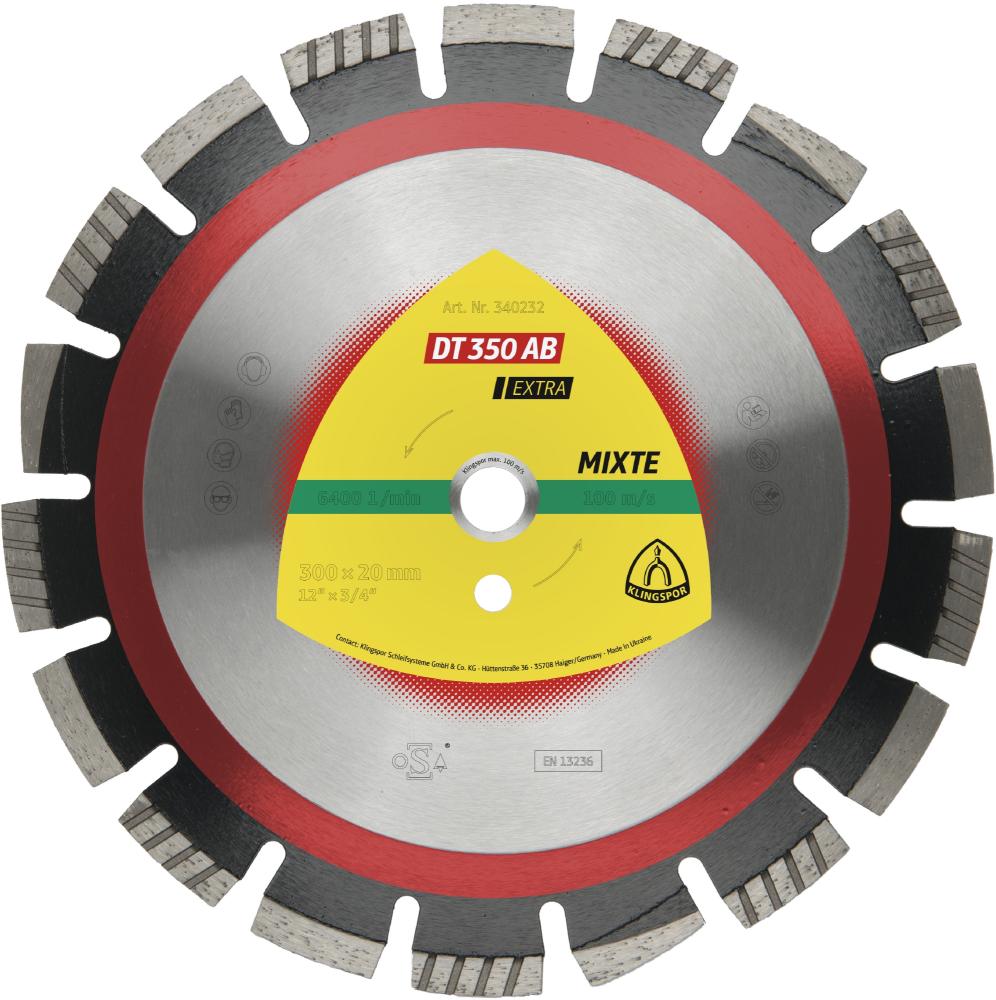

DT 350 AB diamond cutting blades, 12 x 7/64 x 3/4 Inch 18 segments 40 x 2,8 x 12 mm, wide gullet
Call For Price
- Part Number: 340232
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (5)
Product Overview
Info & Guides
Advantages: Multi-purpose product for all repairs on asphalt and concrete thanks to laser-welded block segments, turbo segments and slanted protective segments - Can be used on gasoline-powered cutters and Joint cutters with up to 10 kW - The diamond cutting blade DT 350 AB includes the new CEVOLUTION technology. CEVOLUTION stands for holistically optimized, ceramic abrasives. Klingspor products with CEVOLUTION technology contain, among others, an optimized grit mix, grit sizes and formulation in order to offer the maximum performance in every application.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Cut-Off and Grinding Wheels
Category Level 4:
Diamond and CBN Grinding Wheels
Aggression:
medium
Applicataion Areas:
Asphalt|Concrete
Application Area Defined:
Asphalt|Concrete
Bore Diameter (in):
3/4
Bore Diameter (mm):
20 mm
Design:
Laser welded
Diameter (in):
12
Diameter (mm):
300
Gross weight:
1.16
Height Of Segments (in):
1/2
Height Of Segments (mm):
12 mm
Item Weight (LBS):
2.56
Length Of Segments (in):
1-1/2
Length Of Segments (mm):
40 mm
Machine Type:
petrol saw
Max. revolutions p.min.:
6400 U/min
Max. RPM:
6400 U/min
Number Of Segments:
18 St.
Order Minimum:
1
Output Dimensions (in):
Diameter x Bore - 12 x 3/4
Diameter x Bore - 300 x 20
Package Quantity:
1 ST
Package Volume (Cubic Decimeter):
0.54
Packaging Type:
cardboard box
Packaging UPC:
4014855319954
Segmentation:
Wide gullet
Service life:
medium
Speed Limit (M/S):
100 m/s
Speed limit [m/s]:
100 m/s
Type of Use:
Petrol powered cutter|Joint cutter 10kW
UPC Number:
4014855319954
Version of Rim:
Wide gullet
Version Of The Rim:
Wide gullet
Width Of Segments (in):
7/64
Width Of Segments (mm):
2,8 mm
Other Details
Can be used on gasoline-powered cutters and Joint cutters with up to 10 kW
Laser-welded block segments, turbo segments and slanted protective segments
Multi-purpose product for all repairs on asphalt and concrete
