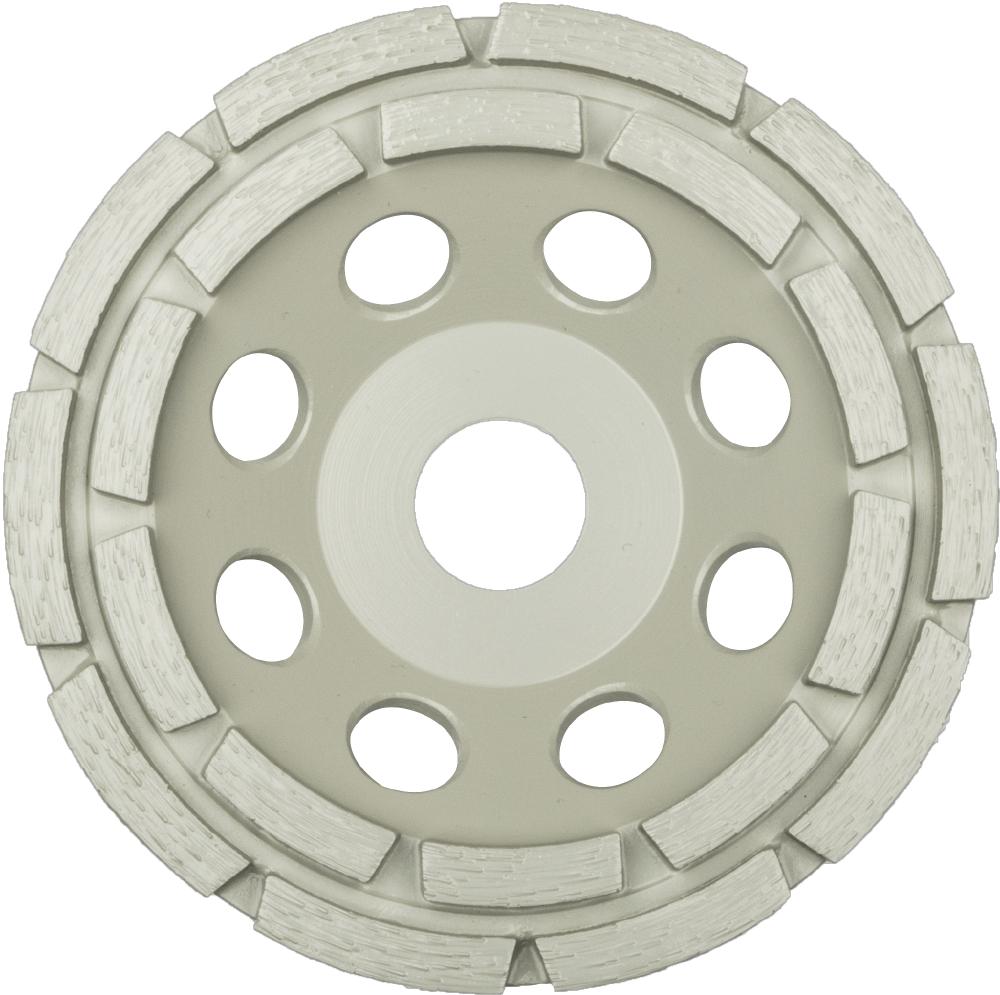

DS 600 A Diamond cup grinding wheel, 7 x 5/16 x 7/8 Inch 22 segments 7,8 x 5,3 mm, two-rowed
Call For Price
- Part Number: 331029
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (4)
Product Overview
Info & Guides
Advantages: An ideal match with all types of abrasive materials - Outstanding grinding performance combined with a long service life - Fast and smooth grinding of surfaces thanks to double-row segments - Extended service life thanks to optimized matrix and diamonds - Simple dust extraction through openings in the steel enclosure
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Cut-Off and Grinding Wheels
Category Level 4:
Diamond Segment Cup Grinding Wheels
Accessories Available:
331332
Accessory:
331332
Aggression:
high
Applicataion Areas:
Asphalt|Abrasive materials|Green concrete|Aerated concrete|Sandstone
Application Area Defined:
Asphalt|Abrasive materials|Green concrete|Aerated concrete|Sandstone
Bore Diameter (in):
7/8
Bore Diameter (mm):
22,23 mm
Design:
Brazed
Diameter (in):
7
Diameter (mm):
180
Gross weight:
0.85
Height Of Segments (in):
3/16
Height Of Segments (mm):
5,3 mm
Item Weight (LBS):
1.87
Machine Type:
angle grinder
Max. revolutions p.min.:
8500 U/min
Max. RPM:
8500 U/min
Number Of Segments:
22 St.
Order Minimum:
1
Output Dimensions (in):
Diameter x Bore - 180 x 22,23
Diameter x Bore - 7 x 7/8
Package Quantity:
1 ST
Package Volume (Cubic Decimeter):
1.37
Packaging Type:
cardboard box
Packaging UPC:
4014855256181
Segmentation:
Standard
Service life:
very high
Speed Limit (M/S):
80 m/s
Speed limit [m/s]:
80 m/s
Type of Use:
Angle grinder
UPC Number:
4014855256181
Version of Rim:
double row
Version Of The Rim:
double row
Width Of Segments (in):
5/16
Width Of Segments (mm):
7,8 mm
Other Details
An ideal match with all types of abrasive materials
Extended service life thanks to optimized matrix and diamonds
Fast and smooth grinding of surfaces thanks to double-row segments
Outstanding grinding performance combined with a long service life
Simple dust extraction through openings in the steel enclosure
