VLP Series Chain Hoists
Call For Price
- Part Number: 110303
- UPC: 00596298694200
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

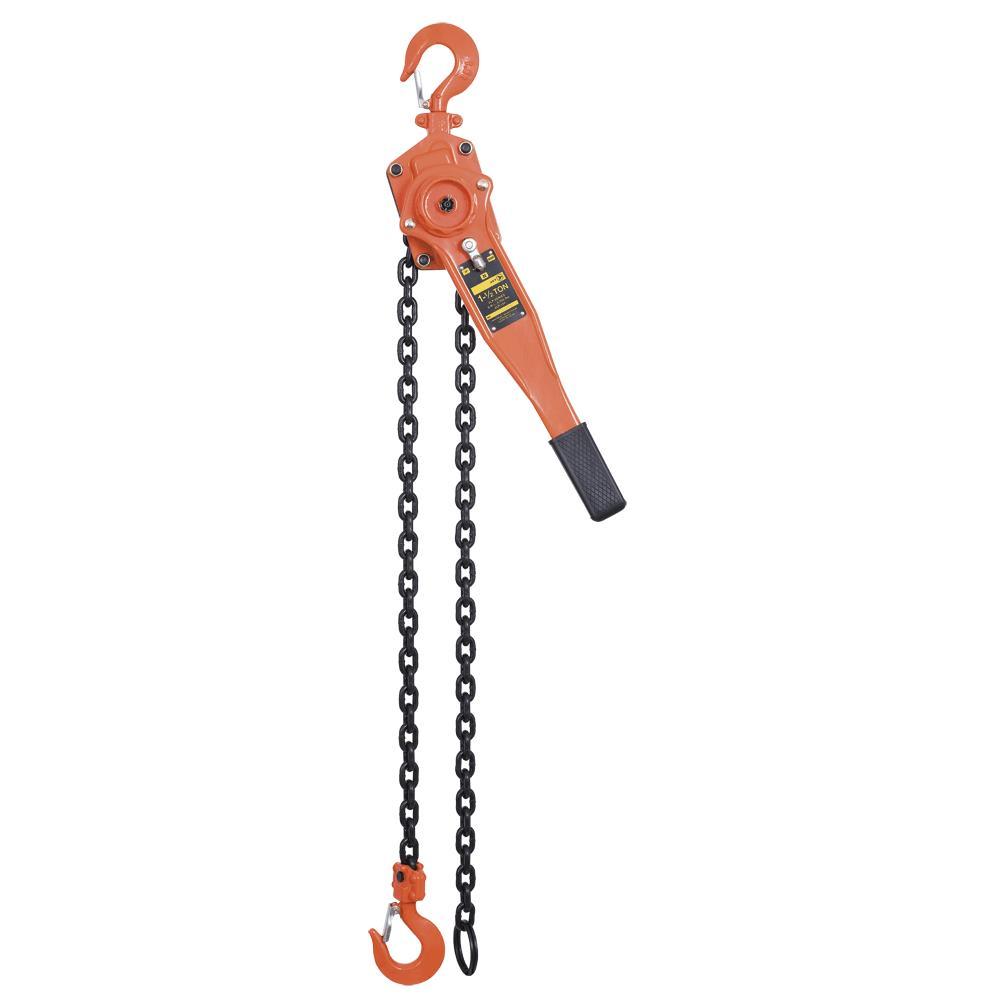

The JET VLP series chain hoists are built using high quality and durable components that allow you to elevate, suspend and lower loads safely and easily.
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Hoists and Trolleys
Industrial Subtype:
Lever Chain Hoists
Brand:
JET
Capacity (T):
1-1/2 T
Capacity T:
1-1/2 T
Certification:
ISO 9001-2000 certified factory|ASME B30.16 standards
Country of Origin:
CN
Each Depth (in.):
8.10
Each Length (in.):
20.55
Each Qty.:
1
Each Weight (lb):
25.7300
Each Width (in.):
8.35
Force Required to Lift:
48 lb
Harmonized Tariff Code:
8425.19.00.10
HTS (Harmonized Tariff Schedule) Code:
8425.19.00.10
Inner Pack Qty.:
0
Item Length (inches):
20.55
Item Length inches:
20.55
Item Quantity:
1
Item Weight (lbs):
25.7300
Item Weight lbs:
25.73
Lever Length (in.):
16-1/2"
Lever Length in:
16-1/2"
Lift (ft.):
5'
Lift ft:
5'
Load Chain Diameter:
8.0 mm
Load Chain Grade:
80
Master Pack Qty.:
1
Master Pack Weight (lb):
0.0000
Min Distance Between Hooks:
15"
Min. Distance Between Hooks:
15"
Model Number:
VLP-150
Number of Falls:
1
Package Quantity:
1
Package UPC:
10059629884901
Package Weight lbs:
0
Quantity:
1
Special Features:
Non-asbestos brake discs
UPC:
059629884904
UPC Code:
059629869420
Other Details
Galvanized chain, hub, lever switch and inside plates is resistant to corrosion and provides long service life
Hoists are load tested to 150% of rated capacity to ensure safe use and operation
Short lever length allows for easier access into confined work areas
Special heavy-duty brake pads last 5x longer than traditional styles
Stamped steel housing protects gears and brake mechanism from damage
