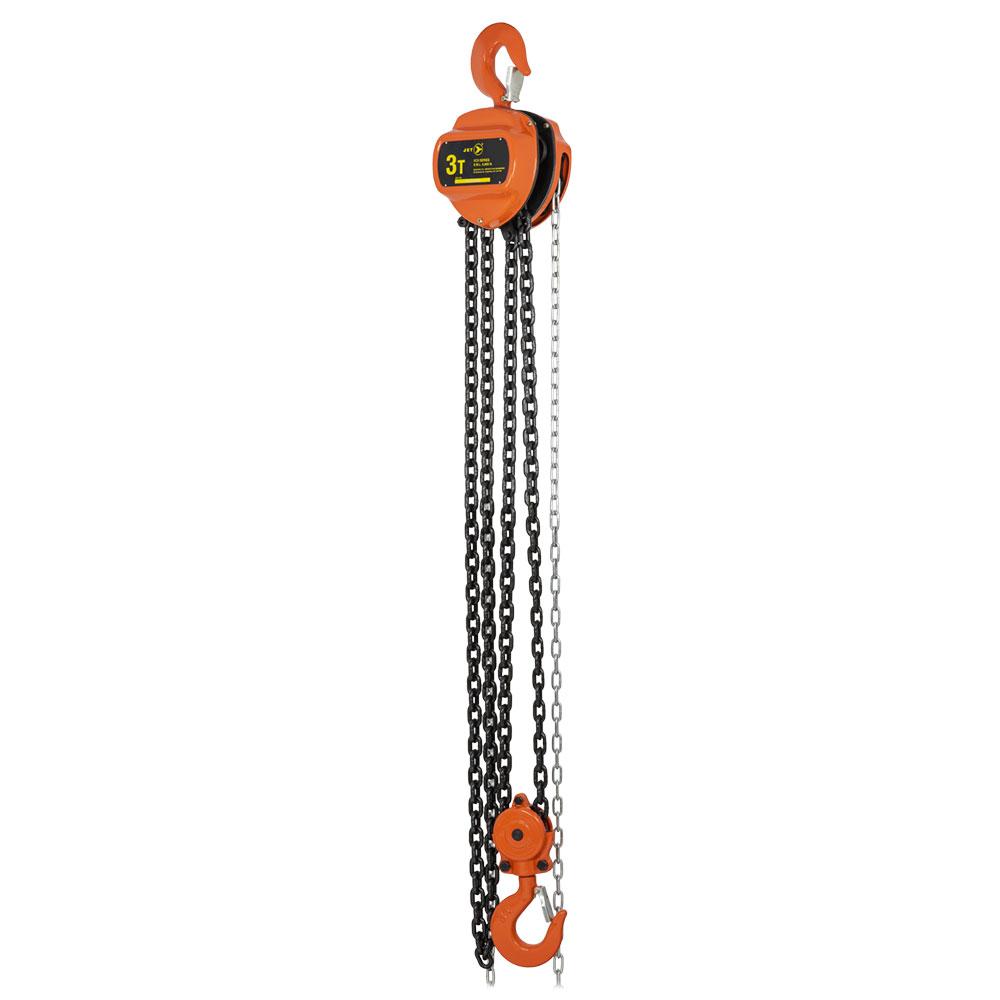

VHC Series Chain Hoists
Call For Price
- Part Number: 101042
- UPC: 00596298860384
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
JET Tools chain hoists are designed for portability and durability and made to perform in a wide range of industrial lifting and pulling applications.
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Hoists and Trolleys
Industrial Subtype:
Air Chain Hoists
Manual Chain Hoists
Brand:
JET
Capacity (lb.):
6,600 lb
Capacity (T):
3 T
Capacity lb:
6,600 lb
Capacity T:
3 T
Certification:
ASME B30.16 standards|ISO 9001-2000 certified factory
Country of Origin:
CN
Each Depth (in.):
6.50
Each Length (in.):
14.50
Each Qty.:
1
Each Weight (lb):
56.4000
Each Width (in.):
10.00
Force Required to Lift:
88 lb
Harmonized Tariff Code:
8425.19.00.10
Head Room:
20-15/32"
HTS (Harmonized Tariff Schedule) Code:
8425.19.00.10
Inner Pack Qty.:
0
Item Length (inches):
14.50
Item Length inches:
14.50
Item Quantity:
1
Item Weight (lbs):
56.4000
Item Weight lbs:
56.40
Length of Hand Chain Pulled to Lift Load to 1:
53'
Length of Hand Chain Pulled to Lift Load to 1':
53'
Lift (ft.):
10'
Lift ft:
10'
Load Chain Diameter:
8.0 mm
Load Chain Grade:
80
Master Pack Qty.:
1
Min. Distance Between Hooks:
20-15/32"
Model Number:
VCH-3010
Number of Falls:
2
Number of Safety Hooks:
2
Order Unit Of Measure:
EA
Package Quantity:
1
Package UPC:
10059629823511
Quantity:
1
Special Features:
Non-asbestos brake discs
UOM:
EA
UPC:
059629823514
UPC Code:
059629886038
Other Details
Dual pawl Weston-style brake provides safe and reliable operation
Load tested to 150% of rated capacity and includes certificate
Made with grade 80 heat-treated alloy steel load chain
Made with premium-grade non-asbestos brake discs for long service life
Professional-grade triple spur gear is lightweight and portable
