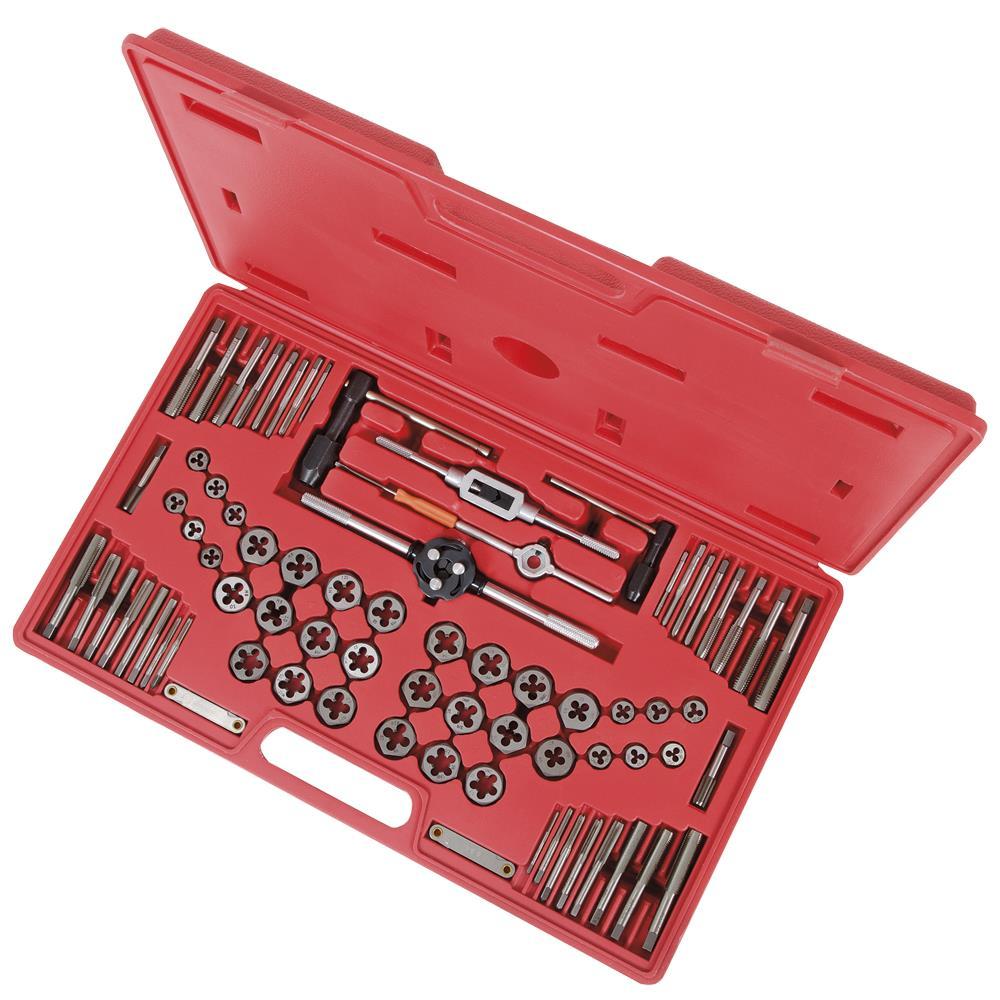

Tap and Die Sets
Call For Price
- Part Number: 530118
- UPC: 00596298616530
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Threading
Industrial Subtype:
Tap and Die Sets
Brand:
JET
Compatible with:
1/16" to 3/16" Shank Taps|1/4" to 1/2" Shank Taps
Country of Origin:
CN
Die Material:
9 SiCr Alloy Steel
Each Depth (in.):
2.40
Each Length (in.):
20.12
Each Qty.:
1
Each Weight (lb):
6.7900
Each Width (in.):
12.17
Harmonized Tariff Code:
8207.40.00.10
HTS (Harmonized Tariff Schedule) Code:
6805.10.00.00
Includes:
SAE Thread Pitch Gauge|Metric Thread Pitch Gauge|Screwdriver|Plug Tap|1" Hex Die Stock|5/8" Hex Die Stock
Inner Pack Qty.:
0
Inner Pack Weight (lb):
0.0000
Item Length (inches):
20.12
Item Length inches:
20.12
Item Quantity:
1
Item Weight (lbs):
6.7900
Item Weight lbs:
6.79
Master Pack Code:
10059629861650
Master Pack Qty.:
5
Master Pack Weight (lb):
0.0000
Measurement Standard:
Metric
Model Number:
TD76A
Number of Pieces:
76
Order Unit Of Measure:
EA
Package Height inches:
12.21
Package Length inches:
21.28
Package Quantity:
5
Package UPC:
10059629817749
Package Weight lbs:
0
Package Width inches:
13
Performance Level:
Premium
Quantity:
1
Rockwell Hardness (HRC):
HRC 55-59
Storage Type:
Blow Mould Case
Tap Material:
9 SiCr Alloy Steel
Tap Wrench Type:
Adjustable
Thread Size (Metric):
3 mm - 0.5|4 mm - 0.7|4 mm - 0.75|5 mm - 0.8|5 mm - 0.9|6 mm - 1.0|12 mm - 1.5|12 mm - 1.75|7 mm - 1.0|8 mm - 1.0|8 mm - 1.25|10 mm - 1.25|10 mm - 1.5|9 mm - 1.0|9 mm - 1.25|11 mm - 1.5
Thread Size (SAE):
1/2"-20NF|1/4"-20NC|1/4"-28NF|1/8"-27NPT|3/8"-16NC|3/8"-24NF|5/16"-18NC|5/16"-24NF|7/16"-14NC|7/16"-20NF|#4-40NC|#6-32NC|#8-32NC|#10-24NC|#10-32NF|#12-24NC|1/8"-28BSP
Thread Size Metric:
3 mm - 0.5|4 mm - 0.7|4 mm - 0.75|5 mm - 0.8|5 mm - 0.9|6 mm - 1.0|12 mm - 1.5|12 mm - 1.75|7 mm - 1.0|8 mm - 1.0|8 mm - 1.25|10 mm - 1.25|10 mm - 1.5|9 mm - 1.0|9 mm - 1.25|11 mm - 1.5
Thread Size SAE:
1/2"-20NF|1/4"-20NC|1/4"-28NF|1/8"-27NPT|3/8"-16NC|3/8"-24NF|5/16"-18NC|5/16"-24NF|7/16"-14NC|7/16"-20NF|#4-40NC|#6-32NC|#8-32NC|#10-24NC|#10-32NF|#12-24NC|1/8"-28BSP
Thread Type:
NF - National Fine|NPT - National Pipe Thread|NC - National Coarse
UNSPSC:
23241615
UOM:
EA
UPC:
059629817742
UPC Code:
059629861653
Other Details
Hex die stock: 1
One of each: plug tap, hex die 3mm-0.50, 3mm-0.60, 4mm-0.70, 4mm-0.75, 5mm-0.80, 5mm-0.90, 6mm-0.75, 6mm-1.00, 7mm-0.75, 7mm-1.00, 8mm-1.00, 8mm-1.25, 10mm-1.25, 10mm- 1.50, 12mm-1.50, 12mm-1.75, 1/8-27npt
Pitch gauge: 1 metric thread
Screwdriver: 1 slot
Tap wrench: 1 long handle adjustable 1 T-handle 1/16-3/16 shank taps
