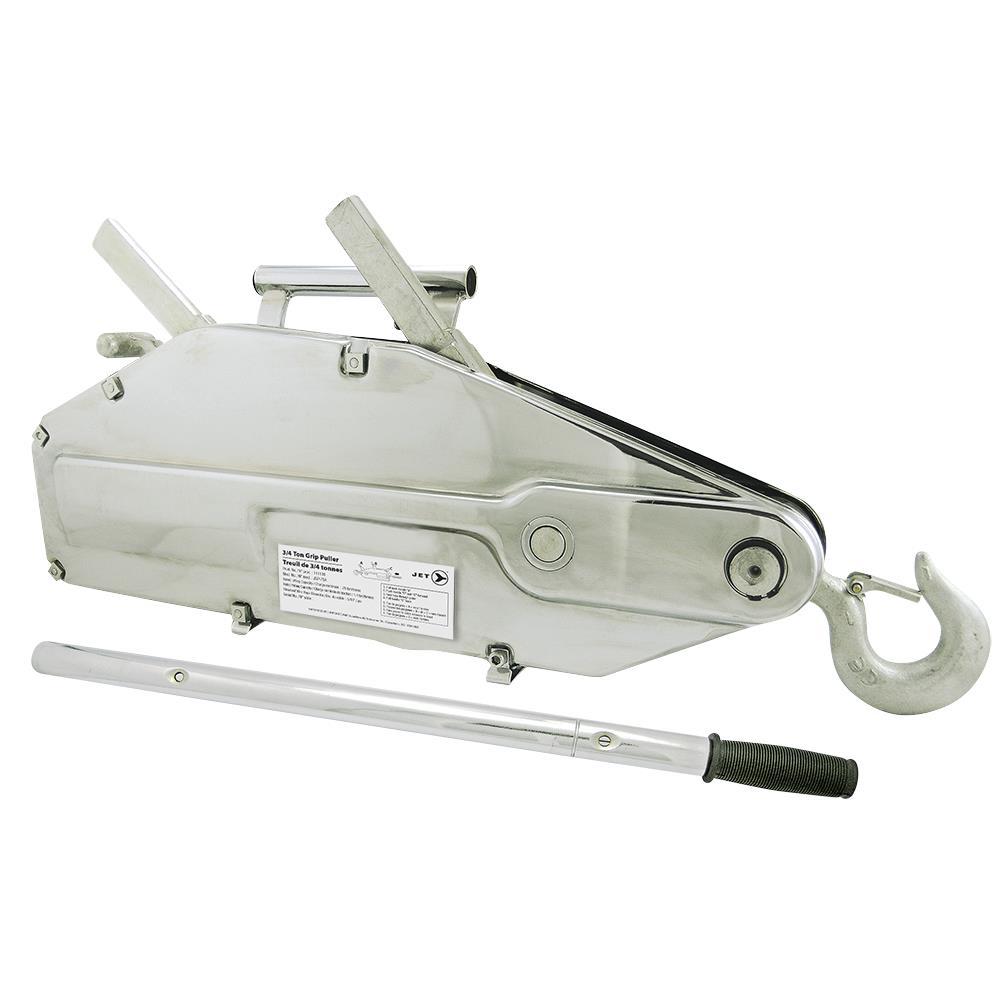

SGP Series Heavy Duty Wire Rope Pullers
Call For Price
- Part Number: 111136
- UPC: 00596298060432
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Lightweight, safe, and easy to operate, these professional-grade wire rope pullers are ideal for pulling, lifting, lowering, and securing loads over large distances.
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Below-the-Hook Lifting Accessories
Industrial Subtype:
Lift Assists
Brand:
JET
Cable Diameter (in.):
5/16"
Cable Diameter in:
5/16"
Certification:
ANSI B30.21 standards
Country of Origin:
CN
Dimensions:
16-3/4" x 2-1/2" x 9"
Duty Level:
Heavy Duty
Each Depth (in.):
5.43
Each Length (in.):
21.26
Each Qty.:
1
Each Weight (lb):
20.3088
Each Width (in.):
12.13
Effort at Rated Load (lb.):
64 lb
Effort at Rated Load lb:
64 lb
Harmonized Tariff Code:
8425.19.00.90
HTS (Harmonized Tariff Schedule) Code:
8425.19.00.90
Inner Pack Qty.:
0
Inner Pack Weight (lb):
0.0000
Item Length (inches):
21.26
Item Length inches:
21.26
Item Quantity:
1
Item Weight (lbs):
20.3088
Item Weight lbs:
20.31
Master Pack Qty.:
1
Master Pack Weight (lb):
0.0000
Model Number:
JGP-75A
Operating Rope Advance:
2.36"
Order Unit Of Measure:
EA
Package Quantity:
1
Package UPC:
10059629884864
Package Weight lbs:
0
Quantity:
1
Rated Capacity lb:
1,760 lb
Rated Capacity T:
3/4 T
Rated Lifting Capacity (lb.):
1,760 lb
Rated Lifting Capacity (T):
3/4 T
Rated Lifting Capacity lb:
1,760 lb
Rated Lifting Capacity T:
3/4 T
Rated Pulling Capacity (lb.):
2,860 lb
Rated Pulling Capacity (T):
1.4 T
Rated Pulling Capacity lb:
2,860 lb
Rated Pulling Capacity T:
1.4 T
Telescopic Handle Length:
29"
UPC:
059629884867
UPC Code:
059629806043
Other Details
An overload protection system is built-in with a shearing pin in the forward lever which will shear when approximately 25% overloaded
Lightweight, simple, and safe to operate
Made with compact high strength steel housing
May be used in any position to lift, pull, lower, or stretch heavy loads
The rope clamp system is easily disengaged with a lever to allow smooth installation of the wire rope
