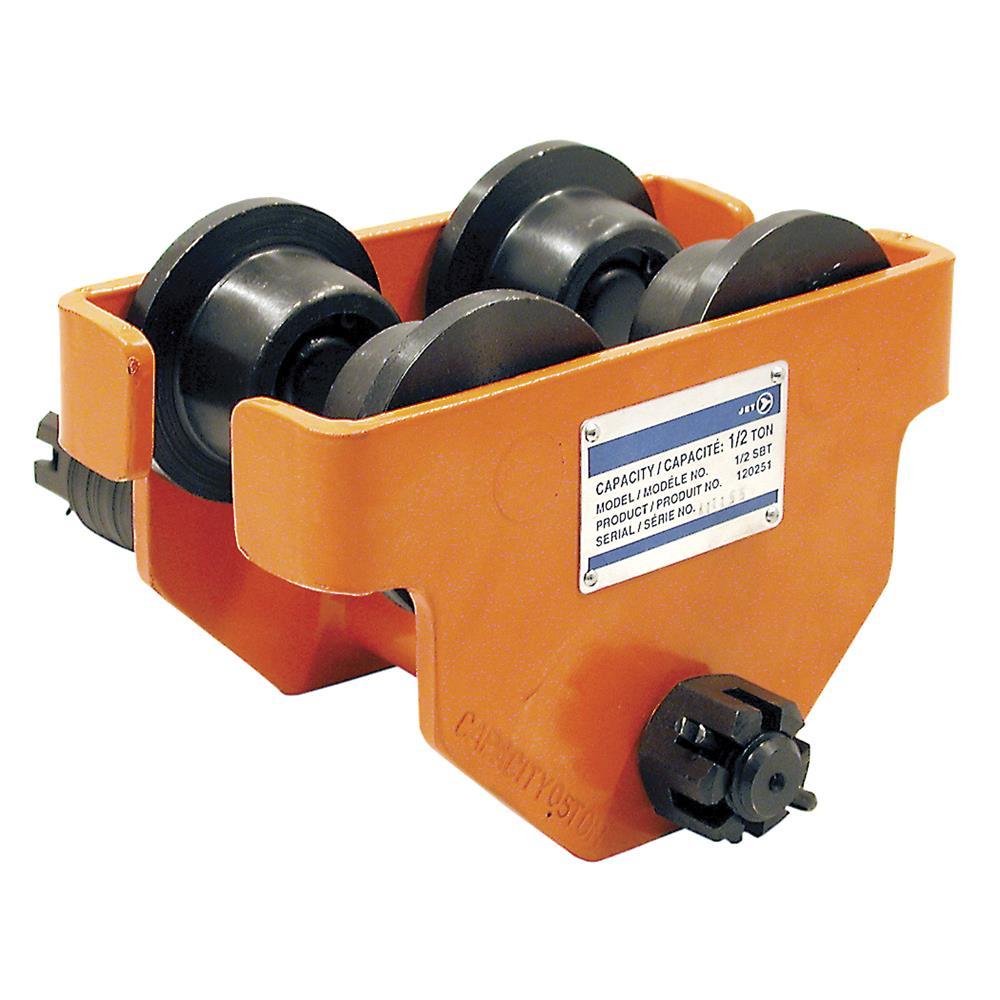

SBT Series Heavy Duty Manual Trollies
Call For Price
- Part Number: 120254
- UPC: 00596298018266
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Hoists and Trolleys
Industrial Subtype:
Trolleys
Brand:
JET
Certificate Included:
Yes
Certification:
ANSI B30.11 specifications
Country of Origin:
CN
Curve Radius Size:
43"
Duty Level:
Heavy Duty
Each Depth (in.):
5.50
Each Length (in.):
14.00
Each Qty.:
1
Each Weight (lb):
54.3500
Each Width (in.):
10.50
Flange Width:
4 - 8-1/32"
Harmonized Tariff Code:
8479.89.90.90
HTS (Harmonized Tariff Schedule) Code:
8479.89.90.90
Inner Pack Qty.:
0
Inner Pack Weight (lb):
0.0000
Item Length (inches):
14.00
Item Length inches:
14.00
Item Quantity:
1
Item Weight (lbs):
54.3500
Item Weight lbs:
54.35
Master Pack Qty.:
1
Master Pack Weight (lb):
0.0000
Order Unit Of Measure:
EA
Package Quantity:
1
Package UPC:
10059629839130
Package Weight lbs:
0
Quantity:
1
Rated Capacity (lb):
4,400 lb
Rated Capacity (T):
2 T
Rated Capacity lb:
4,400 lb
Rated Capacity T:
2 T
Rated Lifting Capacity lb:
4,400 lb
Rated Lifting Capacity T:
2 T
UOM:
EA
UPC:
059629839133
UPC Code:
059629801826
Other Details
Adjustable to fit various sizes of flanges and beams
Double sealed ball bearings for long life
Load is moved by pulling on hoist load chain in direction of travel
Specially designed integrated drop stops/bumpers take the load in the event of wheel failure and prevent wheels from contacting other trolleys on the track
Specially hardened steel wheels meet ANSI B30.11 specifications (Certificate included)
