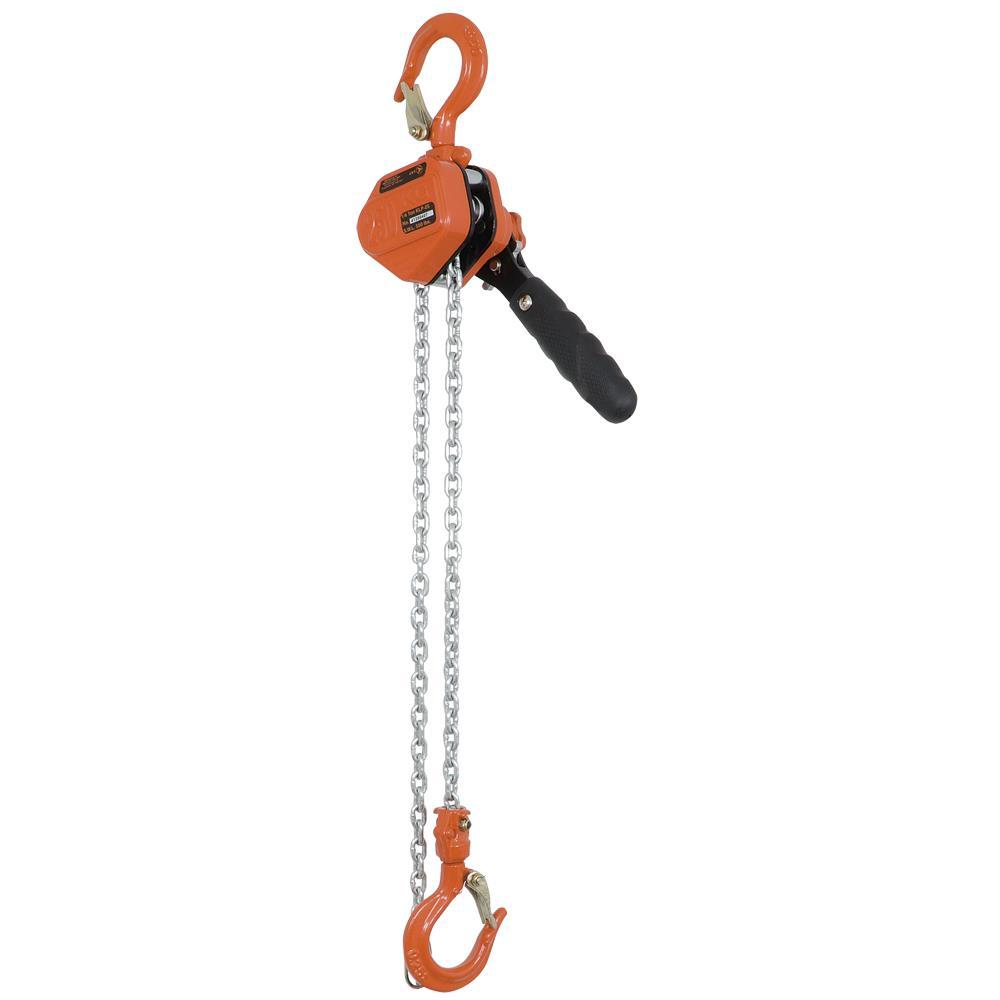

KLP Series Heavy Duty Chain Hoists
Call For Price
- Part Number: 110803
- UPC: 00596298796102
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Heavy duty chain hoists built using high quality and durable components that allow you to elevate, suspend and lower loads safely and easily.
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Hoists and Trolleys
Industrial Subtype:
Lever Chain Hoists
Brand:
JET
Capacity (T):
1/4 T
Capacity T:
1/4 T
Country of Origin:
CN
Duty Level:
Heavy Duty
Each Depth (in.):
3.74
Each Length (in.):
8.39
Each Qty.:
1
Each Weight (lb):
4.2064
Each Width (in.):
4.49
Force Required to Lift:
44 lb
Harmonized Tariff Code:
8425.19.00.10
HTS (Harmonized Tariff Schedule) Code:
8425.19.00.10
Inner Pack Qty.:
0
Item Length (inches):
8.39
Item Length inches:
8.39
Item Quantity:
1
Item Weight (lbs):
4.2064
Item Weight lbs:
4.21
Lever Length (in.):
5.70"
Lever Length in:
5.70"
Lift (ft.):
5'
Lift ft:
5'
Load Chain Diameter:
3.2 mm
Load Chain Grade:
100
Master Pack Code:
10059629879617
Master Pack Depth (in.):
7.88
Master Pack Length (in.):
22.85
Master Pack Qty.:
10
Master Pack Weight (lb):
43.6640
Master Pack Width (in.):
9.06
Min Distance Between Hooks:
7.87"
Min. Distance Between Hooks:
7.87"
Model Number:
KLP-25-5
Number of Falls:
1
Package Quantity:
10
Package UPC:
10059629801885
Package Weight lbs:
43.664
Quantity:
1
Special Features:
Non-asbestos brake discs
UOM:
EA
UPC:
059629801888
UPC Code:
059629879610
Other Details
Caged ball bearings on load sprocket provide smooth and easy operation
Dual pawl Weston style brake features extra heavy pawl springs for reliable and safe operation
High impact gear case and brake cover for heavy duty service
Ideal for rigging, lifting, and horizontal pulling applications
Made with grade 100 load chain for superior strength
