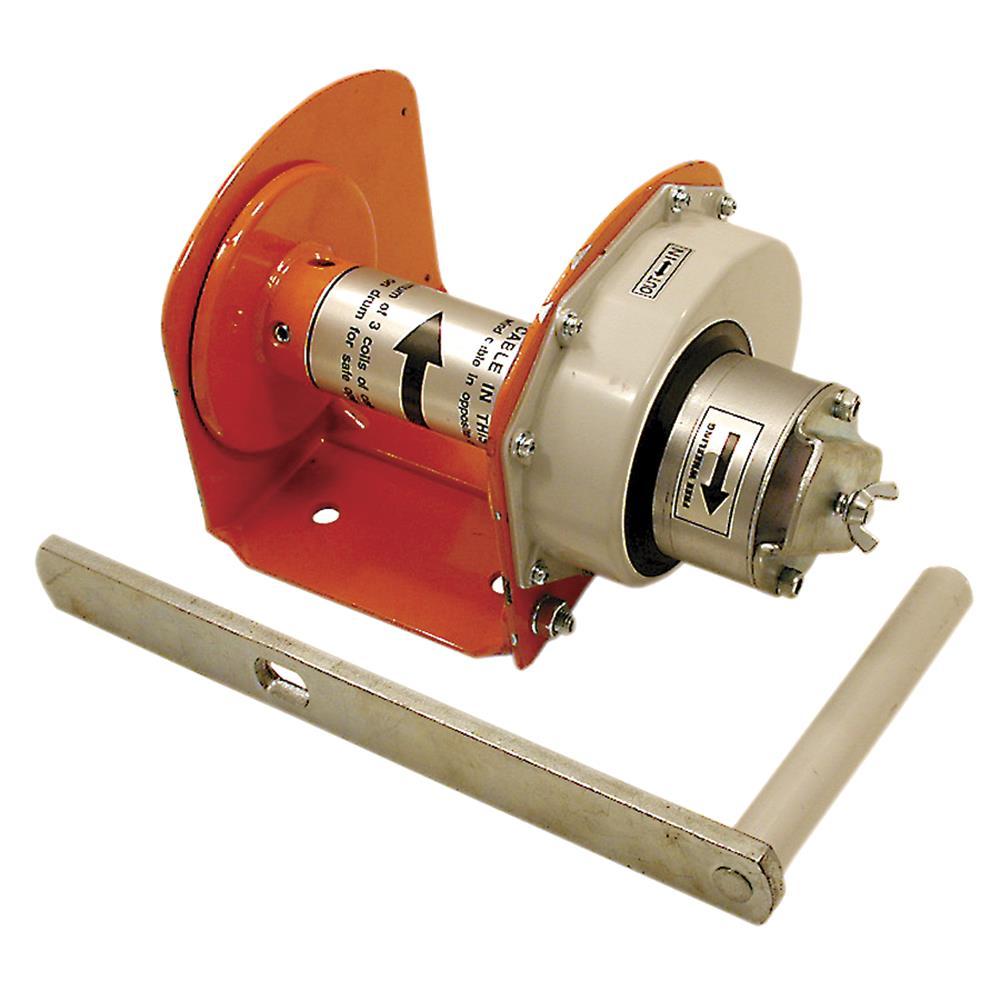

IWF Series Super Heavy Duty Hand Winches
Call For Price
- Part Number: 113261
- UPC: 00596298388772
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Heavy-duty portable hand winches that help you tackle common lifting jobs more quickly and efficiently.
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Winches
Industrial Subtype:
Manual Winches
A in:
1/7/2008
B in:
4/1/1932
Brand:
JET
C in:
4/11/2016
Cable Length Pull per Turn (in.):
6-1/2
Cable Length Pull per Turn in:
6/1/2002
Capacity (lb.):
220
Capacity lb:
220
Country of Origin:
JP
D in:
3/1/2004
Drum Chain Capacity (ft.):
5/32" x 131'
Duty Level:
Super Heavy Duty
E in:
16-Jul
Each Depth (in.):
8.46
Each Length (in.):
12.40
Each Qty.:
1
Each Weight (lb):
17.3017
Each Width (in.):
8.03
F in:
15-15/16
Force Required to Lift (lb):
26
Force Required to Lift lb:
26
G in:
9/13/2016
Gear Ratio:
1:1
H in:
5-51/64
Handle Length (in.):
9-13/16
Handle Length in:
9/13/2016
Harmonized Tariff Code:
8425.39.00.00
HTS (Harmonized Tariff Schedule) Code:
8425.39.00.00
I in:
5/1/2008
Includes:
ABS Plastic Protective Cover
Inner Pack Qty.:
0
Inner Pack Weight (lb):
0.0000
Item Length (inches):
12.40
Item Length inches:
12.40
Item Quantity:
1
Item Weight (lbs):
17.3017
Item Weight lbs:
17.30
J in:
6/19/1964
K in:
9/5/2008
Master Pack Qty.:
1
Master Pack Weight (lb):
0.0000
Model Number:
IWF-100N
Order Unit Of Measure:
EA
Package Quantity:
1
Package UPC:
10059629839093
Package Weight lbs:
0
Quantity:
1
Special Features:
Adjustable Handle|Dual Pawl Weston Brake|Free Wheeling|Non-Asbestos Brake Disc|Rust Resistant
UOM:
EA
UPC:
059629839096
UPC Code:
059629838877
Other Details
All braking components are plated with a rust resistant finish
Chain hoist type dual pawl Weston brake for ultimate load control
Dust and weather-tight housing using an ABS plastic cover to seal out dust and rain
Free wheeling feature enables the operator to pay out cable fast
Non-asbestos brake discs use high quality low abrasion aramid fibre material for a safer and healthier environment
