Product Overview
Info & Guides

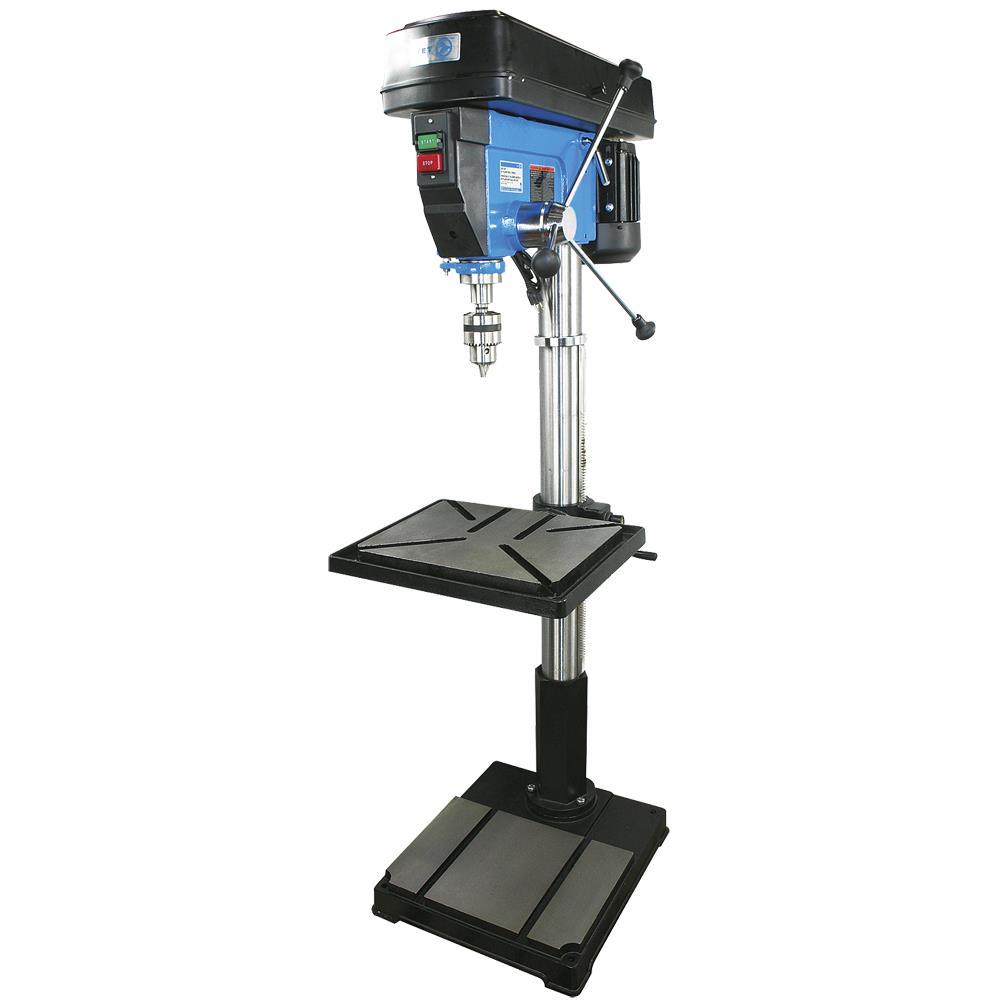

JET offers a variety of professional-quality drill presses that are designed with the operator in mind. Each offers unsurpassed control and precision to help you drill into a wide range of materials.
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Drills
Industrial Subtype:
Corded Drills
Floor Standing and Bench Mounted Drill Presses
Amperes:
5A
Base Dimensions (in.):
19-5/8" x 22-1/2"
Base Dimensions in:
19-5/8" x 22-1/2"
Brand:
JET
Certification:
CSA
Chuck Size (in.):
3/4"
Chuck Size in:
3/4"
Column Diameter (in.):
3-5/8"
Column Diameter in:
3-5/8"
Country of Origin:
CN
Drilling Size (in.):
1-1/4"
Drilling Size in:
1-1/4"
Each Depth (in.):
12.00
Each Length (in.):
33.50
Each Qty.:
1
Each Weight (lb):
139.0000
Each Width (in.):
20.50
Harmonized Tariff Code:
8459.29.00.00
Height (in.):
69-1/4"
Height in:
69-1/4"
Horsepower (HP):
1.5 HP
Horsepower HP:
1.5 HP
HTS (Harmonized Tariff Schedule) Code:
3926.90.10.00
Inner Pack Qty.:
0
Inner Pack Weight (lb):
0.0000
Item Length (inches):
33.50
Item Length inches:
33.50
Item Quantity:
1
Item Weight (lbs):
139.0000
Item Weight lbs:
139.00
Master Pack Qty.:
1
Master Pack Weight (lb):
0.0000
Max Spindle Distance to Table in:
29"
Max. Spindle Distance to Table (in.):
29"
Model Number:
JDP-22F
Number of Spindle Speeds:
12
Order Unit Of Measure:
EA
Package Quantity:
1
Package UPC:
10059629829568
Package Weight lbs:
0
Quantity:
1
Range of Spindle Speeds (RPM):
180 - 4,200 RPM
Range of Spindle Speeds RPM:
180 - 4,200 RPM
Spindle Distance to Base (in.):
49"
Spindle Distance to Base in:
49"
Spindle Taper:
MT3
Spindle Travel (in.):
4-1/2"
Spindle Travel in:
4-1/2"
Swing (in.):
22"
Swing in:
22"
Table Diameter (in.):
16-1/2" x 18-3/4"
Table Diameter in:
16-1/2" x 18-3/4"
Table Tilt (Left):
0 - 45°
Table Tilt (Right):
0 - 45°
Table Tilt Left:
0 - 45°
Table Tilt Right:
0 - 45°
UOM:
EA
UPC:
059629829561
UPC Code:
059629815595
Voltage:
115/230 V
Weight (lb.):
353
Other Details
12 speed capability allows for a broad assortment of drilling applications
Built-in work lamp with separate switch (bulb not included)
Fully hinged belt and pulley cover and fully adjustable motor mount permit fast changes of spindle speed
Positive depth-setting mechanism uses a threaded rod and two lock nuts for accuracy
Standard Equipment: Drill chuck and key
Worktable with quick-release clamp rotates and tilts to 45° right and left
