Drill Presses
Call For Price
- Part Number: 200278
- UPC: 00596298155886
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

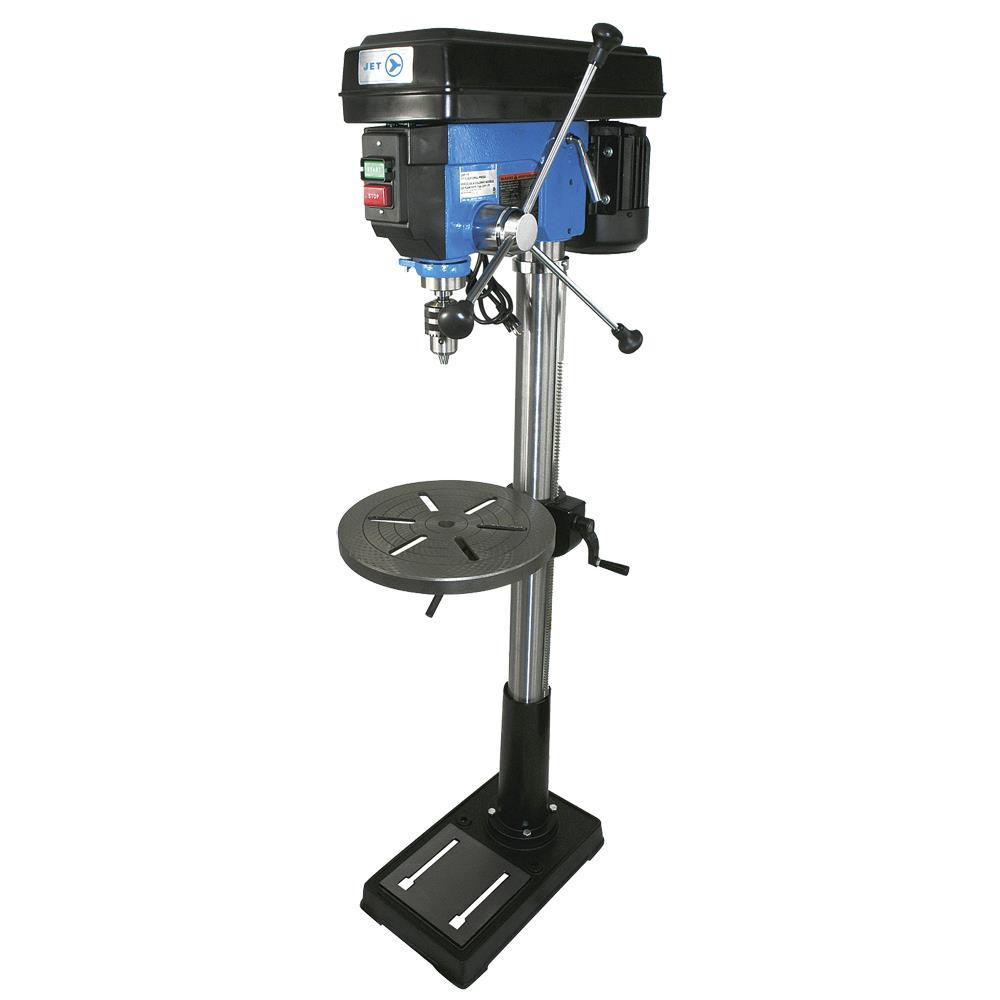

JET offers a variety of professional-quality drill presses that are designed with the operator in mind. Each offers unsurpassed control and precision to help you drill into a wide range of materials.
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Drills
Industrial Subtype:
Corded Drills
Floor Standing and Bench Mounted Drill Presses
Amperes:
8.5A/4.25A
Base Dimensions (in.):
12" x 19-3/4"
Base Dimensions in:
12" x 19-3/4"
Brand:
Jackson Safety
Certification:
CSA
Chuck Size (in.):
5/8"
Chuck Size in:
5/8"
Column Diameter (in.):
3-1/8"
Column Diameter in:
3-1/8"
Country of Origin:
CN
Drilling Size (in.):
5/8"
Drilling Size in:
5/8"
Duty Level:
Heavy Duty
Each Depth (in.):
10.70
Each Length (in.):
54.50
Each Qty.:
1
Each Weight (lb):
186.0000
Each Width (in.):
21.00
Harmonized Tariff Code:
8459.29.00.00
Height (in.):
64-1/2"
Height in:
64-1/2"
Horsepower (HP):
1 HP
Horsepower HP:
1 HP
HTS (Harmonized Tariff Schedule) Code:
3926.90.10.00
Inner Pack Qty.:
0
Item Length (inches):
54.50
Item Length inches:
54.50
Item Quantity:
1
Item Weight (lbs):
186.0000
Item Weight lbs:
186.00
Master Pack Qty.:
1
Master Pack Weight (lb):
0.0000
Max Spindle Distance to Table in:
28"
Max. Spindle Distance to Table (in.):
28"
Model Number:
JDP-17F
Number of Spindle Speeds:
16
Order Unit Of Measure:
EA
Package Quantity:
1
Package UPC:
10761445226444
Package Weight lbs:
0
Quantity:
1
Range of Spindle Speeds (RPM):
220 - 3,380 RPM
Range of Spindle Speeds RPM:
220 - 3,380 RPM
Series:
F20
Spindle Distance to Base (in.):
48-3/8"
Spindle Distance to Base in:
48-3/8"
Spindle Taper:
MT2
Spindle Travel (in.):
3-1/4"
Spindle Travel in:
3-1/4"
Swing (in.):
17"
Swing in:
17"
Table Diameter (in.):
13-3/4"
Table Diameter in:
13-3/4"
Table Tilt (Left):
0 - 45°
Table Tilt (Right):
0 - 45°
Table Tilt Left:
0 - 45°
Table Tilt Right:
0 - 45°
UOM:
EA
UPC:
626053602444
UPC Code:
059629815588
Voltage:
115/230 V
Weight (lb.):
176
Other Details
12 speed capability allows for a broad assortment of drilling applications
Built-in work lamp with separate switch (bulb not included)
Fully hinged belt and pulley cover and fully adjustable motor mount permit fast changes of spindle speed
Positive depth-setting mechanism uses a threaded rod and two lock nuts for accuracy
Standard Equipment: Drill chuck and key
Worktable with quick-release clamp rotates and tilts to 45° right and left
