Drill Presses
Call For Price
- Part Number: 200225
- UPC: 00596298155640
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

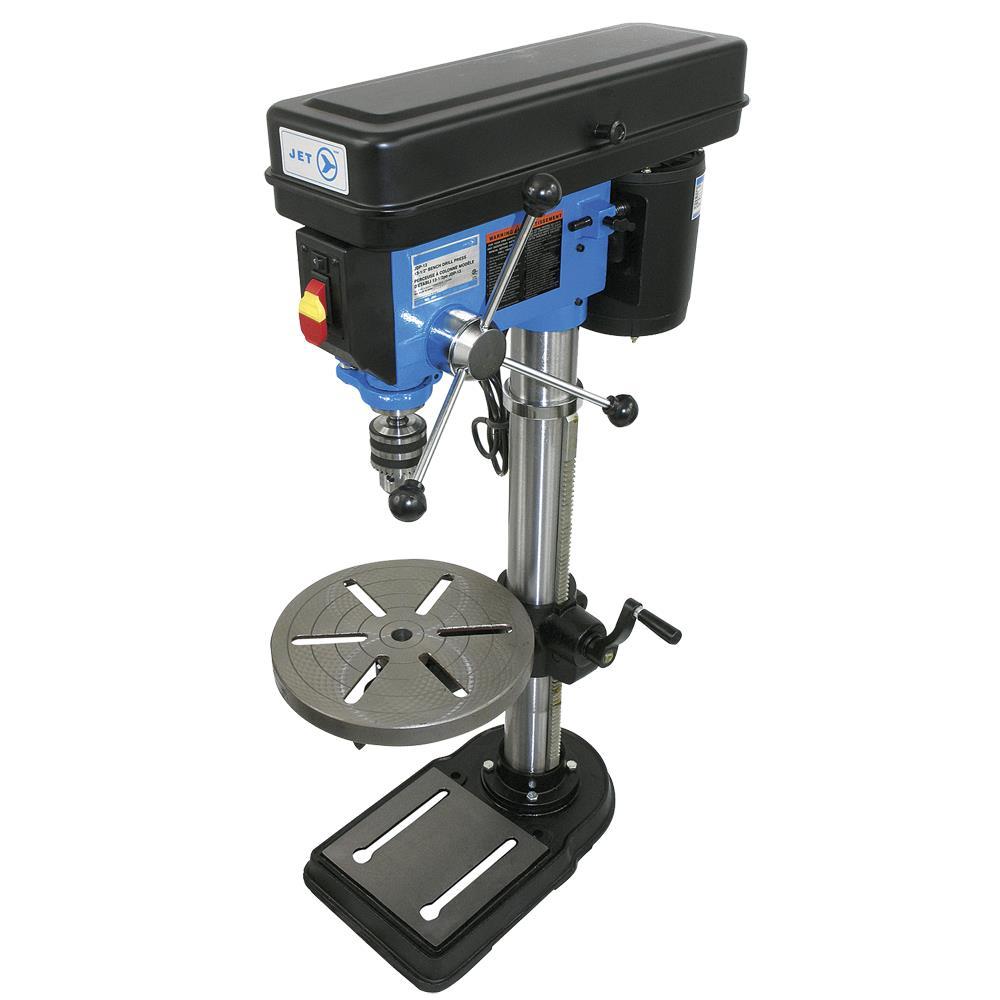

JET offers a variety of professional-quality drill presses that are designed with the operator in mind. Each offers unsurpassed control and precision to help you drill into a wide range of materials.
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Drills
Industrial Subtype:
Corded Drills
Floor Standing and Bench Mounted Drill Presses
A:
6-5/8"
Amperes:
5.2A
B:
9-1/4"
Base Dimensions (in.):
10" x 16-1/2"
Base Dimensions in:
10" x 16-1/2"
Brand:
Strongarm
C:
4-1/8"
Certification:
CSA
Chuck Size (in.):
5/8"
Chuck Size in:
5/8"
Column Diameter (in.):
2-7/8"
Column Diameter in:
2-7/8"
Country of Origin:
CN
D:
2-1/16"
Drilling Size (in.):
5/8"
Drilling Size in:
5/8"
Duty Level:
Heavy Duty
E:
43.5 mm
Each Depth (in.):
11.00
Each Length (in.):
31.50
Each Qty.:
1
Each Weight (lb):
98.0000
Each Width (in.):
17.75
F:
52 mm
G:
62.5 mm
H:
20"
Harmonized Tariff Code:
8459.29.00.00
Height (in.):
38-1/2"
Height in:
38-1/2"
Horsepower (HP):
3/4 HP
Horsepower HP:
3/4 HP
HTS (Harmonized Tariff Schedule) Code:
3926.90.10.00
Inner Pack Qty.:
0
Item Length (inches):
31.50
Item Length inches:
31.50
Item Quantity:
1
Item Weight (lbs):
98.0000
Item Weight lbs:
98.00
Master Pack Qty.:
1
Master Pack Weight (lb):
0.0000
Max Spindle Distance to Table in:
17-1/2"
Max. Spindle Distance to Table (in.):
17-1/2"
Model Number:
JDP-13
Number of Spindle Speeds:
12
Order Unit Of Measure:
EA
Package Quantity:
1
Package Weight lbs:
0
Quantity:
1
Range of Spindle Speeds (RPM):
280 - 3,000 RPM
Range of Spindle Speeds RPM:
280 - 3,000 RPM
Spindle Distance to Base (in.):
24"
Spindle Distance to Base in:
24"
Spindle Taper:
MT2
Spindle Travel (in.):
3-1/8"
Spindle Travel in:
3-1/8"
Swing (in.):
13-1/4"
Swing in:
13-1/4"
Table Diameter (in.):
11-3/8"
Table Diameter in:
11-3/8"
Table Tilt (Left):
0 - 45°
Table Tilt (Right):
0 - 45°
Table Tilt Left:
0 - 45°
Table Tilt Right:
0 - 45°
UOM:
EA
UPC:
059629999097
UPC Code:
059629815564
Voltage:
115/230 V
Weight (lb.):
94
Other Details
12 speed capability allows for a broad assortment of drilling applications
Built-in work lamp with separate switch (bulb not included)
Fully hinged belt and pulley cover and fully adjustable motor mount permit fast changes of spindle speed
Positive depth-setting mechanism uses a threaded rod and two lock nuts for accuracy
Standard Equipment: Drill chuck and key
Worktable with quick-release clamp rotates and tilts to 45° right and left
