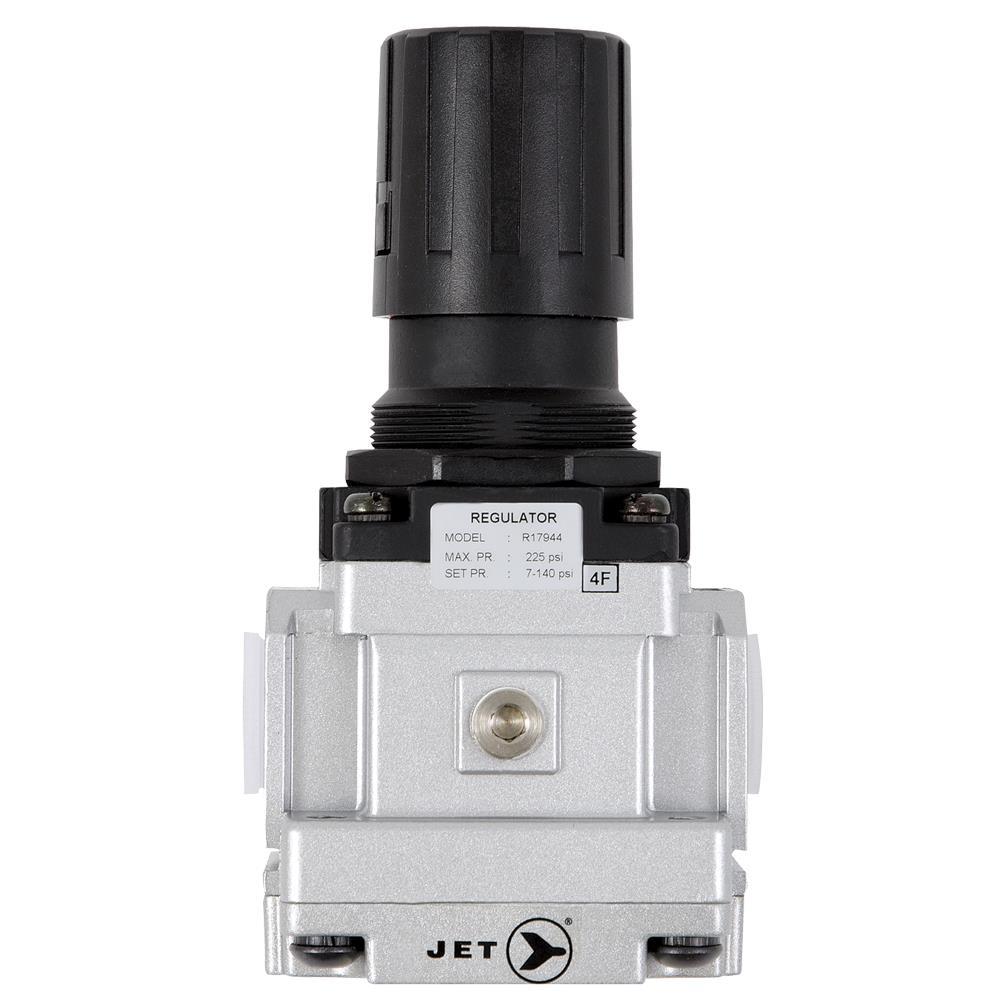

Air Regulators
Call For Price
- Part Number: 408826
- UPC: 00596298731066
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Compressed Air Treatment
Industrial Subtype:
Filter, Regulator, Lubricators (FRL)
Brand:
JET
Certification:
ISO 6953-1
Country of Origin:
IN
Duty Level:
Heavy Duty
Each Depth (in.):
4.33
Each Length (in.):
11.61
Each Qty.:
1
Each Weight (lb):
3.4300
Each Width (in.):
4.33
Harmonized Tariff Code:
9032.81.00.00
Height (in.):
6.97
Height (mm.):
177
HTS (Harmonized Tariff Schedule) Code:
8467.11.00.21
Inner Pack Qty.:
0
Item Length (inches):
11.61
Item Length inches:
11.61
Item Quantity:
1
Item Weight (lbs):
3.4300
Item Weight lbs:
3.43
Master Pack Code:
10059629873103
Master Pack Depth (in.):
9.06
Master Pack Length (in.):
21.26
Master Pack Qty.:
10
Master Pack Weight (lb):
35.9000
Master Pack Width (in.):
13.39
Max. Air Flow (cfm):
175
Max. Air Flow (lpm):
5000
Max. Operating Pressure (PSI):
220
Model Number:
ARH34
Package Quantity:
10
Package UPC:
10059629821609
Package Weight lbs:
35.9
Port Size (in.):
45385
Pressure Gauge Port Size (in.):
45383
Quantity:
1
Temperature range (°C):
0°C to 60°C
Temperature range (°F):
32°F to 140°F
UOM:
EA
UPC:
059629821602
UPC Code:
059629873106
Width (in.):
3.54
Width (mm.):
90
Other Details
Allows use at higher temperatures and better tightening of piping without stripping the threads
Industrial construction Aluminum die cast body (9 times safer than a plastic body)
Regulator with Non Raising “Press to Lock” adjusting knob
Used to maintain steady outlet pressure unaffected by variations in inlet pressure
Works on a Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet and can be installed in any position
