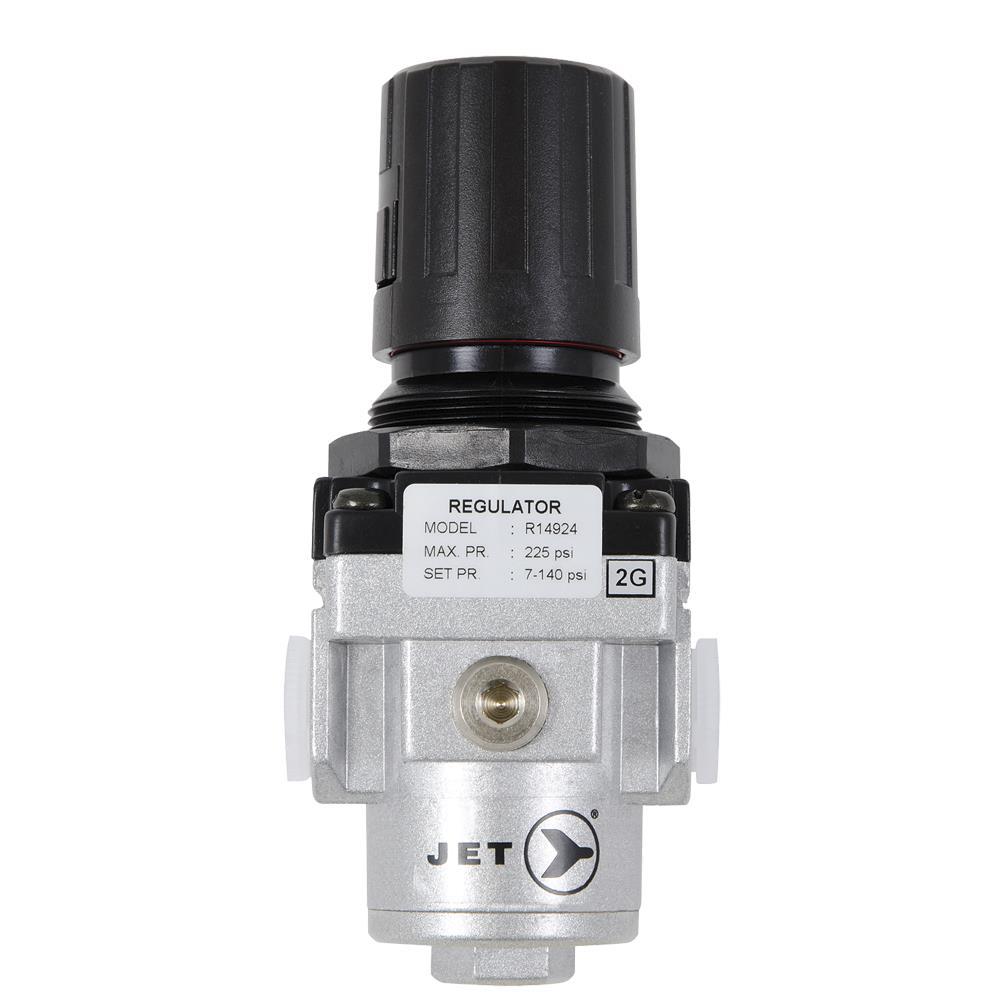

Air Regulators
Call For Price
- Part Number: 408823
- UPC: 00596298730830
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Compressed Air Treatment
Industrial Subtype:
Filter, Regulator, Lubricators (FRL)
Brand:
JET
Certification:
ISO 6953-1
Country of Origin:
IN
Each Depth (in.):
2.72
Each Length (in.):
8.15
Each Qty.:
1
Each Weight (lb):
1.0540
Each Width (in.):
2.76
Harmonized Tariff Code:
9032.81.00.00
Height (in.):
5.31
Height (mm.):
135
HTS (Harmonized Tariff Schedule) Code:
8467.11.00.21
Inner Pack Qty.:
0
Item Length (inches):
8.15
Item Length inches:
8.15
Item Quantity:
1
Item Weight (lbs):
1.0540
Item Weight lbs:
1.05
Master Pack Code:
10059629873080
Master Pack Depth (in.):
13.79
Master Pack Length (in.):
16.55
Master Pack Qty.:
40
Master Pack Weight (lb):
43.7600
Master Pack Width (in.):
14.97
Max. Air Flow (cfm):
88
Max. Air Flow (lpm):
2500
Max. Operating Pressure (PSI):
220
Model Number:
ARI38
Package Quantity:
40
Package UPC:
10059629821623
Package Weight lbs:
43.76
Port Size (in.):
45507
Pressure Gauge Port Size (in.):
45505
Quantity:
1
Temperature range (°C):
0°C to 60°C
Temperature range (°F):
32°F to 140°F
UOM:
EA
UPC:
059629821626
UPC Code:
059629873083
Width (in.):
2.16
Width (mm.):
55
Other Details
Allows use at higher temperatures and better tightening of piping without stripping the threads
Industrial construction Aluminum die cast body (9 times safer than a plastic body)
Regulator with Non Raising “Press to Lock” adjusting knob
Used to maintain steady outlet pressure unaffected by variations in inlet pressure
Works on a Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet and can be installed in any position
