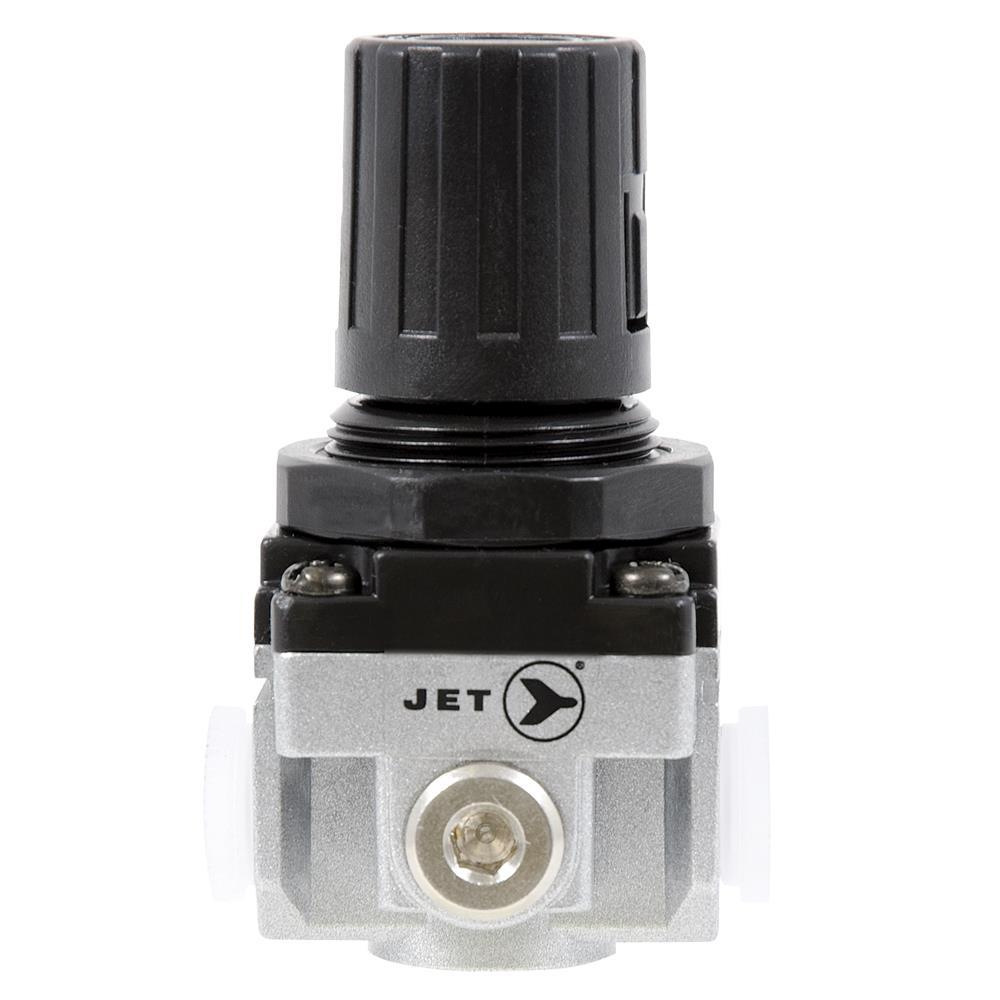

Air Regulators
Call For Price
- Part Number: 408818
- UPC: 00596298730694
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Compressed Air Treatment
Industrial Subtype:
Filter, Regulator, Lubricators (FRL)
Brand:
JET
Certification:
ISO 6953-1
Country of Origin:
IN
Each Depth (in.):
2.36
Each Length (in.):
4.76
Each Qty.:
1
Each Weight (lb):
0.4230
Each Width (in.):
2.40
Harmonized Tariff Code:
9032.81.00.00
Height (in.):
3.19
Height (mm.):
81
HTS (Harmonized Tariff Schedule) Code:
8467.11.00.21
Inner Pack Qty.:
0
Item Length (inches):
4.76
Item Length inches:
4.76
Item Quantity:
1
Item Weight (lbs):
0.4230
Item Weight lbs:
0.42
Master Pack Code:
10059629873066
Master Pack Qty.:
75
Master Pack Weight (lb):
0.0000
Max. Air Flow (cfm):
21
Max. Air Flow (lpm):
600
Max. Operating Pressure (PSI):
220
Model Number:
ARM14
Package Height inches:
14.96
Package Length inches:
16.54
Package Quantity:
75
Package UPC:
10059629821739
Package Weight lbs:
0
Package Width inches:
11.42
Port Size (in.):
45383
Pressure Gauge Port Size (in.):
45505
Quantity:
1
Temperature range (°C):
0°C to 60°C
Temperature range (°F):
32°F to 140°F
UOM:
EA
UPC:
059629821732
UPC Code:
059629873069
Width (in.):
1.57
Width (mm.):
40
Other Details
Allows use at higher temperatures and better tightening of piping without stripping the threads
Industrial construction Aluminum die cast body (9 times safer than a plastic body)
Regulator with Non Raising “Press to Lock” adjusting knob
Used to maintain steady outlet pressure unaffected by variations in inlet pressure
Works on a Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet and can be installed in any position
