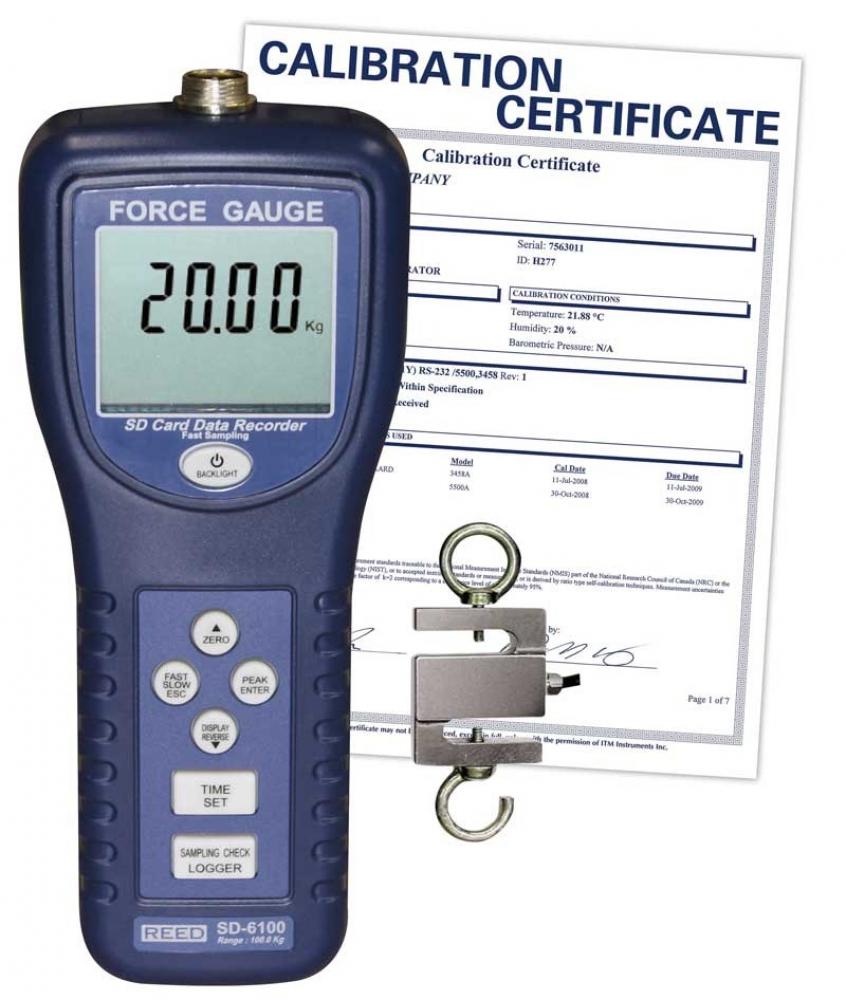

REED SD-6100-NIST SD Series Force Gauge Datalogger, 220lbs (100kg), includes NIST Traceable Cer
Call For Price
- Part Number: SD-6100-NIST
- UPC: 00800837004062
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Info & Guides
Datalogger with date/time stamp stores measurements on SD memory card without the need for software. This product includes NIST Traceable Certificate with full Data and Uncertainties.
Specifications
Details
Industrial Category:
Test Instruments
Industrial Subcategory:
Nonelectrical Properties Testing
Industrial Subtype:
Force Gauges
Bullet 1:
Measures tension and compression
Bullet 10:
Optional PC software features live tracking via USB connection
Bullet 11:
Low battery indicator and auto shut off
Bullet 2:
Records in Peak hold or Normal mode
Bullet 3:
Fast/Slow response selection
Bullet 4:
Full capacity tare (zero) capability
Bullet 5:
Force is measured in kg, lb or Newtons
Bullet 6:
Large, easy-to-read backlit display
Bullet 7:
Reversible display ensures legible readings regardless of direction
Bullet 8:
Real-time datalogger with integral SD memory card
Bullet 9:
User selectable sampling rate from 1 to 3600 seconds
Includes:
Load Cell Sensor with 2 Hooks and Cable, Hard Carrying Case, Batteries, NIST Traceable Certification
Item Height (inches):
1.77165
Item Length (inches):
8.46457
Item Quantity:
1
Item Weight (lbs):
1.43
Item Width (inches):
3.54331
Package Height (inches):
2.3
Package Length (inches):
9
Package Weight (lbs):
1.75
Package Width (inches):
4.1
PDF 1:
http://www.reedinstruments.com/pdfs/cache/www.reedinstruments.com/r8500-3-9mm/datasheet/r8500-3-9mm-datasheet.pdf
PDF 2:
http://www.reedinstruments.com/pdfs/cache/www.reedinstruments.com/r8500-3-9mm/manual/r8500-3-9mm-manual.pdf
