![Wide Strap Cable Tie with 6mm Stud Mount, 12.7" Long, .5" Wi](/vendors/9287/large/157-00282_US_PROD01_lg.jpg "Wide Strap Cable Tie with 6mm Stud Mount, 12.7" Long, .5" Wi")

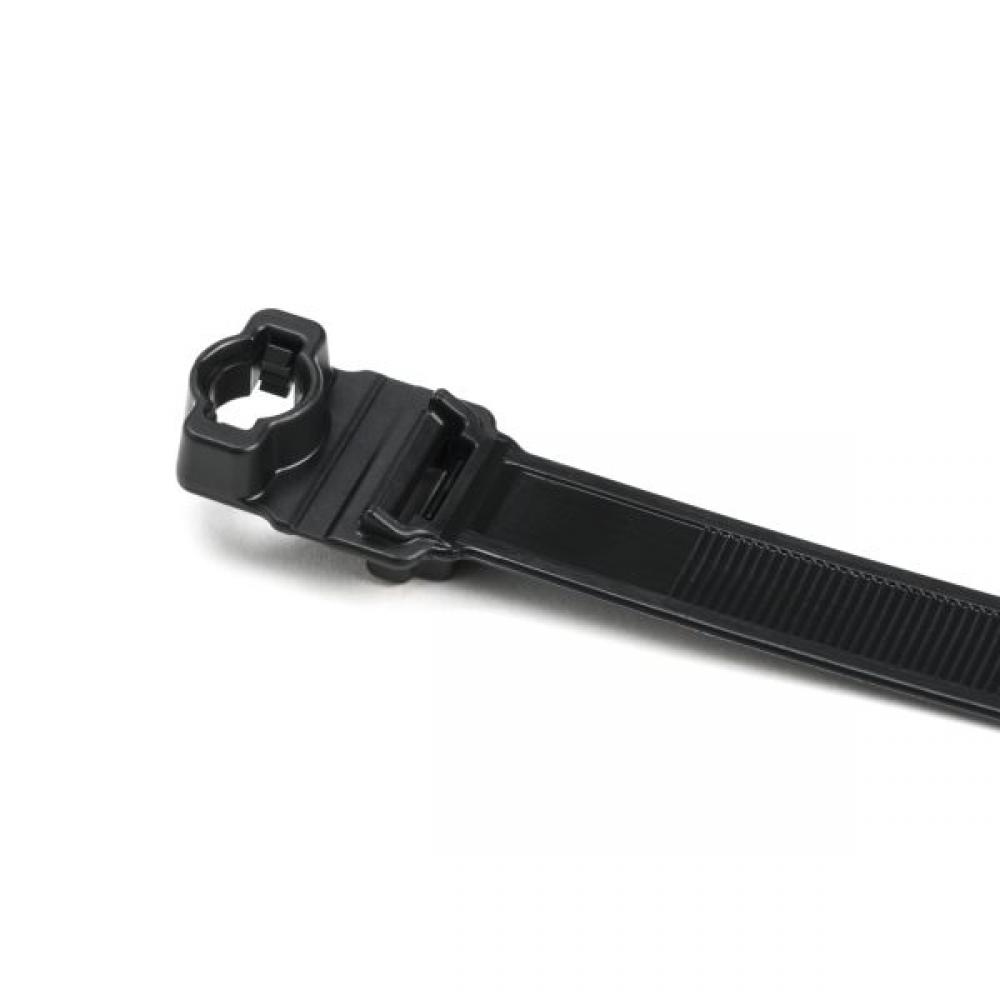

Wide Strap Cable Tie with 6mm Stud Mount, 12.7" Long, .5" Wi
Call For Price
- Part Number: 157-00282
- UPC: 04031026575308
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (428)
Product Overview
Wide Strap Cable Tie with 6mm Stud Mount, 12.7" Long, .5" Wide, PA66HIRHSUV, Black, 300/Bag
Specifications
Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Management
Bundle Diameter Max. (Imperial):
3.25 "
Bundle Diameter Max. (Metric):
82.5 mm
Bundle Diameter Min. (Imperial):
0.38 "
Bundle Diameter Min. (Metric):
9.5 mm
CE Certified:
No
Color:
Black (BK)
Country of Origin:
US
CSA Certified:
No
Features and Benefits:
• Mount provides low insertion and high extraction forces which makes for a strong and easy installation. • Tie utilizes a strong hinge between the stud mount and strap head to provide superior holding ability. • Clamping rails increase grip on rou
Flammability:
UL 94 HB
Length L (Imperial):
12.7 "
Length L (Metric):
322.6 mm
Material:
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature:
-40°F to +221°F (-40°C to +105°C)
Package Quantity (Imperial):
300
Recommended Web Location:
Stud Mount Cable Ties
ROHS Compliant:
Yes
Stud Diameter (Imperial):
1/4 "
Stud Diameter (Metric):
M6
Tensile Strength Min. (Imperial):
120.0 lbs
Tensile Strength Min. (Metric):
535.0 N
Type:
WSI6MM
Variant:
Inside Serrated
Width W (Imperial):
0.5 "
Width W (Metric):
12.7 mm
