Connector Clip w/Fir Tree, 0.7 - 11.0 mm Panel Thickness, 6.
Call For Price
- Part Number: 151-00786
- UPC: 04031026326900
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

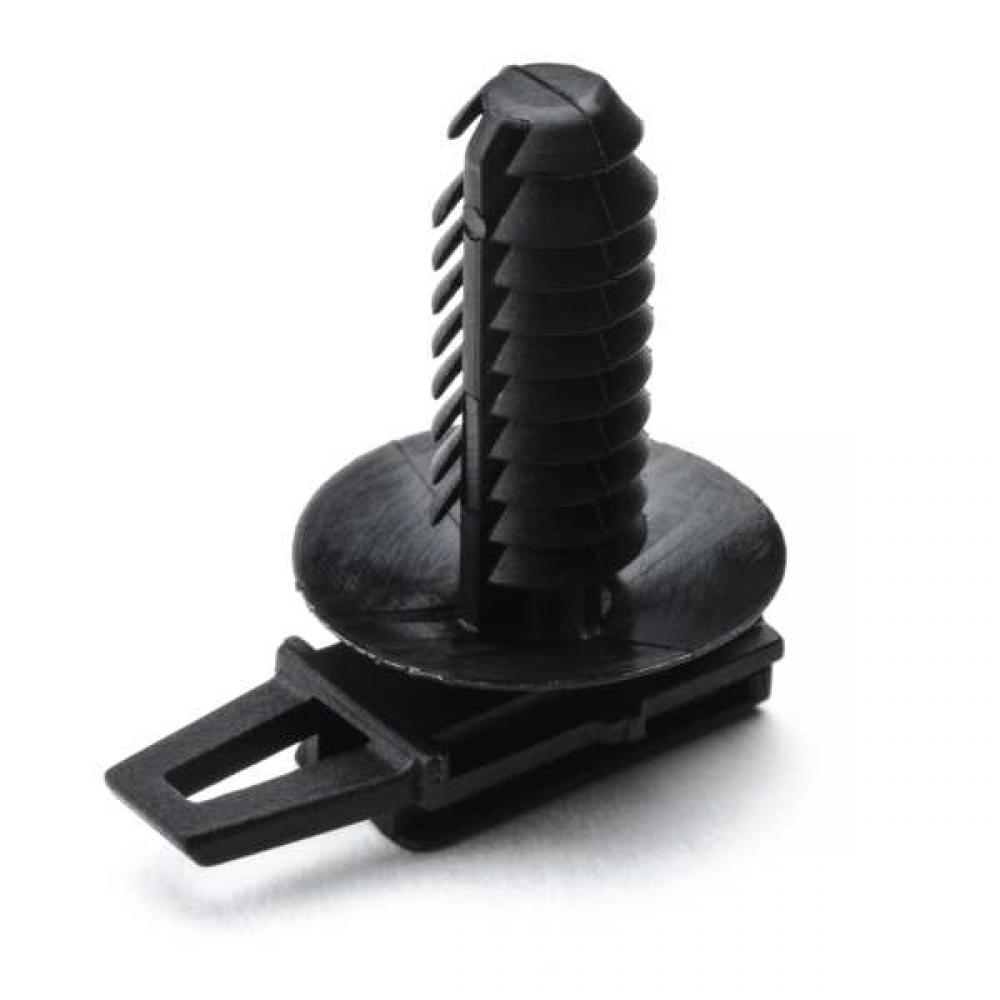

Connector Clip w/Fir Tree, 0.7 - 11.0 mm Panel Thickness, 6.0 - 6.7 mm Hole Dia, PA66HIRHS, Black, 5000/box
Specifications
Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Management
Color:
Black (BK)
Country of Origin:
FR
Features and Benefits:
• Head design contains clamping rails to provide full circumferential compression around bundles. • Bent tail allows for quick insertion into head.
Flammability:
UL 94 HB
Height H (Imperial):
0.95 "
Height H (Metric):
24.2 mm
Length L (Imperial):
0.9 "
Length L (Metric):
23.0 mm
Material:
Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Mounting Hole Diameter D (Imperial):
0.24 - 0.26 "
Mounting Hole Diameter D (Metric):
6.0 - 6.7 mm
Operating Temperature:
-40°F to +221°F (-40°C to +105°C)
Package Quantity (Imperial):
5000
Panel Thickness Max. (Imperial):
0.43 "
Panel Thickness Max. (Metric):
11.0 mm
Panel Thickness Min. (Imperial):
0.028 "
Panel Thickness Min. (Metric):
0.7 mm
REACH Compliant (Article 33):
Yes
Recommended Web Location:
Connector Clips;Fir Tree Clips
ROHS Compliant:
Yes
Type:
CCFT6XLG
