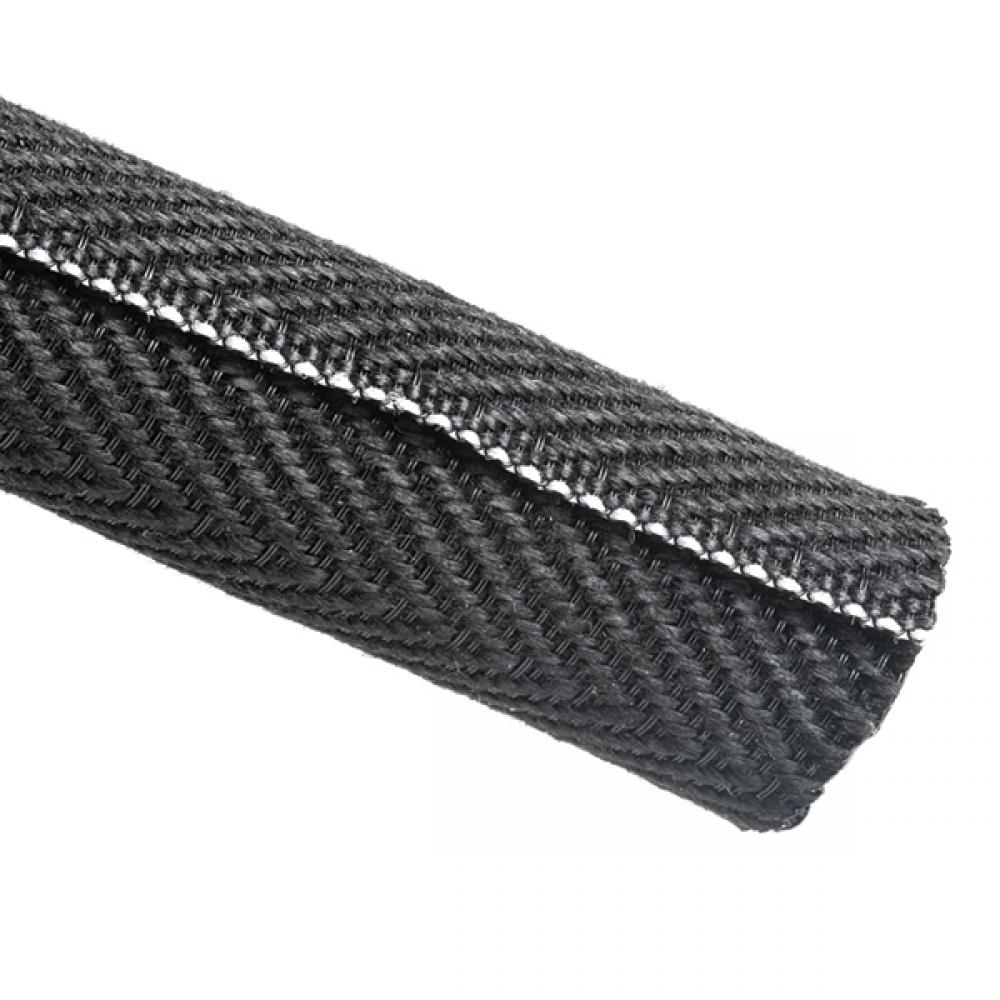

Braided Sleeving, Split Wrap Woven, Flame Retardant, 3/16" D
Call For Price
- Part Number: 170-03216
- UPC: 04031026625072
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Braided Sleeving, Split Wrap Woven, Flame Retardant, 3/16" Dia, PET, Black, 500 ft/bulk reel
Specifications
Details
Industrial Category:
Electrical Supplies
Industrial Subcategory:
Wire Management
Bundle Diameter Max. (Imperial):
0.19 "
Bundle Diameter Max. (Metric):
4.8 mm
Bundle Diameter Min. (Imperial):
0.1 "
Bundle Diameter Min. (Metric):
2.54 mm
CE Certified:
No
Color:
Black (BK)
Country of Origin:
US
CSA Certified:
No
Diameter D (imperial):
0.19 "
Diameter D (metric):
4.8 mm
Features and Benefits:
• Split wrap design needs no fasteners and installs quickly, saving assembly time and future accessibility without disassembly. • Bends to a tight radius without distortion or splitting open. • Unique construction retains shape and rigidity through
Flammability:
UL VW-1;Halogen-Free;Limited Fire Hazard;Low generation of toxic gases and corrosive acid;Low Smoke Generation
Length L (Imperial):
500.0 ft
Length L (Metric):
152.4 m
Material:
Polyester (PET)
Nominal Diameter (Imperial):
0.19 "
Nominal Diameter (Metric):
4.8 mm
Operating Temperature:
-94°F to +257°F (-70°C to +125°C)
Package Quantity (Imperial):
500 ft
REACH Compliant (Article 33):
Yes
Recommended Web Location:
Braided Sleeving - Wraps
Reel Length (imperial):
500.0 ft
Reel Length (metric):
152.40 m
ROHS Compliant:
Yes
Trade Size:
3/16 "
Type:
BSSWVFR316B
Wall Thickness WT (Imperial):
0.027 "
Wall Thickness WT (Metric):
0.68 mm
