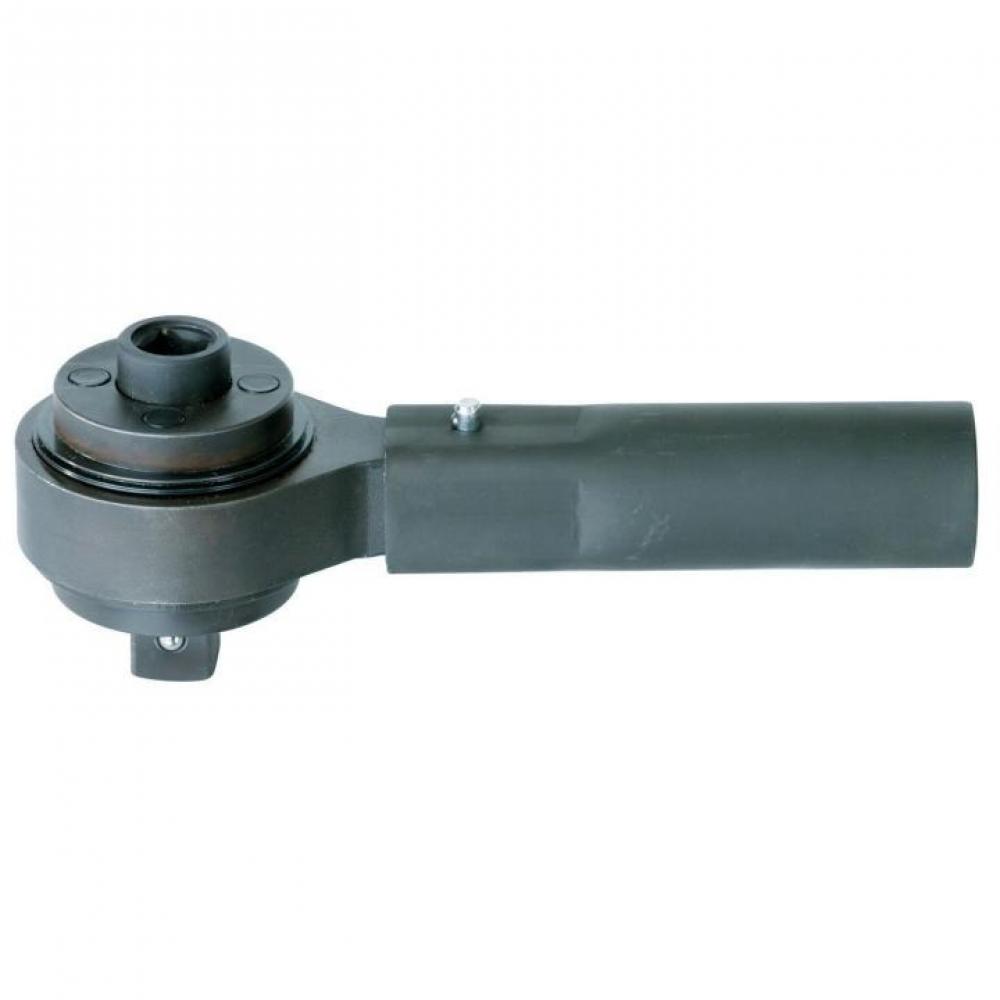

750 Foot Pound Reaction Bar Torque Multiplier
Call For Price
- Part Number: 64-830G
- UPC: 00995756483040
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
750 Foot Pound Torque Multiplier
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Wrenches
Industrial Subtype:
Torque Multipliers
Angle of Turm Protractor:
No
Armstrong to GearWrench Cross References:
64-830
Base Unit of Measure:
EA
Brand:
GEARWRENCH
Case Color:
Black
Case Pack Qty.:
1
Certified:
No
Country of Origin:
United States
Delivery Unit:
1
Finish:
Black Oxide
Flexible:
No
Foreign Trade Code:
8466100175
Gear Ratio:
4.0:1
Head Length:
2.812 in
Head Thickness:
3.3 in
Head Width:
2.812 in
Included Storage:
Blow Mold Case
Input Drive:
1/2 in
Item Weight (lbs):
4.820 lb
JET Cross Reference:
719071|JTM-50750 TORQ MULTPLIER KIT|;
Keywords:
torque multiplier, multiplier
Knurled:
No
Long Description:
7/16" 72-Tooth 12 Point XL Ratcheting Combination Wrench
Material:
Steel
Material Status (MRP):
Active - No Blocks
Max Input Torque:
227 ft/lb
Max Output Torque:
750 ft/lb
Maximum Input Torque:
227 ft/lb
Maximum Output Torque:
750 ft/lb
Minimum Order Quantity:
1.000
Output Drive:
3/4" Square Drive
Overall Height:
3.25 in
Overall Length:
8.531 in
Overall Width:
2.8 in
Packaging:
Boxed
Packaging Height:
3.700
Packaging Length:
11.200
Packaging Width:
5.800
Product Name:
XL Combination Ratcheting Wrench
Prop 65:
View
Proto Cross Reference:
J6202A|TORQUE MULTIPLIER 750 FT|Yes;
SAP Sales Org Status:
Active
Set:
No
Snap-on Cross Reference:
YA290PLUS|TORQ MULTPLR|Yes;
Table Description:
750 Foot Pound Torque Multiplier
Torque Accuracy (20-100% of Full Range):
+/-5% Clockwise
Torque Ratio:
3.3:1
Type:
Multiplier
Units of Measure:
EA
UNSPSC_V7.0901:
Torque wrenches
UPC:
099575648304
URREA Cross Reference:
6202A|590 FT/LB 1/2 IN DR TORQUE MULTIPLIER|No;
Warranty:
90 Days Calibration/1 Year on Parts
Weight (Catalog):
4.700 lb
Weight (SAP):
4.755 lb
Wright Cross Reference:
9S290P|Torque Multiplier 1/2" Sq. F - 3/4" Sq. M Output Capacity 750 Ft. Lbs.|Yes;
Other Details
1 year limited warranty; calibration accuracy warrantied for 90 days
Input and output rotate in a matching direction, while the reaction arm moves in the opposite direction from the input/output force
Internal planetary gear system provides strength and durability
Low input torque is required and can easily be applied by one person
Made in the USA
Place an impact socket on the output square to attach to the fastener, then restrain the reaction bar against the equipment being serviced
Torque accuracy of +/- 5% CW between 20% and 100% of wrench capability
