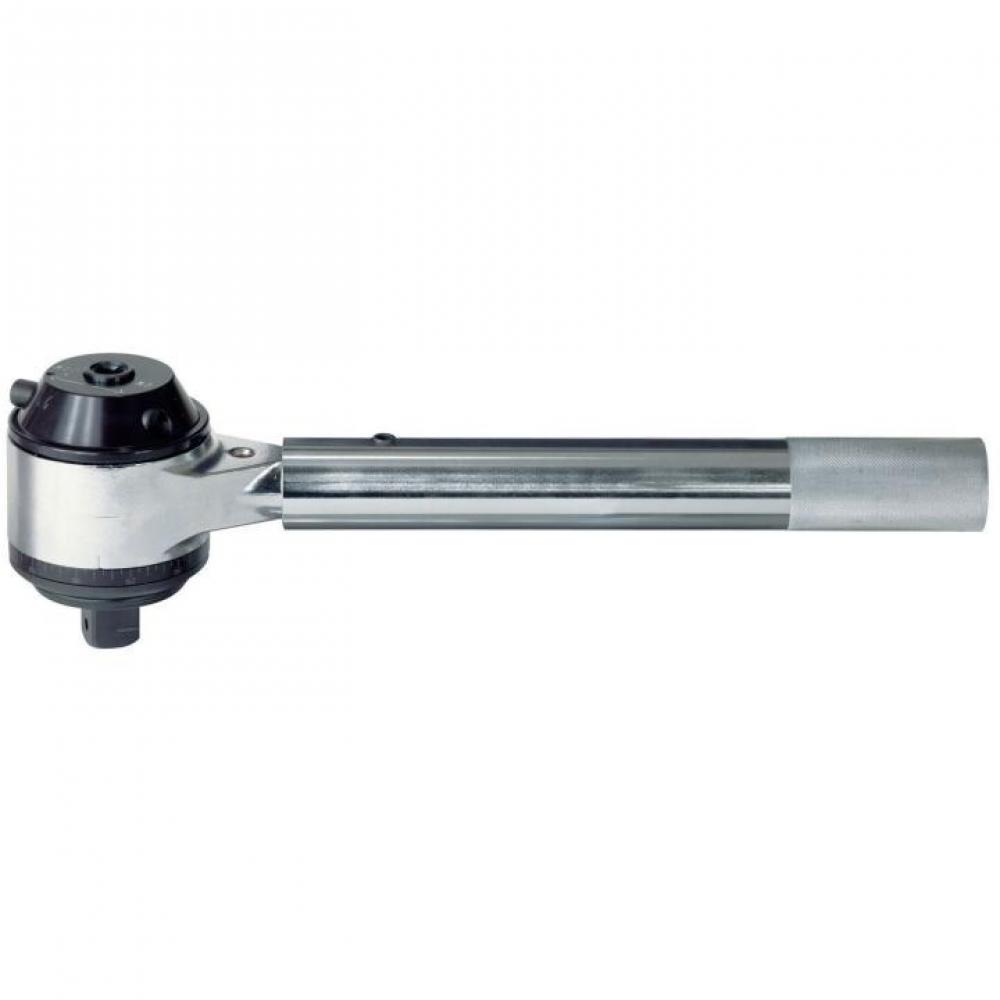

2,200 Foot Pound Reaction Bar Torque Multiplier
Call For Price
- Part Number: 64-834G
- UPC: 00995756483422
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
2,200 Foot Pound Torque Multiplier
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Wrenches
Industrial Subtype:
Torque Multipliers
Angle of Turm Protractor:
Yes
Armstrong to GearWrench Cross References:
64-834
Base Unit of Measure:
EA
Brand:
GEARWRENCH
Case Color:
Black
Case Pack Qty.:
1
Certified:
No
Country of Origin:
United States
Delivery Unit:
1
Finish:
Electroless Nickle
Flexible:
No
Foreign Trade Code:
8466100175
Gear Ratio:
15.0:1
Head Length:
5.812 in
Head Thickness:
5.7 in
Head Width:
4.031 in
Included Storage:
Blow Mold Case
Input Drive:
1/2 in
Item Weight (lbs):
20.490 lb
JET Cross Reference:
719074|JTM-51850 TORQ MULTPLIER KIT|;
Keywords:
torque multiplier, multiplier
Knurled:
No
Long Description:
5/8" 72-Tooth 12 Point XL Ratcheting Combination Wrench
Material:
Steel
Material Status (MRP):
Active - No Blocks
Max Input Torque:
162 ft/lb
Max Output Torque:
2200 ft/lb
Maximum Input Torque:
162 ft/lb
Maximum Output Torque:
2200 ft/lb
Minimum Order Quantity:
1.000
Output Drive:
1" Square Drive
Overall Height:
5.7 in
Overall Length:
20.0 in
Overall Width:
4.1 in
Packaging:
Boxed
Packaging Height:
5.600
Packaging Length:
17.000
Packaging Width:
12.800
Product Name:
XL Combination Ratcheting Wrench
Prop 65:
View
Proto Cross Reference:
J6222|TORQUE MULTIPLIER 2200 FT|Yes;
Repair Kit:
64-851G
Replacement Square Drive:
64-851G
SAP Sales Org Status:
Active
Set:
No
Snap-on Cross Reference:
YA392|MULTIPLIER|Yes;
Table Description:
2,200 Foot Pound Torque Multiplier
Torque Accuracy (20-100% of Full Range):
+/-5% Clockwise
Torque Ratio:
13.6:1
Type:
Multiplier
Units of Measure:
EA
UNSPSC_V7.0901:
Torque wrenches
UPC:
099575648342
URREA Cross Reference:
6222|1000 FT/LB 3/4 IN DR TORQUE MULTIPLIER|No;
Warranty:
90 Days Calibration/1 Year on Parts
Weight (Catalog):
20.600 lb
Weight (SAP):
20.490 lb
Wright Cross Reference:
9S392B|Torque Multiplier 1/2" Sq. F - 1" Sq. M Output Capacity 2,200 Ft. Lbs.|Yes;
Other Details
1 year limited warranty; calibration accuracy warrantied for 90 days
Built-in angle of turn protractor displays the output angle, providing effective use on fasteners requiring a specific angle rotation after applied torque
Built-in anti-backlash maintains the multipliers input torque, allowing the use of a ratcheting head torque wrench for more efficiency
Input and output rotate in a matching direction, while the reaction arm moves in the opposite direction from the input/output force
Internal planetary gear system provides strength and durability
Low input torque is required and can easily be applied by one person
Made in the USA
Place an impact socket on the output square to attach to the fastener, then restrain the reaction bar against the equipment being serviced
Square drive shears at 3% to 10% of overload torque to help protect against internal damage and permits easy replacement of the square drive
Torque accuracy of +/- 5% CW between 20% and 100% of wrench capability
