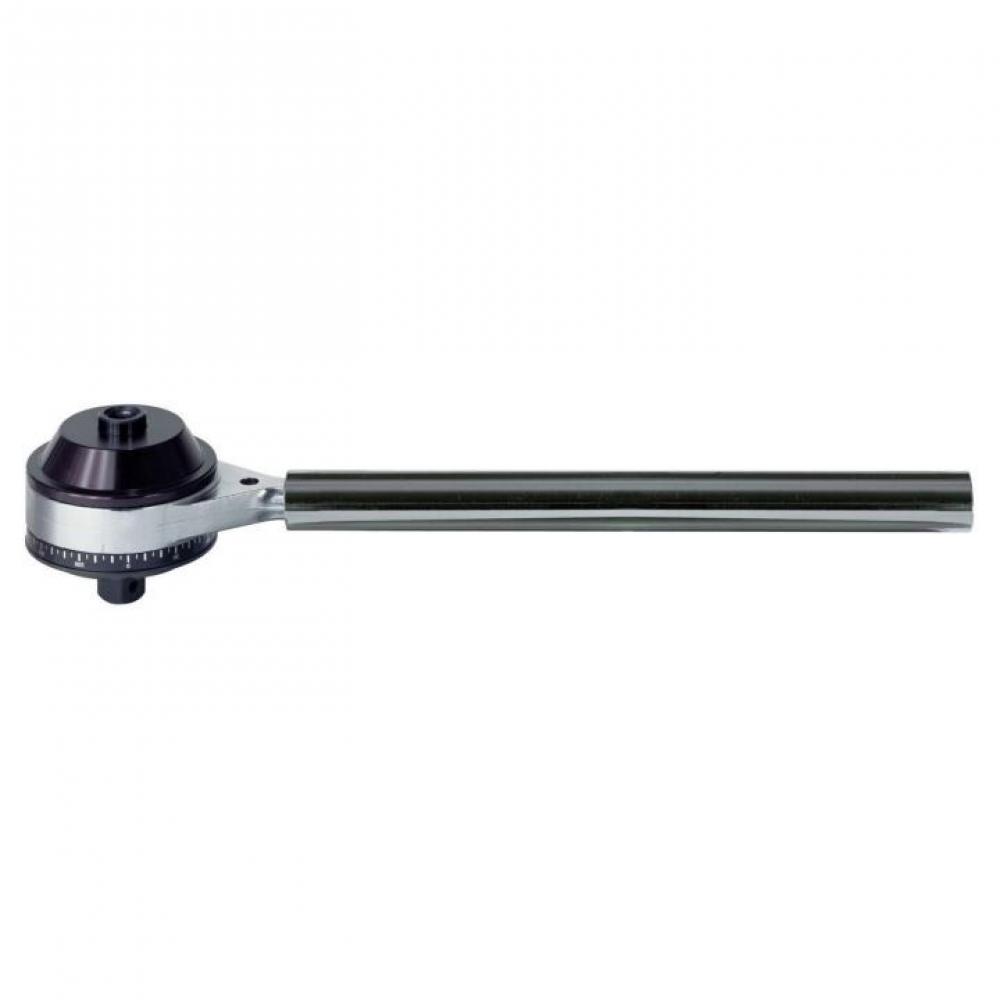

2,000 Foot Pound Reaction Bar Torque Multiplier
Call For Price
- Part Number: 64-833G
- UPC: 00995756483354
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
2,000 Foot Pound Torque Multiplier
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Wrenches
Industrial Subtype:
Torque Multipliers
Angle of Turm Protractor:
No
Armstrong to GearWrench Cross References:
64-833
Base Unit of Measure:
EA
Brand:
GEARWRENCH
Case Color:
Black
Case Pack Qty.:
1
CDI Cross Reference:
TM-1000|Torque Multiplier w/Handles 3.6:1 2000ft lbs Max Output|NO;
Certified:
No
Cornwell Cross Reference:
CE6387|4 to 1 Torq Mult-2000FtLb|;
Country of Origin:
United States
Delivery Unit:
1
Finish:
Electroless Nickle
Flexible:
No
Foreign Trade Code:
8466100175
Gear Ratio:
4.27:1
Head Length:
4.5 in
Head Thickness:
4.5 in
Head Width:
3.8 in
Included Storage:
Blow Mold Case
Input Drive:
3/4 in
Item Weight (lbs):
14.000 lb
JET Cross Reference:
719075|JTM-71850 TORQ MULTPLIER KIT|;
Keywords:
torque multiplier, multiplier
Knurled:
No
Long Description:
9/16" 72-Tooth 12 Point XL Ratcheting Combination Wrench
Material:
Steel
Material Status (MRP):
Active - No Blocks
Max Input Torque:
500 ft/lb
Max Output Torque:
2000 ft/lb
Maximum Input Torque:
500 ft/lb
Maximum Output Torque:
2000 ft/lb
Minimum Order Quantity:
1.000
Output Drive:
1" Square Drive
Overall Height:
4.5 in
Overall Length:
19.5 in
Overall Width:
3.8 in
Packaging:
Boxed
Packaging Height:
4.100
Packaging Length:
21.200
Packaging Width:
4.500
Product Name:
XL Combination Ratcheting Wrench
Prop 65:
View
SAP Sales Org Status:
Active
Set:
No
Table Description:
2,000 Foot Pound Torque Multiplier
Torque Accuracy (20-100% of Full Range):
+/-5% Clockwise
Torque Ratio:
3.5:1
Type:
Multiplier
Unitool Cross Reference:
EQUT8300|1TO4-F3/4"XM1"DR.TORQ.MULTIPLIER|No;
Units of Measure:
EA
UNSPSC_V7.0901:
Torque wrenches
UPC:
099575648335
Warranty:
90 Days Calibration/1 Year on Parts
Weight (Catalog):
14.000 lb
Weight (SAP):
14.035 lb
Wright Cross Reference:
9S292|Torque Multiplier 3/4" Sq. F - 1" Sq. M Output Capacity 2,000 Ft. Lbs.|No;
Other Details
1 year limited warranty; calibration accuracy warrantied for 90 days
Input and output rotate in a matching direction, while the reaction arm moves in the opposite direction from the input/output force
Internal planetary gear system provides strength and durability
Low input torque is required and can easily be applied by one person
Made in the USA
Place an impact socket on the output square to attach to the fastener, then restrain the reaction bar against the equipment being serviced
Torque accuracy of +/- 5% CW between 20% and 100% of wrench capability
