![PIPE WRENCH, 18", CAST IRON, K9](/vendors/4859/large/CRS_CIPW18_IMG_MAIN.jpg "PIPE WRENCH, 18", CAST IRON, K9")

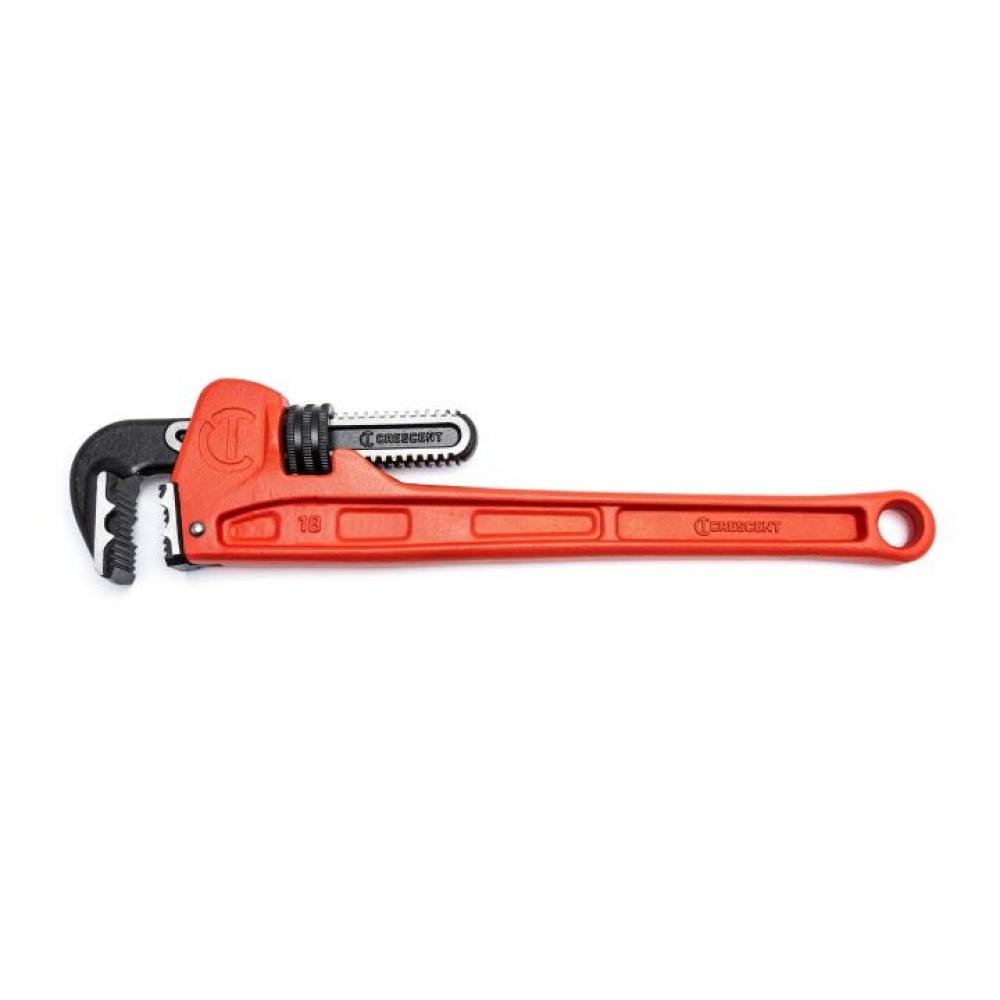

PIPE WRENCH, 18", CAST IRON, K9
Call For Price
- Part Number: CIPW18
- UPC: 00037103336514
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Cast Iron K9™ Pipe Wrenches
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Wrenches
Industrial Subtype:
Pipe Wrenches
Adjustable:
Yes
Adjustable?:
Yes
Base Unit of Measure:
EA
Capacity Diameter Adjustable Max:
2.875 in
Capacity Diameter Adjustable Min:
0 in
Case Pack Qty.:
6
Country of Origin:
China
Coupon Headline:
Cast Iron K9™ Pipe Wrenches
Delivery Unit:
1
Finish:
Powder Coating
Flexible:
No
Foreign Trade Code:
8204120000
Handle Material:
Cast Iron
Head Thickness:
1.25 in
Item Length (inches):
18.00
Item Weight (lbs):
5.69
Jaw Capacity:
0 in 2.875 in;0mm - 73.025mm
Jaw Length:
1.563 in
Jaw Size Scale:
Yes
Jaw Thickness:
0.372 in
Jaw Width:
1.238 in
Launch Date:
2020-03-23
Length Format:
Standard
Marking Style:
Hard Stamped
Material:
Cast Iron
Material Status (MRP):
Active - No Blocks
Minimum Order Quantity:
1.000
Order Minimum:
1
3
Order Unit Of Measure:
EA
Overall Height:
3.93 in
Overall Length:
14.75 in
Overall Width:
1.60 in
Package Quantity:
6
Packaging:
Carded
Packaging Type:
Carded
Pipe Size Max:
2.5 in
Pipe Size Min:
0 in
Primary Image Asset Reference ID:
Product Name:
Cast Iron K9 Jaw Pipe Wrench
Prop 65:
View
Replaceable Jaw:
Yes
Replacement Part 1:
C18HOOK
Replacement Part 2:
C18HEEL
Replacement Parts:
C18HOOK C18HEEL
SAE/Metric/Torx:
SAE/Metric
SAP Sales Org Status:
Active
Set:
No
Set?:
No
Shelf Pack Qty.:
3
Size:
0 in 2.875 in;0mm - 73.025mm
Size 01:
0 in 2.875 in;0mm - 73.025mm
Table Description:
18" Cast Iron K9 Jaw Pipe Wrench
Type:
Pipe
UNSPSC:
Pipe wrenches
UNSPSC_V7.0901:
Pipe wrenches
UPC:
037103336514
UPC Code:
037103336514
US Federal Specification:
Meets or Exceeds
Warranty:
Full Lifetime
Weight:
5.690 lb
Weight (Catalog):
5.690 lb
Other Details
25% larger bite surface provides maximum grip helping to increase tooth durability and life
Adjustment ring thread pitch angled for 2x faster opening and closing of wrench jaw
Exceeds federal torque load specification by over 160% for maximum strength and durability
Handle shape optimized for maximum power and user comfort
K9™ jaw technology allows teeth to bite in an arc of 30 degrees for greater access in tight spaces
Optimized cast iron design is up to 10% lighter than competitive wrenches
