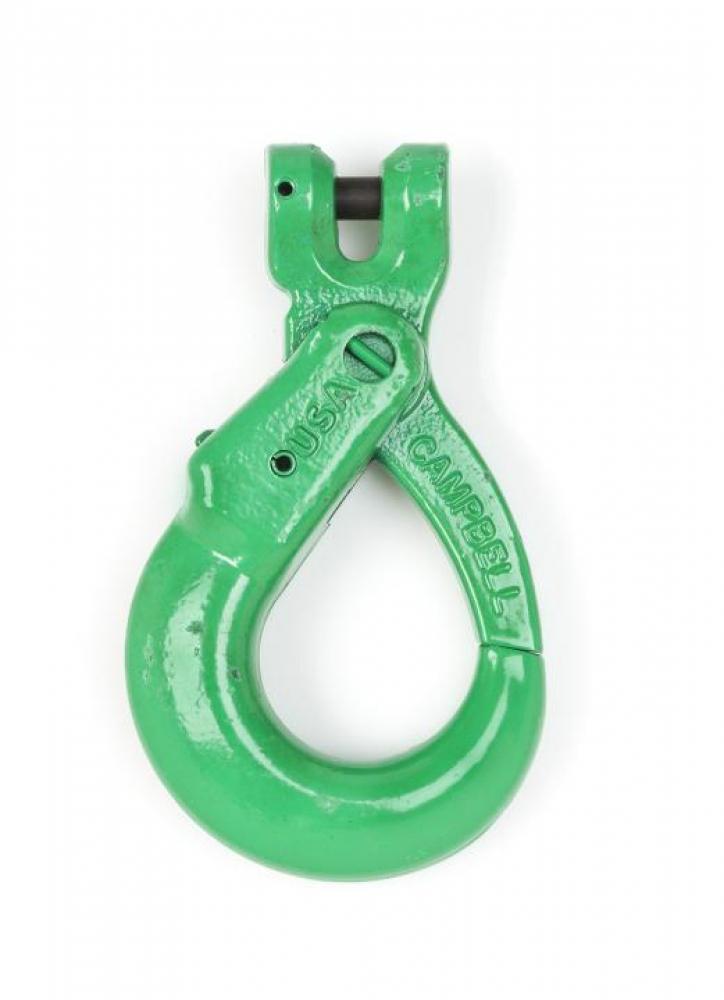

SELF LOCKING HOOK,9/32",CLEVIS,GR 100
Call For Price
- Part Number: 5748495
- UPC: 00020418193309
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
9/32" Quik-Alloy® Self Locking Hook, Grade 100, Painted Green
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Chain and Chain Accessories
Industrial Subtype:
Chain and Cable Hooks
A Dimension:
0.312 in
B Dimension:
0.375 in
Base Unit of Measure:
EA
C Dimension:
0.938 in
Case Pack Qty.:
15
Chain Size:
9/32 in
Country of Origin:
United States
Coupon Headline:
Self-locking Clevis Hooks
D Dimension:
1.02 in
Delivery Unit:
1
E Dimension:
3.594 in
F Dimension:
1.625 in
Foreign Trade Code:
7326908688
G Dimension:
1.00 in
Grade:
100
H Dimension:
0.875 in
Headline:
Self-locking Clevis Hooks
Item Quantity:
15
Item Weight (lbs):
2.350 lb
J Dimension:
1.25 in
Minimum Order Quantity:
1
Packaging:
Industrial Box/Carton
Packaging Type:
Boxed
R Dimension:
4.688 in
Set:
No
Table Description:
9/32" Quik-Alloy® Self Locking Hook, Grade 100, Painted Green
UNSPSC:
Hooks
UPC Code:
020418193309
Weight (SAP):
2.35
Weight Each (lb):
2.35
Working Load Limit:
4300 lb
Other Details
Additionally Hallmarked with "USA" and Date Code
DO NOT EXCEED THE WORKING LOAD LIMIT
Fatigue and 100% Proof Tested in Accordance with ASTM A952
Latch Closes Automatically Under Load
Made in the USA
Meet or Exceed All Requirements of ASME B30.9 and B30.10
Meets the Intent of Osha Regulation 1926.550(G)(4)(Iv)(B)
Trigger Assembly is Completely Replaceable
