![SELF LOCKING HOOK,5/8",EYE,GR 100](/vendors/4857/large/CCN_5648495_MAIN_01.jpg "SELF LOCKING HOOK,5/8",EYE,GR 100")

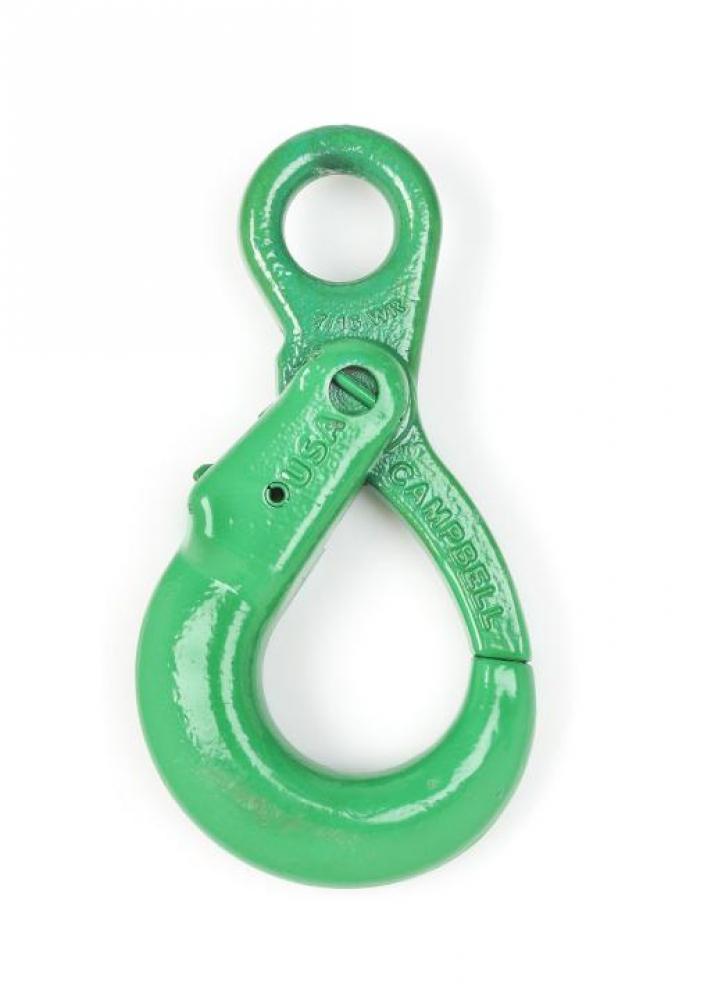

SELF LOCKING HOOK,5/8",EYE,GR 100
Call For Price
- Part Number: 5649095
- UPC: 00020418193293
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
5/8" Cam-Alloy® Eye Self Locking Hook, Grade 100, Painted Green
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Chain and Chain Accessories
Industrial Subtype:
Chain and Cable Hooks
A Dimension:
3.50 in
B Dimension:
2.00 in
Base Unit of Measure:
EA
C Dimension:
1.50 in
Case Pack Qty.:
1
Chain Size:
5/8 in
Country of Origin:
United States
Coupon Headline:
Self-locking Eye Hooks
D Dimension:
2.169 in
Delivery Unit:
1
E Dimension:
6.50 in
F Dimension:
2.375 in
For Wire Rope Size:
7/8 in
Foreign Trade Code:
7326908688
G Dimension:
0.75 in
H Dimension:
1.50 in
Headline:
Self-locking Eye Hooks
Item Weight (lbs):
13.800 lb
J Dimension:
2.00 in
Minimum Order Quantity:
1
Packaging:
Industrial Box/Carton
Packaging Type:
Boxed
R Dimension:
10.00 in
Set:
No
Shelf Pack Qty.:
1
Table Description:
5/8" Cam-Alloy® Eye Self Locking Hook, Grade 100, Painted Green
UNSPSC:
Hooks
UPC Code:
020418193293
Weight (SAP):
13.8
Weight Each (lb):
13.8
Working Load Limit 4 to 1:
22600 lb
Working Load Limit 5 to 1:
18000 lb
Other Details
Additionally Hallmarked with "USA" and Date Code
DO NOT EXCEED THE WORKING LOAD LIMIT
Eye Style is Designed to Accommodate Heavy Duty Wire Rope Thimbles
Fatigue and 100% Proof Tested in Accordance with ASTM A952
Latch Closes Automatically Under Load
Made in the USA
Meet or Exceed All Requirements of ASME B30.9 and B30.10
Meets the Intent of Osha Regulation 1926.550(G)(4)(Iv)(B)
Stamped with Recommended Wire Rope Size
Working Load Limit Rating of 5 to 1 to Meet Design Requirements of Wire Rope Slings
