642-1000 SAC-1 1 TON CLAMP
Call For Price
- Part Number: 6421000
- UPC: 00020418096396
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

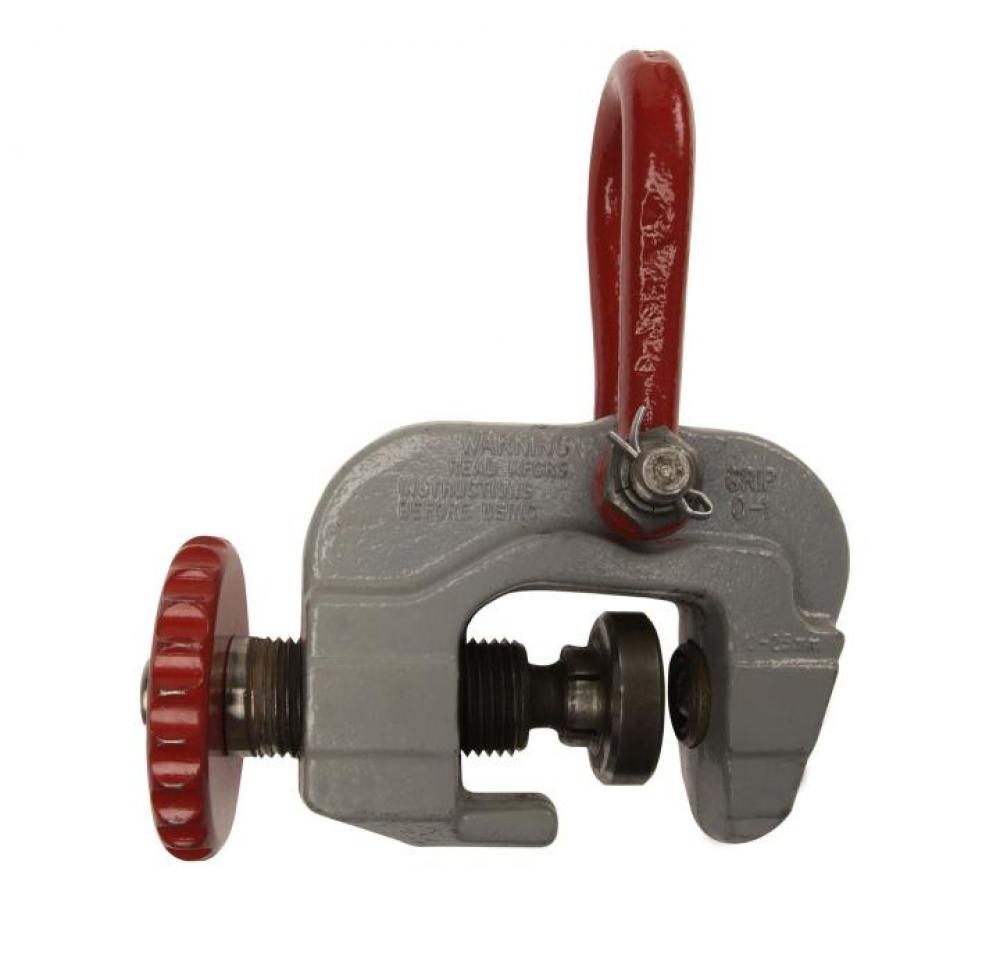

SAC (Screw Adjusted Cam) Plate Clamp, 0" - 1" Grip, 1 ton WLL
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Below-the-Hook Lifting Accessories
Industrial Subtype:
Plate and Beam Lifting Clamps
A Dimension:
5-1/4 in
B Dimension:
7-3/4 in
Base Unit of Measure:
EA
C Dimension:
4 in
Case Pack Qty.:
1
Country of Origin:
United States
Coupon Headline:
SAC (Screw-Adjusted Cam) Plate Clamps
D Dimension:
1-3/4 in
Delivery Unit:
1
E Dimension:
2-7/8 in
F Dimension:
1/2 in
Foreign Trade Code:
8205700090
Grip Range:
0 to 1 in.
H Dimension:
1-1/2 in
Headline:
SAC (Screw-Adjusted Cam) Plate Clamps
Item Weight (lbs):
0.006 lb
J Dimension:
2-1/4 in
Minimum Order Quantity:
1
Model Number:
SAC-1
O Dimension:
6-1/4 in
P Dimension:
1-23/64 in
Packaging:
Boxed
Packaging Type:
Boxed
Set:
No
Table Description:
SAC (Screw Adjusted Cam) Plate Clamp, 0" - 1" Grip, 1 ton WLL
UNSPSC:
Rope and chain and cable and wire and strap
UPC Code:
020418096396
Weight (SAP):
6.42
Weight Each (lb):
6.25
Working Load Limit Metric Ton:
1 t
Other Details
Clamps Are 100% Proof Tested and Certificate of Test Supplied with Each Clamp
Drop Forged Body and Shackle
Minimum WLL of at Least 10% of the Maximum WLL
Recommended for Turning Plates From Horizontal to Vertical As Well As Through A 180° Arc
The Convex, Serrated Cam Swivels on A Ball Joint So That the Area of Cam Engagement Increases As Load Increases
